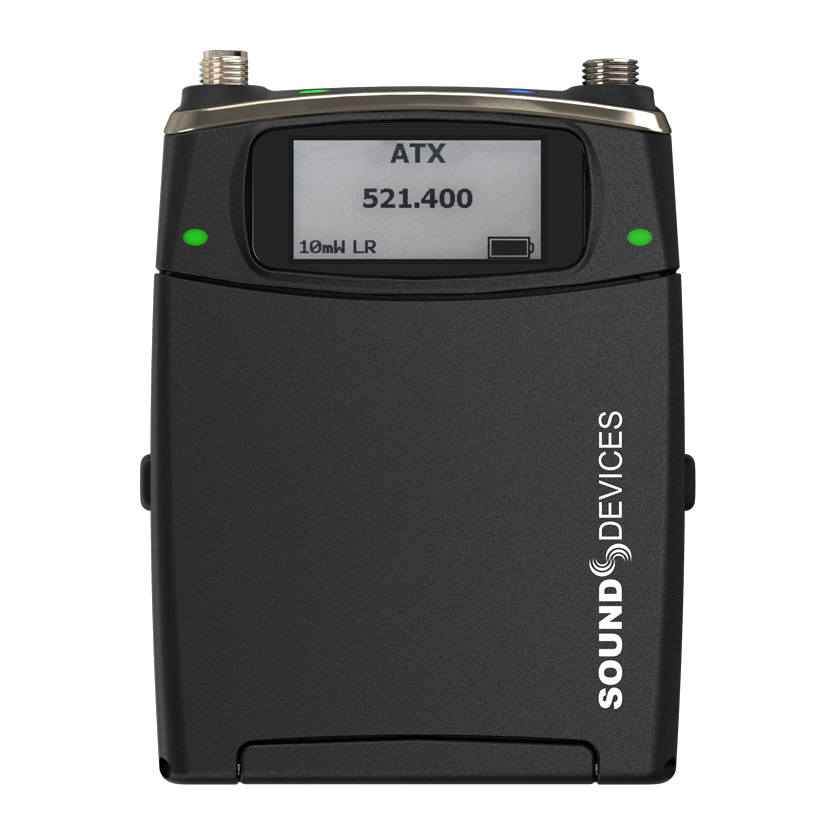

Sound Devices Astral TX Wireless Bodypack Transmitter
Sound Devices Astral TX Wireless Bodypack Transmitter
Sound Devices Astral TX Wireless Bodypack Transmitter

Sound Devices Astral TX Wireless Bodypack Transmitter

Categories: Wireless systems
SKU: Astral TX

Astral TX is the most flexible bodypack in the Astral line, built to accept more source types than a typical wireless transmitter. It’s aimed at mixers who want one unit to cover lavs, balanced mics, line-level sources, digital mics, and even guitar without switching hardware, all through a single Lemo input.

Pairs well with

Technical Specifications

Audio Path

A true balanced mic preamp, drawn from Sound Devices' 8-Series mixers, gives the input stage significant headroom and low noise compared to earlier transmitters in the line. Gain is set entirely downstream at the mixer or receiver, so there's nothing to adjust on the transmitter itself once it's deployed.

Connectivity

The Lemo input handles two- or three-wire lavs, balanced mic and line signals, AES3 and AES42 digital sources, and guitar when paired with the optional Smart Guitar Cable. This lets one transmitter cover multiple roles across a rig instead of carrying several dedicated units.

Battery and Build

Runtime reaches up to 12 hours depending on battery type and RF settings, with support for standard AA cells or rechargeable lithium-ion batteries charged in place over USB-C. A physically removable, user-programmable switch is available for productions that need a manual control on the transmitter itself.

Applications

Suited to production sound, live music, theatre, and broadcast productions that need one transmitter to handle several different source types.

Key Specifications

  • Tuning Range: 169-1525 MHz (SpectraBand), tunable in 25 kHz steps
  • RF Output Power: Off, 2, 10, 20, or 40 mW
  • Audio Bandwidth: 10 Hz to 20 kHz, plus/minus 1 dB
  • Inputs: 2-wire/3-wire lavalier, balanced mic, line-level, AES3, AES42, and guitar (with Smart Guitar Cable)
  • Mic Preamp: True balanced 8-Series preamp, 140 dB min dynamic range
  • Battery: 3x AA (alkaline, NiMH, or lithium primary) or 1-3x rechargeable Li-Ion, up to 12 hours runtime
  • Charging: Built-in USB-C charging for Li-Ion cells
  • Internal Recording: 32-bit float, 48 kHz, microSD card, Broadcast WAV/RF64
  • Remote Control: Astral Remote app via Bluetooth 5.2 LE; NexLink from Astral ARX32, ARX16, or ARX8
  • Dimensions: 8.5 x 6.4 x 1.81 cm (H x W x D)
  • Weight: 98 g without batteries
