Astral Mini Plus is the updated version of Sound Devices' compact bodypack transmitter, aimed at theatre, film, broadcast, and live productions that need an all-day, weatherproof unit. It keeps the same small ergonomic shell as the original Mini while extending battery life, tuning range, and durability, with an IP67-rated housing for sweat and humidity protection.

Pairs well with

Technical Specifications

RF Performance

The tuning window extends down into VHF, covering 169-1525 MHz overall, which opens up spectrum options in regions where UHF bands are crowded or restricted. It shares NexLink long-range remote control with the rest of the Astral line, so it pairs with the same receivers used for other transmitters in a rig.

Battery and Build

One or two rechargeable cells give 8+ hours of runtime, topped off through a built-in USB-C port without pulling the batteries out.

Control and Workflow

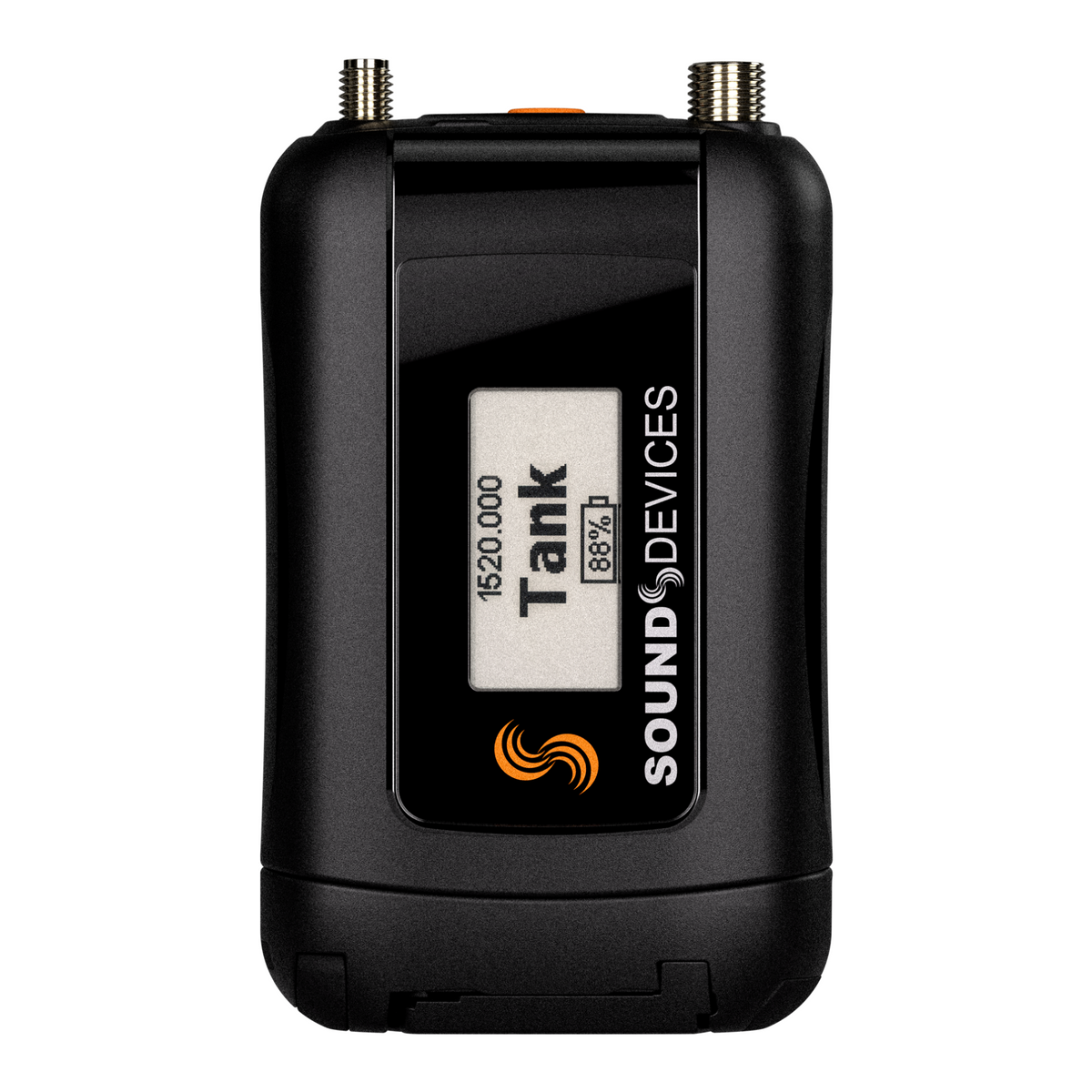

Setup uses tap-to-pair RFID with the companion app, and a sunlight-readable ePaper display keeps status visible even with no power connected. A vibrate-to-locate function helps identify a specific unit in a larger multi-transmitter deployment.

Applications

Suited to theatre, location sound, live music, and broadcast productions needing a compact, weatherproof transmitter for long days.

Key Specifications

  • Tuning Range: 169-1525 MHz (SpectraBand)
  • RF Output Power: 5, 10, or 20 mW
  • Battery: 1 or 2x XL-B14500 rechargeable cells, 8+ hours runtime at 20 mW
  • Charging: Built-in USB-C
  • Water Resistance: IP67 waterproof and sweatproof
  • Internal Recording: 32-bit float, 48 kHz, 64 GB onboard storage (approx. 80 hours)
  • Lavalier Compatibility: 2-wire and 3-wire lav microphones
  • Remote Control: NexLink from compatible Astral receivers; Astral Remote app via Bluetooth with tap-to-pair RFID
  • Display: Sunlight-readable ePaper, visible even when unpowered
  • Antenna Connector: SSMA
