Sound Devices Astral HH Control Rings Accessory
Sound Devices Astral HH Control Rings Accessory
Sound Devices Astral HH Control Rings Accessory

Sound Devices Astral HH Control Rings Accessory

Categories: Microphone accessories
SKU: Astral HH Control Bundle

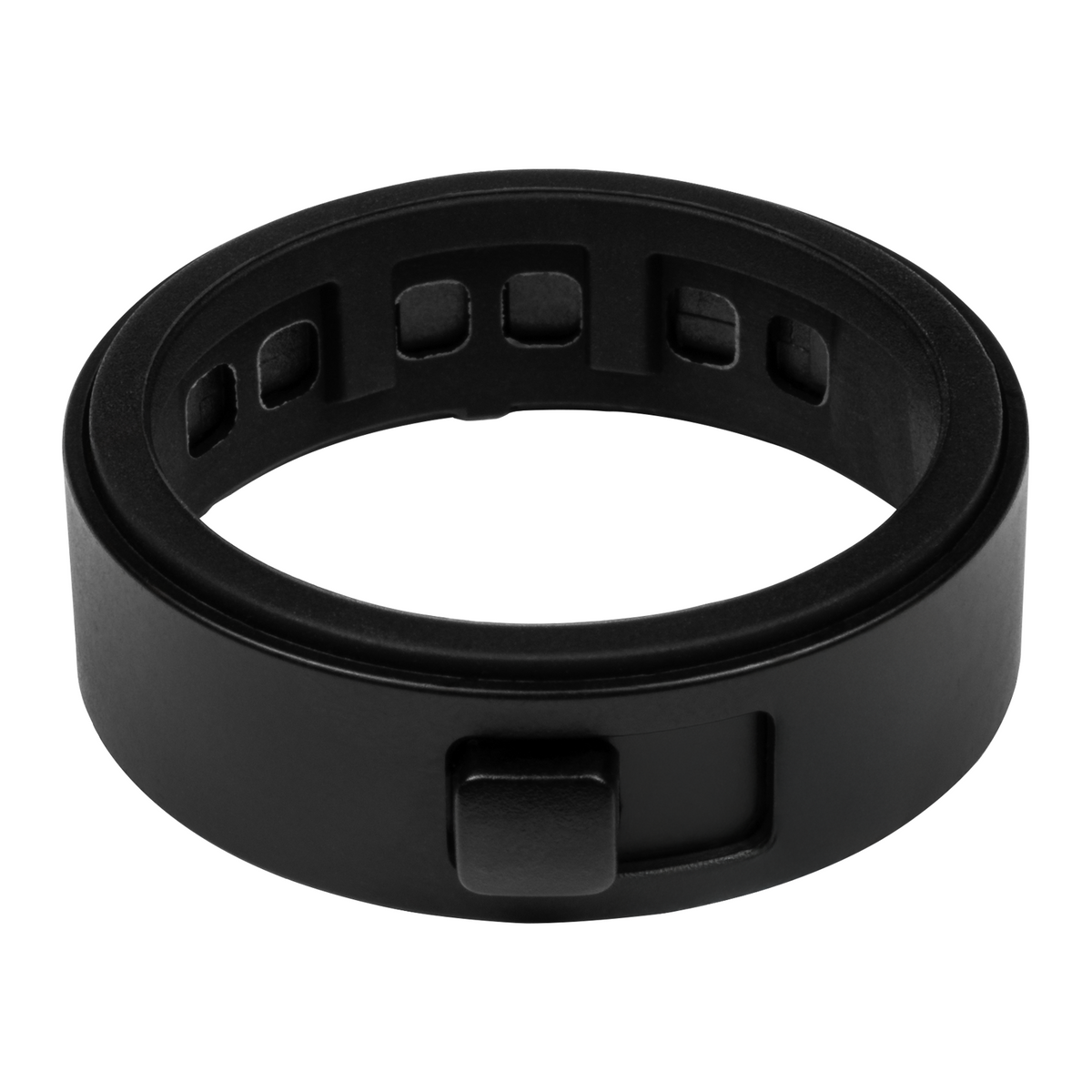

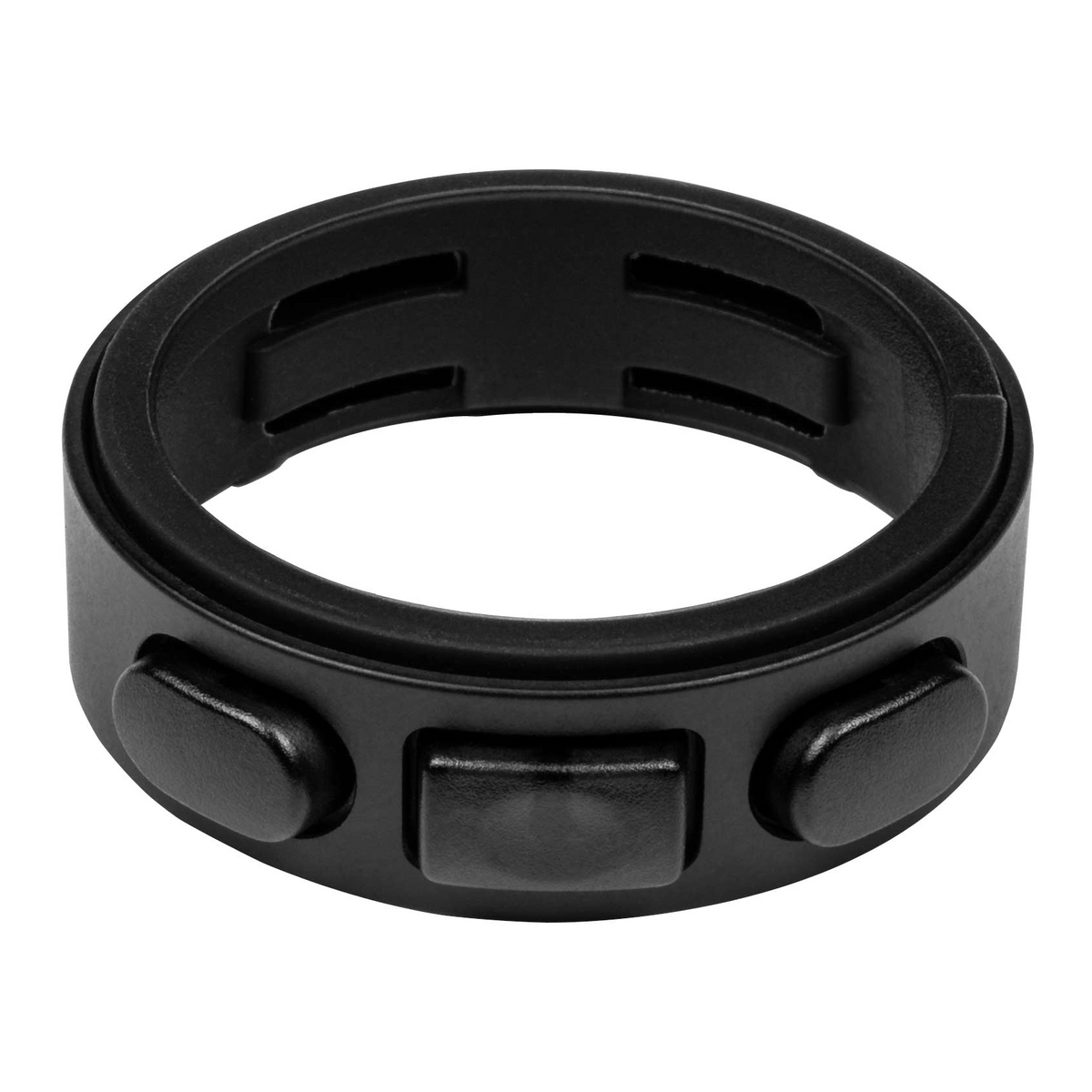

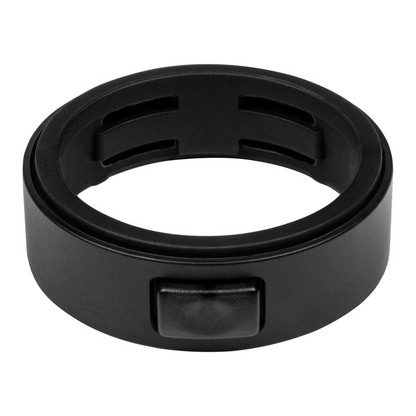

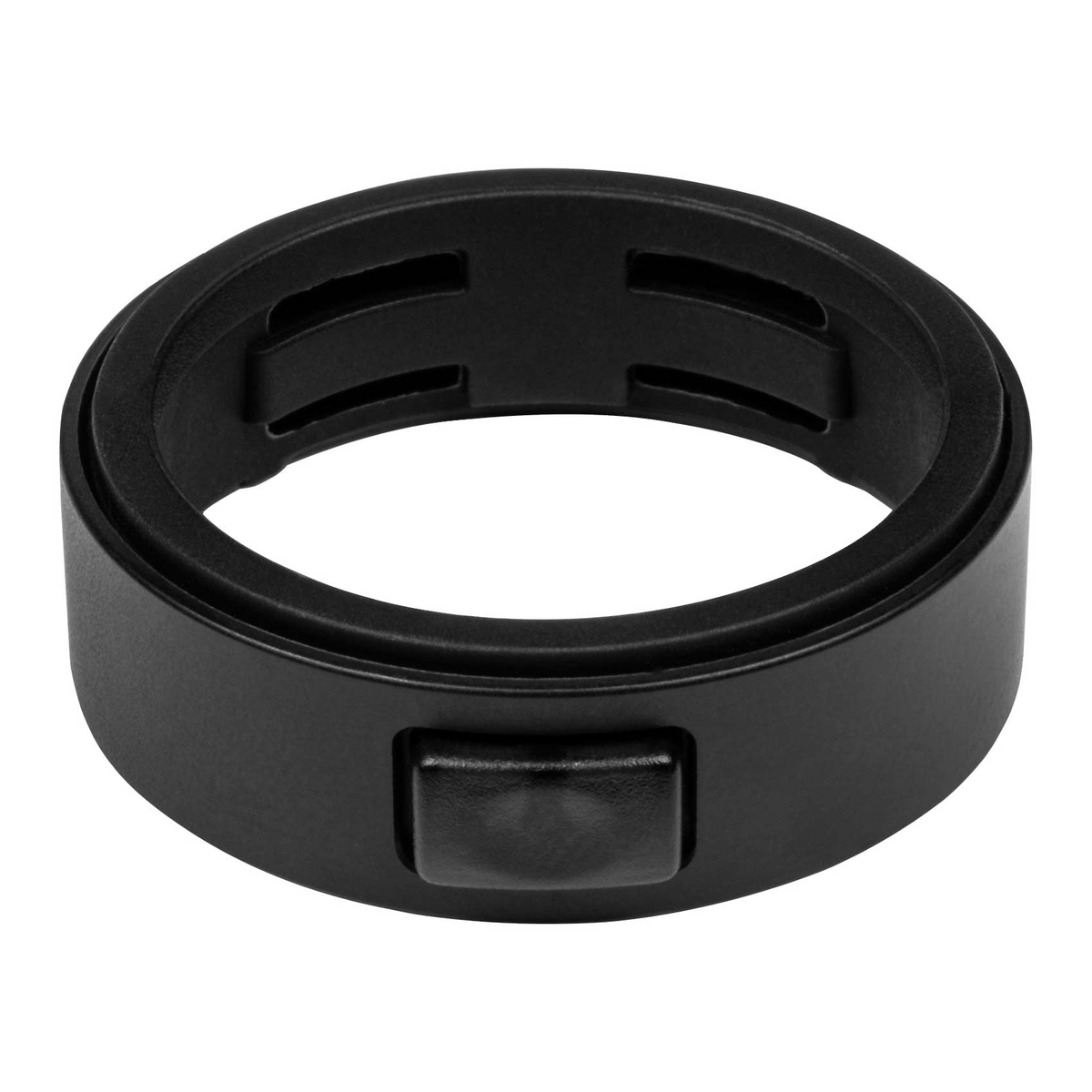

Astral HH Control Rings are swappable spare-part rings that change the physical control layout on the Astral HH handheld transmitter. They let an operator move between a fully clean mic body and one with buttons or a switch, without touching the transmitter’s core hardware.

Pairs well with

Technical Specifications

Control and Workflow

Each ring type offers a different physical control set, from none through to one button, three buttons, or a slide switch, and every button or switch position is assigned its function from the Astral HH's own settings menu. Assignable commands include mute, record, power, and RF on/off, along with an Aux routing command that can trigger a receiver to reroute audio, useful for on-the-fly talkback between a performer and a monitor engineer.

Applications

Useful for touring productions, houses of worship, and theatre companies that want to standardise on a specific control layout across their Astral HH microphones, or keep spares on hand for quick swaps between shows.

Key Specifications

  • Function: Interchangeable physical control ring for the Astral HH handheld transmitter
  • Models: Control Blank, Control 0, Control 1, Control 3, Control Switch
  • Control 0: No buttons; multicolour status/audio level LED (supplied as standard)
  • Control 1: One programmable push button with multicolour LED
  • Control 3: Three programmable push buttons, each with multicolour LED
  • Control Switch: One latching slide switch with six-segment multicolour LED bar
  • Configurable Commands: On/off, mute, record, power, RF on/off, Aux audio routing, and more
  • Compatibility: Astral HH handheld transmitter only
