Categories: Microphone accessories
SKU: Astral Guitar Box

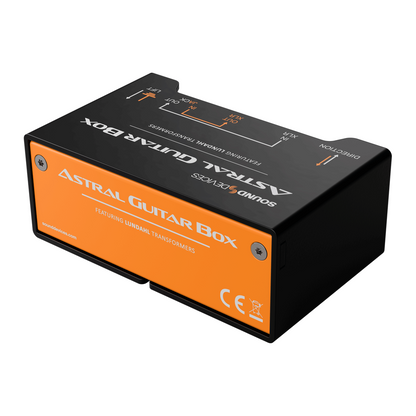

The Astral Guitar Box bridges the balanced outputs of an Astral ARX16 or ARX32 receiver to the unbalanced 1/4-inch inputs of guitar amps and pedals. It’s built for wireless guitar and bass setups where cable runs are long enough that unbalanced connections would otherwise pick up noise or hum.

Pairs well with

Technical Specifications

Audio Path

At its core is a Lundahl LL1540 transformer, chosen for handling the balanced-to-unbalanced conversion with minimal added distortion across a wide frequency range. The idea is that any colouration in the signal chain should come from the amp and pedals, not from the interface carrying the signal to them.

Connectivity

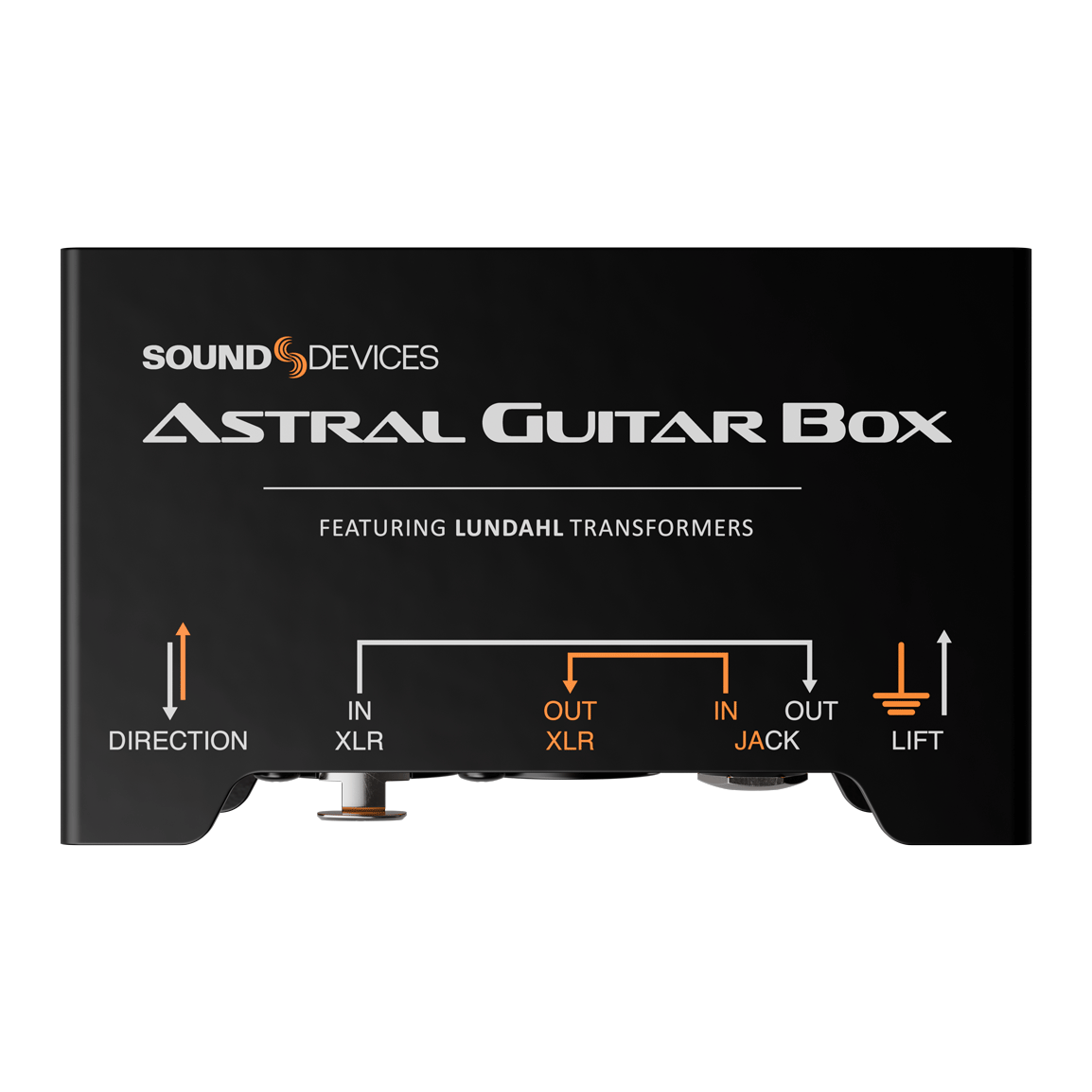

A direction switch lets the box run either way, XLR in to 1/4-inch out, or 1/4-inch in to XLR out, so it can also be used to keep a pedalboard-to-amp run fully balanced over a long distance. This flexibility makes it useful on both sides of a wireless guitar rig.

Applications

Built for touring guitar and bass rigs, house of worship stage setups, and any production running an Astral wireless guitar system where amps or pedalboards sit some distance from the receiver.

Key Specifications

  • Function: Bi-directional balanced/unbalanced signal interface, XLR to 1/4 inch or 1/4 inch to XLR
  • Transformer: Lundahl LL1540, 47 g core material
  • Frequency Response: 5 Hz to 50 kHz, plus/minus 0.2 dB
  • Compatibility: Astral ARX16 and Astral ARX32 receivers

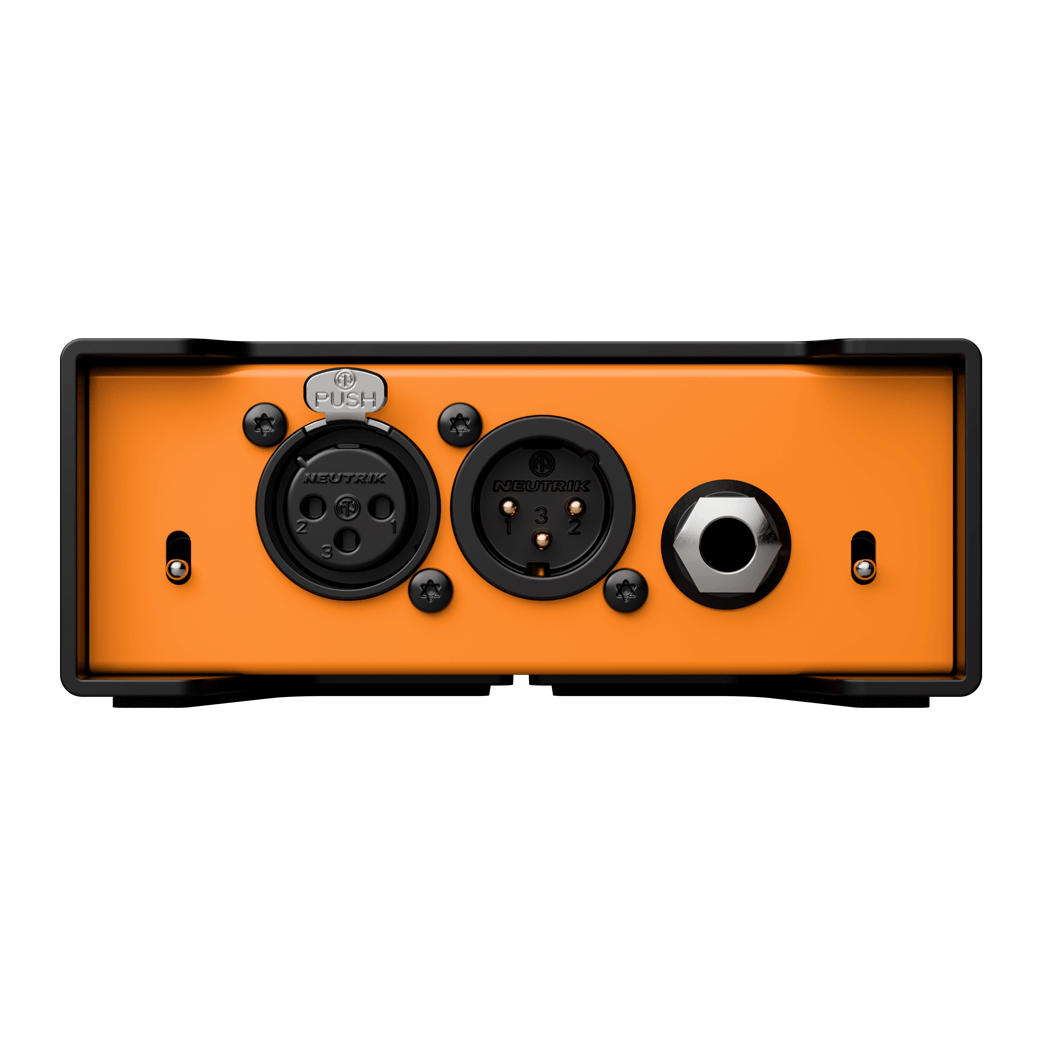

  • Connectors: 1x XLR, 1x 1/4 inch TS jack, direction switch
  • Shielding: Electrostatic shielding between winding layers; full mu-metal shield around coils
  • Chassis: Rubber base for stable placement and mounting
