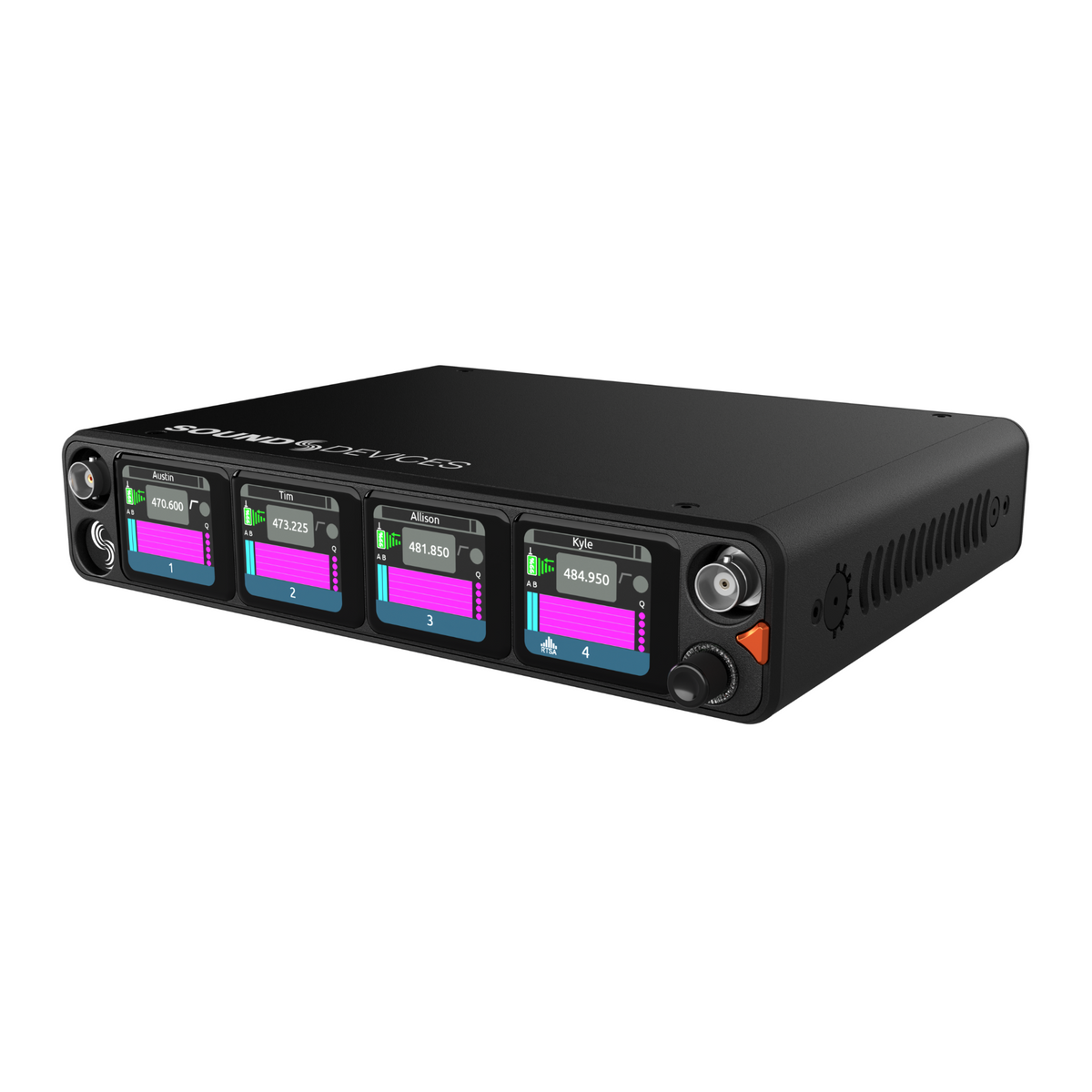

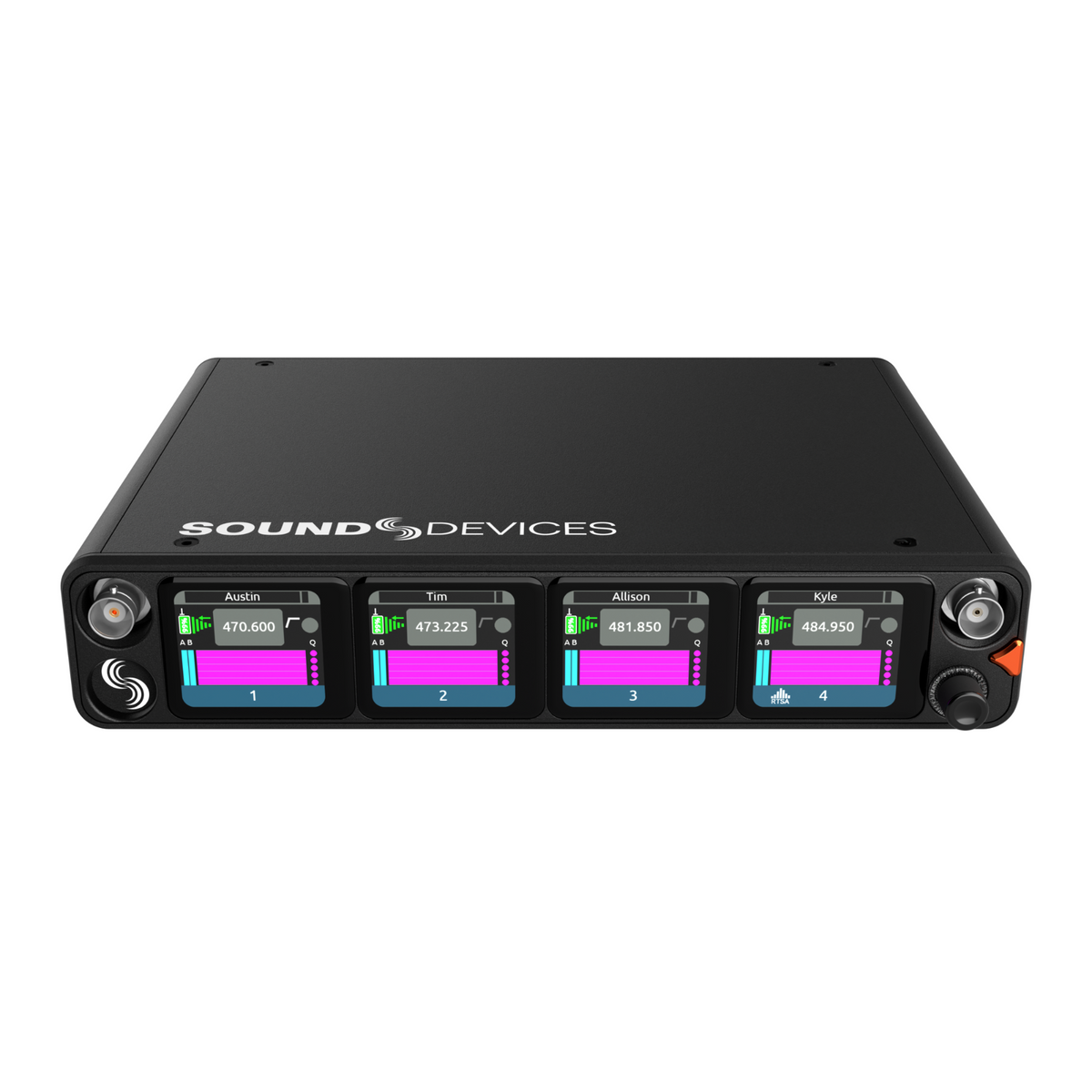

Sound Devices Astral ARX8 4- to 8-Channel Wireless Receiver
Sound Devices Astral ARX8 4- to 8-Channel Wireless Receiver
Sound Devices Astral ARX8 4- to 8-Channel Wireless Receiver

Sound Devices Astral ARX8 4- to 8-Channel Wireless Receiver

Categories: Wireless systems
SKU: Astral ARX8

The Astral ARX8 is the smallest receiver in the Astral line, built for bag work and other setups where every ounce and inch counts. It starts at four channels and scales to eight through software licensing, without any added hardware, and docks tool-free with compatible 8-Series mixer-recorders.

Pairs well with

Technical Specifications

RF Performance

A global tuning range and onboard spectrum analyser make it possible to find open frequencies quickly, even in busy RF environments. NexLink gives long-range remote control of paired transmitters directly from the receiver.

Connectivity

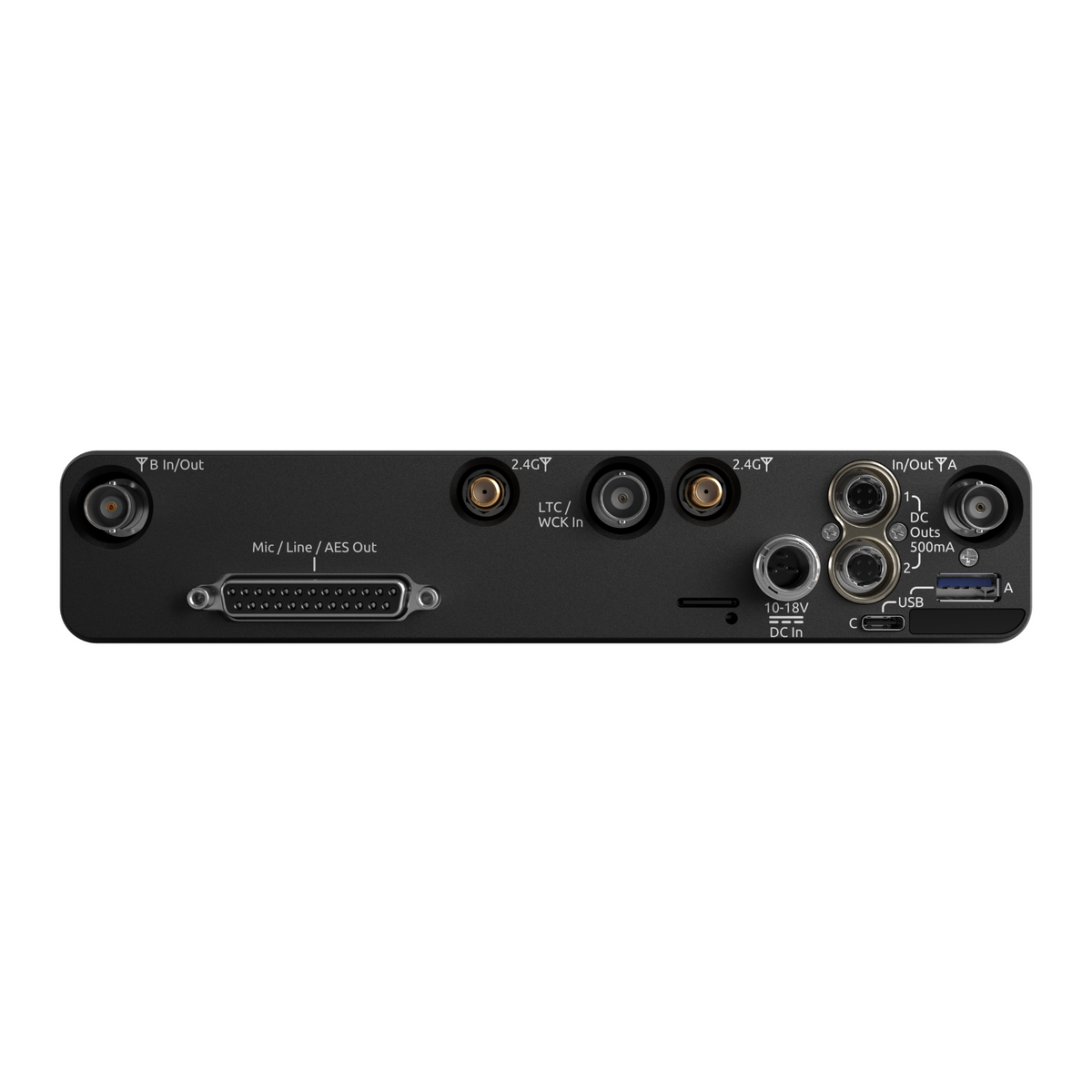

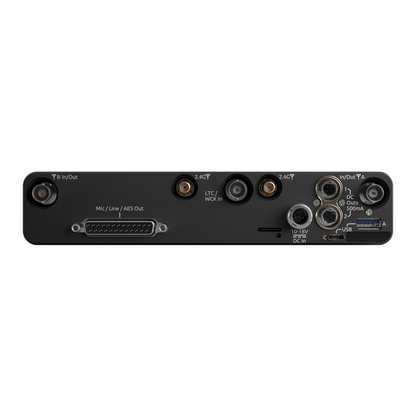

Output runs through a single DB-25 connector carrying up to eight channels of mic, line, or AES audio, keeping cabling simple for a bag or small cart rig. A front-panel USB-A port supports transmitter pairing, timecode syncing, and file transfer.

Control and Workflow

A 6.2-inch touchscreen handles setup and monitoring on the fly. Cascade-out BNCs allow linking multiple ARX8 units together for larger channel counts.

Applications

Suited to production sound bag work, ENG, documentary shoots, and any setup that needs to move fast without a full rack.

Key Specifications

  • Channel Count: 4 channels standard, expandable to 6 or 8 via software licence
  • Diversity: True-diversity receiver
  • Tuning Range: 169-1525 MHz (SpectraBand)
  • Analogue/AES Outputs: Single DB-25 connector, 8 channels of mic, line, or AES
  • Rack Size: Half-rack, 8.0 x 6.6 x 1.6 inch / 20.3 x 16.8 x 4.1 cm
  • Powering: DC input, 8-Series, or AC mains (optional adapter)
  • Remote Control: NexLink, including group power on/off
  • Display: 6.2 inch colour OLED touchscreen with integrated RTSA
  • USB: USB-A for thumb drives, keyboards, transmitter pairing, and timecode syncing
