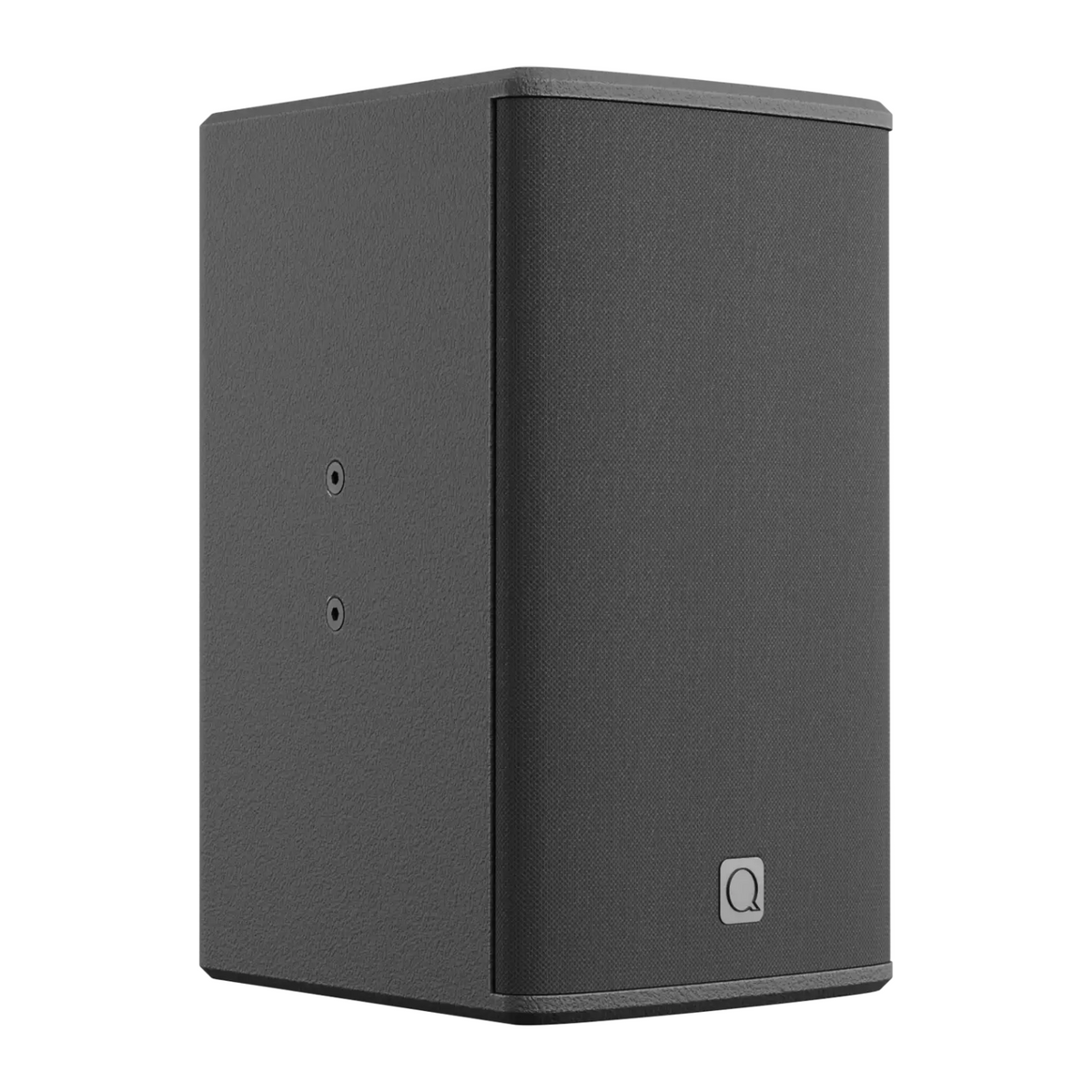

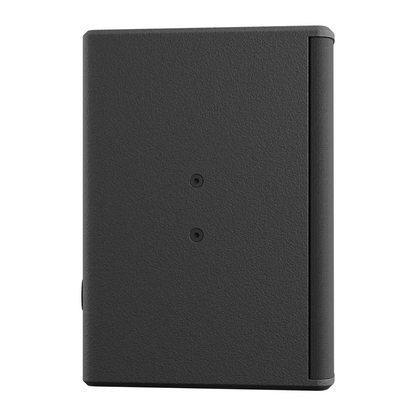

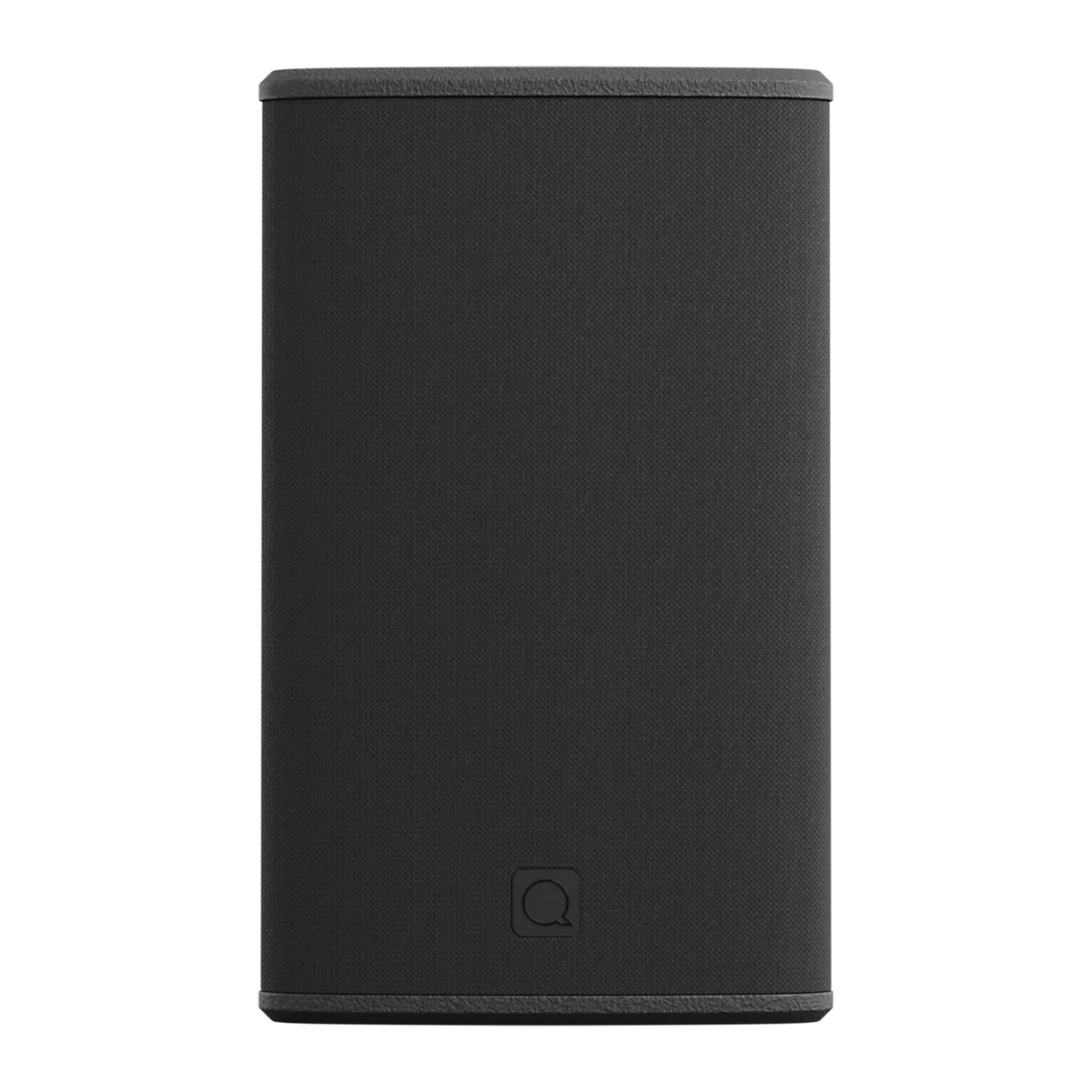

Quest Qi5 2-Way 5-Inch Installation Loudspeaker

Driver Configuration

A 1-inch compression driver sits above a 5-inch woofer, delivering 120 x 80 degree coverage from a rotatable horn that can be reoriented on site.

Build and Mounting

The cabinet is marine plywood with a polyurea coating, finished with a steel mesh grille and polyester fibre fabric. Ships with a Euroblock connector and cover plate; horizontal and vertical U-mount brackets are sold separately.

Amplifier Compatibility

Runs at 16 ohms and is recommended for use with Quest QX or QXD amplifiers.

Applications

A natural fit for bars, restaurants, and other intimate commercial spaces where cabinet size and finish quality matter as much as output.

Key Specifications

• Driver Configuration: 1" compression driver, 5" woofer
• Impedance: 16 ohms
• Dispersion / Horn: 120 x 80 degrees, rotatable horn
• Power Handling (RMS/Peak): 135W / 270W
• Frequency Response (-6dB): 75Hz to 20kHz
• Sensitivity (1W @ 1m): 91.4dB
• Maximum SPL @ 1m: 118.7dB
• Mounting and Included Brackets: Euroblock connector and cover plate included; horizontal (HBRQi5) and vertical (VBRQi5) brackets sold separately
• Cabinet Material and Finish: Marine plywood with polyurea coating; steel mesh grille with polyester fibre fabric
• Amplifier Compatibility: Quest QX or QXD Series amplifiers
• Dimensions: 280 x 168 x 200mm (H x W x D)
• Weight: 5.7kg
