Brand: Quest
Categories: Point source & monitors
SKU: MX6CB

The MX6C steps up the ceiling range of the MX Series with a 6-inch woofer, extending bass response while keeping the same acoustic voicing as the wall-mounted MX speakers. It’s built for venues that want consistent tonal balance between ceiling and wall coverage, pairing a 1-inch dome tweeter with the larger driver for wider dynamic range than the MX4C.

Pairs well with

Technical Specifications

Build and Mounting

The fire-resistant aluminium back can carries a black powder-coated finish, with a removable rimless magnetic grille in black or white. Ships with grille, cut-out tool, cable restraint and a spare locking tab; ceiling tile rail and ceiling ring are available separately.

Amplifier Compatibility

Switchable between 16 ohms and 70/100V operation, recommended for use with Quest QX or QXD amplifiers.

Applications

A strong fit for corporate, retail, and hospitality installs needing matched wall-and-ceiling coverage.

Key Specifications

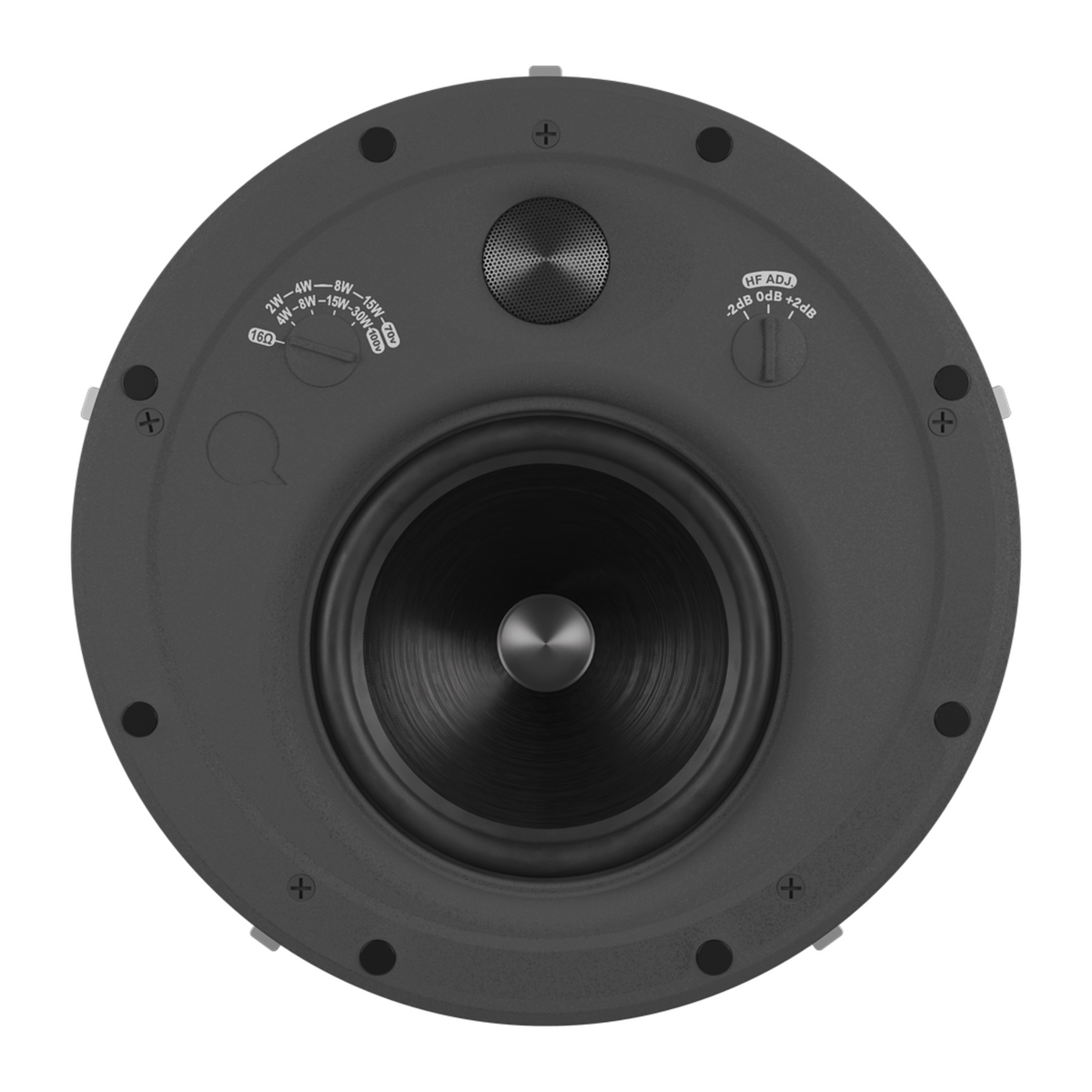

  • Driver Configuration: 1-inch dome tweeter, 6-inch woofer

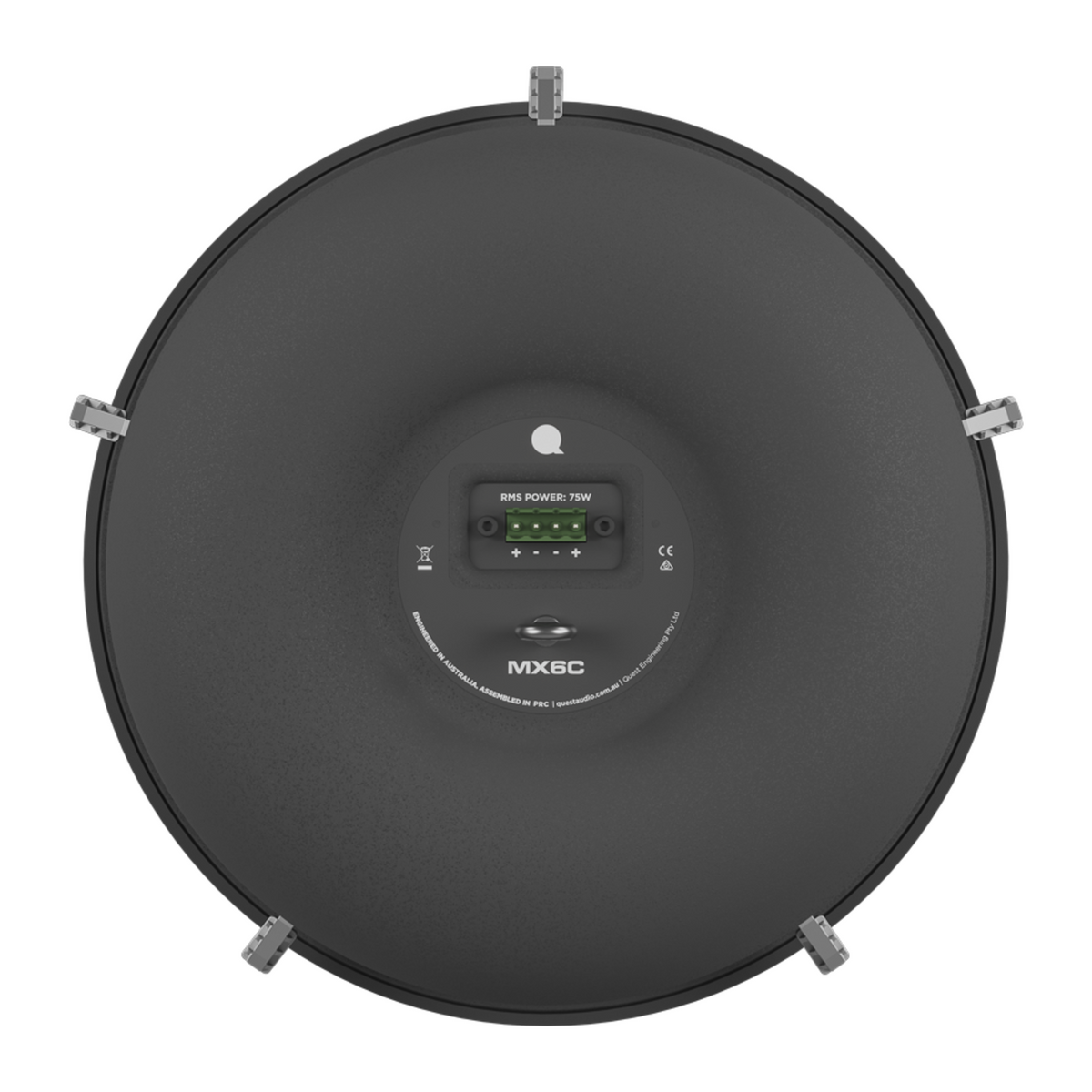

  • Impedance: 16 ohms, or 70V (5/10/15/20W) / 100V (10/20/30/40W) line taps
  • Dispersion: 130 degrees conical, directivity index 3dB
  • Power Handling (RMS/Peak): 75W / 150W
  • Frequency Response (-6dB): 70Hz to 20kHz
  • Sensitivity (1W @ 1m): 91dB
  • Maximum SPL @ 1m: 113dB

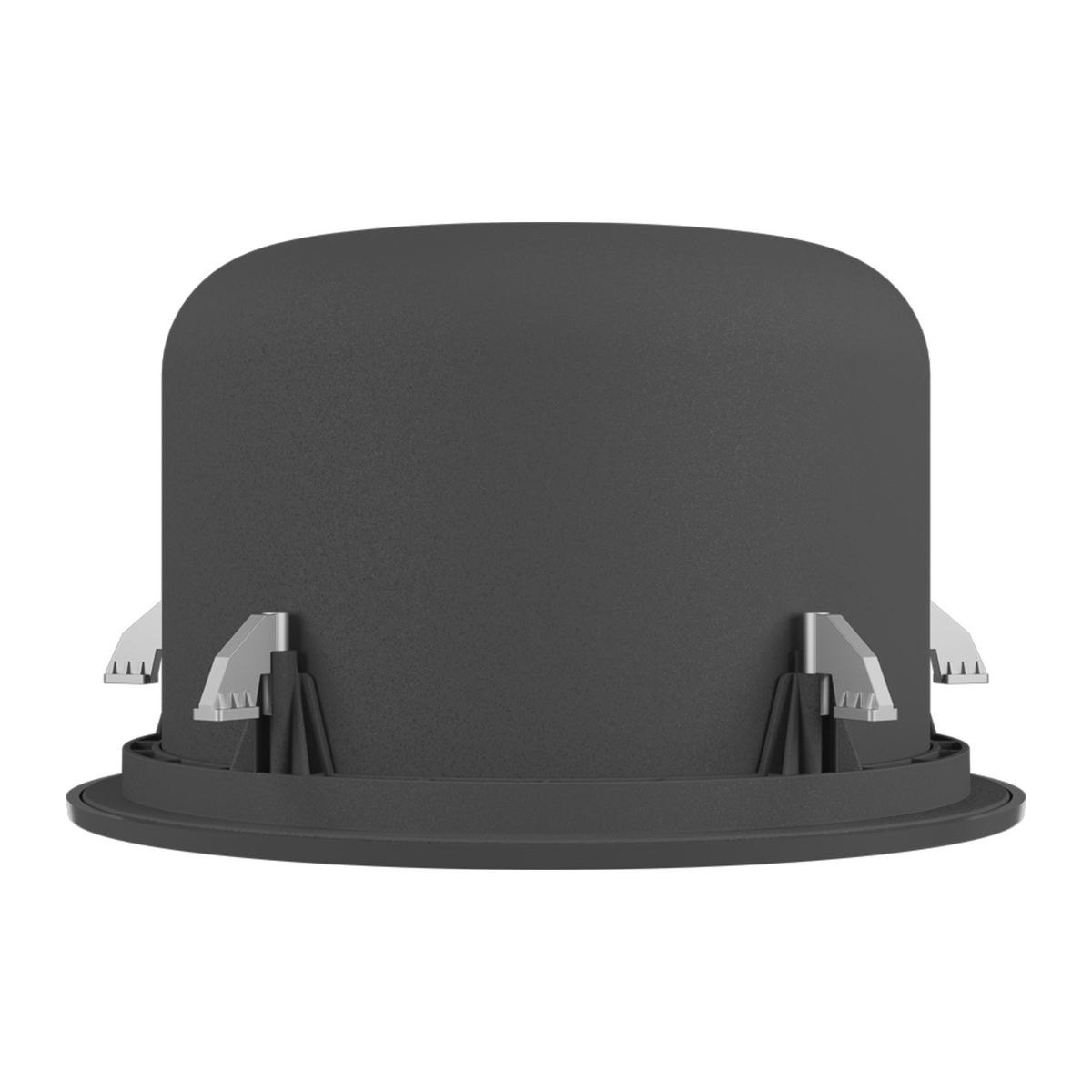

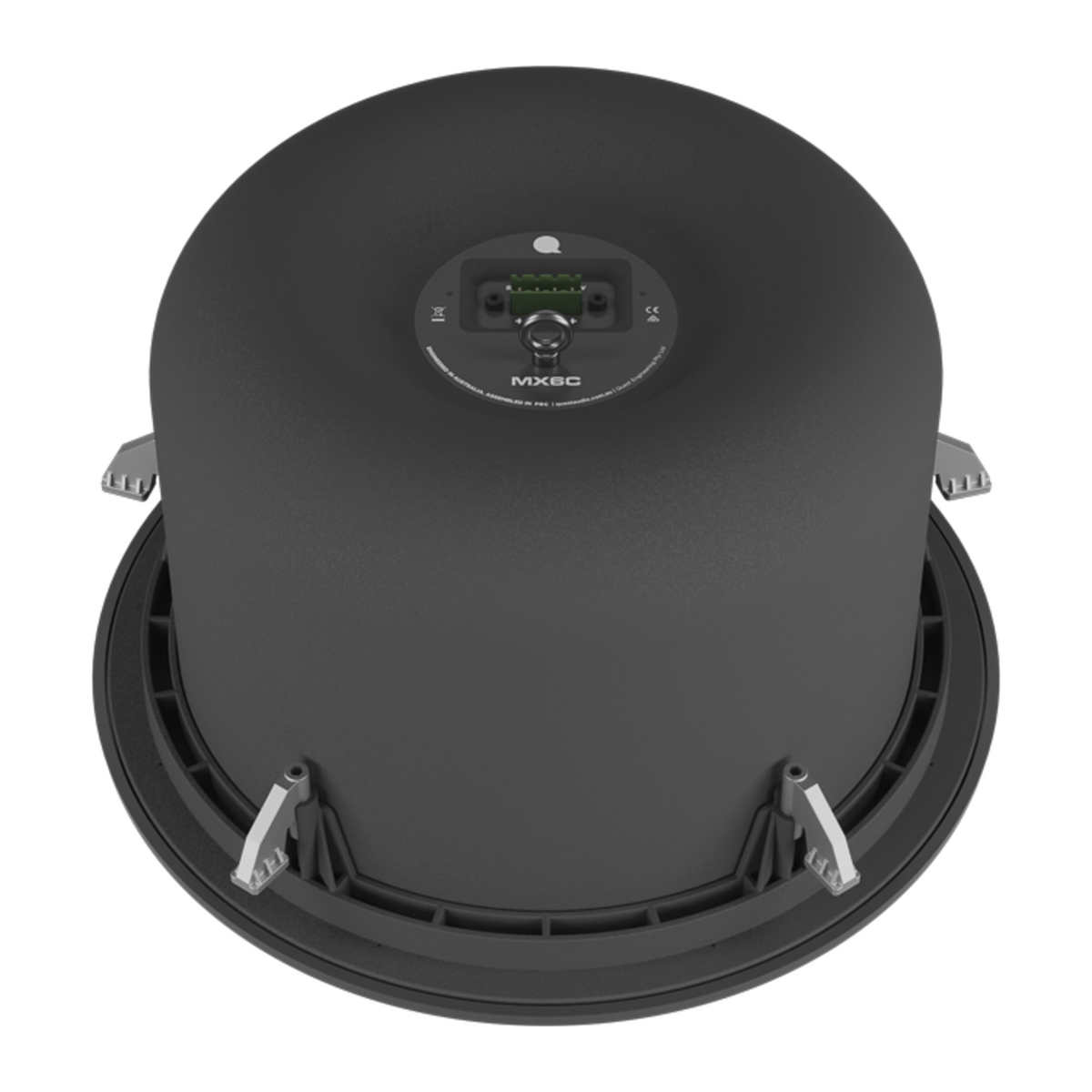

  • Mounting and Included Brackets: Ceiling cut-out mount, 254mm cut-out diameter; grille, cut-out tool, cable restraint and spare locking tab included; optional Ceiling Tile Rail (QRAIL) and Ceiling Ring (QRING6)
  • Cabinet Material and Finish: Fire-resistant aluminium back can, black powder-coated finish; removable rimless magnetic grille in white or black
  • Amplifier Compatibility: Quest QX or QXD Series amplifiers
  • Dimensions: 288 x 166mm (W x D)
  • Weight: 2.9kg
