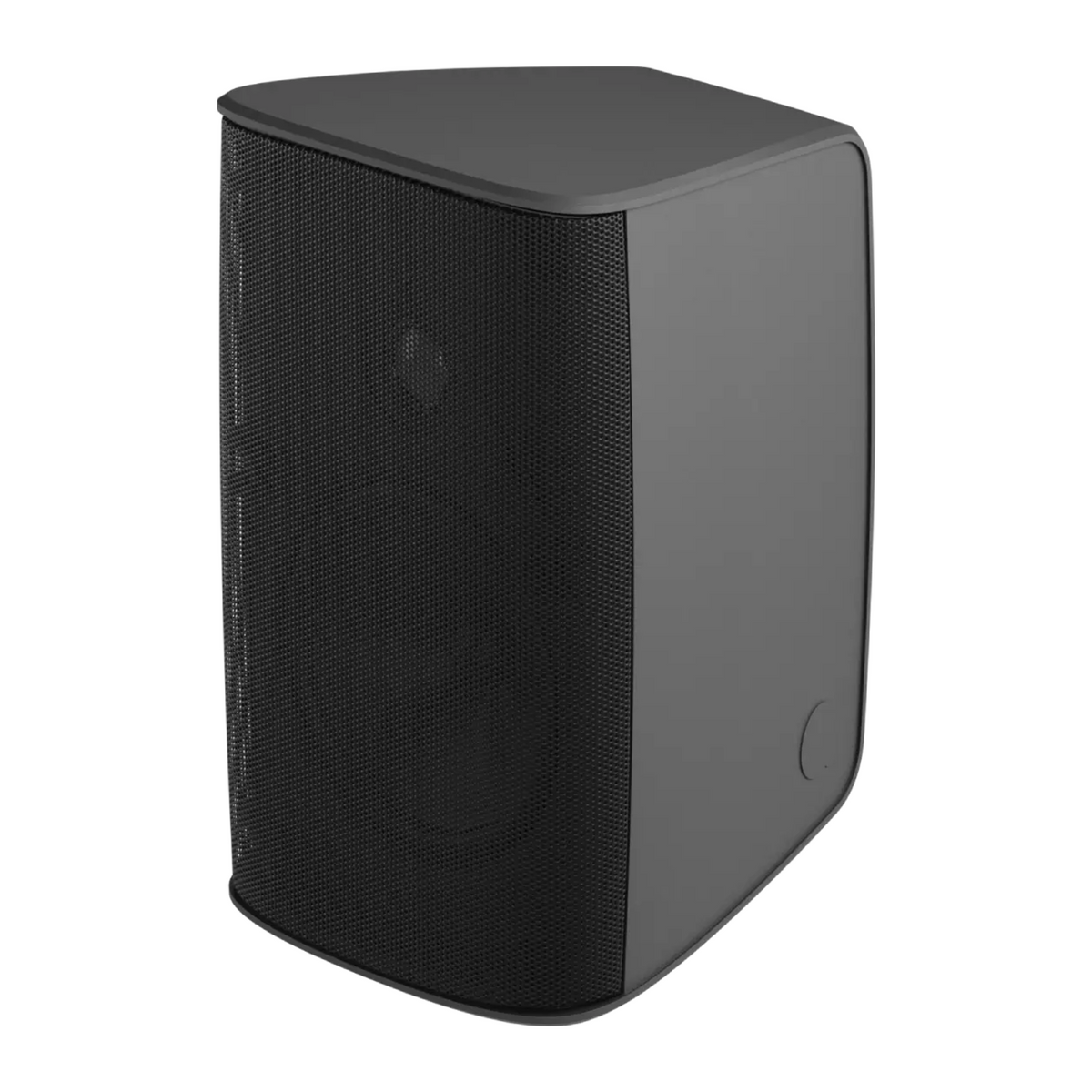

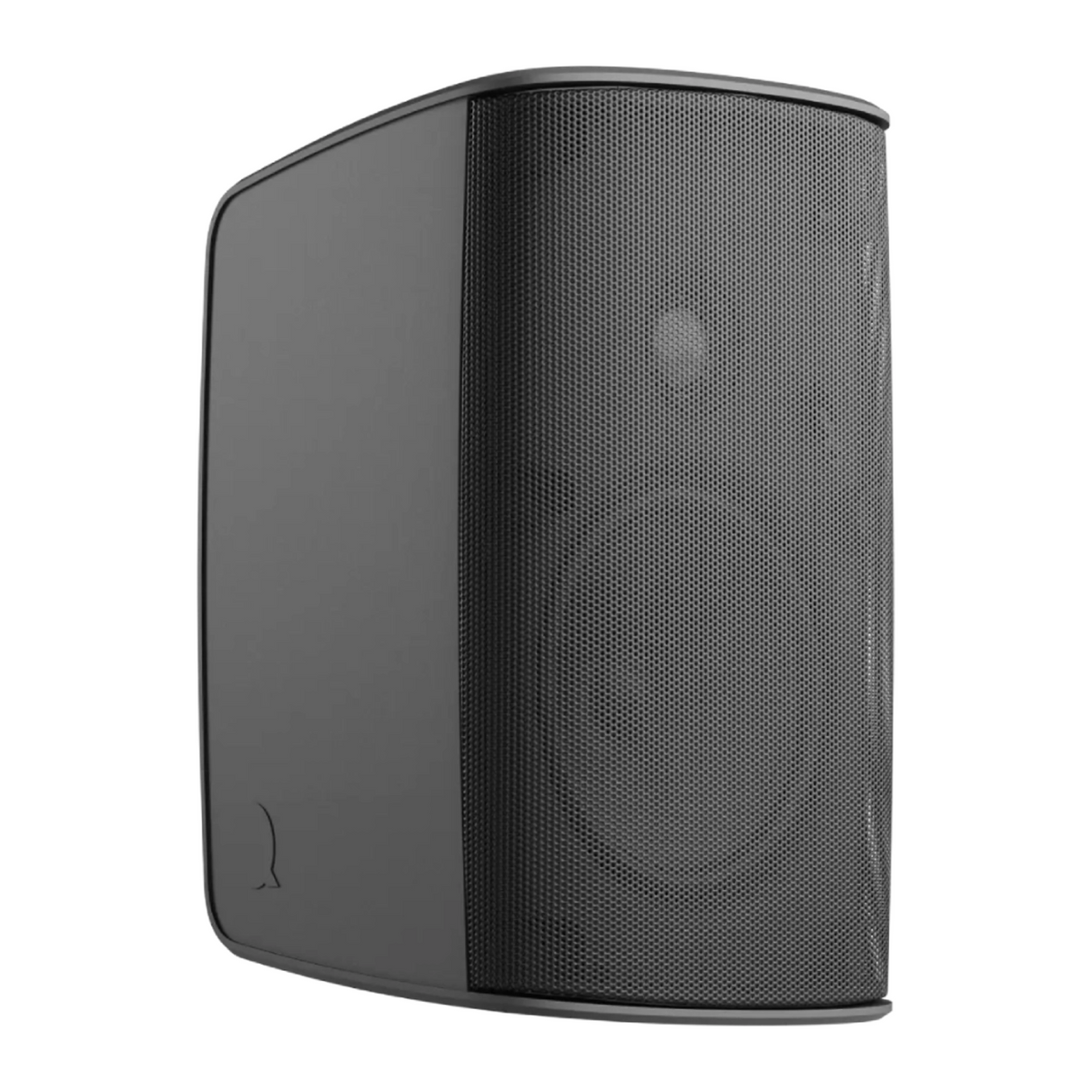

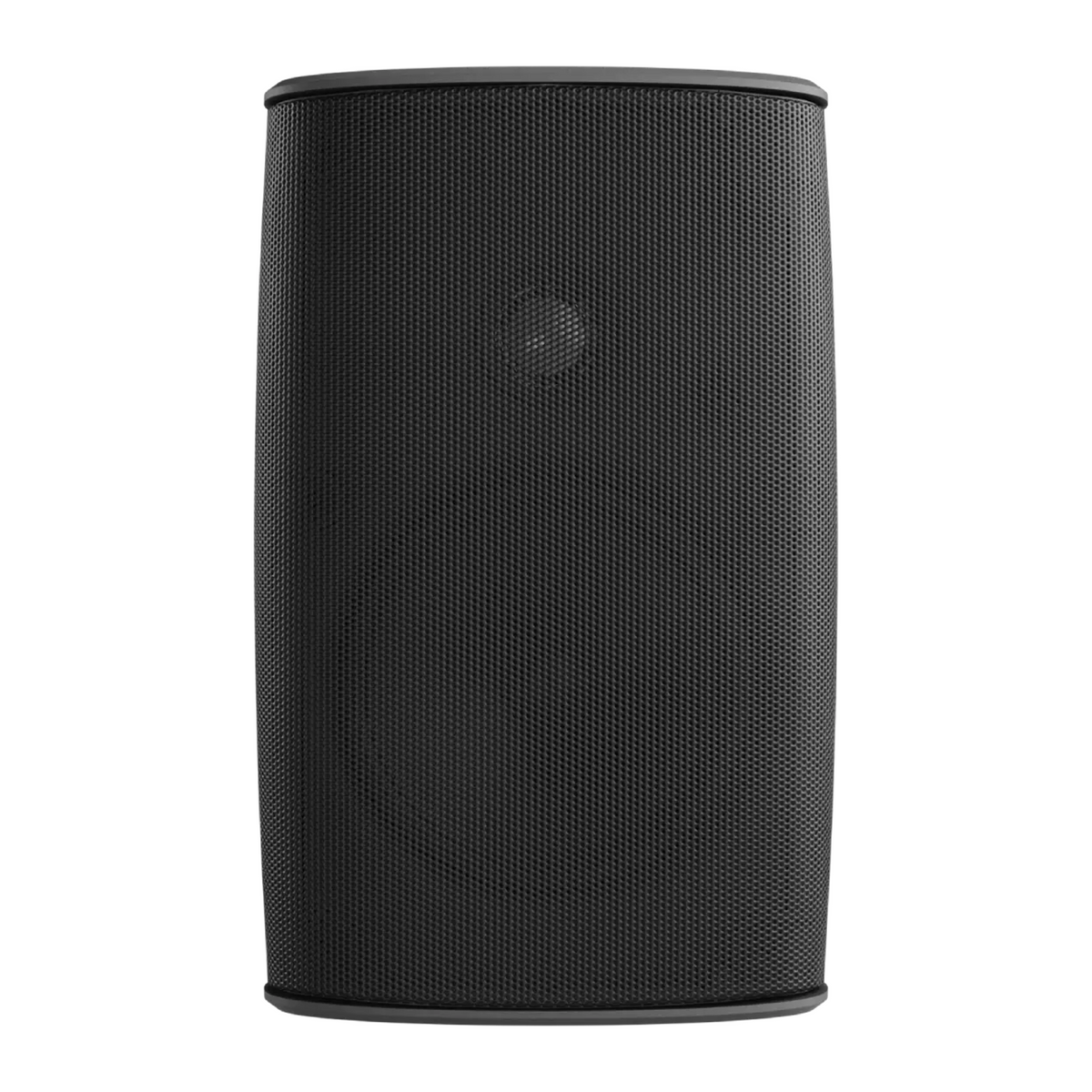

Quest MX6 2-Way 6-Inch Weatherproof Loudspeaker
Quest MX6 2-Way 6-Inch Weatherproof Loudspeaker
Quest MX6 2-Way 6-Inch Weatherproof Loudspeaker

Quest MX6 2-Way 6-Inch Weatherproof Loudspeaker

Brand: Quest
Categories: Point source & monitors
SKU: MX6B

The MX6 is a mid-size weatherproof surface-mount loudspeaker in the MX Series, sitting between the MX4 and MX8 for installs that need more low-end extension than the compact model while staying discreet. A 1-inch dome tweeter and 6-inch woofer combine for a wider, more extended frequency response than the MX4.

Pairs well with

Technical Specifications

Weatherproofing

Built from injection-moulded ASA with a corrosion-resistant grille, rated IP55 standalone or IP65 with the included weatherproof connector cover.

Build and Mounting

A wall mount bracket (black or white) is included for quick aim-and-clamp positioning, with a ceiling mount bracket available as an option.

Amplifier Compatibility

Operates at 16 ohms or 70/100V and is recommended for use with Quest QX or QXD amplifiers.

Applications

Well suited to corporate, retail, hospitality, and government installs needing weatherproof, mid-format coverage.

Key Specifications

  • Driver Configuration: 1-inch dome tweeter, 6-inch woofer
  • Impedance: 16 ohms, or 100V (10/20/30/40W) line taps
  • Dispersion: 150 x 125 degrees
  • Power Handling (RMS/Peak): 60W / 120W
  • Frequency Response (-6dB): 90Hz to 20kHz
  • Sensitivity (1W @ 1m): 86dB
  • Maximum SPL @ 1m: 108dB
  • IP/Weather Rating: IP55 standalone, IP65 with included weatherproof connector cover
  • Mounting and Included Brackets: Wall mount bracket (UB1X) included in black or white; optional ceiling mount bracket (UB2X)
  • Cabinet Material and Finish: Injection-moulded ASA cabinet, removable powder-coated aluminium grille
  • Amplifier Compatibility: Quest QX or QXD Series amplifiers
  • Dimensions: 308 x 183 x 211mm (H x W x D)
  • Weight: 4.0kg
