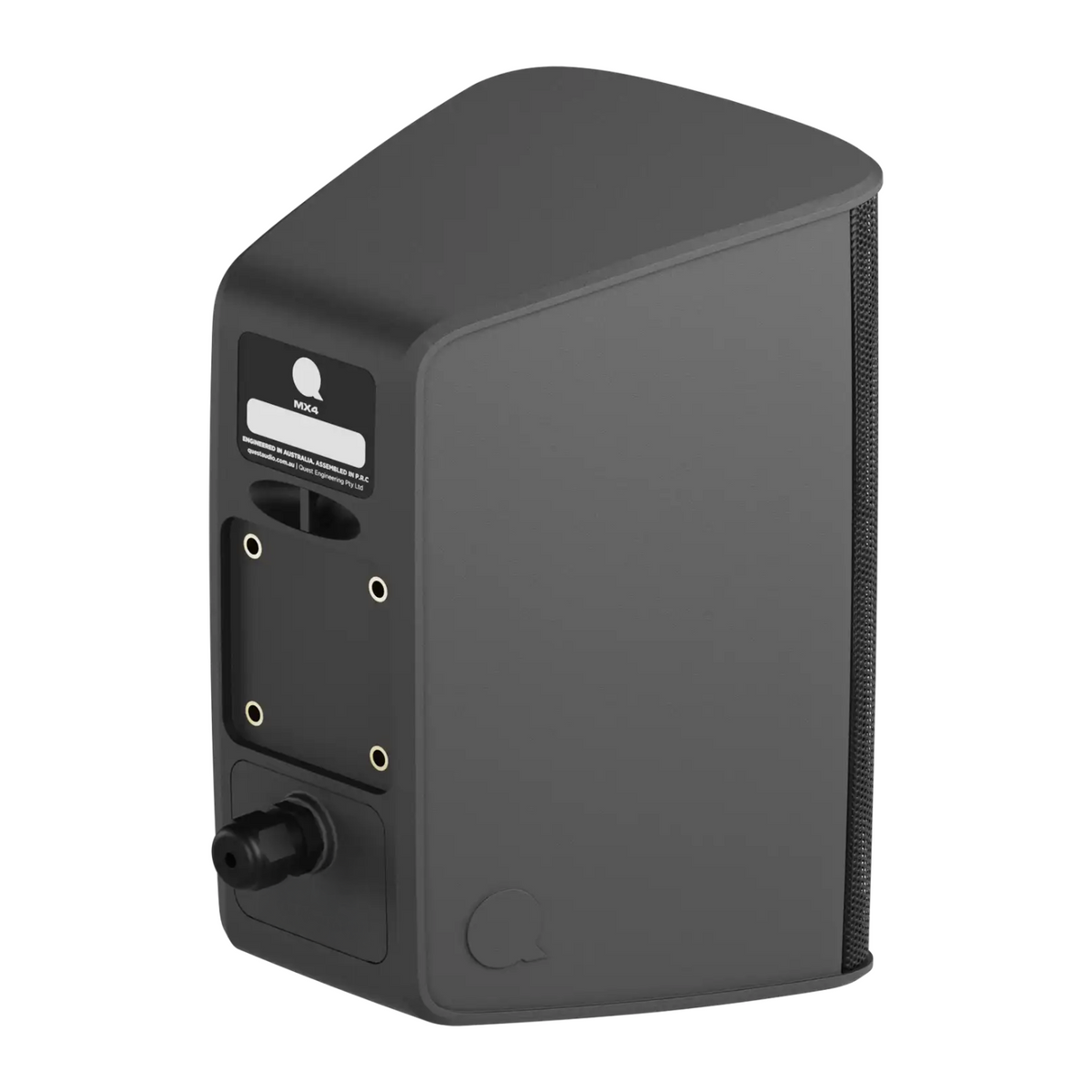

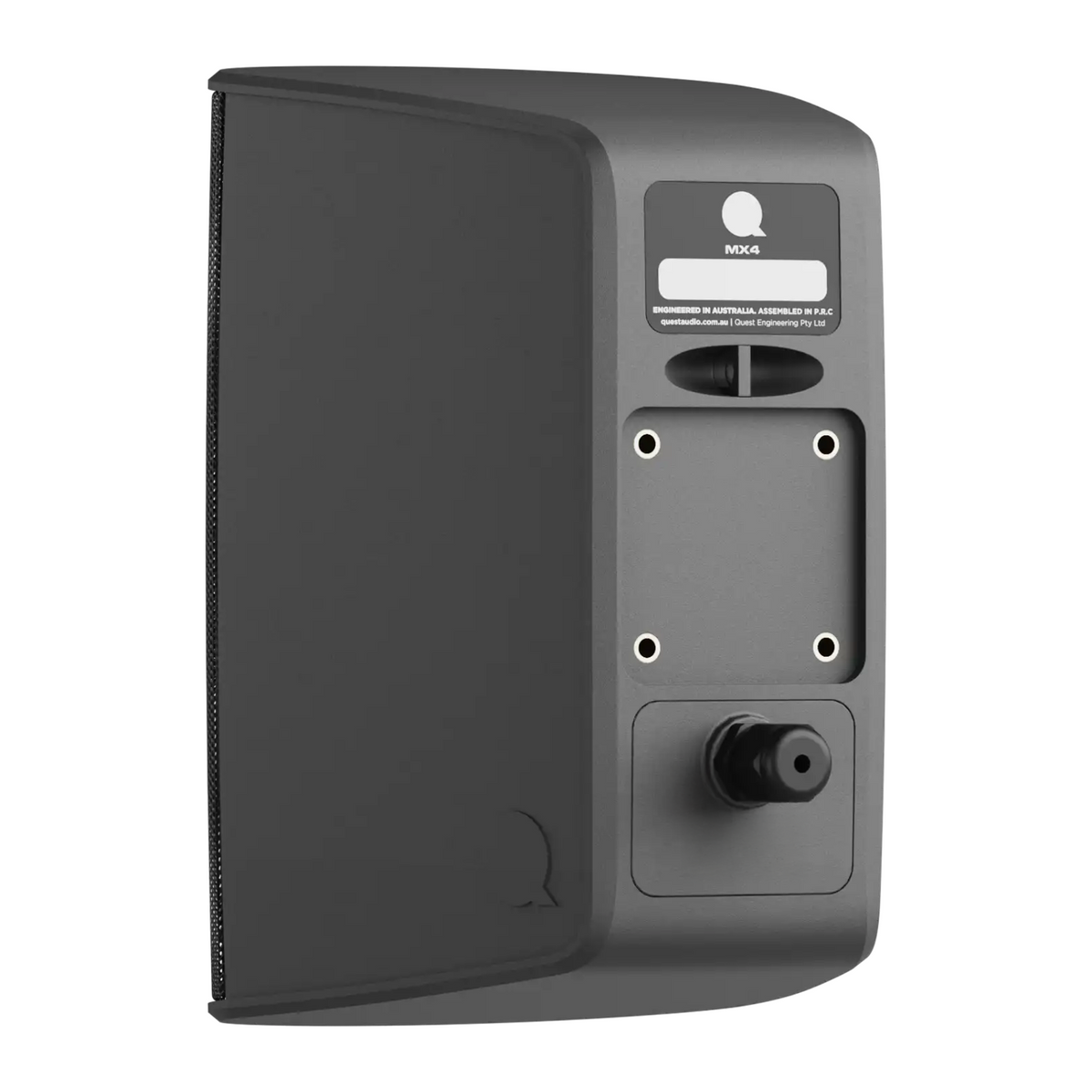

Quest MX4 2-Way 4-Inch Weatherproof Loudspeaker
Quest MX4 2-Way 4-Inch Weatherproof Loudspeaker

Quest MX4 2-Way 4-Inch Weatherproof Loudspeaker

Brand: Quest
Categories: Point source & monitors
SKU: MX4B

The MX4 is the smallest surface-mount model in the MX Series, built for outdoor and weather-exposed installs where a compact, low-profile enclosure is needed without giving up durability. It pairs a 1-inch dome tweeter with a 4-inch woofer for clear mid-to-high frequency detail in a small format, and is designed to integrate tonally with the rest of the MX range.

Pairs well with

Technical Specifications

Weatherproofing

An injection-moulded ASA cabinet with a powder-coated aluminium grille is rated IP55 on its own, or IP65 when fitted with the included weatherproof connector cover.

Build and Mounting

Ships with a wall mount bracket (available in black or white) plus weatherproof and standard connector covers; an optional ceiling mount bracket is sold separately, letting the same enclosure serve wall or ceiling installs.

Amplifier Compatibility

Runs at 16 ohms or 70/100V line level and is recommended for pairing with Quest QX or QXD amplifiers.

Applications

Suited to outdoor corporate, retail, hospitality, and government installations needing weather-resistant coverage.

Key Specifications

  • Driver Configuration: 1-inch dome tweeter, 4-inch woofer
  • Impedance: 16 ohms, or 100V (4/8/15/30W) line taps
  • Dispersion: 150 x 125 degrees
  • Power Handling (RMS/Peak): 50W / 100W
  • Frequency Response (-6dB): 100Hz to 20kHz
  • Sensitivity (1W @ 1m): 86dB
  • Maximum SPL @ 1m: 106dB
  • IP/Weather Rating: IP55 standalone, IP65 with included weatherproof connector cover
  • Mounting and Included Brackets: Wall mount bracket (UB1X) included in black or white; optional ceiling mount bracket (UB2X)
  • Cabinet Material and Finish: Injection-moulded ASA cabinet, removable powder-coated aluminium grille
  • Amplifier Compatibility: Quest QX or QXD Series amplifiers
  • Dimensions: 250 x 150 x 172mm (H x W x D)
  • Weight: 2.6kg
