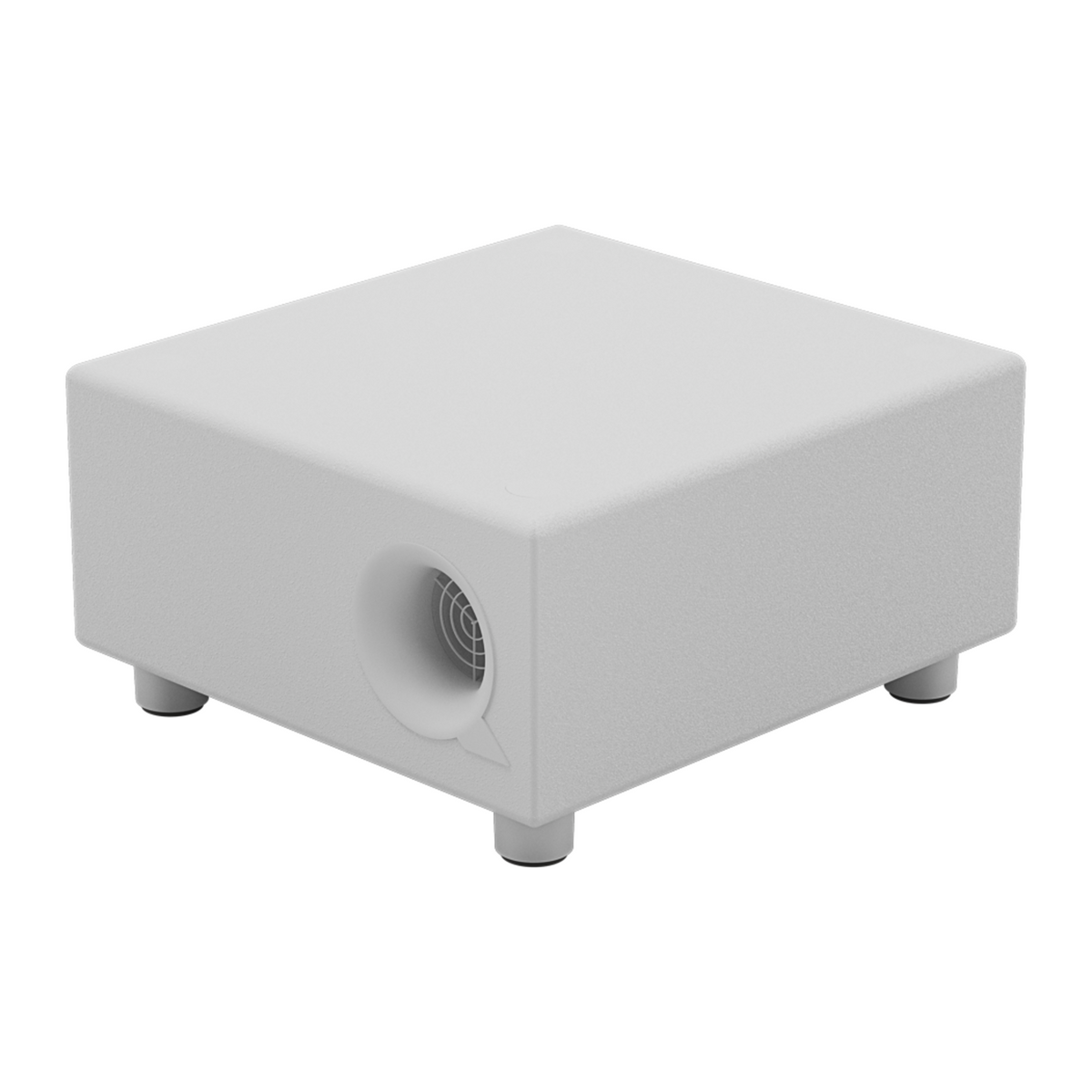

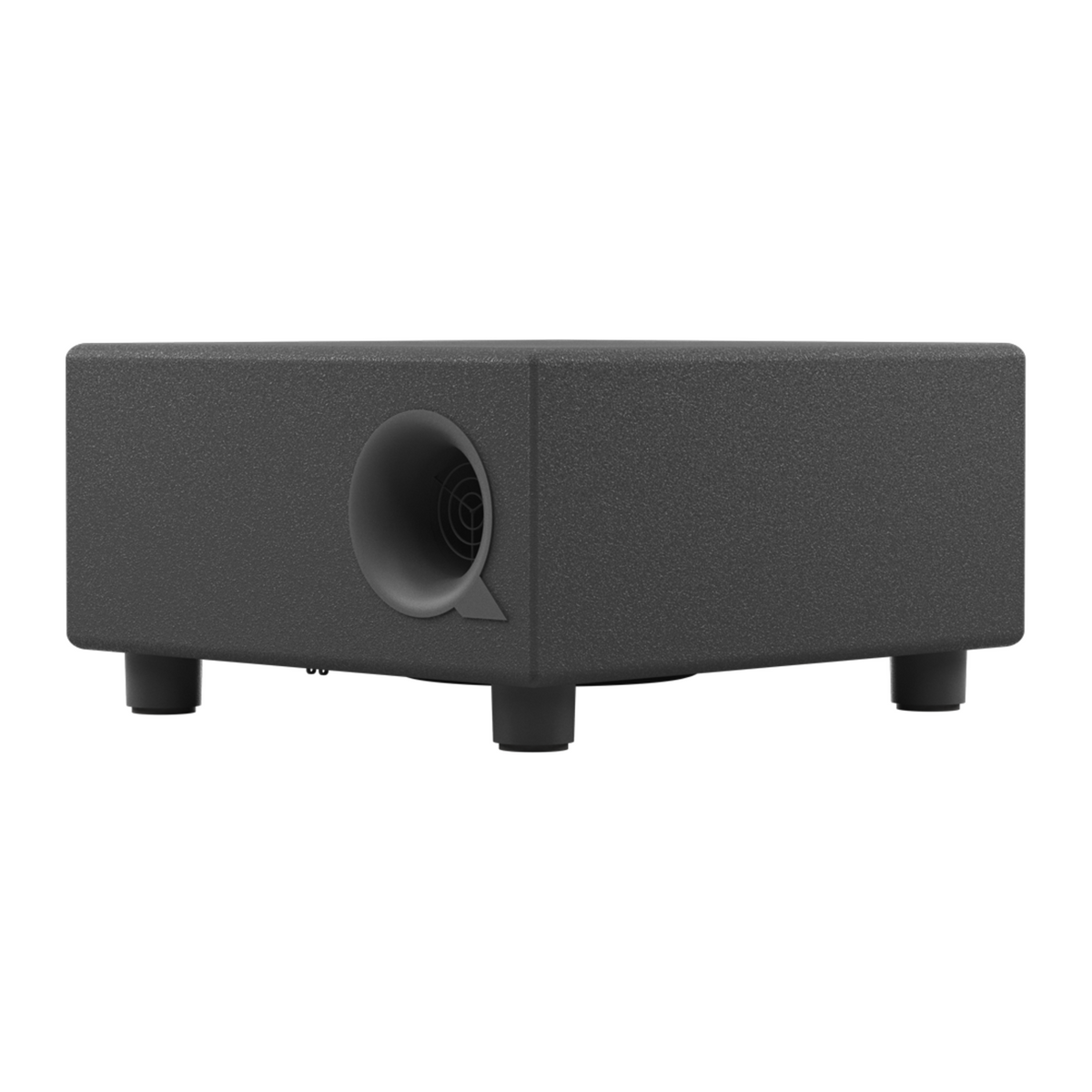

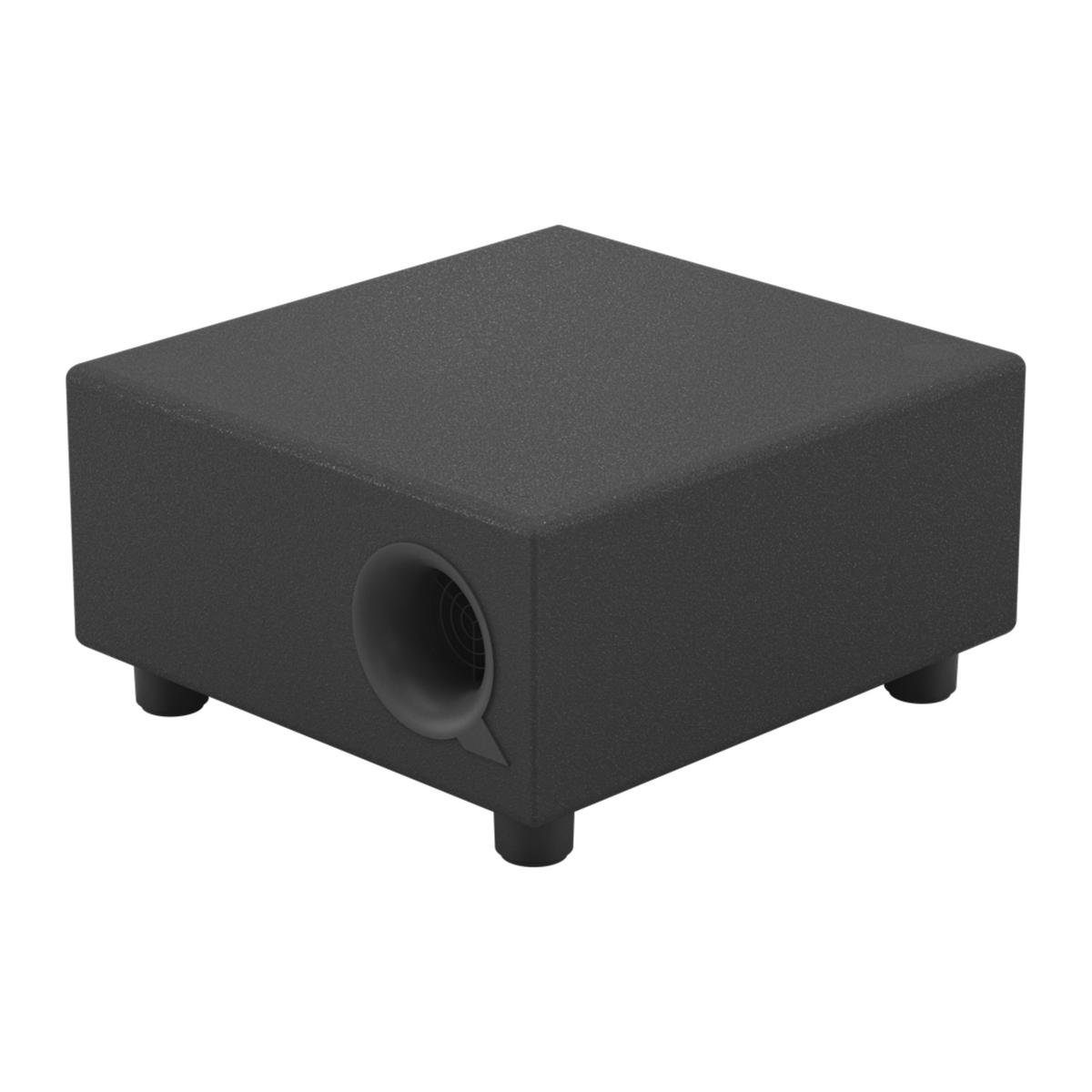

Quest MX10S 10-Inch Compact Subwoofer
Quest MX10S 10-Inch Compact Subwoofer
Quest MX10S 10-Inch Compact Subwoofer

Quest MX10S 10-Inch Compact Subwoofer

Brand: Quest
Categories: Subwoofers
SKU: MX10SB

The MX10S steps up bass extension within the MX Series for larger commercial venues and distributed audio systems that need pronounced low end, complementing MX and MXC loudspeakers rather than running as a standalone box. A custom 10-inch woofer with a 50mm voice coil and dual-magnet configuration delivers robust, extended bass response beyond the smaller MX6S.

Pairs well with

Technical Specifications

Build and Mounting

Birch plywood cabinet with low-sheen polyurea paint in black or white, wall or ceiling mountable, with a matching mounting plate sold separately.

Amplifier Compatibility

Runs at 8 ohms and is recommended for use with Quest QX or QXD amplifiers.

Applications

Suited to larger commercial venues and distributed audio installs needing more low-frequency output than the MX6S.

Key Specifications

  • Driver Configuration: 10-inch woofer, 50mm voice coil, dual-magnet
  • Impedance: 8 ohms
  • Dispersion: Omnidirectional
  • Power Handling (RMS/Peak): 300W / 600W
  • Frequency Response (-6dB): 44Hz to 90Hz
  • Sensitivity (1W @ 1m): 96dB
  • Maximum SPL @ 1m: 118dB
  • Mounting and Included Brackets: Wall or ceiling mount; matching mounting plate (MP10SW/MP10SB) available separately
  • Cabinet Material and Finish: Birch plywood with low-sheen polyurea paint, black or white, no grille
  • Amplifier Compatibility: Quest QX or QXD Series amplifiers
  • Dimensions: 256 x 500 x 470mm (H x W x D)
  • Weight: 15.1kg
