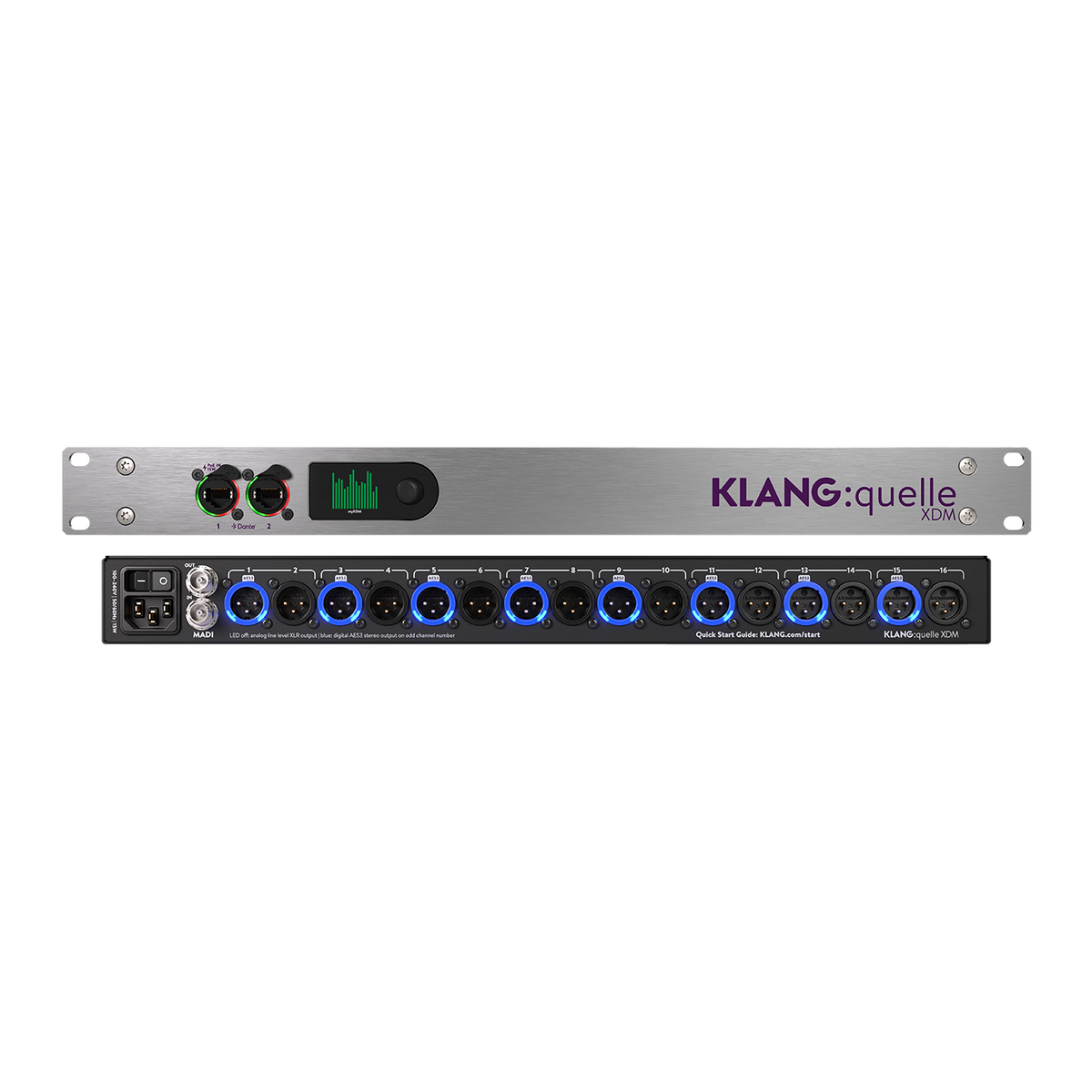

KLANG:quelle XDM Analogue and AES Breakout Box

KLANG:quelle XDM Analogue and AES Breakout Box

Brand: KLANG
Categories: In-ear monitoring
SKU: KG-QUELLE-XDM

KLANG:quelle XDM is a breakout box for KLANG immersive in-ear systems, adding analogue and AES outputs alongside Dante and MADI I/O. It turns the mixes coming from a KLANG processor into the formats needed by wired in-ear packs, wireless IEM transmitters and other stage equipment, extending a KLANG system beyond the Dante network.

Pairs well with

Technical Specifications

Overview

KLANG:quelle XDM is a 1U breakout box with 32-bit conversion that delivers 16 outputs from Dante or MADI, as analogue XLR or AES3.

Features

Each XLR pair can be switched between two mono analogue line outputs or one stereo AES3 output. It converts between Dante and MADI in both directions, supports redundant Dante and dual power (PSU and PoE), and is controlled from the front panel or KLANG:app.

Applications

Adding analogue or AES3 outputs to KLANG immersive systems for IEM transmitters, or as a standalone Dante/MADI breakout.

Key Specifications

  • Outputs: 16 x Neutrik XLR, +21dBu analogue line or AES3 pairs
  • Conversion: 32-bit DACs
  • Dante: 16 x 16 (48kHz / 96kHz)
  • MADI: 64 x 64 @ 48kHz / 32 x 32 @ 96kHz
  • Network: 2 x etherCON halo (primary/secondary)
  • Power: 100-240V internal PSU or PoE (max. 15W)
  • Rack size: 1U
  • Weight: 3.6kg
