Immersive Processing
The unit generates up to 16 independent immersive mixes from as many as 128 input channels at sample rates up to 96 kHz, with internal processing latency rated under a quarter of a millisecond. Root-Intensity EQ tools are available on every mix, and single-channel routing lets an engineer freely reassign audio between the mix engine and the installed expansion cards.
Connectivity

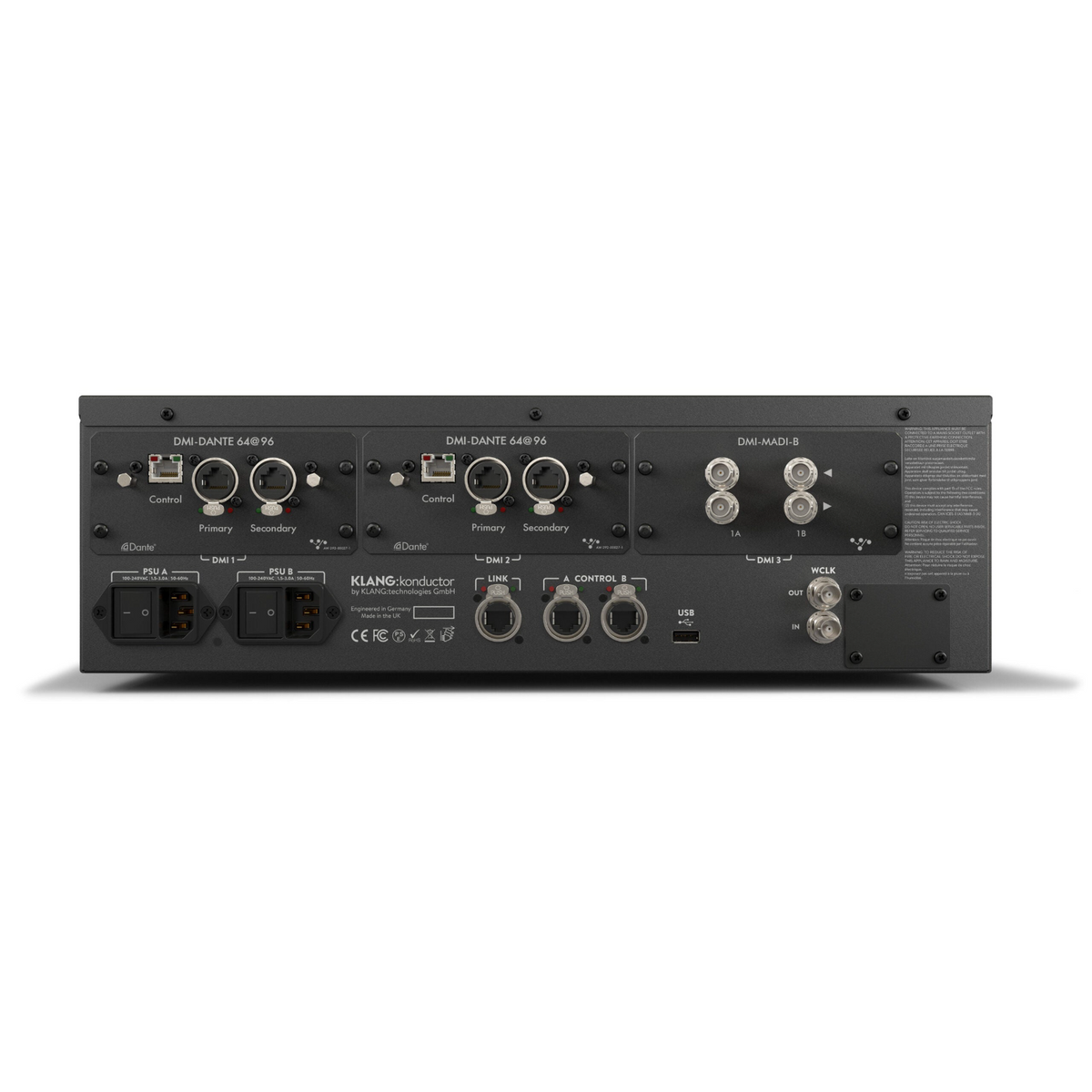

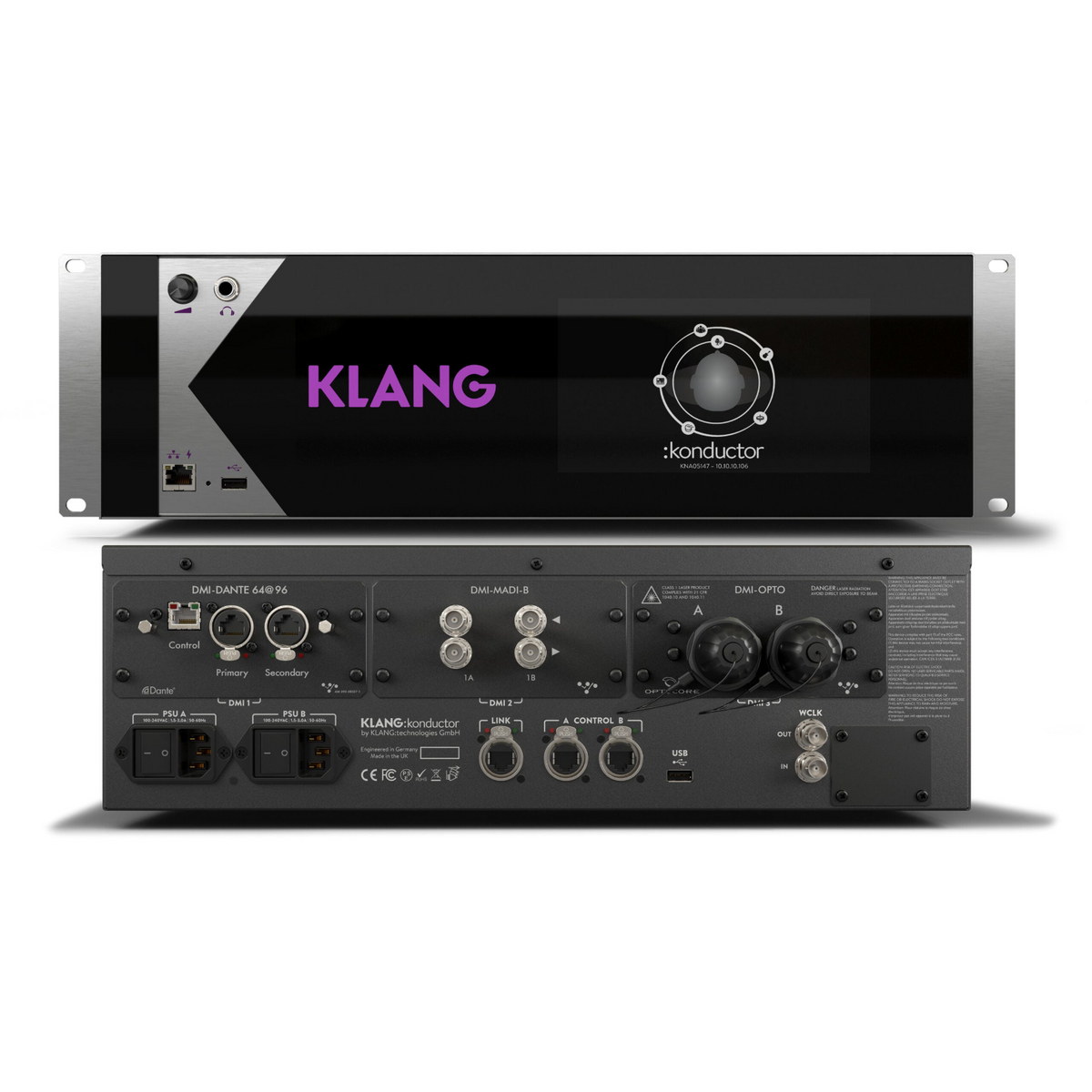

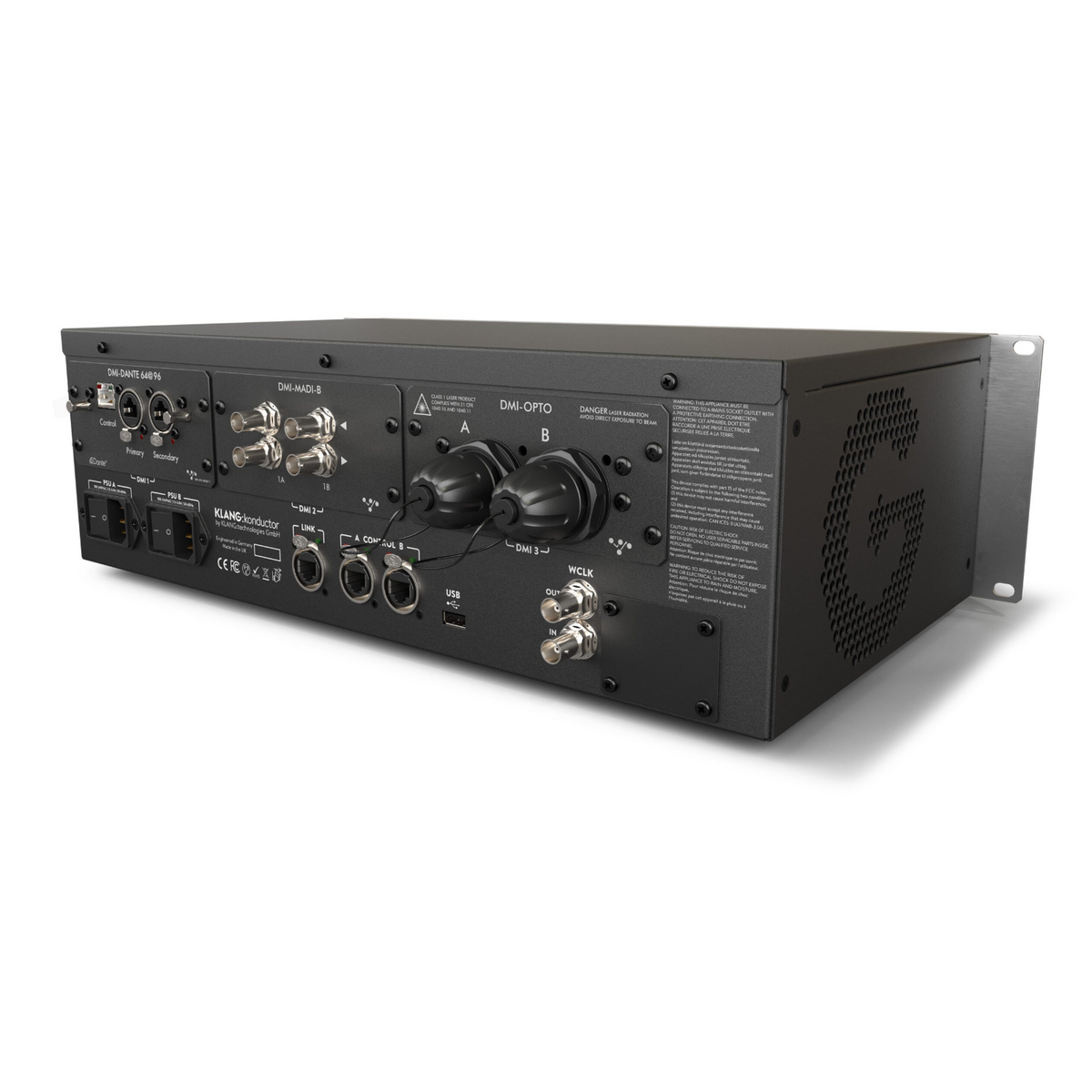

Three DMI expansion slots on the rear accept Optocore, Dante, or MADI cards, each supporting up to 64 input and output channels at 48 kHz or 96 kHz, so the same chassis can be configured to match almost any existing signal format. A front-panel network port delivers Power over Ethernet directly to a connected KLANG:kontroller, and word clock in/out plus dual redundant power supplies support demanding, always-on installations.
Control and Workflow

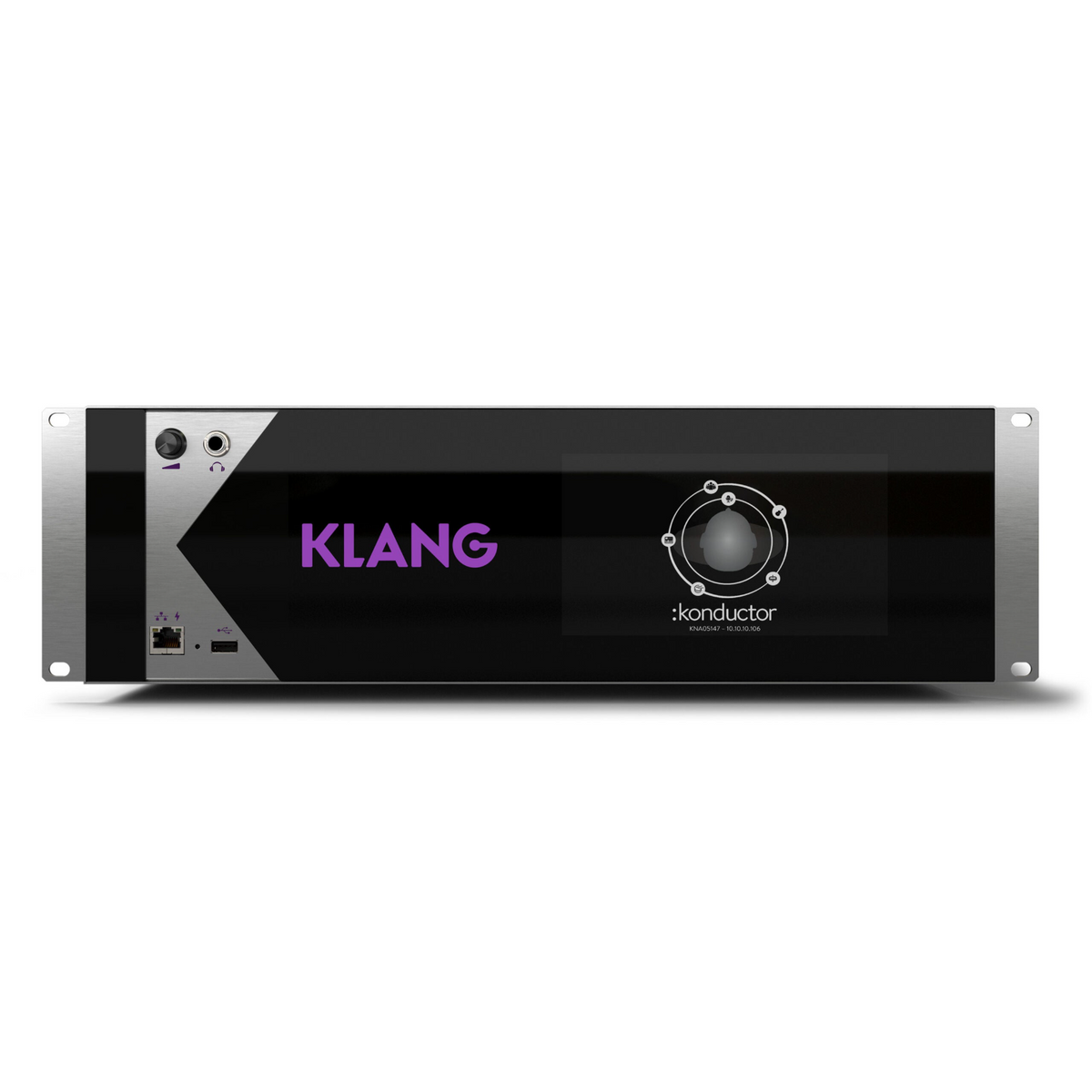

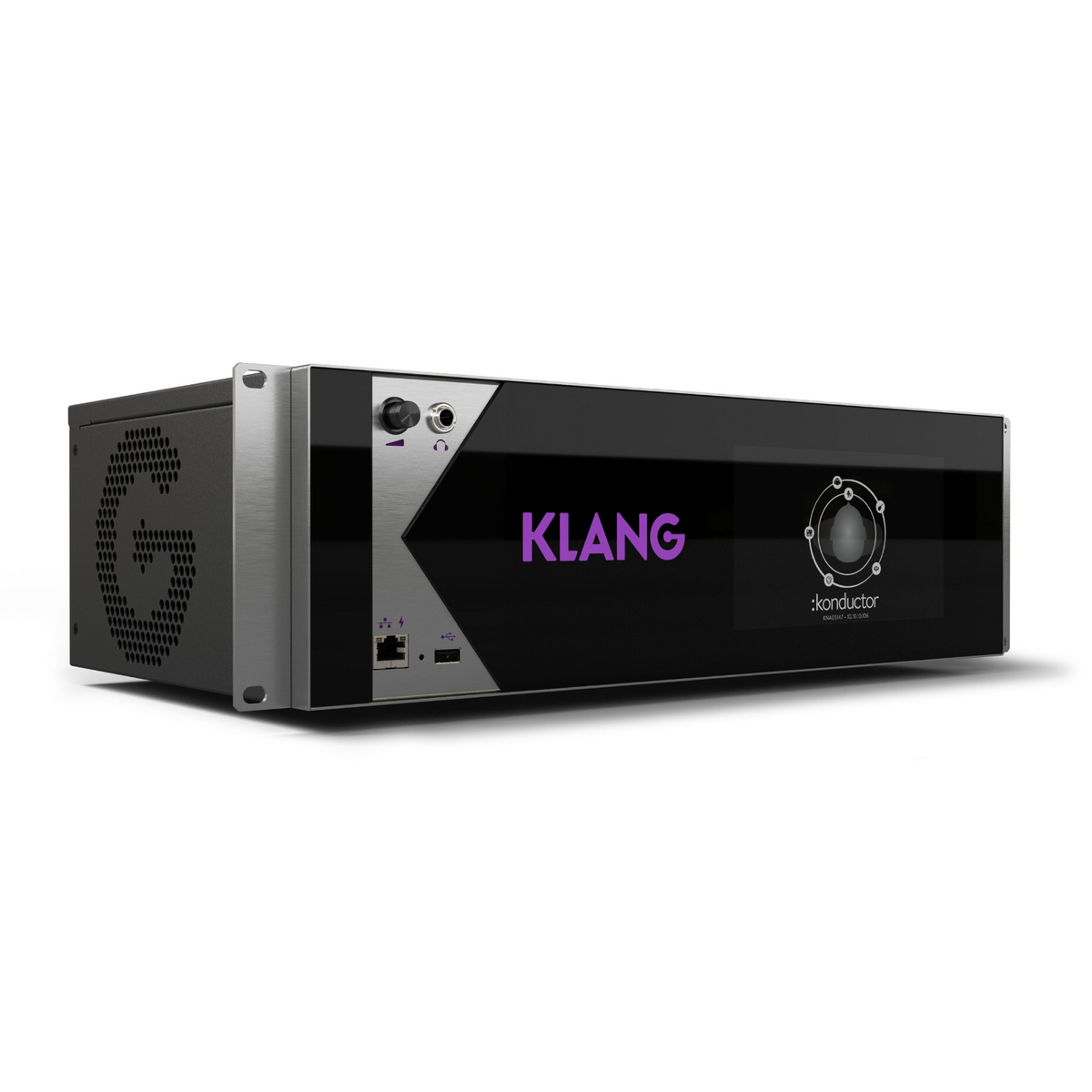

A 7-inch front-mounted colour touchscreen handles mix control, audio setup, routing, and metering directly on the unit, while integration with DiGiCo's SD and Quantum control surfaces lets engineers use their console's existing snapshots, faders, and knobs to manage the immersive mix. KLANG:kontroller units can be linked in for musician-side control, and a built-in studio-grade headphone amplifier lets the engineer monitor console cue feeds or switch straight to a KLANG mix.
Applications
Large-scale touring, house of worship, broadcast, and theatre installations needing high channel counts, multi-format I/O, and deep DiGiCo console integration.
Key Specifications
- Immersive mixes: Up to 16 mixes
- Input channels: Up to 128 mono inputs
- Sample rates: 48 kHz | 96 kHz
- Processing latency: Under 0.25 ms (without I/O cards)
- Expansion slots: 3x DMI slots (Optocore, Dante, or MADI), each up to 64 in/64 out channels at 48/96 kHz
- Network protocols: Dante, MADI, Optocore (via DMI cards)
- Console integration: DiGiCo SD and Quantum console link; KLANG:kontroller compatible
- Display: 7-inch colour touchscreen
- Network ports: 1x RJ45 front Ethernet with PoE delivery, 2x RJ45 EtherCON control ports, 1x RJ45 EtherCON LINK port
- Word clock: Input and output
- Audio router: 192x192 channel network router
- Redundancy: Dual redundant power supplies
- USB: 2x ports for software updates and preset exchange
- Headphone amp: Studio-grade, front-mounted
- Form factor: 3U rack-mount chassis
