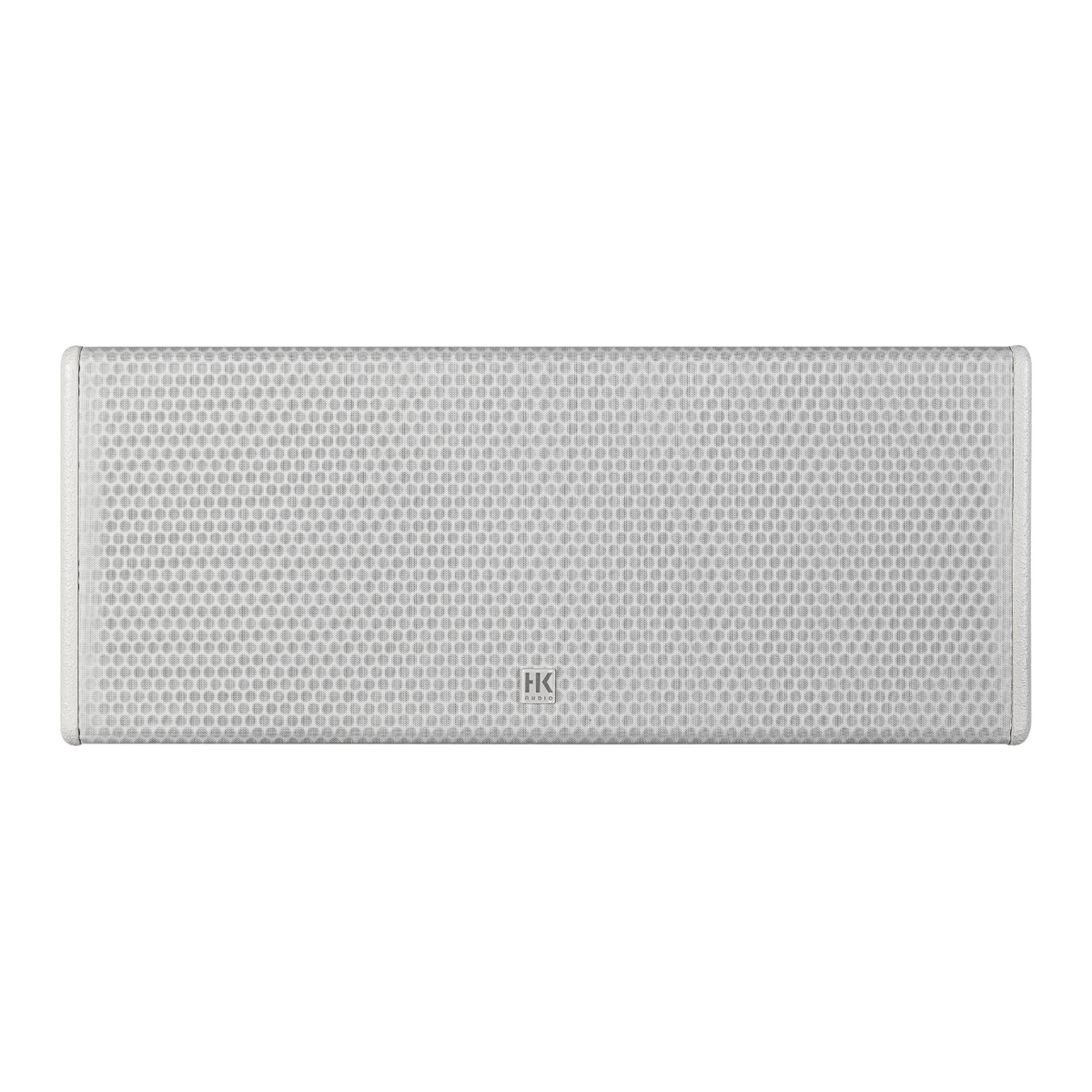

HK Audio S210 V Installation Subwoofer
Save 29%
HK Audio S210 V Installation Subwoofer
HK Audio S210 V Installation Subwoofer
HK Audio S210 V Installation Subwoofer

HK Audio S210 V Installation Subwoofer

Brand: HK Audio
Categories: Subwoofers
SKU: 1007763

The S210 V is a passive installation subwoofer from HK Audio’s SI SERIES, built to add low-frequency extension to the P10i and P10j column speakers or other HK Audio installed-sound products. It’s rated for use in protected outdoor areas rather than fully exposed environments, making it a fit for covered terraces, canopies, and semi-outdoor spaces as well as indoor installs.

On Demand
Delivers within 1-2 days
Free delivery above 200 AED
Cash on delivery
14 days returnable
Courier return with a fee

Pairs well with

Technical Specifications

Driver Configuration

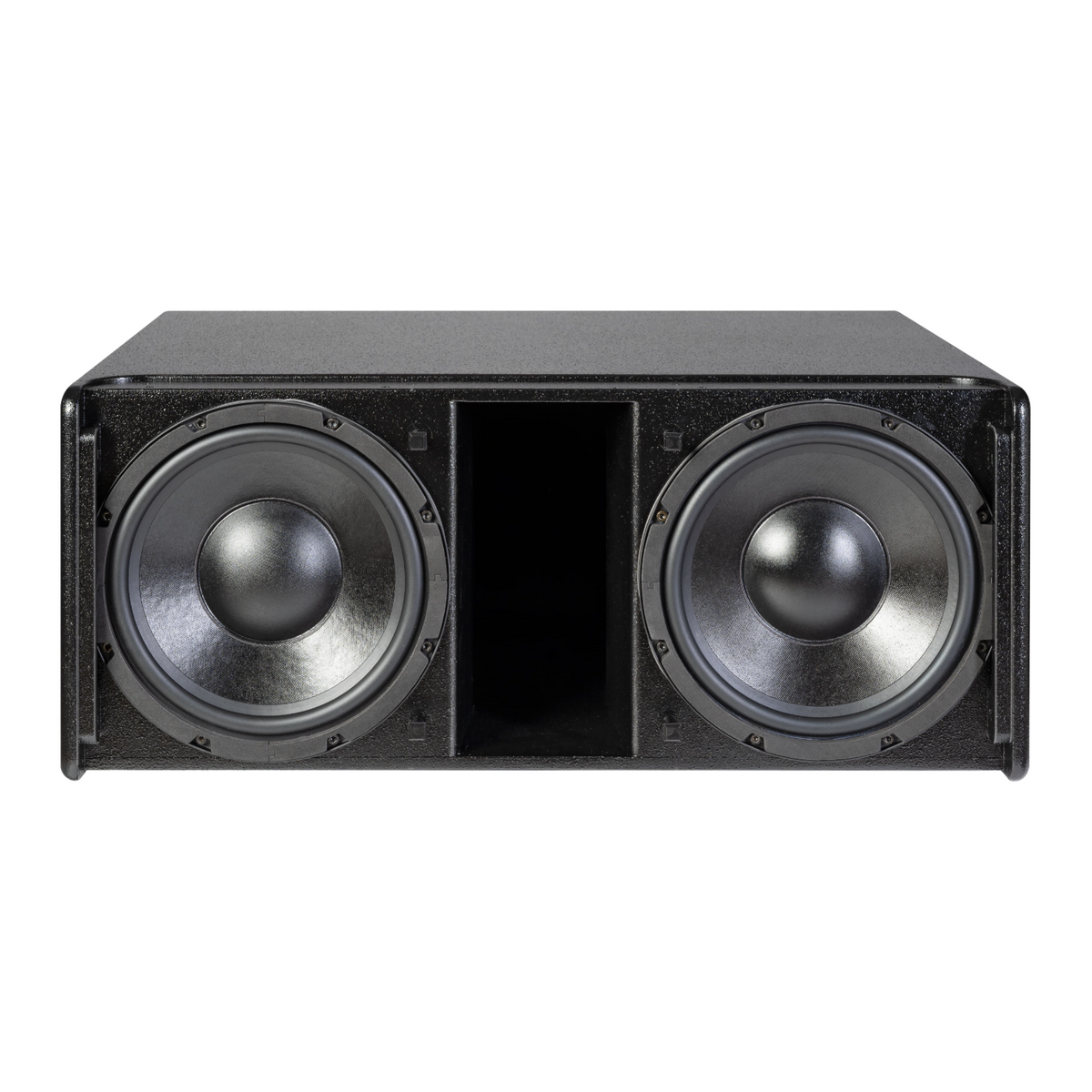

Two 10-inch cone woofers with 2.5-inch voice coils load a bass-reflex cabinet through a large-diameter port with an exponential contour, a shaping choice aimed at cutting audible port noise at higher output levels. The cabinet carries no internal crossover, leaving frequency division to the amplifier or DSP platform, and its impedance is switchable between 4 and 16 ohms to suit different amplifier channel configurations.

Build and Mounting

The birch plywood cabinet uses the same 2-component textured coating as the P10i and P10j, offered in over 30 catalogue colours with an optional PU coating for less sheltered outdoor spots. Eight M8 rigging points on the sides support flown installation of up to two S210 units with the optional U-bracket, and the enclosure carries DIN 18032-3 ball-impact certification alongside its IP44 rating.

Amplification and DSP Compatibility

Passive and requiring external amplification, the S210 V is documented with presets for Lab.Gruppen IPX, IPD, and Lake, Powersoft Armonia+, and a QSC Q-SYS filter container, matching the same amplifier ecosystem as the P10i and P10j column speakers it's designed to pair with.

Applications

Low-frequency support for SI SERIES column speaker installations in covered outdoor and indoor spaces, including houses of worship, transit facilities, and sports venues.

Key Specifications

  • Concept: Flight-capable passive subwoofer, bass reflex
  • Driver Complement: 2 x 10-inch Sica cone speakers, ferrite magnet, 2.5-inch voice coil; no integrated crossover
  • Dispersion: Omnidirectional
  • Frequency Range: 48 Hz to 140 Hz (-6 dB)
  • Max SPL: 118 dB average, 121 dB peak
  • Power Handling: 600 W RMS, 1200 W program, 2400 W peak
  • Nominal Impedance: 4 Ohms / 16 Ohms (switchable)
  • Connectors: 1 x 4-pin Euroblock input, 1 x 4-pin Euroblock output (parallel)
  • IP Rating: IP 44 (HK Audio manufacturer declaration)
  • Certifications: Ball impact resistance DIN 18032-3 (MPA Uni Stuttgart)
  • Rigging Points: 8 x M8 on the side
  • Cabinet Material and Finish: Birch plywood, 2-component textured coating, Jet black (RAL 9005) or Signal white (RAL 9003), 30+ catalogue colours, optional outdoor PU coating
  • Accessories Included: Cover plate with 2 x PG screw connection
  • Weight: 27.5 kg
