Technical Specifications

System Configuration

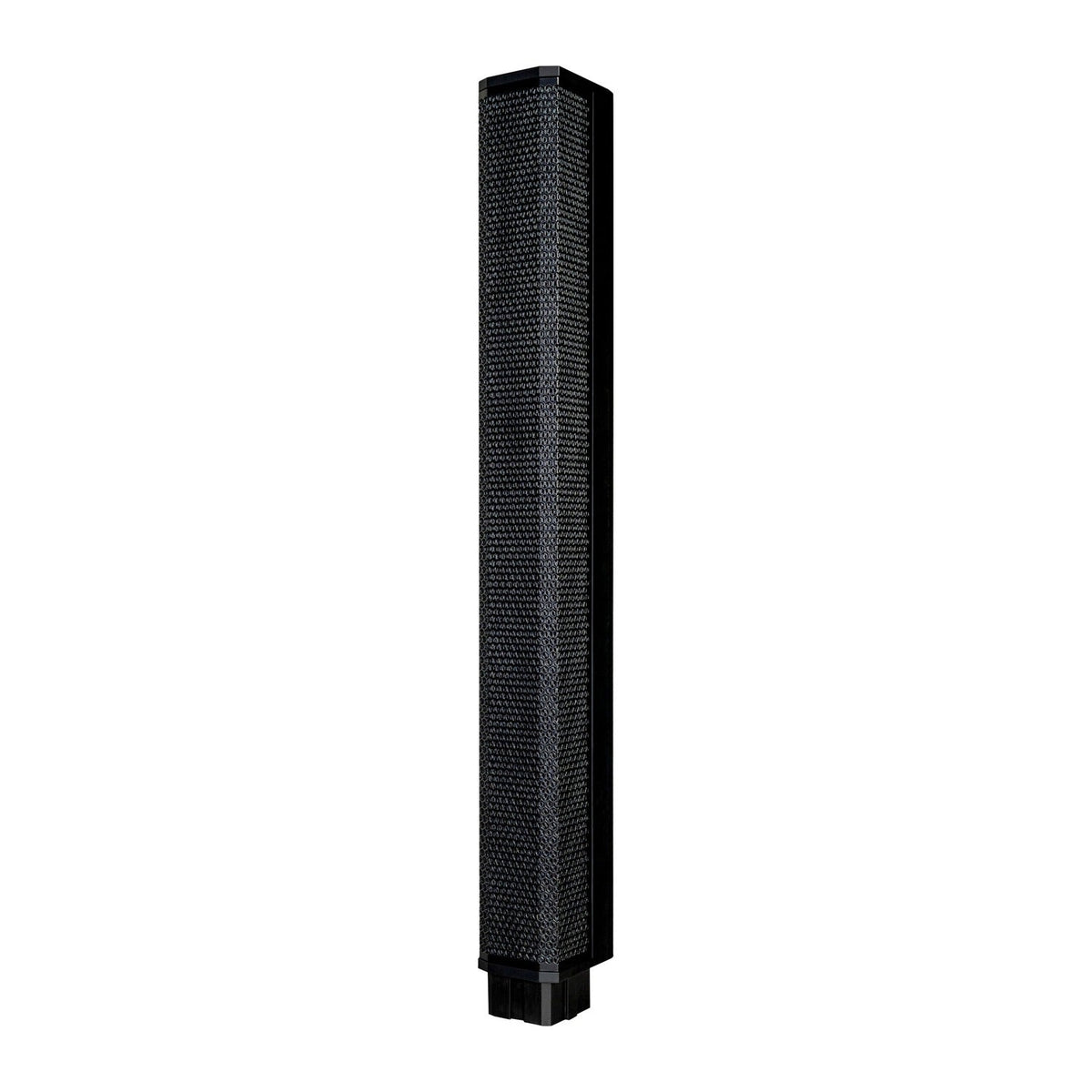

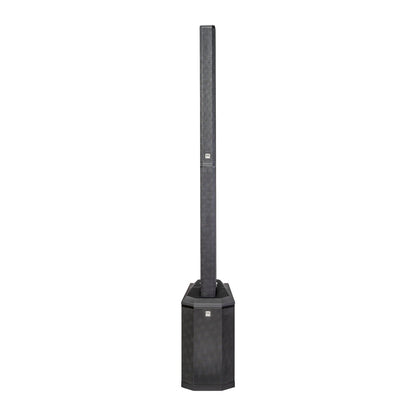

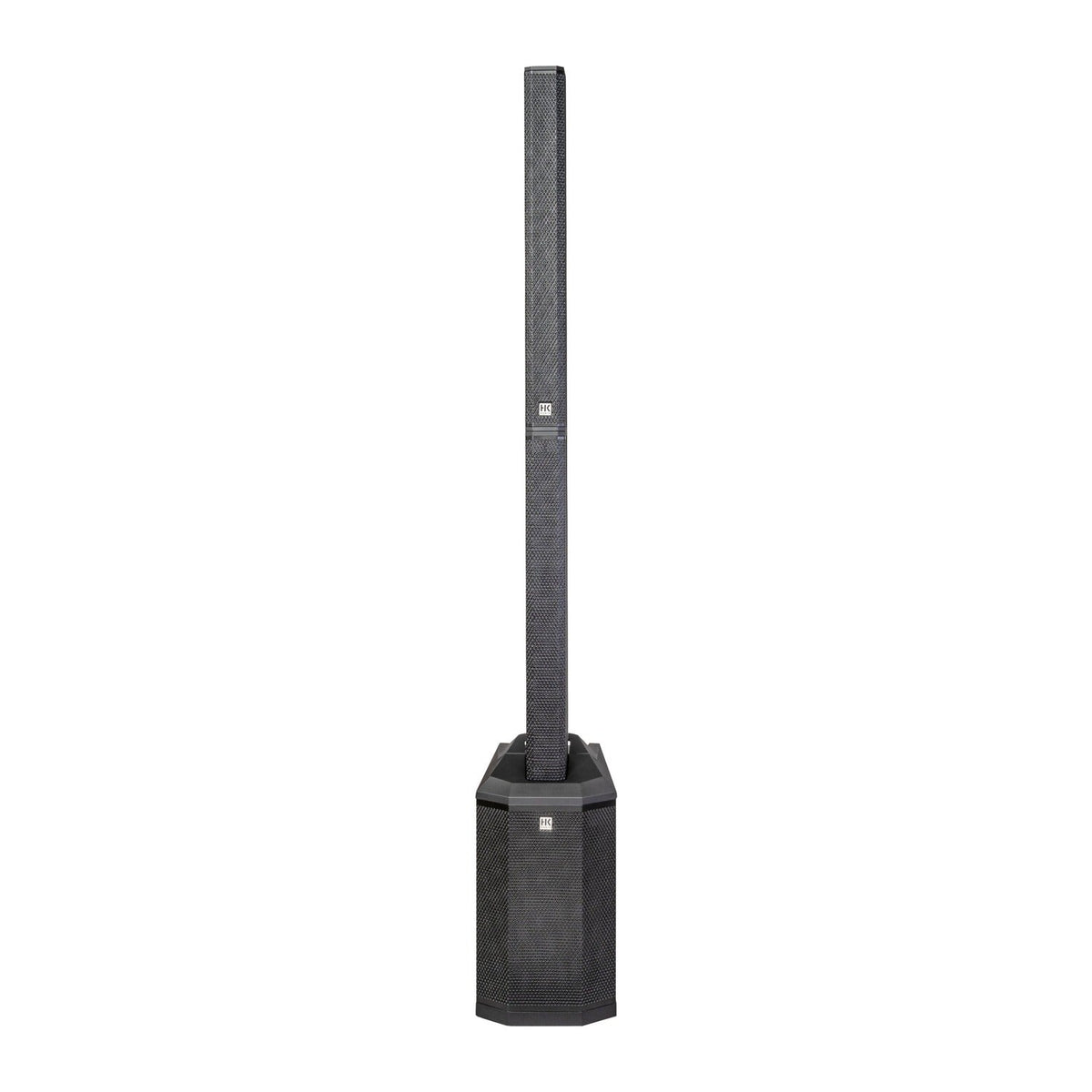

The system ships as three pieces: an active subwoofer with an 8-inch driver, a spacer, and a curved column loaded with six 2.5-inch neodymium broadband speakers. The column delivers a 120 x 45 degree dispersion pattern for even coverage of small stages, rehearsal rooms and conference spaces.

Mixer and Control

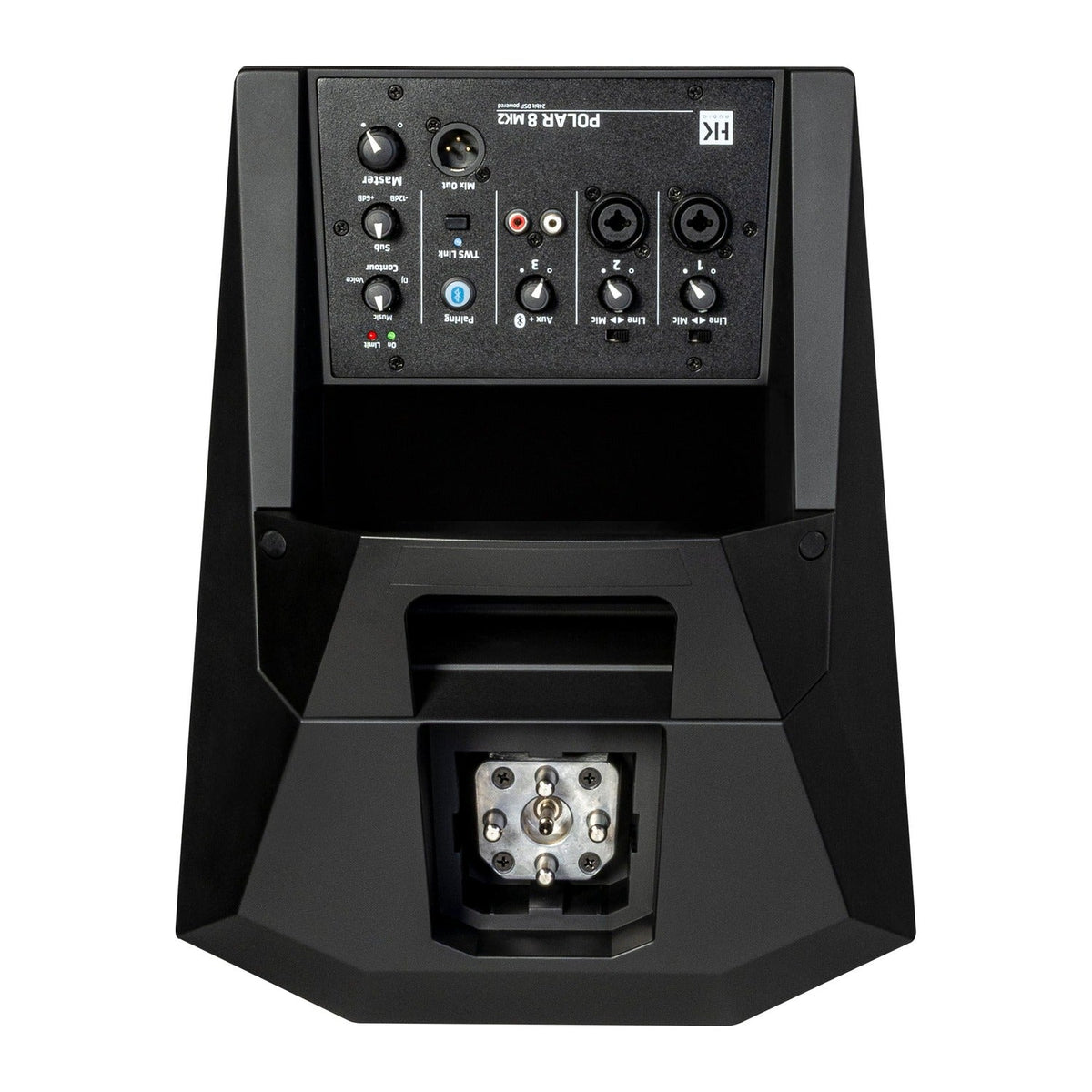

An integrated 3-channel mixer accepts two XLR/jack combo mic-or-line inputs and a stereo RCA input, with a balanced XLR mix output for linking further systems. The DSP preamp runs at 48 kHz, and the Contour control blends continuously between DJ, Music and Voice voicings. Bluetooth 5.0 with True Wireless Stereo lets two POLAR systems link for cable-free stereo playback, and a USB-C port charges mobile devices.

Build and Portability

The subwoofer uses a metal-reinforced, low-resonance ABS housing, which keeps the whole system under 20 kg, while the column uses a high-rigidity aluminium housing. A subwoofer cover and a transport bag for the column are included.

Applications

Compact, self-contained sound for musicians, presenters, small stages, rehearsal rooms, conferences and events where a light, quick-to-set-up system is needed.

Key Specifications

  • Concept: Active column loudspeaker system (subwoofer plus spacer plus column mid/high unit)
  • Subwoofer Driver: 1 x 8-inch cone, 1.5-inch voice coil, bass reflex
  • Column Drivers: 6 x 2.5-inch neodymium broadband speakers, 1-inch voice coil
  • Dispersion: 120 x 45 degrees (-6 dB)
  • Frequency Range: 50 Hz to 20 kHz (-10 dB)
  • Crossover: 200 Hz
  • Max SPL Peak: 120 dB
  • Amplifier Output: 300 W RMS / 1200 W peak, Class-D bi-amped
  • DSP: 48 kHz, Contour control (DJ / Music / Voice)
  • Connectivity: 2 x XLR/jack combo (Mic/Line), 1 x stereo RCA, 1 x XLR mix output, Bluetooth 5.0 TWS, USB-C charging
  • Accessories Included: Protective cover (subwoofer), transport bag (column)
  • Dimensions (W x H x D): 30.2 x 202.9 x 39 cm (system assembled)
  • Weight: 19.7 kg (system)
