HK Audio COSMO C 8 Passive Line Array Loudspeaker

Driver Configuration and Dispersion

The COSMO C 8 is a passive 2-way mid/high unit with two 8-inch SICA neodymium cone speakers (2.5-inch voice coil) and a 1.4-inch B&C compression driver (3-inch voice coil) on an MCT horn, crossed over at 800Hz with 18 dB/oct slopes. Its 80 degree horizontal by 10 degree vertical dispersion is medium-wide, which makes the C 8 highly versatile, and its asymmetrical sound distribution can be adjusted modularly by pairing it with C 6 and C 10 units for an almost perfect distribution.

Build and Mounting

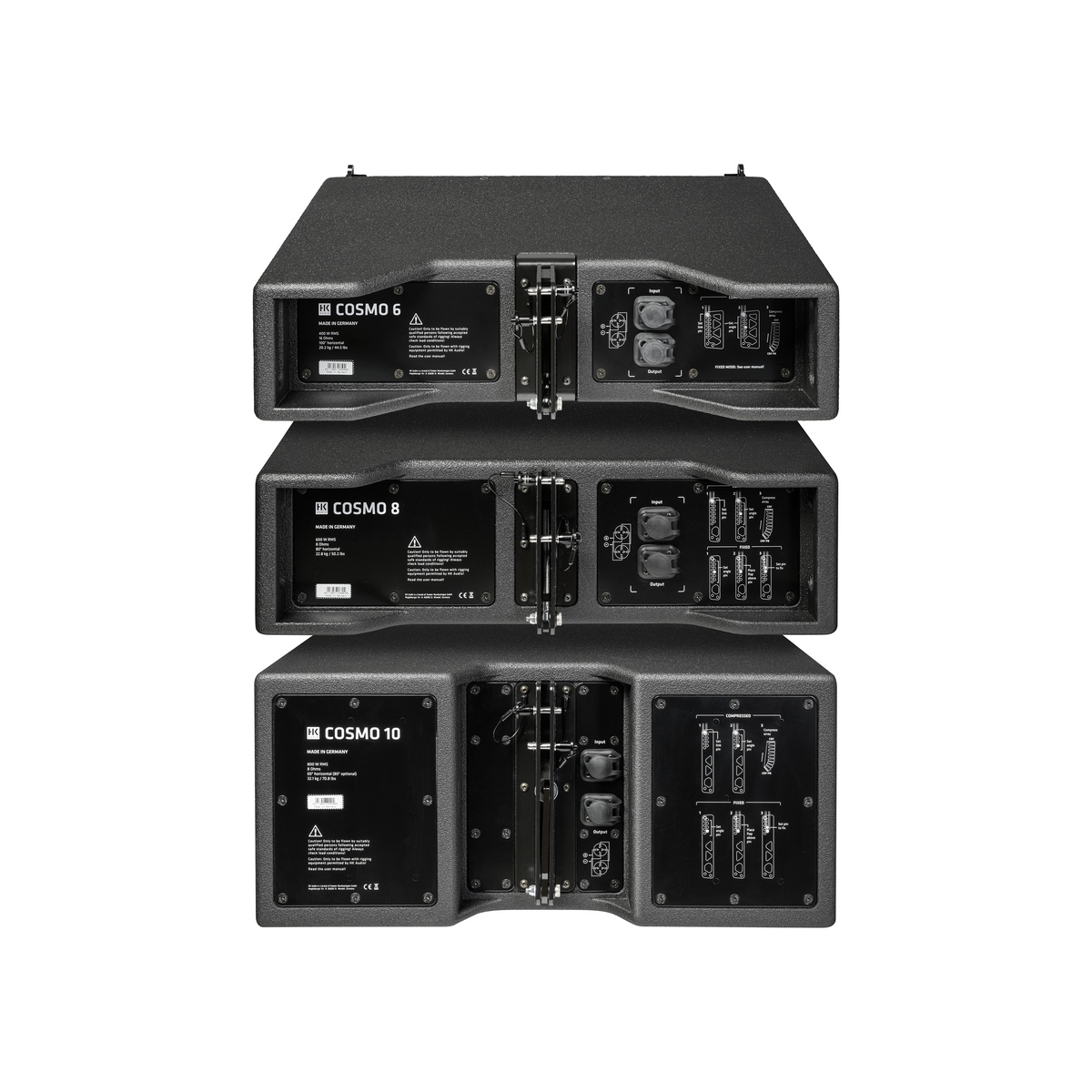

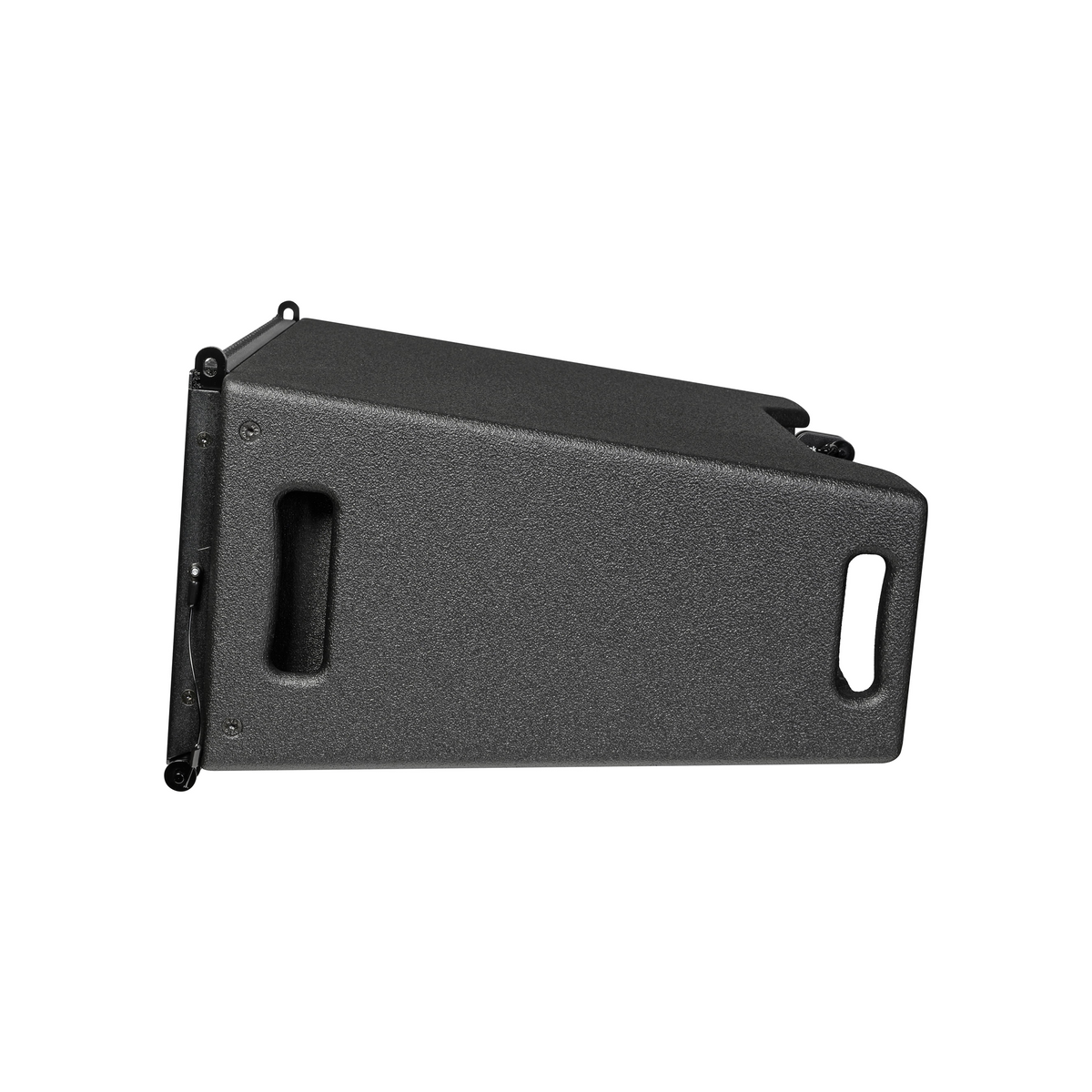

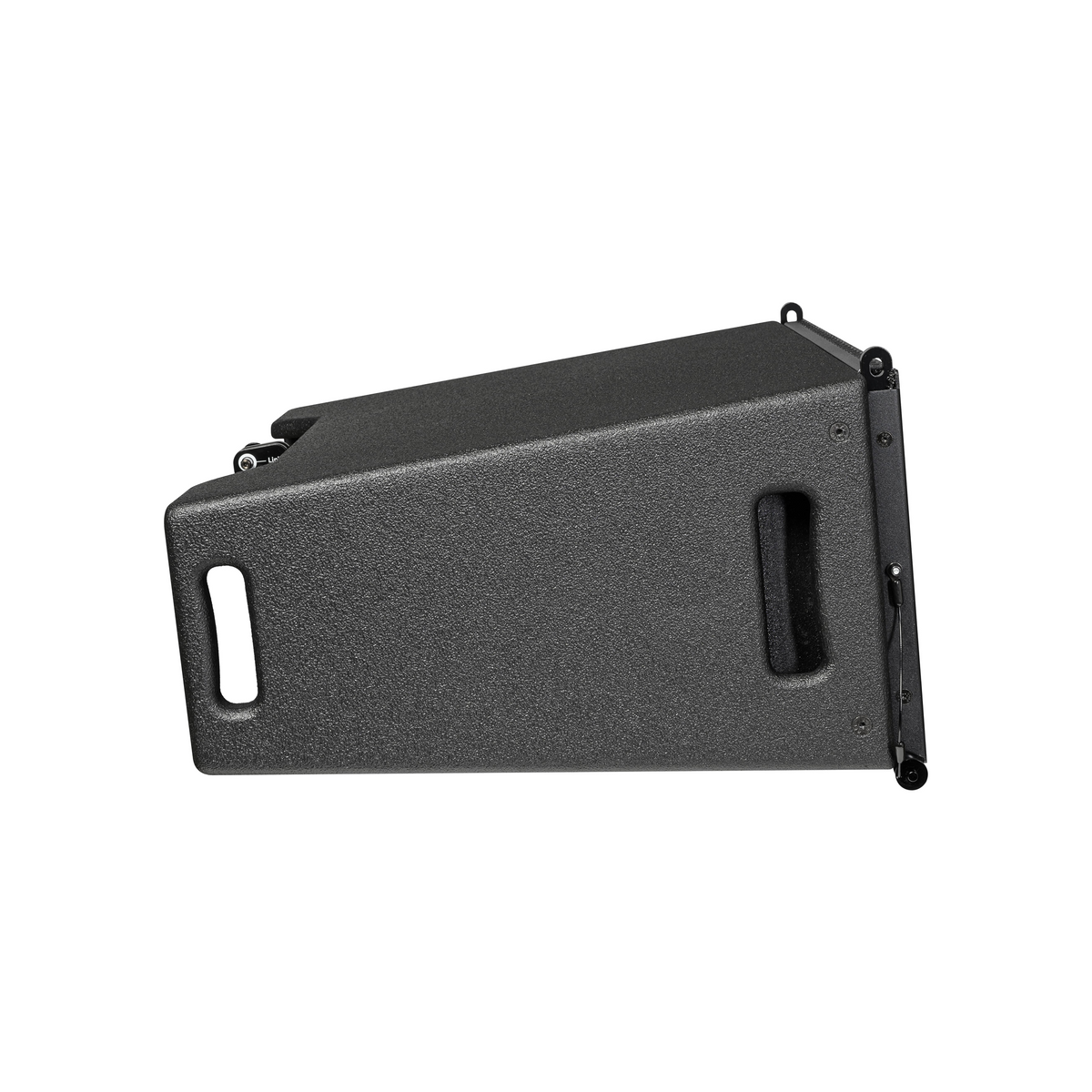

The bass-reflex cabinet is built from birch plywood with a PU coating in Jet black (RAL 9005) and a steel front grille with anticorrosive coating and acoustic foam backing. It measures 60.0 x 27.0 x 45.0cm, weighs 22.8kg, and has four integrated carrying handles and 3-point rigging hardware. All COSMO mid/high units share the same footprint, so the C 8 needs no adapters and leaves no gaps when combined with C 6 and C 10 units, which makes it ideal as the centre section of a mixed line array.

Amplification and DSP Compatibility

The C 8 is passive and rated at 600W RMS into 8 ohms. HK Audio provides amplifier presets for Lab.gruppen and Lake controllers and for Powersoft Armonia Plus, along with DSP preset files and GLL simulation data for the COSMO family.

Applications

A full-range line array for medium-sized events with required ranges of 30 metres and more. Paired with subwoofers from the C SUB series, it shows its strengths at rock and pop gigs.

Key Specifications

• Concept: Passive 2-way mid/high unit
• Cabinet Principle: Bass reflex
• Mid/High Frequency: 2 x 8-inch SICA cone speaker, neodymium magnet, 2.5-inch voice coil
• High Frequency: 1 x 1.4-inch B&C compression driver, neodymium magnet, 3-inch voice coil; MCT horn
• Frequency Range: 63Hz - 18kHz (-6dB); 57Hz - 19kHz (-10dB)
• Dispersion Angle (-6dB): 80 degrees x 10 degrees (horizontal x vertical)
• Max. SPL: 132dB average, 136dB peak (3 units)
• Sensitivity (1W/1m): 103dB
• Power Handling: 600W RMS, 1200W program, 2400W peak
• Nominal Impedance: 8 ohms
• Crossover: 800Hz; high pass 18 dB/oct., low pass 18 dB/oct.

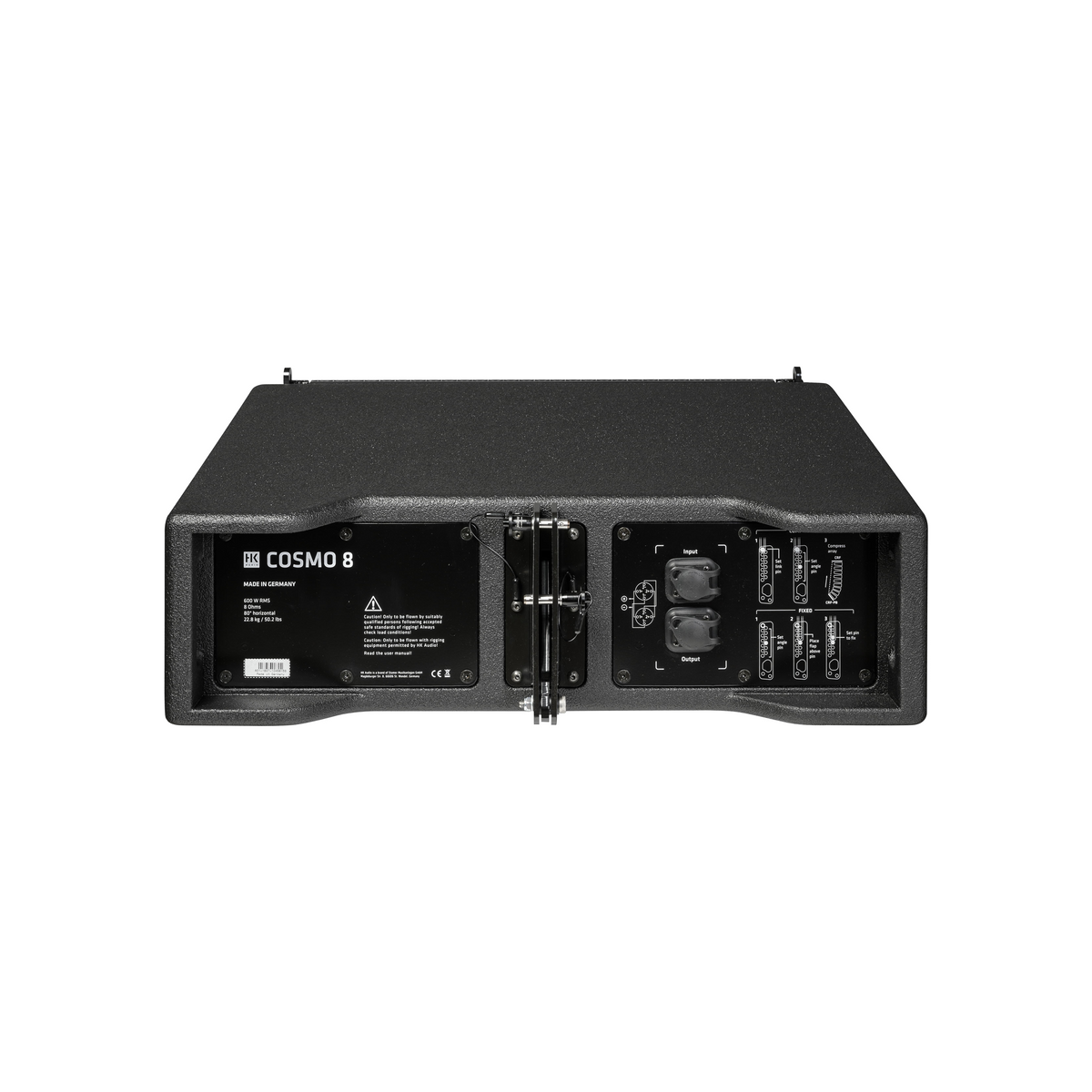

• Connections: 1 x NL4 Speakon input, 1 x NL4 Speakon output/parallel; pin assignment 1+/-, 2+/- switchable
• Rigging: 3-point rigging hardware with black CDC coating; 4 x integrated carrying handles
• Cabinet Material and Finish: Birch plywood, PU coating, Jet black (RAL 9005)

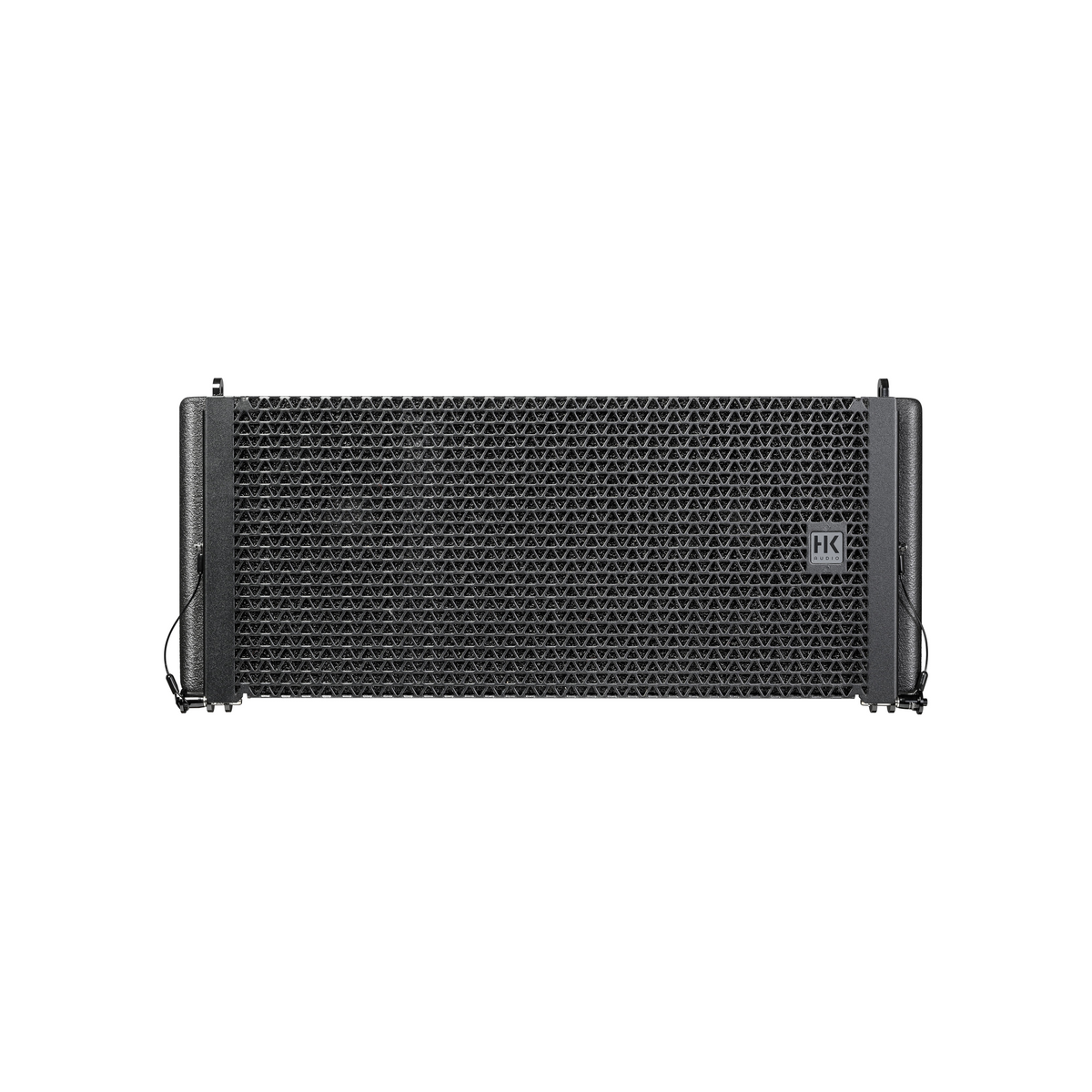

• Front Grille: Steel front grille with anticorrosive coating, backed with acoustic foam
• Dimensions (W x H x D): 60.0 x 27.0 x 45.0cm (23-5/8 x 10-5/8 x 17-23/32 in)
• Weight: 22.8kg (50.3 lbs)
