HK Audio COSMO C 6 Passive Line Array Loudspeaker

Driver Configuration and Dispersion

The COSMO C 6 is a passive 2-way mid/high unit with two 6.5-inch SICA cone speakers (neodymium magnet, 2-inch voice coil) loaded to an acoustic coupler, which increases the maximum sound pressure level, and a 1.4-inch B&C compression driver with a 3-inch voice coil on an MCT horn. The crossover sits at 1kHz with 12 dB/oct slopes. Its 100 degree horizontal by 10 degree vertical dispersion and low overall height make it the widest-coverage unit in the COSMO family, suited to very wide audience areas.

Build and Mounting

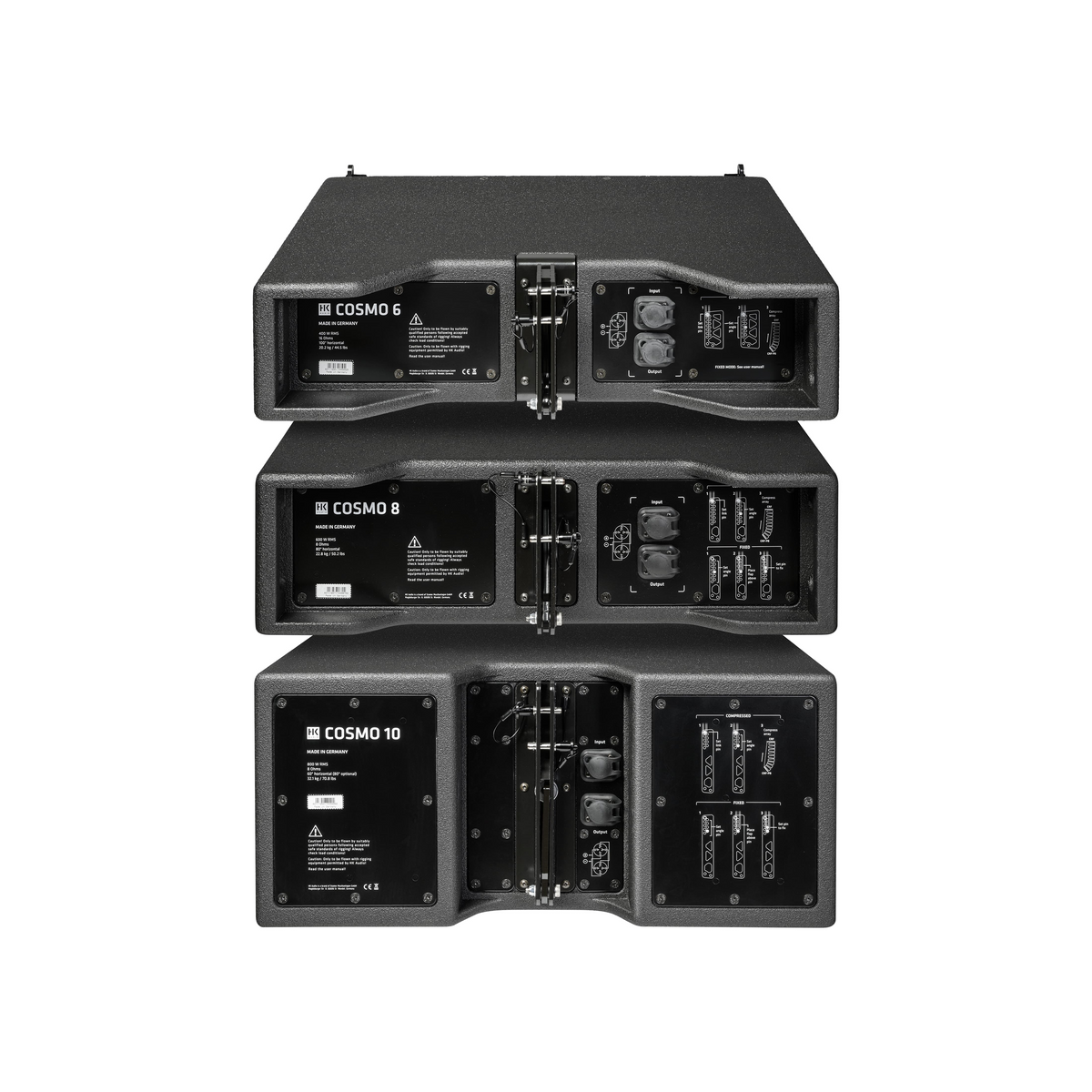

The bass-reflex cabinet is built from birch plywood with a PU coating in Jet black (RAL 9005) and a steel front grille with anticorrosive coating and acoustic foam backing. It measures 60.0 x 22.0 x 45.0cm, weighs 20.2kg, and has four integrated carrying handles and 3-point rigging hardware. All COSMO mid/high units share the same footprint, so the C 6 requires no adapters and leaves no gaps when combined with C 10 and C 8 units, which makes it ideal as the bottom section of a mixed line array.

Amplification and DSP Compatibility

The C 6 is passive and rated at 400W RMS into 16 ohms. HK Audio provides amplifier presets for Lab.gruppen and Lake controllers and for Powersoft Armonia Plus, along with DSP preset files and GLL simulation data for the COSMO family.

Applications

A compact solution for very wide audience areas and for speech applications, where the wide frequency range works without additional subwoofers. Paired with COSMO subwoofers, it also suits rock and pop gigs, and its low weight helps where load capacity is limited.

Key Specifications

• Concept: Passive 2-way mid/high unit
• Cabinet Principle: Bass reflex
• Mid/High Frequency: 2 x 6.5-inch SICA cone speaker, neodymium magnet, 2-inch voice coil
• High Frequency: 1 x 1.4-inch B&C compression driver, neodymium magnet, 3-inch voice coil; MCT horn
• Frequency Range: 75Hz - 18kHz (-6dB); 70Hz - 19kHz (-10dB)
• Dispersion Angle (-6dB): 100 degrees x 10 degrees (horizontal x vertical)
• Max. SPL: 133dB average, 142dB peak (3 units)
• Sensitivity (1W/1m): 102dB
• Power Handling: 400W RMS, 800W program, 1600W peak
• Nominal Impedance: 16 ohms
• Crossover: 1kHz; high pass 12 dB/oct., low pass 12 dB/oct.

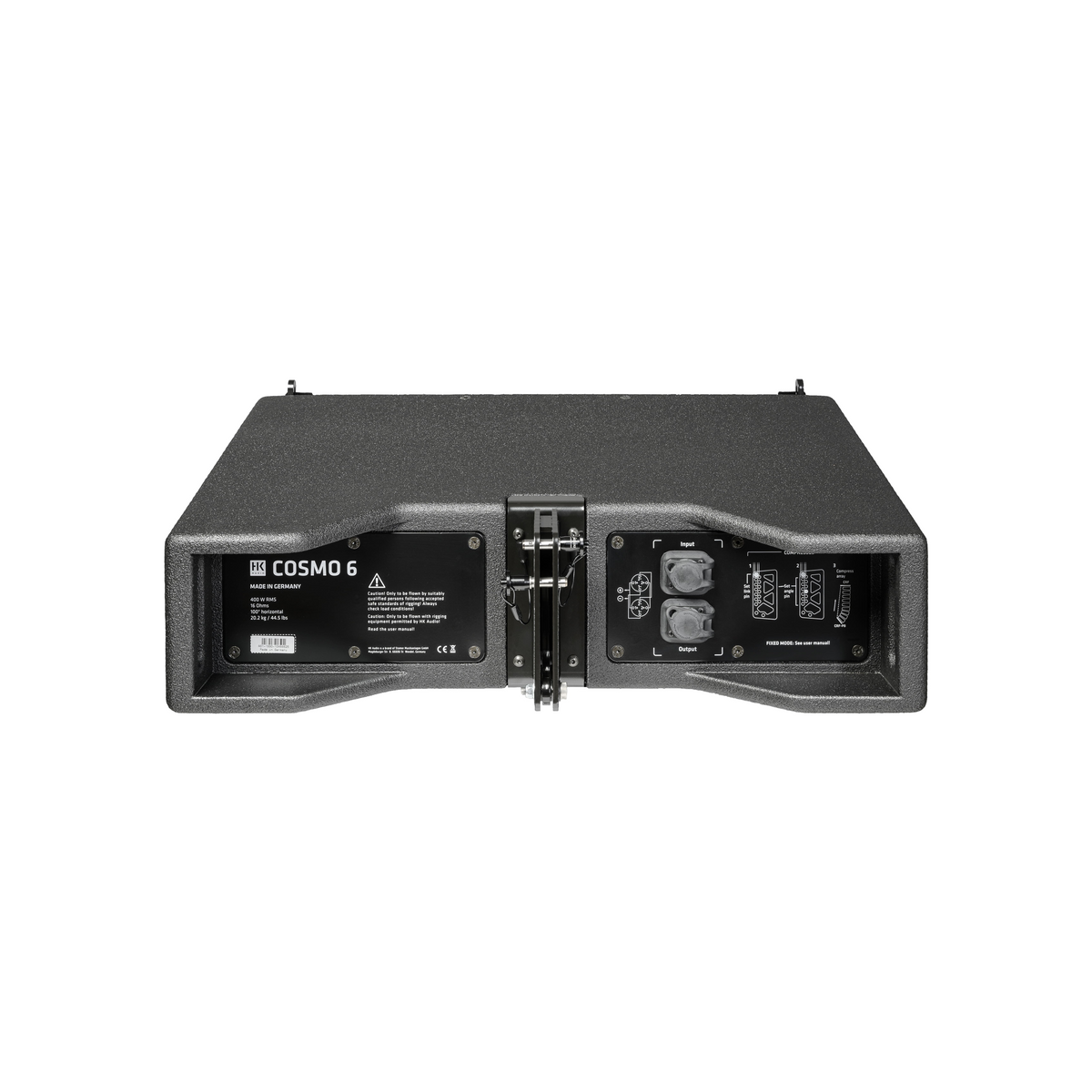

• Connections: 1 x NL4 Speakon input, 1 x NL4 Speakon output/parallel; pin assignment 1+/-, 2+/- switchable

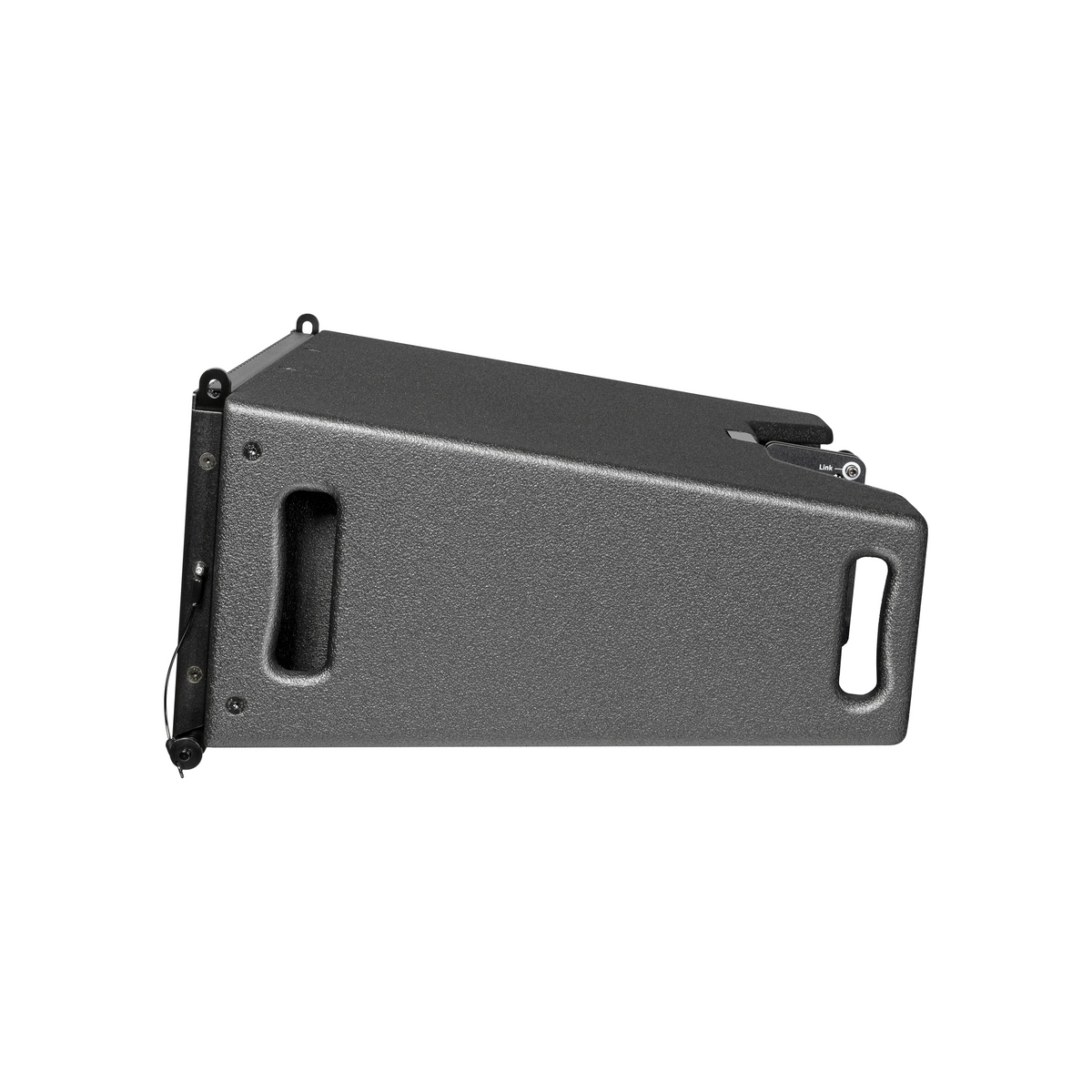

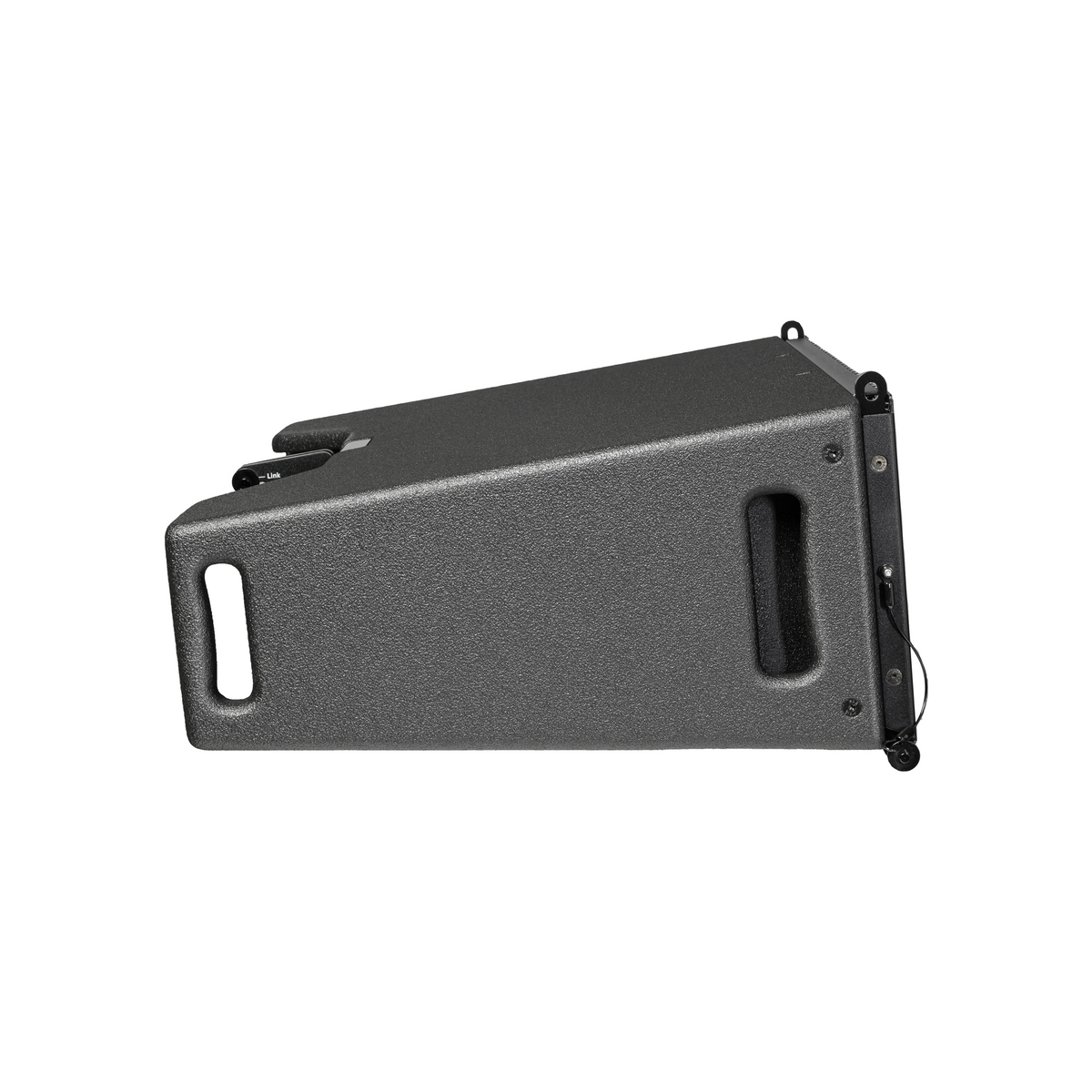

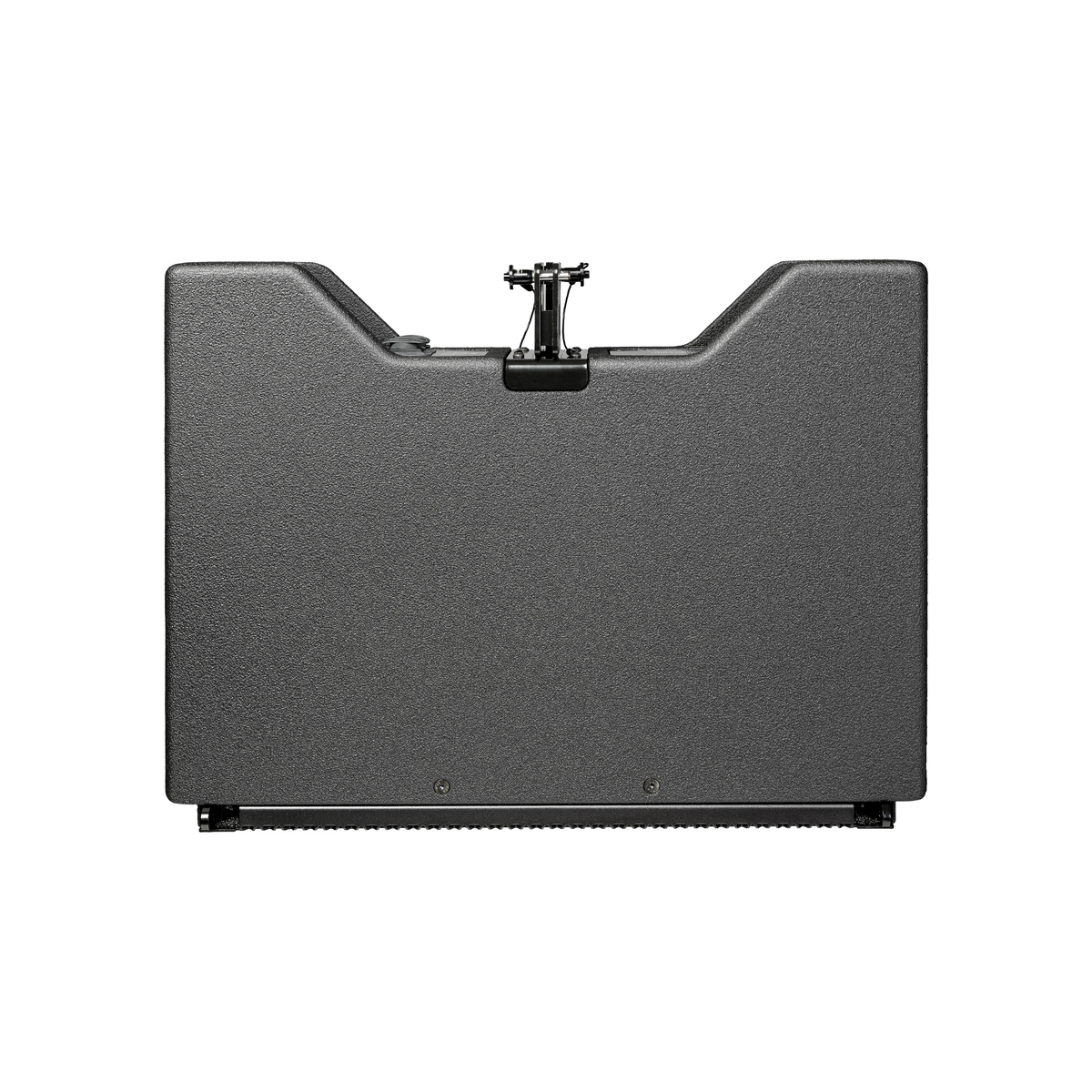

• Rigging: 3-point rigging hardware with black CDC coating; 4 x integrated carrying handles
• Cabinet Material and Finish: Birch plywood, PU coating, Jet black (RAL 9005)

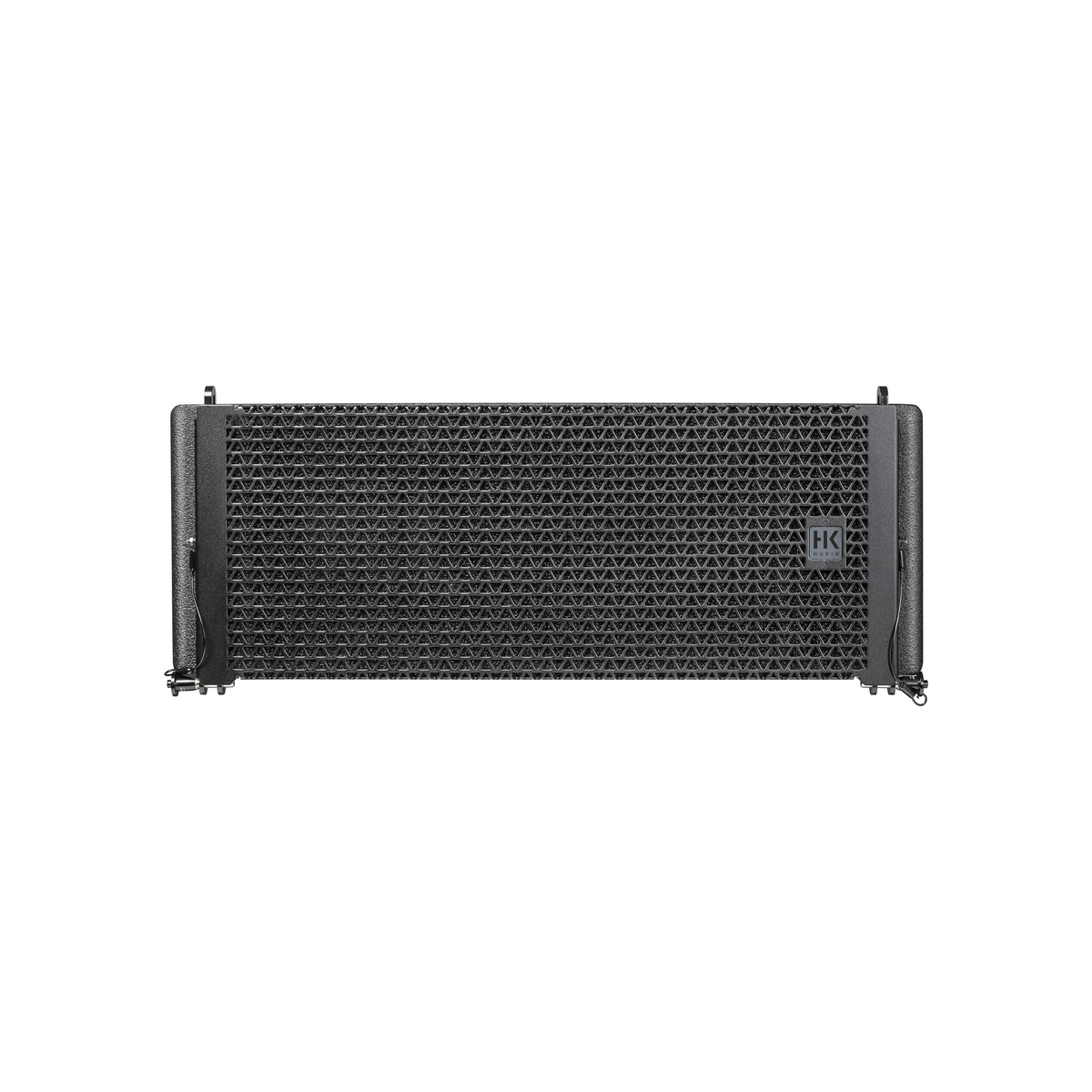

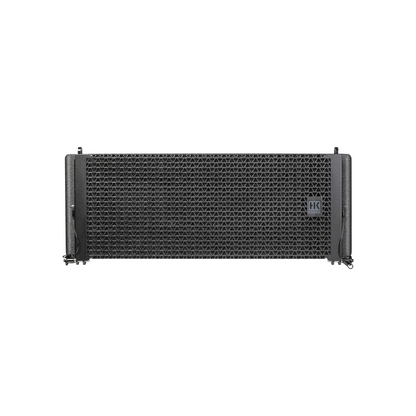

• Front Grille: Steel front grille with anticorrosive coating, backed with acoustic foam
• Dimensions (W x H x D): 60.0 x 22.0 x 45.0cm (23-5/8 x 8-21/32 x 17-23/32 in)
• Weight: 20.2kg (44.5 lbs)
