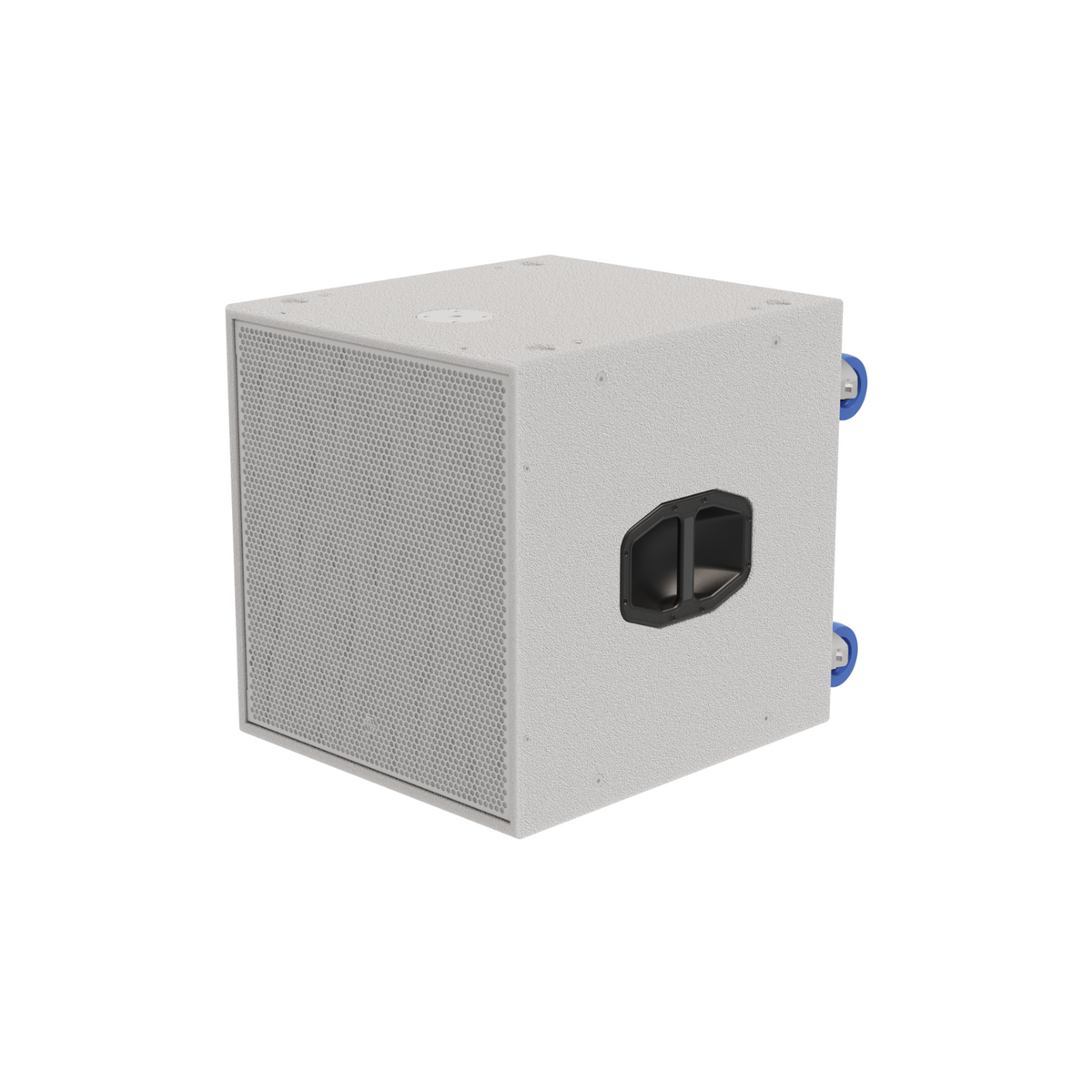

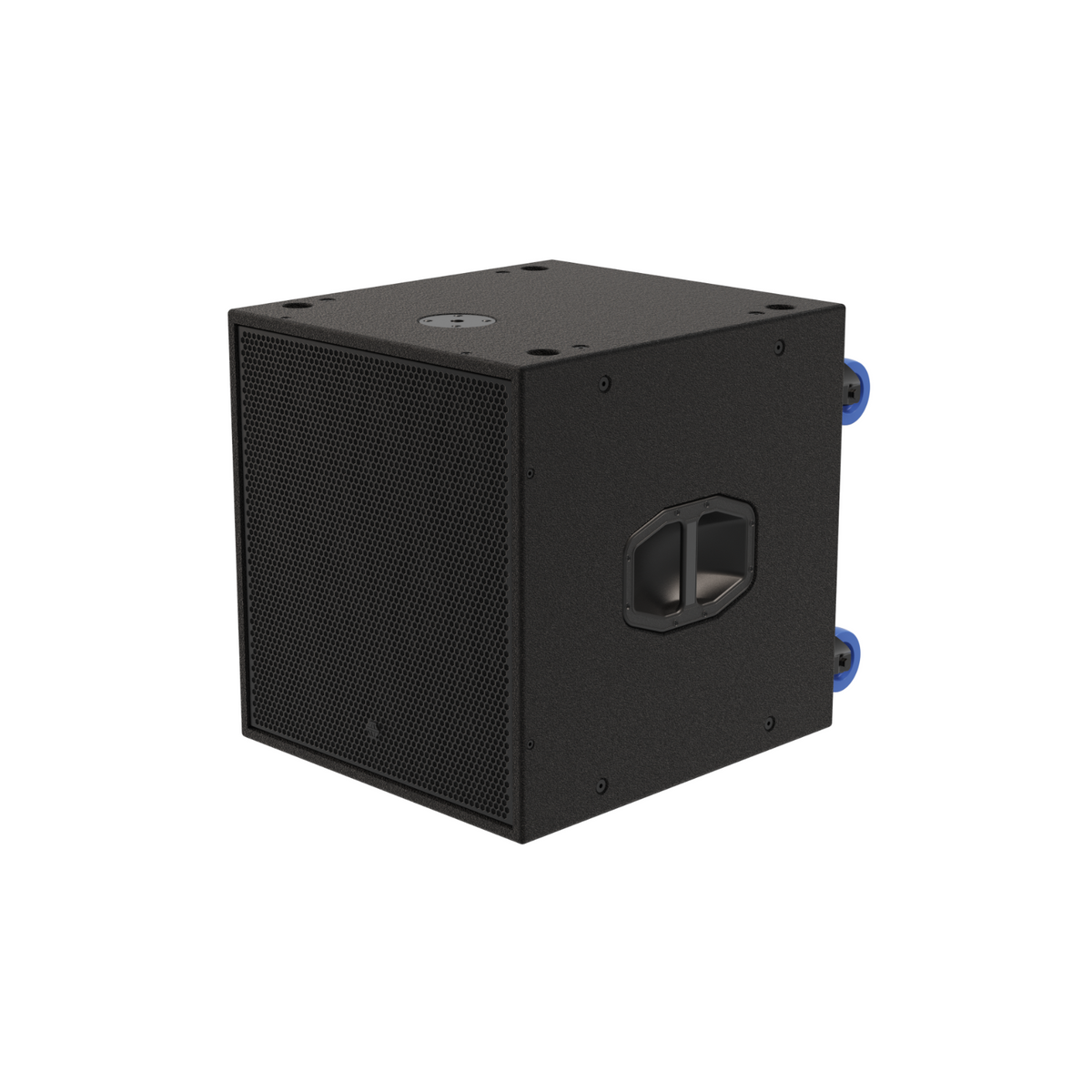

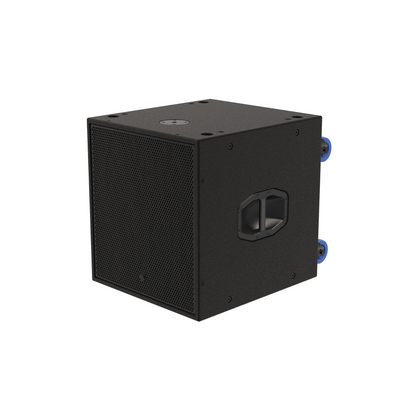

EM Acoustics S-18 High-Power Subwoofer

Driver Configuration

A single high-excursion 18-inch neodymium LF driver anchors the design, tuned for a strong power-to-size ratio and a fast transient response through the vented enclosure.

Build and Mounting

18mm multi-laminate birch plywood construction carries an impact- and weather-resistant polyurethane finish (black or white standard, RAL and outdoor options available). An M20 polemount adapter allows EMS Series loudspeakers to be stacked directly above; rear castors, rubber feet with matching stacking recesses, twin steel bar handles, and a hex-punched stainless steel grille round out the mechanical package, along with a pair of Neutrik speakON NL4 connectors.

Amplifier Compatibility

The S-18 needs an active crossover and a single amplifier channel, with wide filter-point flexibility. EM Acoustics' Advanced System Amplifiers are recommended, though other DSP-enabled or externally processed amplifiers work with the published filter settings; the driving channel should deliver 1500-2000W RMS into 4 ohms. Cardioid DSP presets are also available for stacking three enclosures into a rear-rejecting block array, with separate amplifier channels needed for the rear-firing boxes.

Applications

Corporate and AV systems and live sound reinforcement paired with EMS Series or other manufacturers' full-range loudspeakers.

Key Specifications

• Enclosure Type: Reflex loaded subwoofer
• Driver Configuration: 1 x 18-inch (457mm) high-excursion neodymium LF drive unit
• Frequency Response: 35Hz to 150Hz, plus/minus 3dB
• Maximum SPL: 131dB continuous, 137dB peak
• Power Handling: 1000W RMS, 2000W programme
• Nominal Impedance: 4 ohms
• Amplifier Compatibility: Requires active crossover, single channel (cardioid array presets available, separate channel per rear-firing sub); 1500-2000W RMS into 4 ohms recommended; EM Acoustics DQ10/DQ20 and Di20 recommended (DQ6/Di06/Di10 not recommended)
• Cabinet Material and Finish: 18mm multi-laminate birch plywood, impact and weather-resistant polyurethane (black/white standard, RAL on request)
• Rigging Points: M20 threaded polemount adapter for stacking EMS Series loudspeakers above; rear castors and stacking feet
• Dimensions (H x W x D): 635 x 590 x 650mm (25 x 22.2 x 25.6in)
• Weight: 51kg net, 54kg shipping (112.2/118.8lbs)
