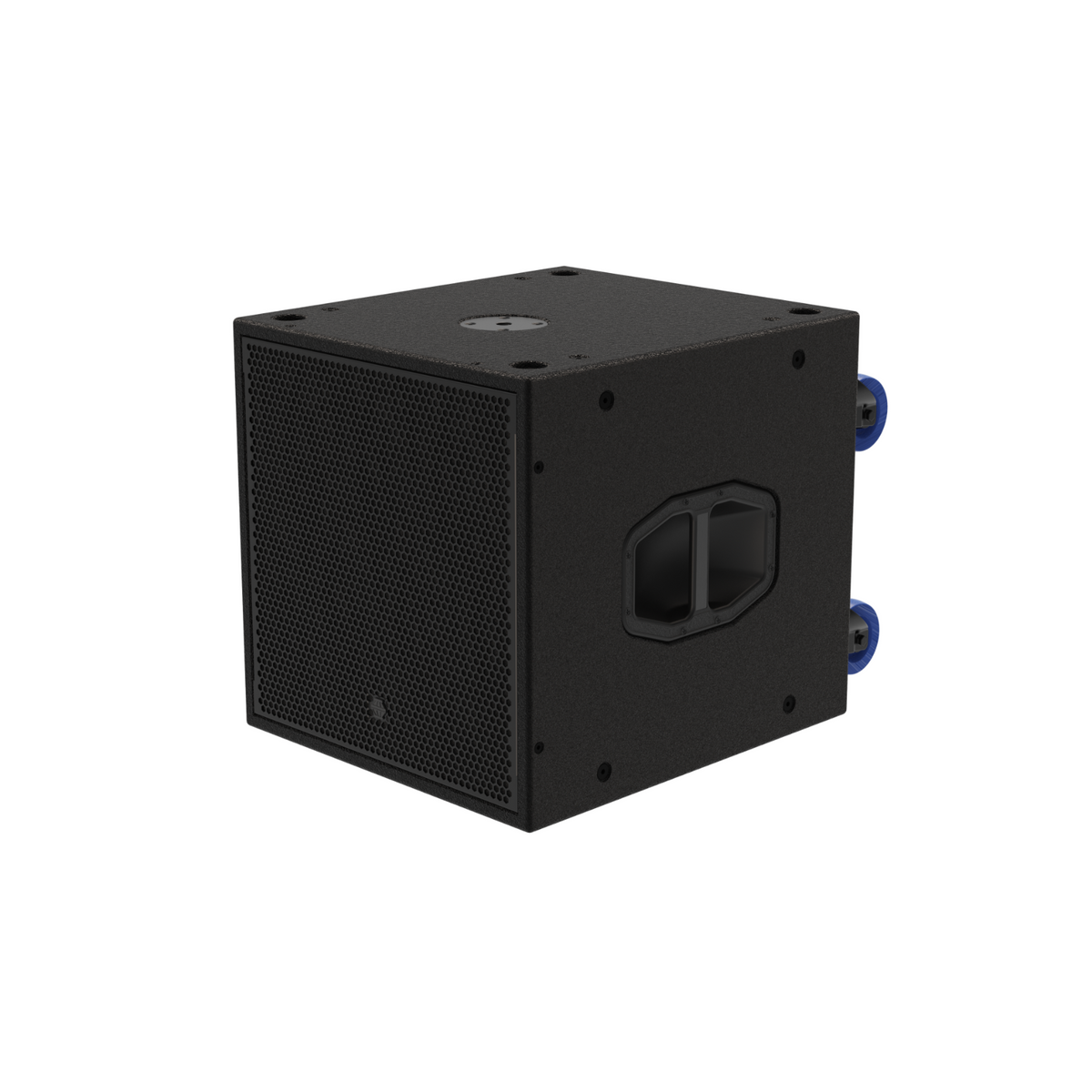

EM Acoustics S-15 Compact Subwoofer

Driver Configuration

A single high-excursion 15-inch neodymium driver sits in a rigidly braced, tuned enclosure engineered to minimise unwanted panel resonance while extracting maximum bass extension from a single-driver design.

Build and Mounting

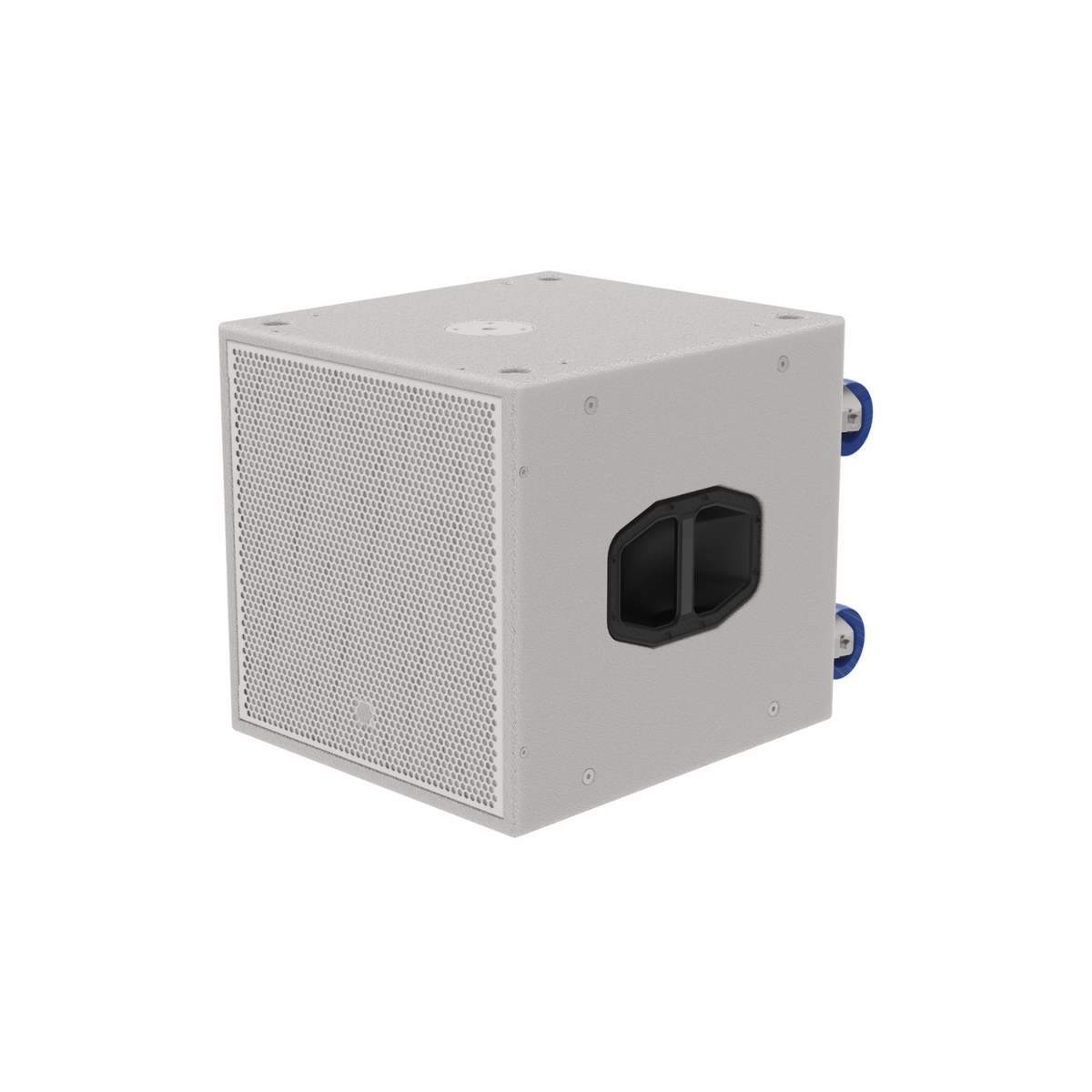

Multi-laminate birch plywood construction carries an impact- and weather-resistant polyurethane finish (black or white standard, RAL and outdoor options available), two flush bar handles, rubber feet with stacking recesses, an M20 pole adapter, and 16 M10 rigging points for both temporary and permanent installs. A tour-grade castor set is included as standard, along with a pair of Neutrik speakON NL4 connectors.

Amplifier Compatibility

The S-15 needs external active high/low-pass filtering and a single amplifier channel. EM Acoustics' Advanced System Amplifiers are recommended, though other DSP-enabled or externally processed amplifiers work with the published filter settings; the driving channel should deliver 1000-1600W RMS into 8 ohms. For cardioid arrays, the rear-firing subwoofers need a separate amplifier channel due to the different processing involved.

Applications

Core low-frequency support for corporate and AV systems, houses of worship, and theatre, especially suited to the EMS-81X, EMS-101X and EMS-126 full-range loudspeakers.

Key Specifications

• Enclosure Type: Reflex loaded subwoofer
• Driver Configuration: 1 x 15-inch (381mm) high-excursion neodymium LF drive unit
• Frequency Response: 40Hz to 150Hz, plus/minus 3dB
• Maximum SPL: 128dB continuous, 134dB peak
• Power Handling: 800W RMS, 1600W programme
• Nominal Impedance: 8 ohms
• Amplifier Compatibility: Requires external active crossover, single channel (separate channel required per rear-firing sub in cardioid arrays); 1000-1600W RMS into 8 ohms recommended; EM Acoustics DQ6/DQ10/DQ20 and Di20 recommended (Di06/Di10 not recommended)
• Cabinet Material and Finish: Multi-laminate birch plywood, impact and weather-resistant polyurethane (black/white standard, RAL on request)
• Rigging Points: 16 x M10 rigging points, M20 threaded polemount adapter, tour-grade castors included
• Dimensions (H x W x D): 519 x 510 x 570mm (20.4 x 20.1 x 22.4in)
• Weight: 36kg net, 39kg shipping (79.2/85.8lbs)
