EM Acoustics R8 Passive Loudspeaker
EM Acoustics R8 Passive Loudspeaker
EM Acoustics R8 Passive Loudspeaker

EM Acoustics R8 Passive Loudspeaker

Categories: Point source & monitors
SKU: 10M602

Sitting below the flagship R10, the R8 brings the Reference Series' low-profile, high-headroom approach to venues where rigging space is tight but system capacity still needs to be substantial, from a cramped theatre proscenium to a live music or corporate stage.

Pairs well with

Technical Specifications

Driver Configuration

Twin 8-inch neodymium LF drivers pair with the same 4-inch/2.5-inch coaxial MF/HF compression driver used in the R10, keeping voicing consistent across the two models. That coaxial driver feeds one of two interchangeable waveguides derived from the same research programme as the R10's.

Waveguide and Dispersion

A 110 x 50 degree wide pattern and an 80 x 50 degree narrow pattern are both supplied, letting the box switch coverage with a mechanical change plus an amplifier preset. The fitted waveguide and its orientation are identifiable without pulling the grille.

Build and Mounting

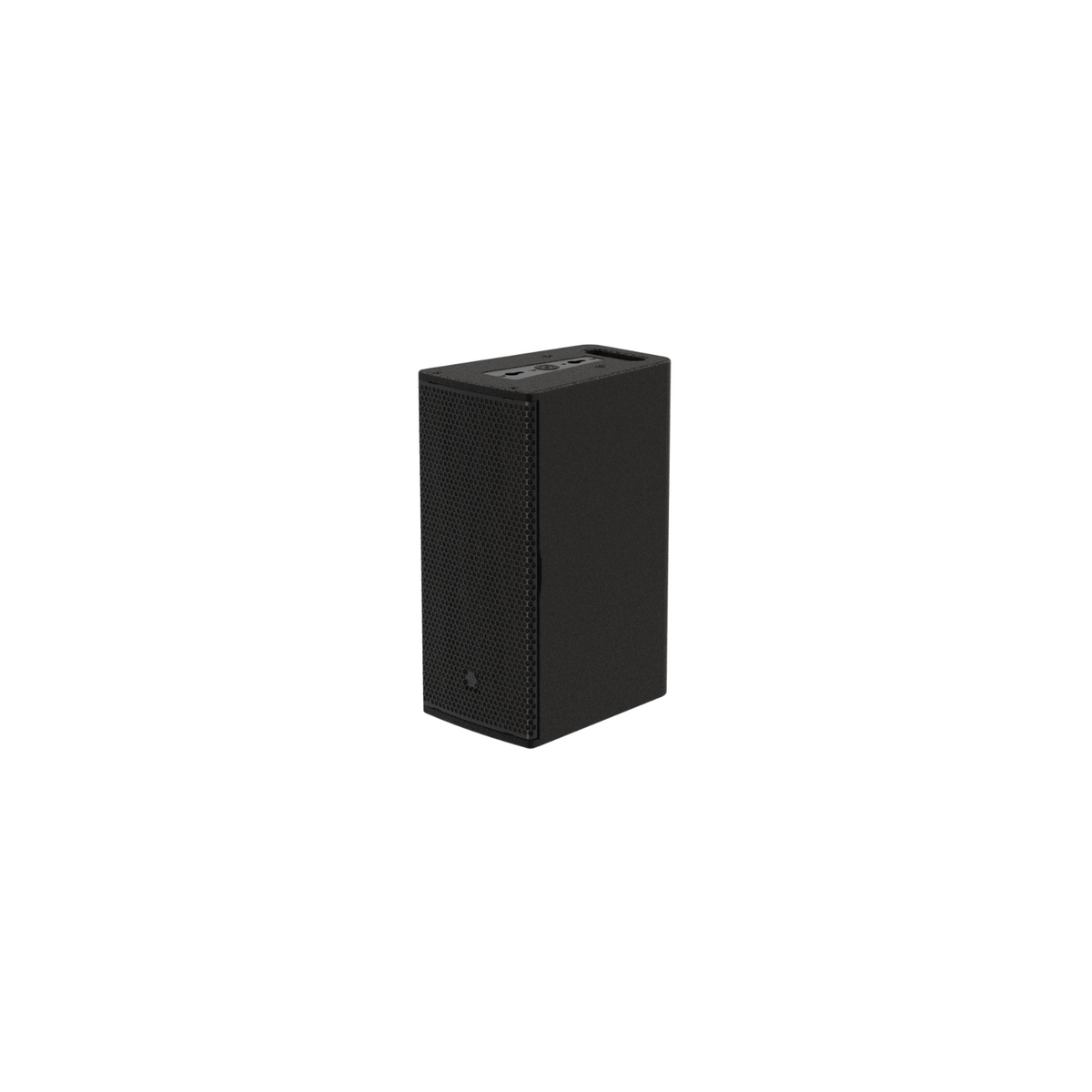

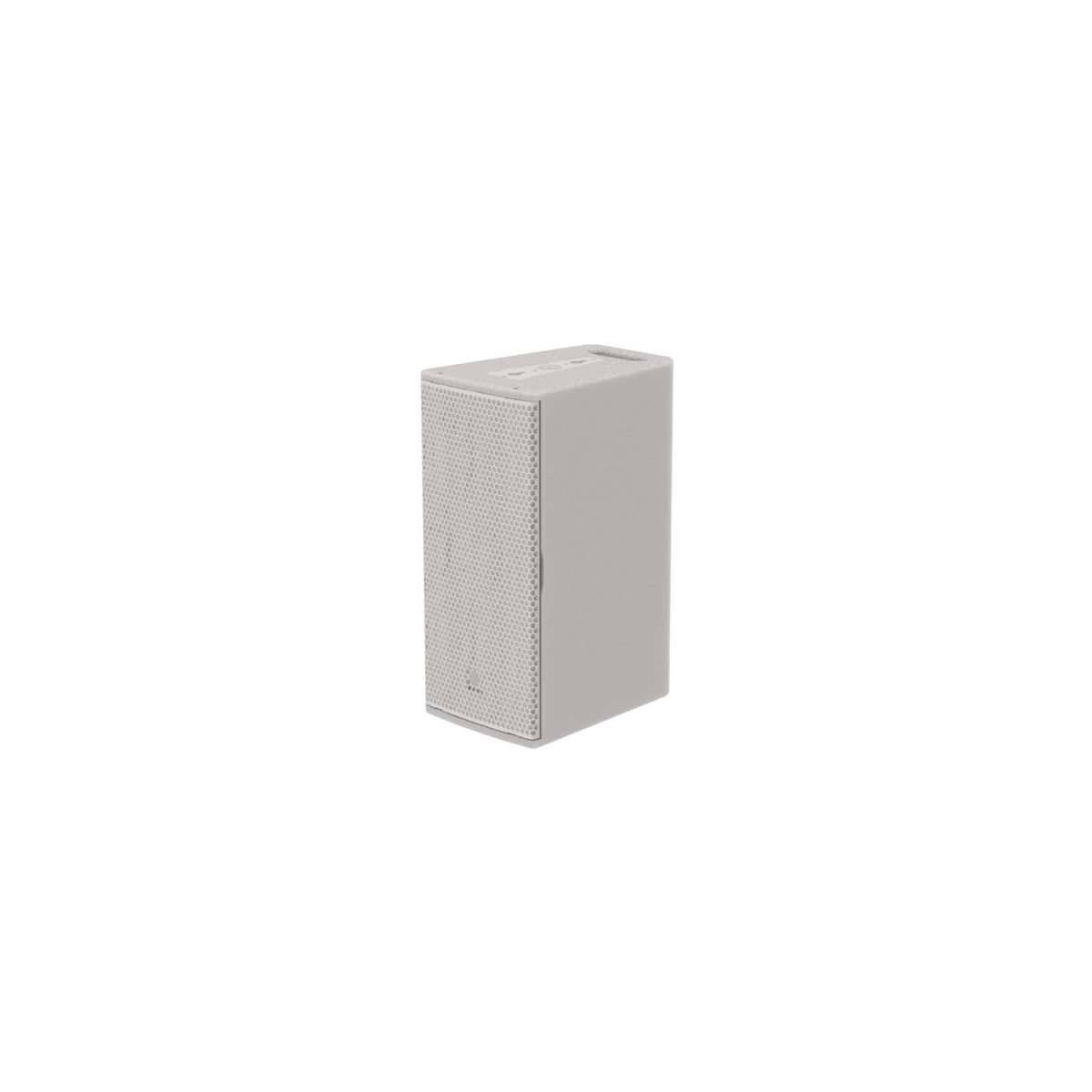

Bracing technology carried over from EM Acoustics' HALO series keeps the birch-plywood enclosure rigid while staying light. The impact- and weather-resistant polyurethane finish comes in black or white as standard, with RAL and outdoor options available. Handle placement, threaded rigging points and a quick-release keyhole flying plate round out the mechanical package.

Amplifier Compatibility

Amplifier-agnostic by design, with EM Acoustics' DQ Advanced System Amplifiers and the Di20 installation amplifier recommended; per-channel loading is documented for each.

Applications

Theatre proscenium rigging, corporate and AV reinforcement, houses of worship, and live music front-of-house where a low-profile enclosure matters.

Key Specifications

  • Enclosure Type: Three-way passive point source, reflex loaded
  • Driver Configuration: 2 x 8-inch (203mm) neodymium LF, 1 x 4-inch/2.5-inch (100mm/64mm) neodymium coaxial compression driver
  • Dispersion: 110 x 50 degrees and 80 x 50 degrees (-6dB points), both rotatable
  • Frequency Response: 70Hz to 20kHz, plus/minus 3dB
  • Maximum SPL: 128dB continuous, 134dB peak
  • Power Handling: 750W RMS, 1500W programme
  • Nominal Impedance: 8 ohms
  • Amplifier Compatibility: Amplifier-agnostic; EM Acoustics DQ6/DQ10/DQ20 and Di20 recommended (Di06/Di10 not recommended), per-channel loading published for each
  • Cabinet Material and Finish: Birch plywood, impact and weather-resistant polyurethane (black/white standard, RAL on request)
  • Rigging Points: Threaded rigging points plus quick-release keyhole flying plate
  • Dimensions (H x W x D): 580 x 260 x 377mm (22.8 x 10.2 x 14.8in)
  • Weight: 23kg net, 27kg shipping (50.6/59.4lbs)
