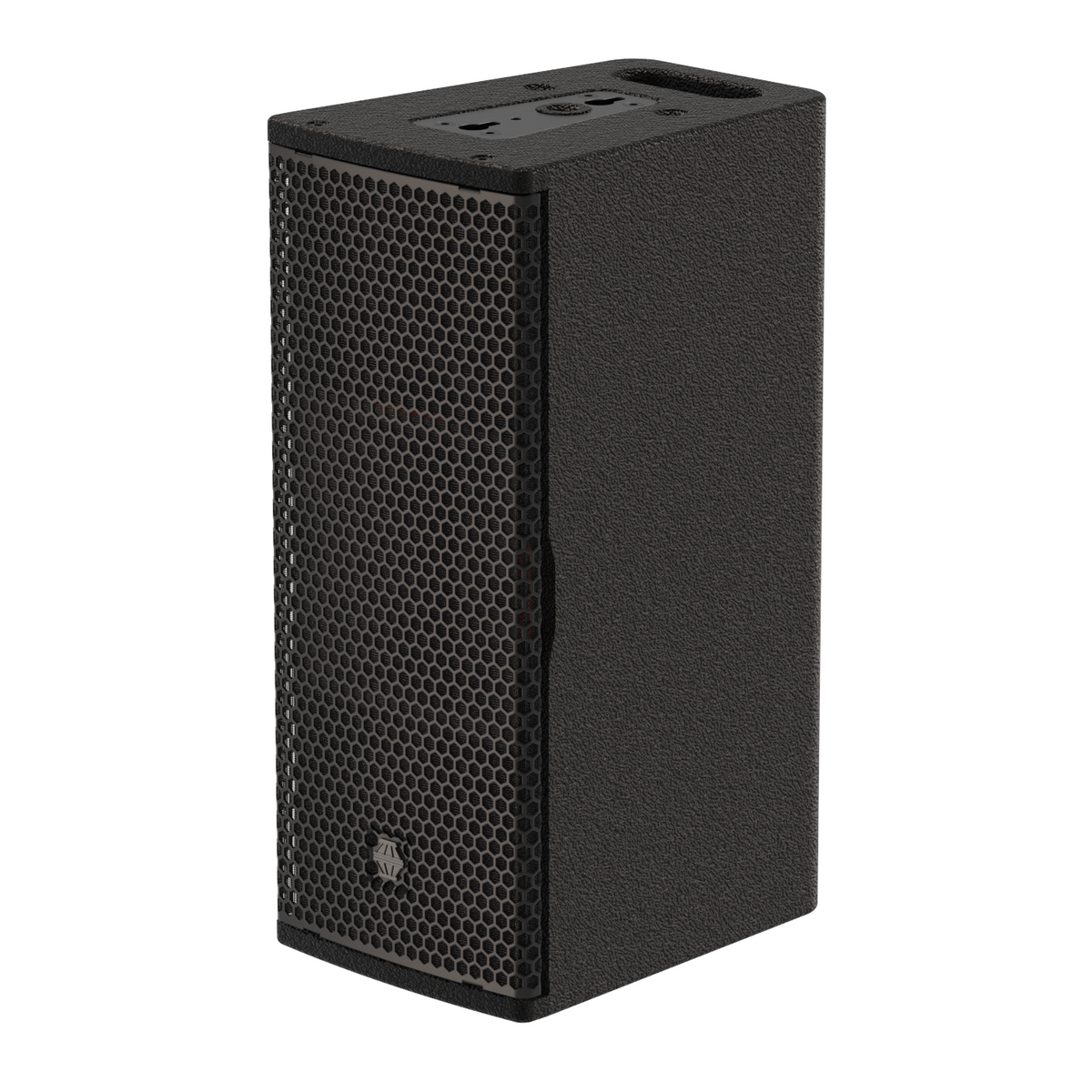

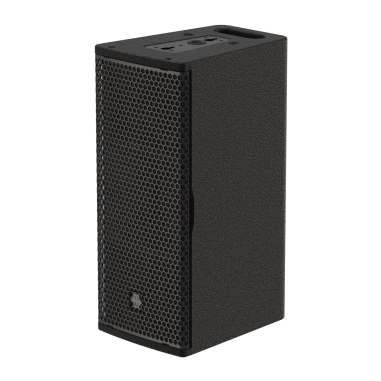

EM Acoustics R6 Passive Loudspeaker
EM Acoustics R6 Passive Loudspeaker
EM Acoustics R6 Passive Loudspeaker

EM Acoustics R6 Passive Loudspeaker

Categories: Point source & monitors
SKU: 10M607

The R6 bridges the gap between the R5 and R8, bringing Reference Series performance to a compact box with a genuinely surprising output ceiling. It’s built for powerful front fill and delay in theatres, discreet corporate and AV reinforcement, and, thanks to its higher SPL headroom than the smaller models, light front-of-house duty in smaller live music rooms.

Pairs well with

Technical Specifications

Driver Configuration

A pair of 6.5-inch neodymium LF drivers works with a coaxial 3-inch/2-inch MF/HF compression driver, a scaled-down version of the coaxial unit used in the larger Reference Series models, so the voicing carries through consistently. A two-way crossover keeps off-axis parallax and lobing under control.

Waveguide and Dispersion

Two bespoke rotatable waveguides, 110 x 50 degrees wide and 80 x 50 degrees narrow, are supplied as standard. As with the rest of the series, the fitted waveguide and its orientation stay identifiable without removing the grille.

Build and Mounting

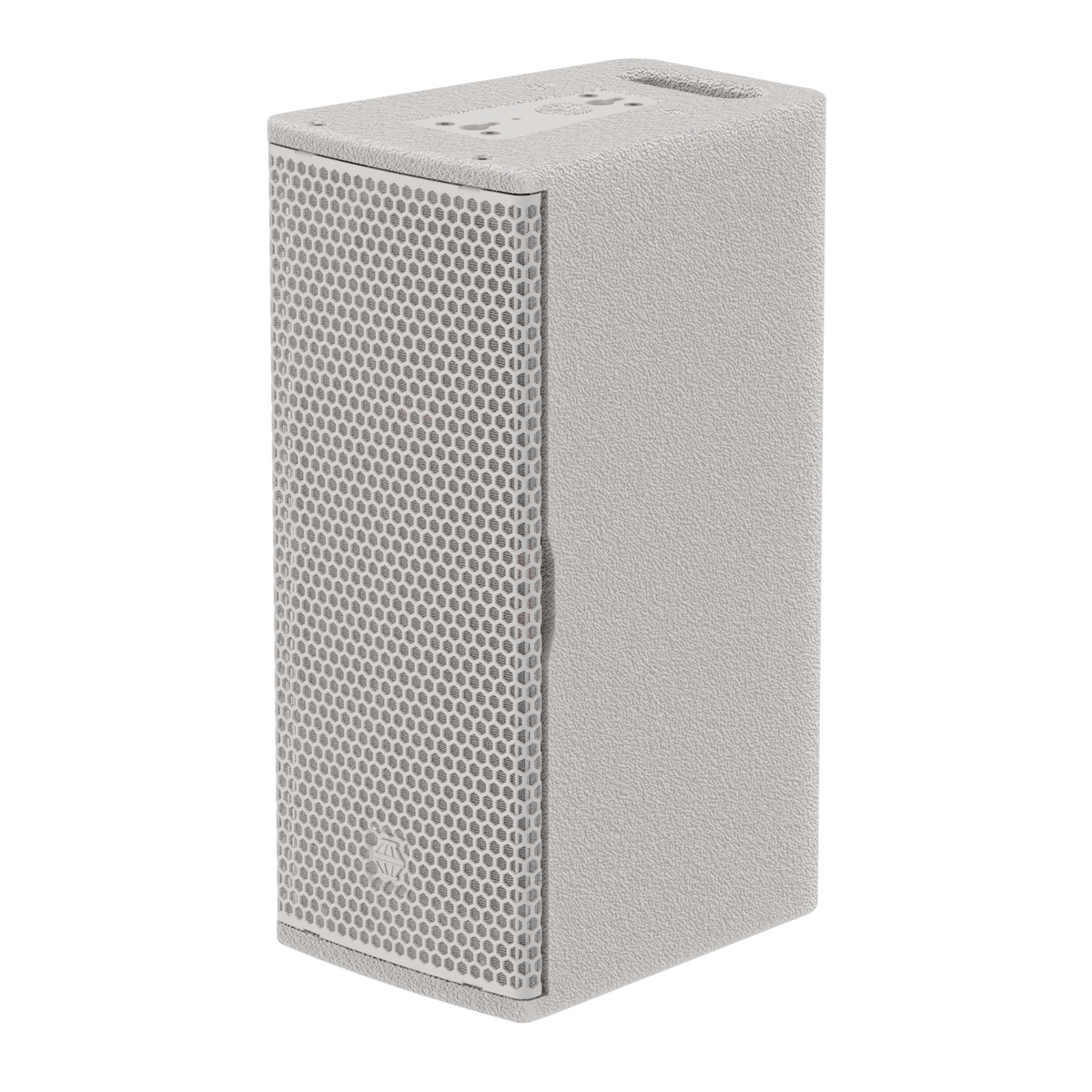

Birch-plywood construction with a weather- and impact-resistant polyurethane finish (black or white standard, RAL and outdoor options available) is matched to a stainless steel front grille and flying plate, quick-release flying hardware and threaded rigging points.

Amplifier Compatibility

Amplifier-agnostic operation is built into the design; EM Acoustics' DQ and Di Advanced System Amplifiers are the reference recommendation, with per-channel loading documented for each.

Applications

Front fill and delay in theatres, corporate and AV reinforcement, houses of worship, cafes and bars, and small-scale live sound front-of-house.

Key Specifications

  • Enclosure Type: Three-way passive point source, reflex loaded
  • Driver Configuration: 2 x 6.5-inch (165mm) neodymium LF, 1 x 3-inch/2-inch (76mm/51mm) neodymium coaxial compression driver
  • Dispersion: 110 x 50 degrees and 80 x 50 degrees (-6dB points), both rotatable
  • Frequency Response: 80Hz to 20kHz, plus/minus 3dB
  • Maximum SPL: 125dB continuous, 131dB peak
  • Power Handling: 600W RMS, 1200W programme
  • Nominal Impedance: 8 ohms
  • Amplifier Compatibility: Amplifier-agnostic; EM Acoustics DQ6/DQ10/DQ20 and Di10/Di20 Advanced System Amplifiers recommended (Di06 not recommended), per-channel loading published for each
  • Cabinet Material and Finish: Birch plywood, impact and weather-resistant polyurethane (black/white standard, RAL on request)
  • Rigging Points: Quick-release flying hardware plus threaded rigging points
  • Dimensions (H x W x D): 516 x 220 x 300mm (20.3 x 8.7 x 11.8in)
  • Weight: 15kg net, 18kg shipping (33/39.6lbs)
