Categories: Point source & monitors
SKU: 10M605

The R5 scales the Reference Series concept down into a compact, three-way format built for front-fill, under-balcony, and other jobs where a discreet cabinet still needs to carry the series' full-range headroom. It brings the same no-compromise approach found in the R8, R10 and R12 to the smallest loudspeakers in a system design.

Pairs well with

Technical Specifications

Driver Configuration

Twin 5-inch neodymium LF/MF drivers pair with a 1.5-inch annular HF compression driver across a bespoke three-way crossover designed to minimise off-axis parallax and lobing. The annular HF diaphragm keeps harmonic distortion low, matching the tonal character carried through the rest of the range.

Waveguide and Dispersion

Two rotatable waveguides, 110 x 50 degrees wide and 80 x 50 degrees narrow, ship as standard, giving one enclosure the flexibility to cover both short-throw and longer-throw positions. Which pattern is installed, and its orientation, remains visible without removing the grille.

Build and Mounting

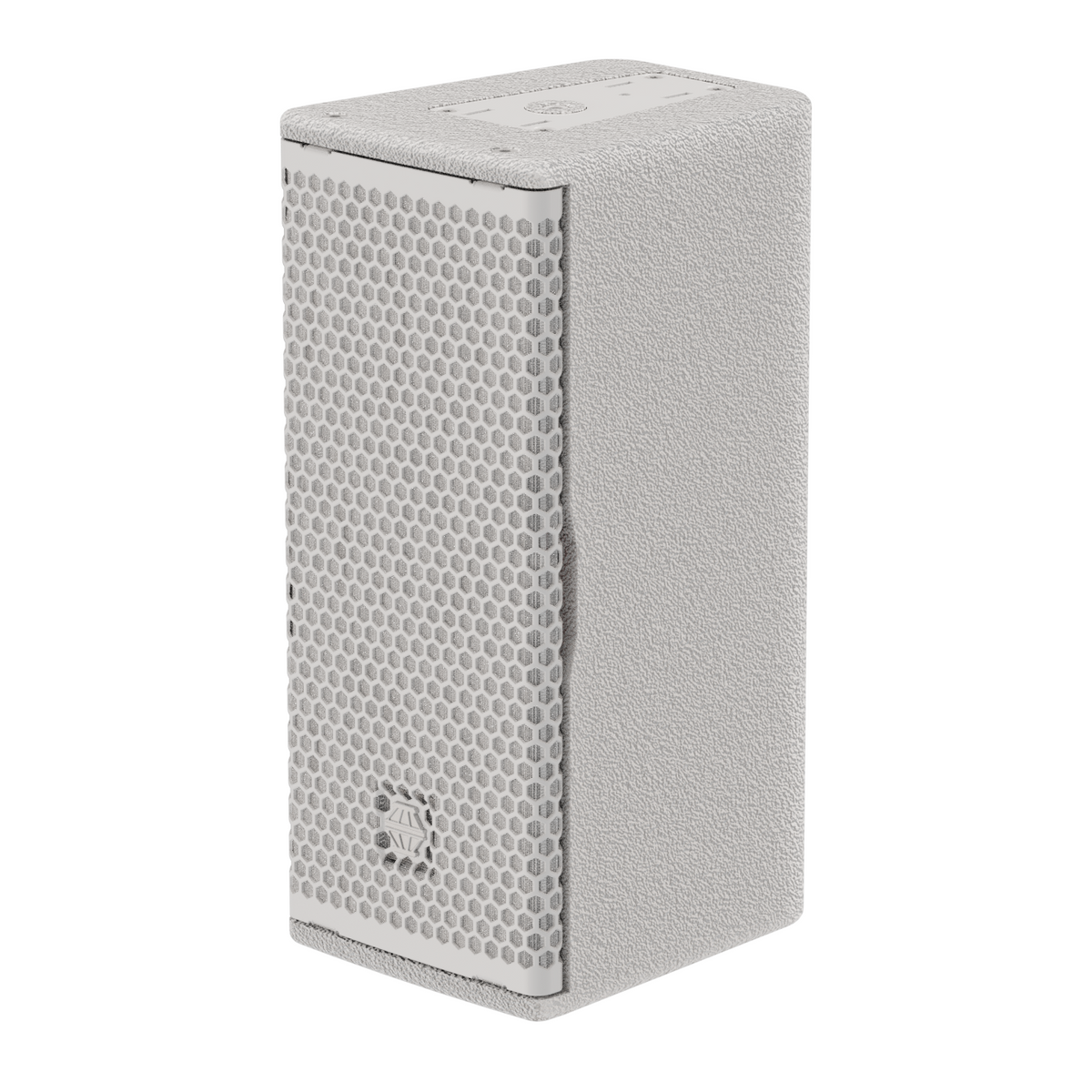

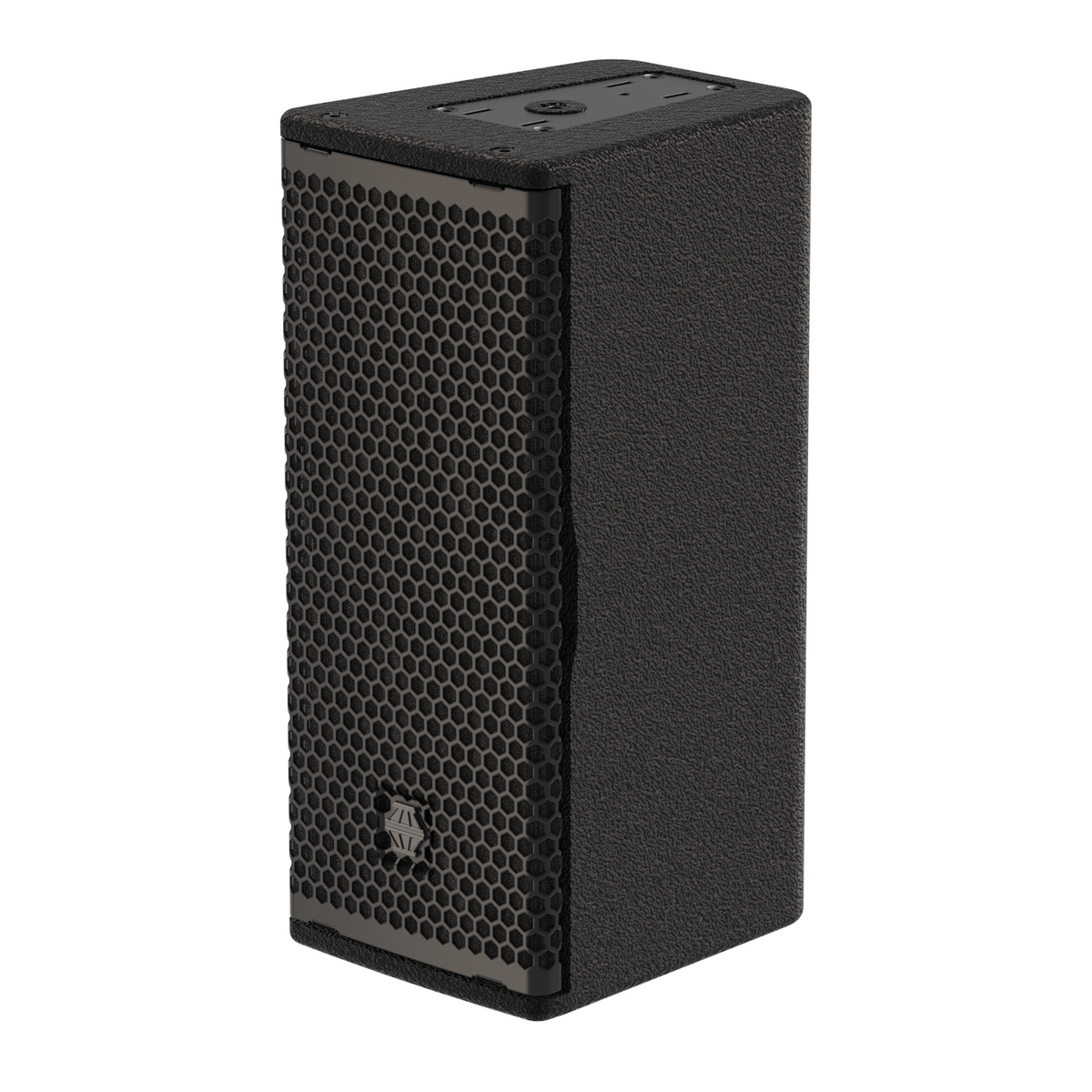

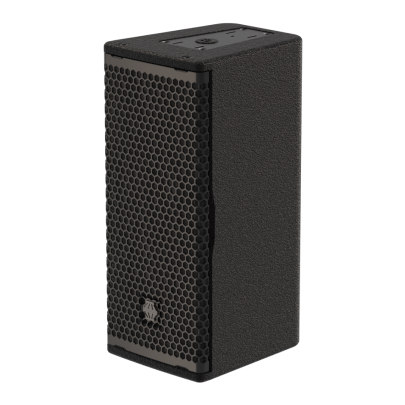

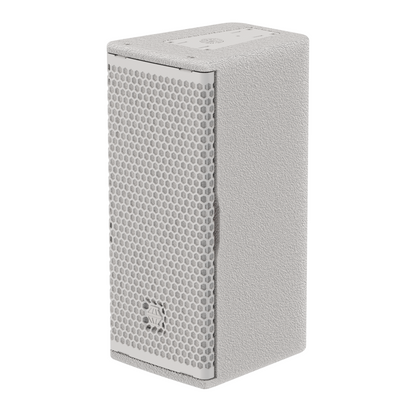

A birch-plywood enclosure with impact- and weather-resistant polyurethane coating (black or white as standard, RAL and outdoor options available) is paired with tool-free quick-release flying hardware and threaded rigging points for both touring and permanent work.

Amplifier Compatibility

The R5 is amplifier-agnostic by design, with EM Acoustics' DQ and Di Advanced System Amplifiers as the reference recommendation and documented per-channel loading for each.

Applications

Front fill and under-balcony coverage in theatres, cafes and bars, corporate and AV spaces, and houses of worship.

Key Specifications

  • Enclosure Type: Three-way passive point source, infinite baffle
  • Driver Configuration: 2 x 5-inch (127mm) neodymium LF/MF, 1 x 1.5-inch (38mm) neodymium HF annular compression driver
  • Dispersion: 110 x 50 degrees and 80 x 50 degrees (-6dB points), both rotatable
  • Frequency Response: 80Hz to 20kHz, plus/minus 3dB
  • Maximum SPL: 118dB continuous, 124dB peak
  • Power Handling: 300W RMS, 600W programme
  • Nominal Impedance: 8 ohms
  • Amplifier Compatibility: Amplifier-agnostic; EM Acoustics DQ6/DQ10/DQ20 and Di06/Di10/Di20 Advanced System Amplifiers recommended, per-channel loading published for each
  • Cabinet Material and Finish: Birch plywood, impact and weather-resistant polyurethane (black/white standard, RAL on request)
  • Rigging Points: Quick-release flying hardware plus threaded rigging points
  • Dimensions (H x W x D): 400 x 172 x 210mm (15.8 x 6.8 x 8.3in)
  • Weight: 7kg net, 8.2kg shipping (15.4/18lbs)
