EM Acoustics R12 Passive Loudspeaker
EM Acoustics R12 Passive Loudspeaker
EM Acoustics R12 Passive Loudspeaker

EM Acoustics R12 Passive Loudspeaker

Categories: Point source & monitors
SKU: 10M604

The R12 pushes the Reference Series to its highest-output point, carrying the detail and transparency of the R10 into a larger platform built for concert touring, nightlife, and other jobs that call for serious headroom from a point-source box.

Pairs well with

Technical Specifications

Driver Configuration

A pair of 12-inch neodymium LF drivers is matched to the same 4-inch/2.5-inch coaxial MF/HF compression driver used in the R10, so the tonal signature stays consistent right across the range even at this larger scale.

Waveguide and Dispersion

Both a 110 x 50 degree wide waveguide and an 80 x 50 degree narrow waveguide are supplied as standard, changeable in minutes alongside an amplifier preset. The fitted pattern and orientation stay visible without removing the grille.

Build and Mounting

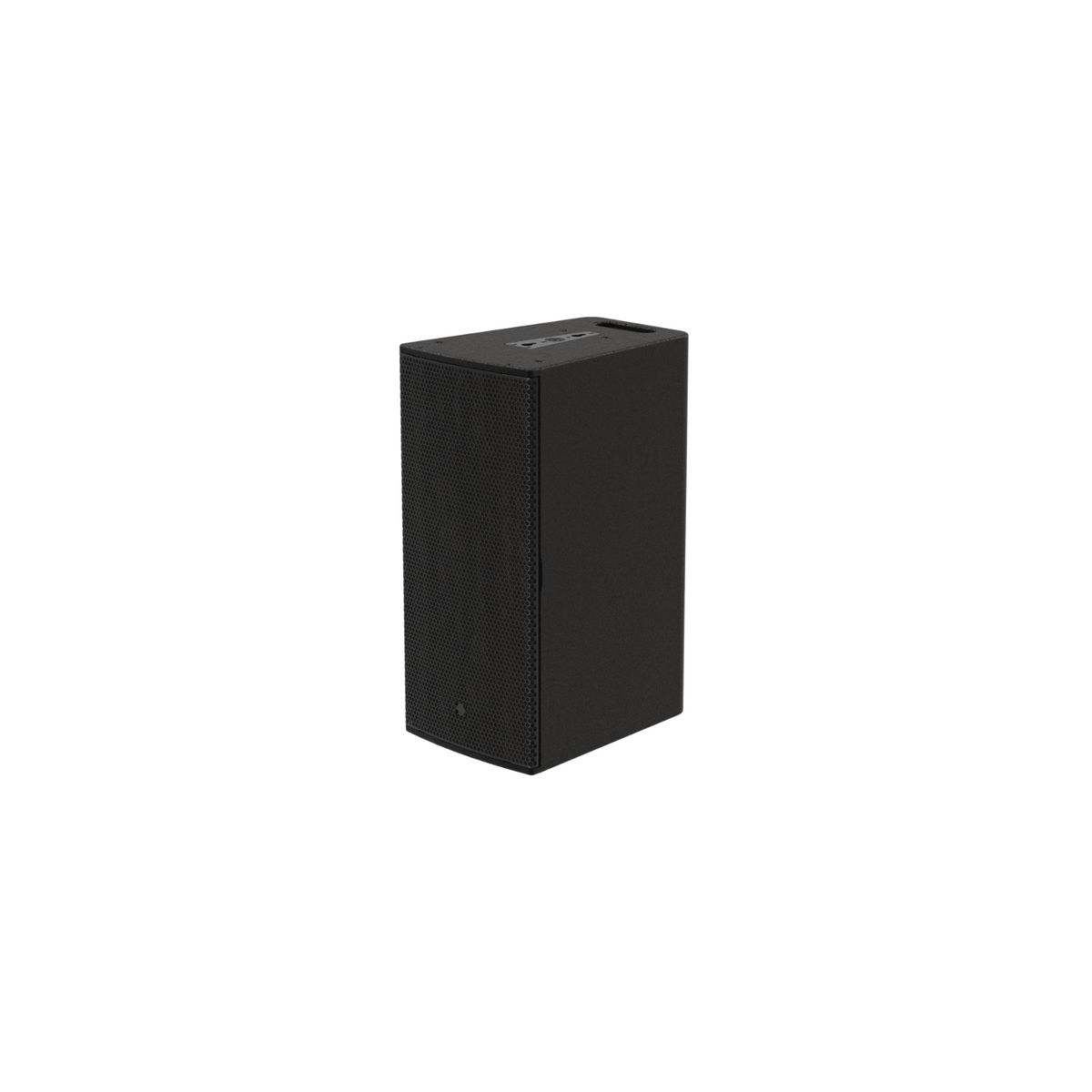

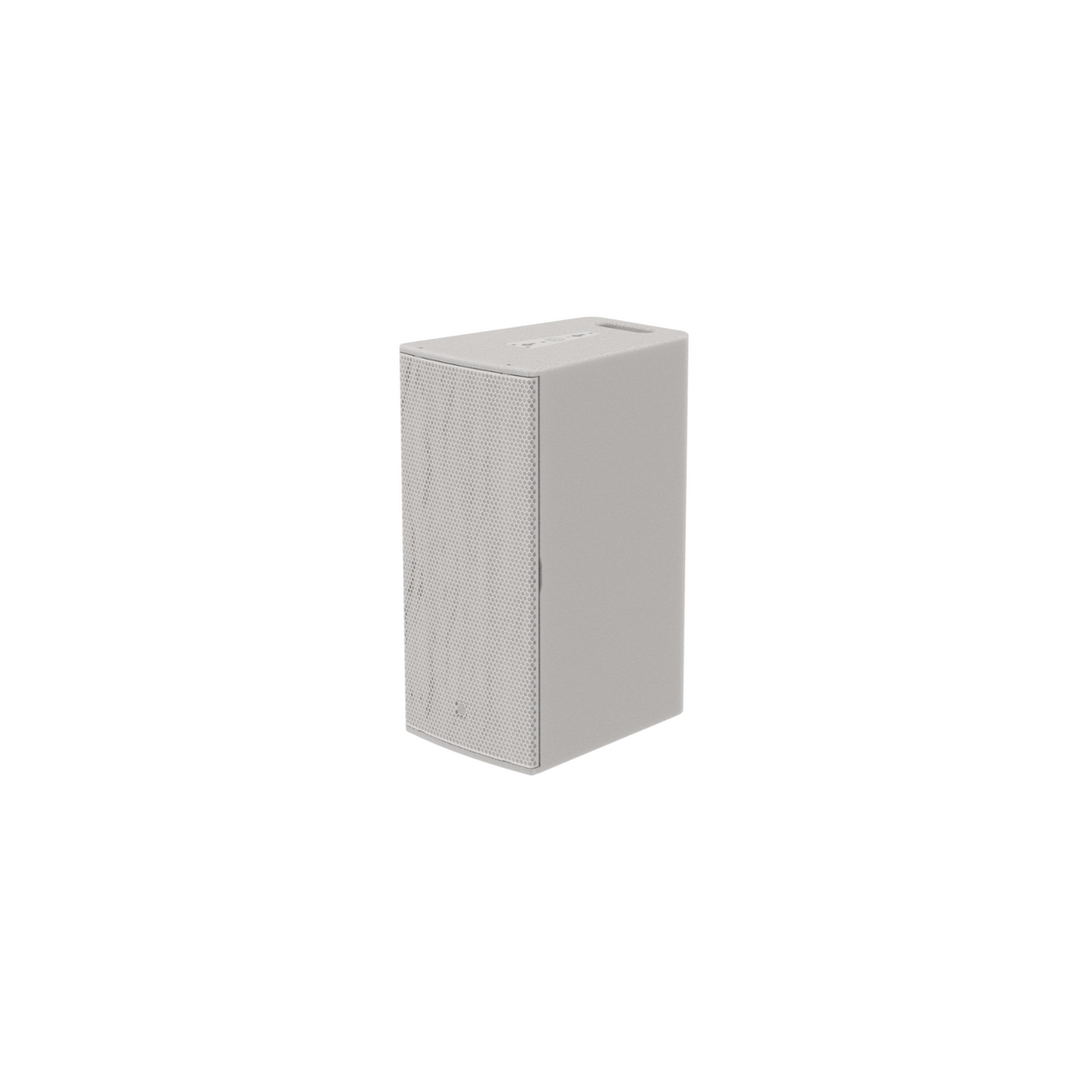

HALO-derived bracing keeps the birch-plywood enclosure rigid at this larger size while managing weight. The polyurethane finish is impact- and weather-resistant, available in black or white as standard with RAL and outdoor options on request. Handle placement, threaded rigging points and a quick-release keyhole flying plate handle rigging duties.

Amplifier Compatibility

Amplifier-agnostic by design, with EM Acoustics' DQ10, DQ20 and Di20 amplifiers recommended; per-channel loading is documented for each.

Applications

Concert touring, houses of worship, live music front-of-house, nightlife installations, and theatre where higher SPL headroom is needed from a point-source enclosure.

Key Specifications

  • Enclosure Type: Three-way passive point source, reflex loaded
  • Driver Configuration: 2 x 12-inch (305mm) neodymium LF, 1 x 4-inch/2.5-inch (100mm/64mm) neodymium coaxial compression driver
  • Dispersion: 110 x 50 degrees and 80 x 50 degrees (-6dB points), both rotatable
  • Frequency Response: 50Hz to 20kHz, plus/minus 3dB
  • Maximum SPL: 133dB continuous, 139dB peak
  • Power Handling: 1500W RMS, 3000W programme
  • Nominal Impedance: 4 ohms
  • Amplifier Compatibility: Amplifier-agnostic; EM Acoustics DQ10, DQ20 and Di20 recommended (DQ6/Di06/Di10 not recommended), per-channel loading published for each
  • Cabinet Material and Finish: Birch plywood, impact and weather-resistant polyurethane (black/white standard, RAL on request)
  • Rigging Points: Threaded rigging points plus quick-release keyhole flying plate
  • Dimensions (H x W x D): 820 x 380 x 530mm (32.3 x 15 x 20.9in)
  • Weight: 45kg net, 51kg shipping (99/112.2lbs)
