Categories: Point source & monitors
SKU: 10M603

The R10 is the flagship model that launched the Reference Series, a three-way, low-profile point source built to sit as comfortably on a theatre proscenium as it does on a live music or corporate stage, delivering the series' signature headroom without a bulky footprint.

Pairs well with

Technical Specifications

Driver Configuration

Two 10-inch neodymium LF drivers work alongside a 4-inch/2.5-inch coaxial MF/HF compression driver, the product of EM Acoustics' most extensive waveguide research programme to date. That research produced two alternate waveguides with a notably natural tonal character and consistent on- and off-axis response.

Waveguide and Dispersion

Both a 110 x 50 degree wide waveguide and an 80 x 50 degree narrow waveguide ship as standard, switchable in minutes alongside an amplifier preset change. The fitted pattern and its orientation remain identifiable without removing the grille.

Build and Mounting

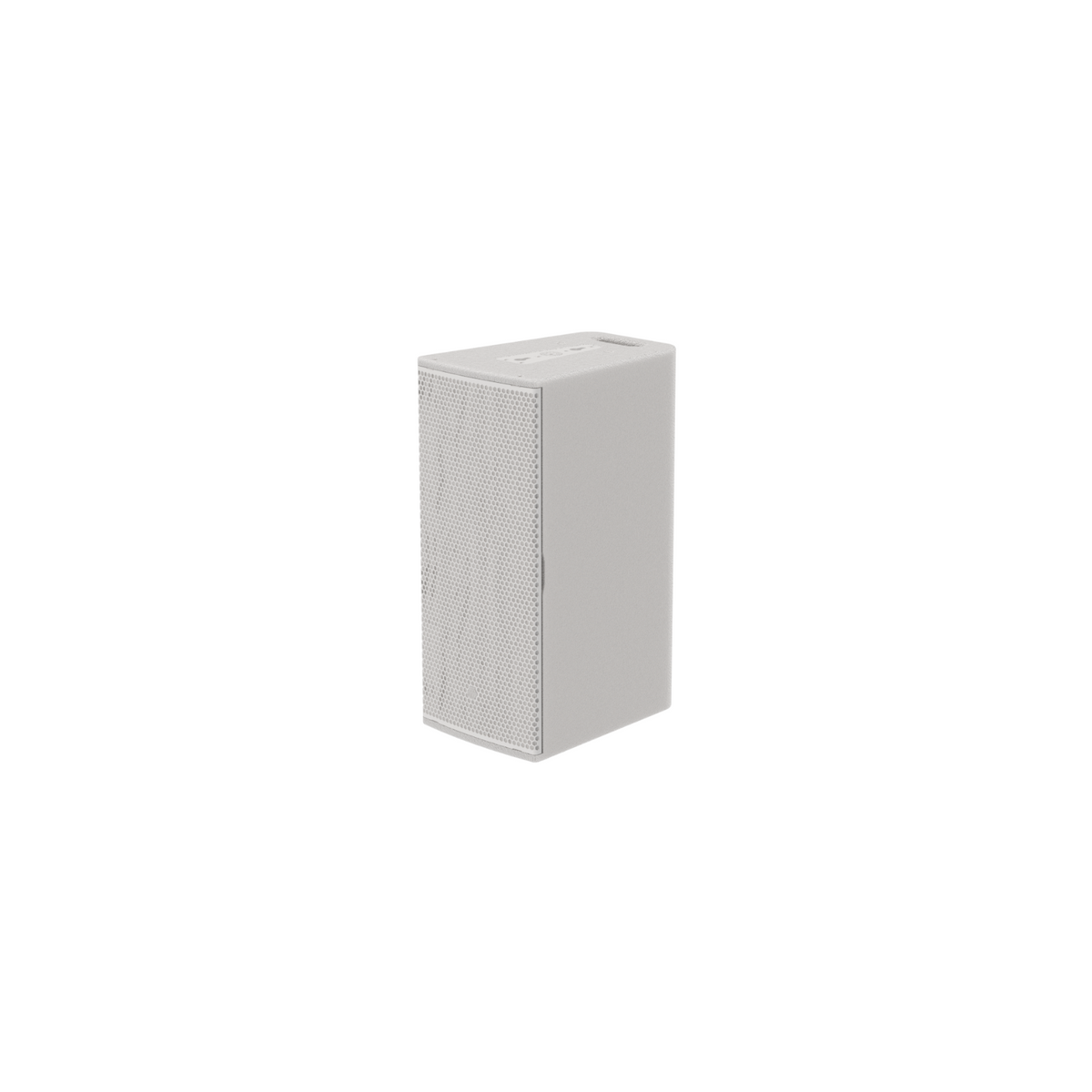

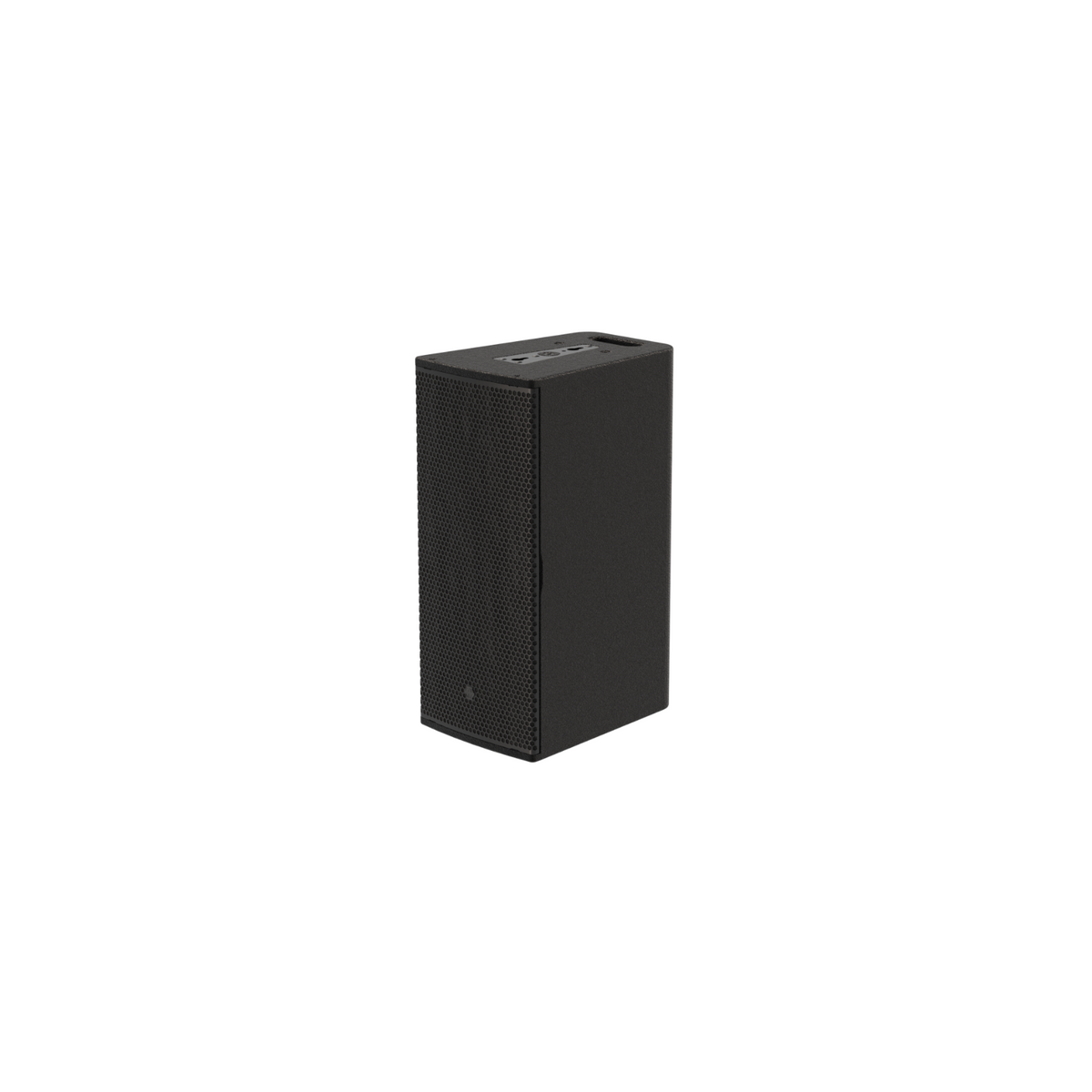

Bracing carried over from the HALO line array series gives the birch-plywood enclosure a rigid, lightweight structure. The polyurethane finish is impact- and weather-resistant, offered in black or white as standard with RAL and outdoor-rated options available. Handle placement, threaded rigging points and a quick-release keyhole flying plate complete the mechanical package.

Amplifier Compatibility

Amplifier-agnostic operation is central to the design, with EM Acoustics' DQ Advanced System Amplifiers and the Di20 installation amplifier recommended and per-channel loading published for each.

Applications

Theatre proscenium installations, corporate and AV reinforcement, and live music front-of-house where full-range output needs to come from a compact enclosure.

Key Specifications

  • Enclosure Type: Three-way passive point source, reflex loaded
  • Driver Configuration: 2 x 10-inch (254mm) neodymium LF, 1 x 4-inch/2.5-inch (100mm/64mm) neodymium coaxial compression driver
  • Dispersion: 110 x 50 degrees and 80 x 50 degrees (-6dB points), both rotatable
  • Frequency Response: 60Hz to 20kHz, plus/minus 3dB
  • Maximum SPL: 130dB continuous, 136dB peak
  • Power Handling: 1000W RMS, 2000W programme
  • Nominal Impedance: 8 ohms
  • Amplifier Compatibility: Amplifier-agnostic; EM Acoustics DQ6/DQ10/DQ20 and Di20 recommended (Di06/Di10 not recommended), per-channel loading published for each
  • Cabinet Material and Finish: Birch plywood, impact and weather-resistant polyurethane (black/white standard, RAL on request)
  • Rigging Points: Threaded rigging points plus quick-release keyhole flying plate
  • Dimensions (H x W x D): 700 x 306 x 430mm (27.6 x 12 x 16.9in)
  • Weight: 31kg net, 36kg shipping (68.2/79.2lbs)
