Driver Configuration and Dispersion

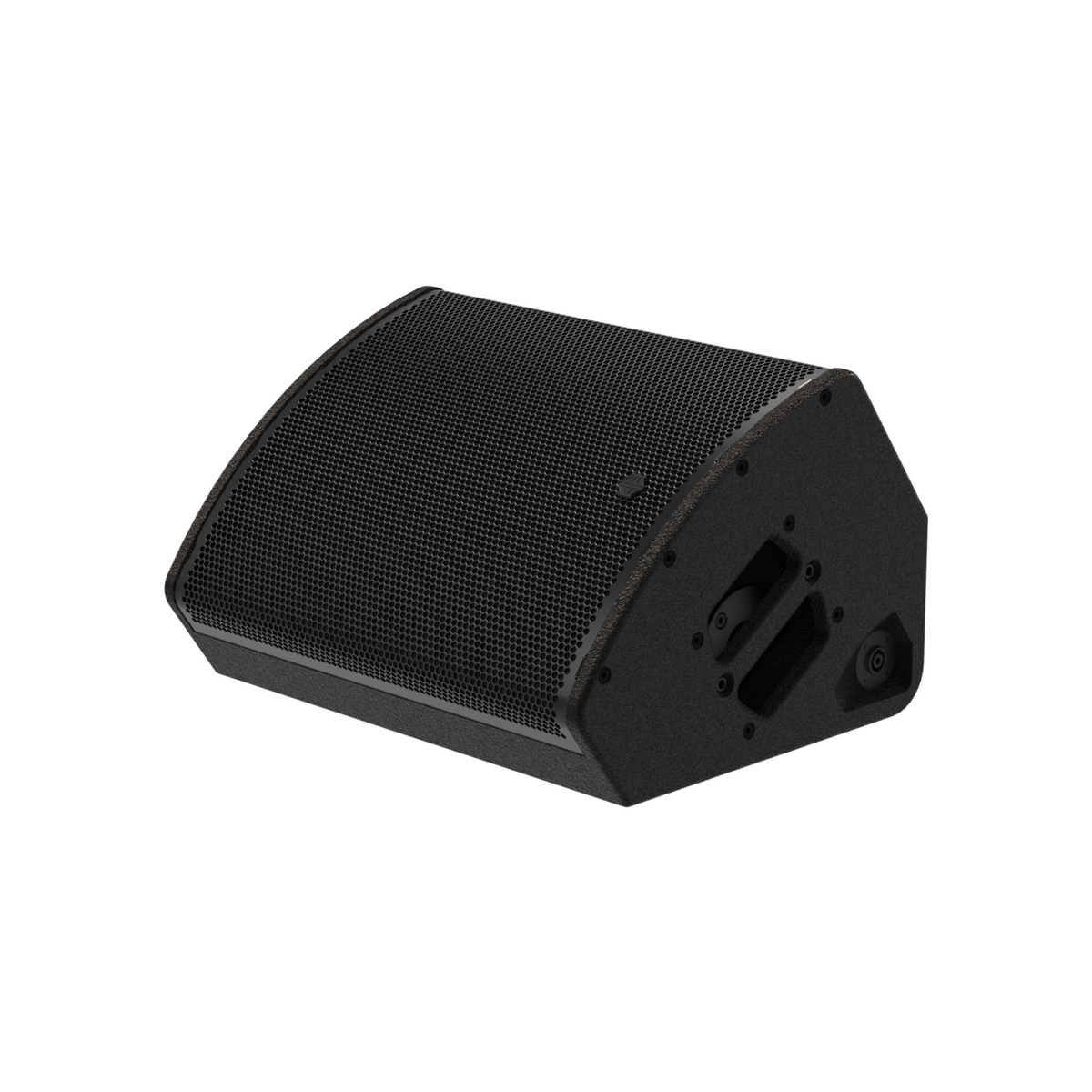

The M-C12 is a two-way, reflex-loaded coaxial stage monitor built around a 12-inch (305mm) neodymium LF drive unit with a coaxial 1.3-inch (33mm) exit HF compression driver, linked by an internal passive crossover. The LF and HF drive units share the same magnet assembly, which reduces weight and profile and makes the M-C12 one of the lowest-profile 12-inch stage monitors available at only 313mm (12.3 inches) tall. The HF driver feeds a bespoke constant-directivity waveguide producing a 40 x 60 degree (H x V) pattern in monitor orientation and 60 x 40 degrees when used as a front-of-house loudspeaker.
Build and Mounting
The enclosure is built from 15mm multi-laminate birch plywood with an impact and weather resistant textured polyurethane finish, black or white as standard, with RAL colour matching and enhanced weather protection options. A 35mm pole mount is hidden inside one of the handles for stand mounting, and four M8 threaded rigging points accept the optional flying hardware, so the M-C12 also works as a front-of-house or installation loudspeaker. A rigid 2mm hex-punched stainless steel grille backed with acoustically transparent fabric protects the drivers, and two flush handles, protective floor skids and an NL4 connector in a recess at each end complete the hardware.
Amplification and DSP Compatibility
The M-C12 is passive and needs a single amplifier channel capable of 750-1000W RMS into 8 ohms. External DSP with high-pass filters and limiters is recommended for protection, so EM Acoustics’ Advanced System Amplifiers are the recommended partners, including the DQ6, DQ10, DQ20, Di06, Di10 and Di20. DSP-enabled amplifiers from other makers or conventional amplifiers with external DSP can also be used, with settings published on the EM Acoustics website.
Applications
Built to satisfy demanding artists as a stage monitor, while also suiting today’s rental market as a genuinely multi-purpose loudspeaker, for concert touring, live music venues and theatre.
Key Specifications
- Enclosure Type: Two-way coaxial passive, reflex loaded
- Components: Coaxial 12-inch (305mm) LF / 1.3-inch (33mm) exit HF with bespoke waveguide
- Dimensions (H x W x D): 313 x 500 x 418mm (12.3 x 19.7 x 16.5 in)
- Net / Shipping Weight: 21 / 22.3kg (46.2 / 49 lbs)
- Frequency Response: 65Hz - 20kHz ±3dB
- Nominal Dispersion: 40 x 60 degrees H x V (monitor orientation, -6dB); 60 x 40 degrees H x V (FOH orientation, -6dB)
- Maximum SPL: 128dB continuous, 134dB peak
- Power Handling: 400W RMS, 800W program
- Nominal Impedance: 8 ohms passive
- Connectors: 1 x NL4 at each end of the enclosure
- Enclosure Material and Finish: 15mm multi-laminate birch plywood, textured polyurethane; black or white as standard
- Mounting: 35mm pole mount (hidden in handle), 4 x M8 threaded rigging points
- Grille: Hex-punched 2mm stainless steel backed with acoustically transparent fabric
- Accessories: IB-MC12 installation bracket, FC-M-C12 flying cradle
