The EMS-41 is the smallest model in EM Acoustics' EMS Series, built around a coaxial 4-inch driver pairing for genuine point-source performance in a footprint small enough to disappear into a ceiling void, a bar counter, or a theatre wing. It suits operators who need intelligible speech and background music coverage in tight or visually sensitive spaces, and runs as a fully passive design with no external processing required.

Pairs well with

Technical Specifications

Drivers and Dispersion

A coaxially-mounted 4-inch low-frequency transducer and 0.85-inch high-frequency compression driver share a single acoustic centre, giving even, phase-coherent coverage across an 80 degree conical pattern. The infinite-baffle enclosure design smooths the low-frequency roll-off and extends bass response beyond what a box this size would normally deliver.

Cabinet and Rigging

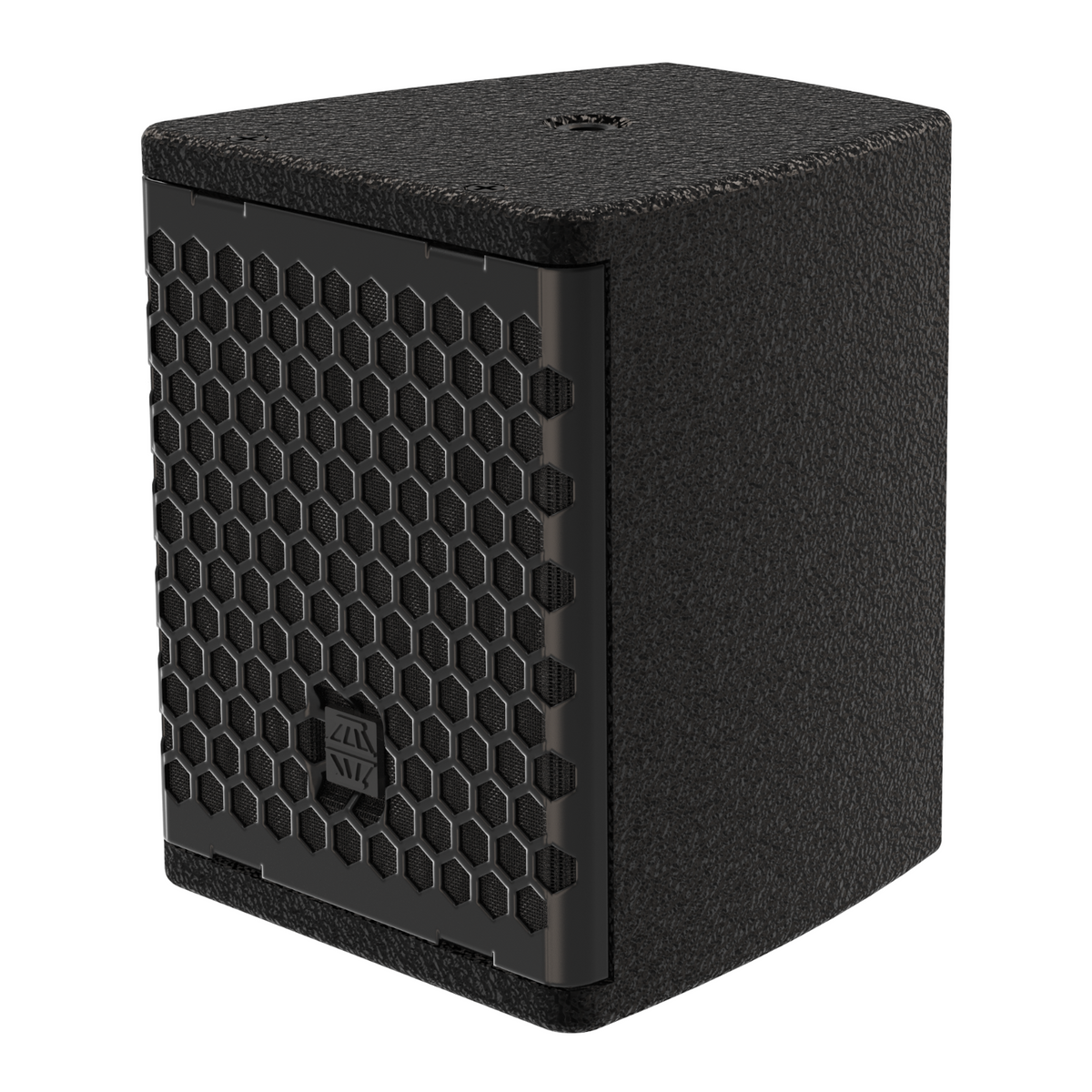

The enclosure is built from multi-laminate birch plywood with curved, trapezoidal sides, finished in an impact- and weather-resistant textured polyurethane in black or white as standard, with RAL colour matching available on request. Three M8 rigging points are built into the top, bottom, and rear panels, and the unit ships with an adjustable horizontal mounting yoke; a wall-mount bracket is available as an accessory.

Amplification and Processing

The EMS-41 is a single-channel load requiring 150-250W RMS into 12 ohms. As a true passive design it needs no active DSP, though EM Acoustics recommends external high-pass and limiter protection when driven from its Advanced System Amplifier range.

Applications

Near-field and background sound reinforcement for hospitality, retail, corporate AV, and theatrical fill, delay, and spot-effect use.

Key Specifications

  • Frequency Response: 100Hz to 18kHz, plus/minus 3dB
  • Dispersion: 80 degrees conical (-6dB points)
  • Maximum SPL: 110dB continuous, 116dB peak
  • Driver Complement: Coaxial 4-inch (100mm) LF, 0.85-inch (21.5mm) exit HF
  • Nominal Impedance: 12 ohms
  • Power Handling: 125W RMS, 250W programme
  • Connectors: 2 x Neutrik speakON NL4, 4-pole Phoenix
  • Rigging Points: 3 x M8 threaded fixings (top, bottom, rear)
  • Enclosure Material and Finish: Multi-laminate birch plywood, textured polyurethane (black/white standard, RAL on request)
  • Dimensions (W x H x D): 120 x 150 x 130mm
  • Weight: 1.6kg net
