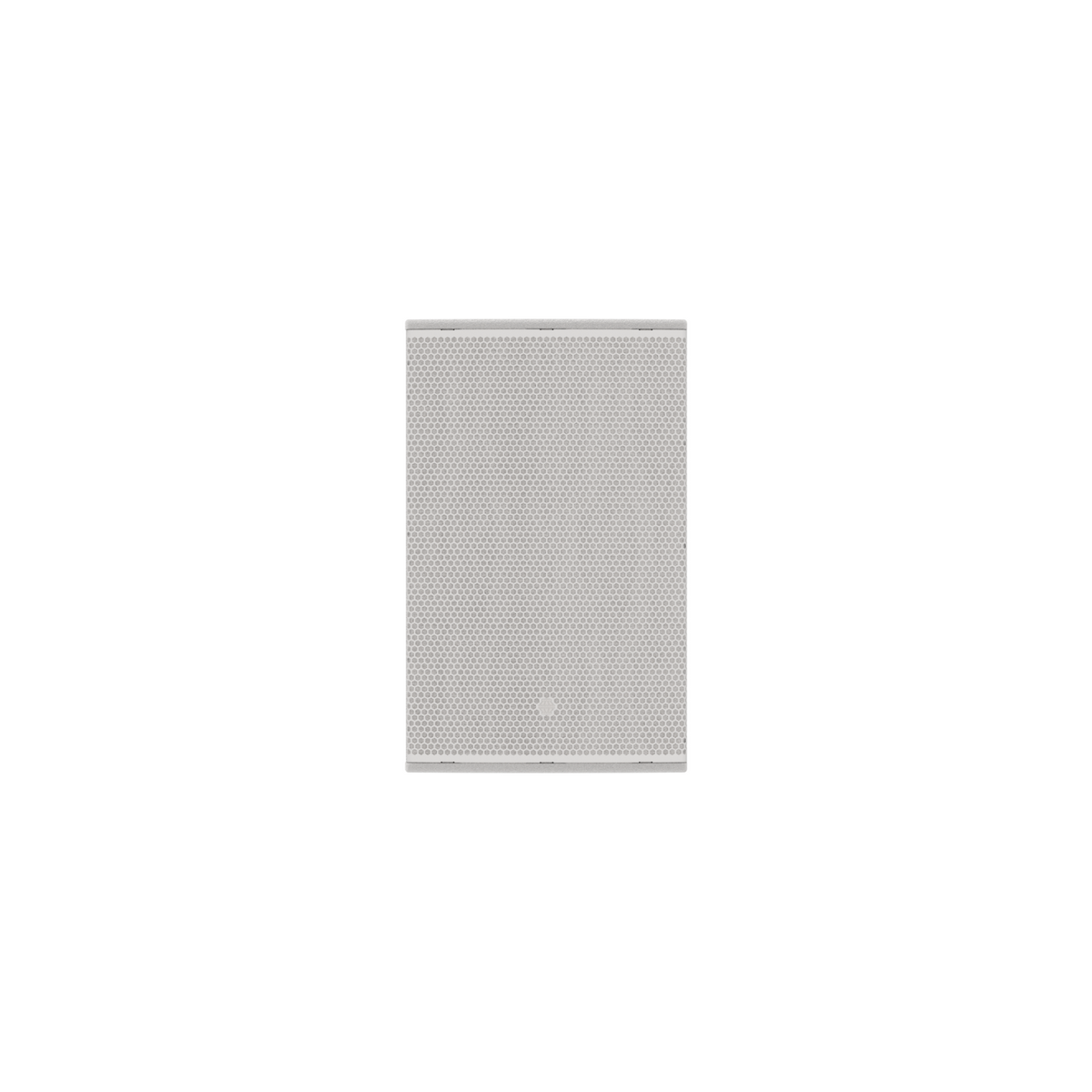

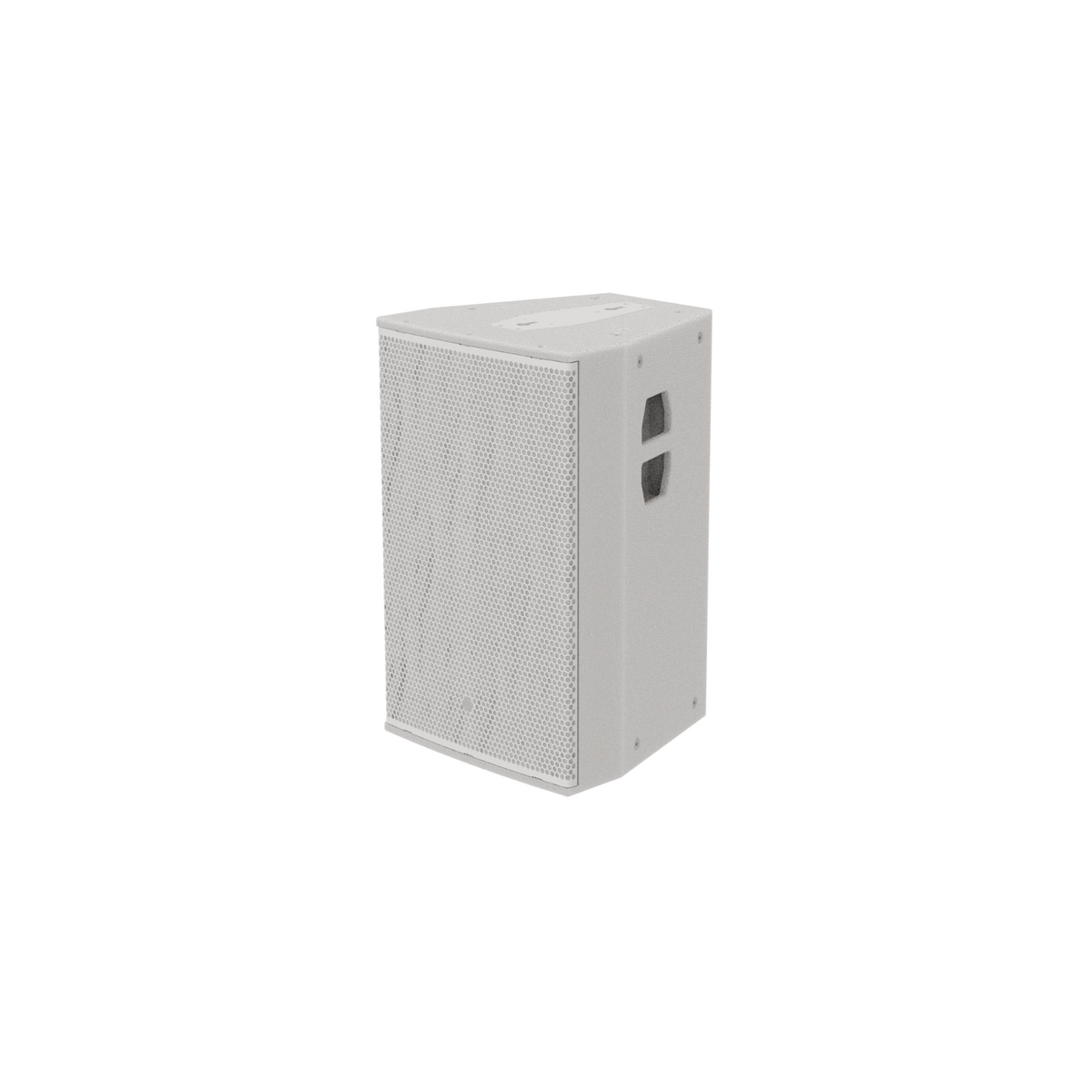

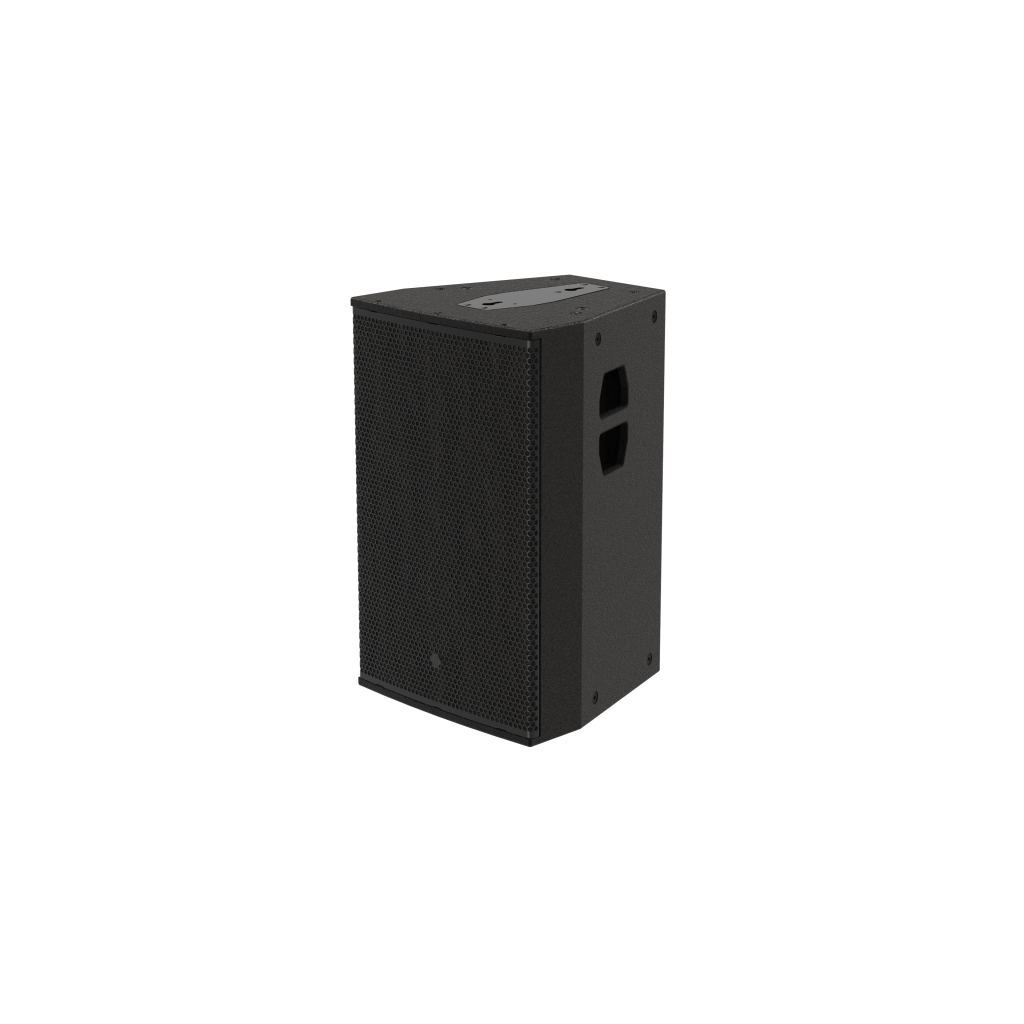

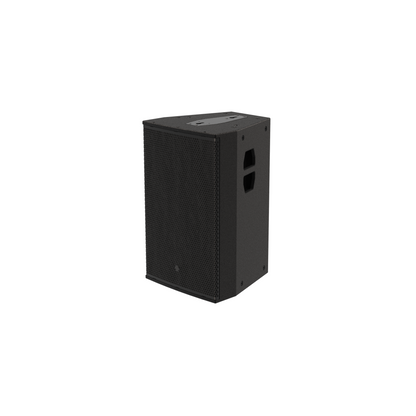

EM Acoustics EMS-156 Passive Loudspeaker
EM Acoustics EMS-156 Passive Loudspeaker
EM Acoustics EMS-156 Passive Loudspeaker

EM Acoustics EMS-156 Passive Loudspeaker

Categories: Point source & monitors
SKU: 10M009

The EMS-156 is the largest two-way box in the EMS Series, built as a full-range front-of-house loudspeaker for medium to large venues or as a high-output fill box supporting a larger system. It is the narrow-dispersion sibling of the EMS-159, sharing the same enclosure but aimed at longer-throw, more directional coverage.

Pairs well with

Technical Specifications

Drivers and Dispersion

A 4-inch voice-coil, 15-inch neodymium low-frequency transducer is coupled to a 3-inch diaphragm, 1.4-inch exit neodymium compression driver on a constant-coverage horn, producing a rotatable 60 x 40 degree pattern with strong off-axis rejection for predictable, consistent coverage across large rooms.

Cabinet and Rigging

The 15mm multi-laminate birch plywood enclosure is heavily braced and finished in impact- and weather-resistant textured polyurethane, black or white as standard with RAL matching available. Keyhole rigging plates with quick-release pins sit top and bottom, each offering four M10 rigging points, plus a rear M8 safety point and a 35mm polemount socket underneath.

Amplification and Processing

A single amplifier channel delivering 1000-1500W RMS into 8 ohms is required. Fully passive, the EMS-156 needs no active DSP for normal use, though external high-pass and limiter protection is recommended when driven from EM Acoustics' Advanced System Amplifiers.

Applications

Full-range front-of-house and fill reinforcement for live music venues, houses of worship, and touring or fixed installations at medium to large scale.

Key Specifications

  • Frequency Response: 65Hz to 20kHz, plus/minus 3dB
  • Dispersion: 60 x 40 degrees, rotatable (-6dB points)
  • Maximum SPL: 130dB continuous, 136dB peak
  • Driver Complement: 1 x 15-inch (381mm) neodymium LF, 1 x 1.4-inch (36mm) exit neodymium HF
  • Nominal Impedance: 8 ohms
  • Power Handling: 750W RMS, 1500W programme
  • Connectors: 2 x Neutrik speakON
  • Rigging Points: Keyhole plates with 4 x M10 points (top/bottom), M8 rear safety point, 35mm polemount
  • Enclosure Material and Finish: Multi-laminate birch plywood, textured polyurethane (black/white standard, RAL on request)
  • Dimensions (W x H x D): 440 x 707 x 450mm
  • Weight: 37kg net
