Categories: Point source & monitors
SKU: 10M005

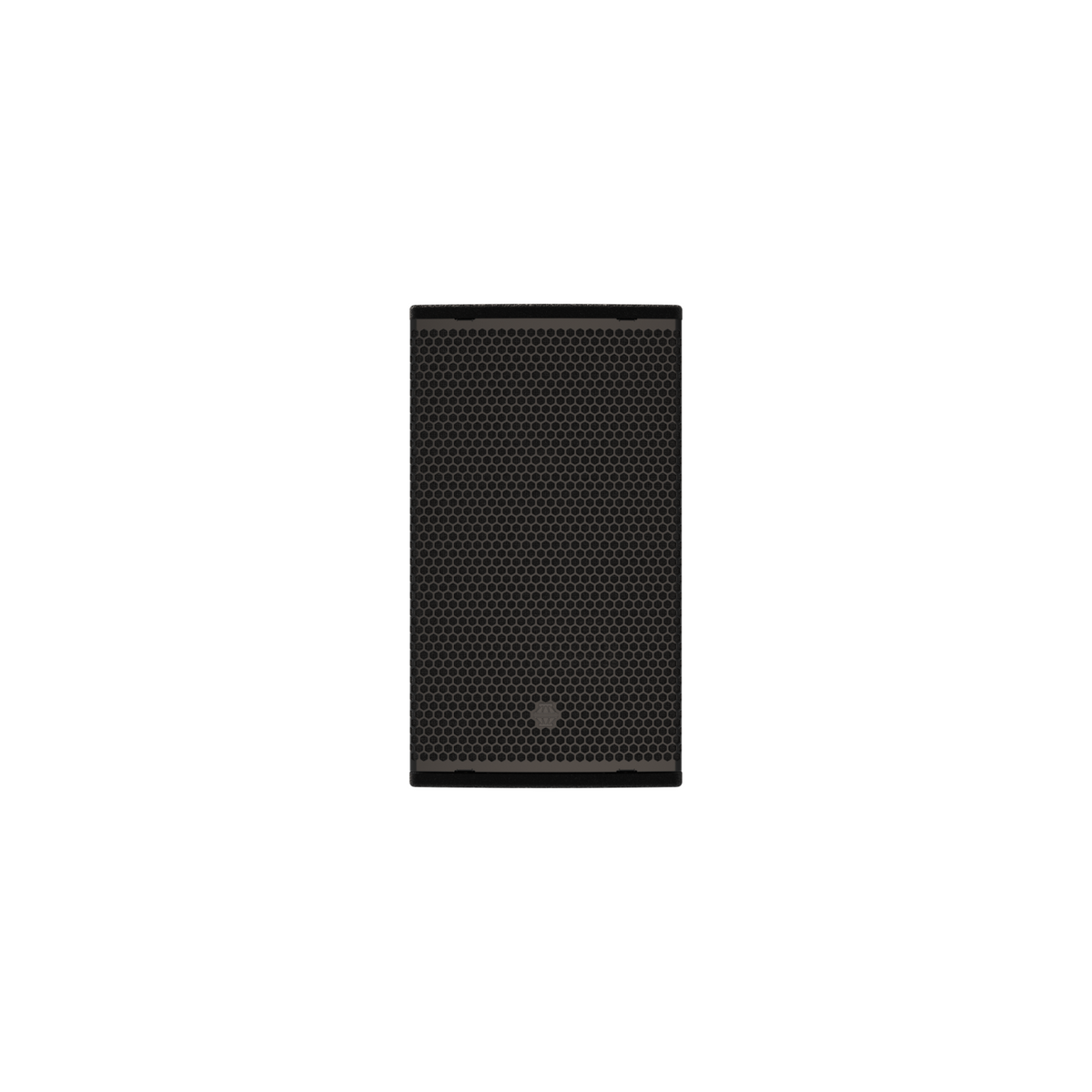

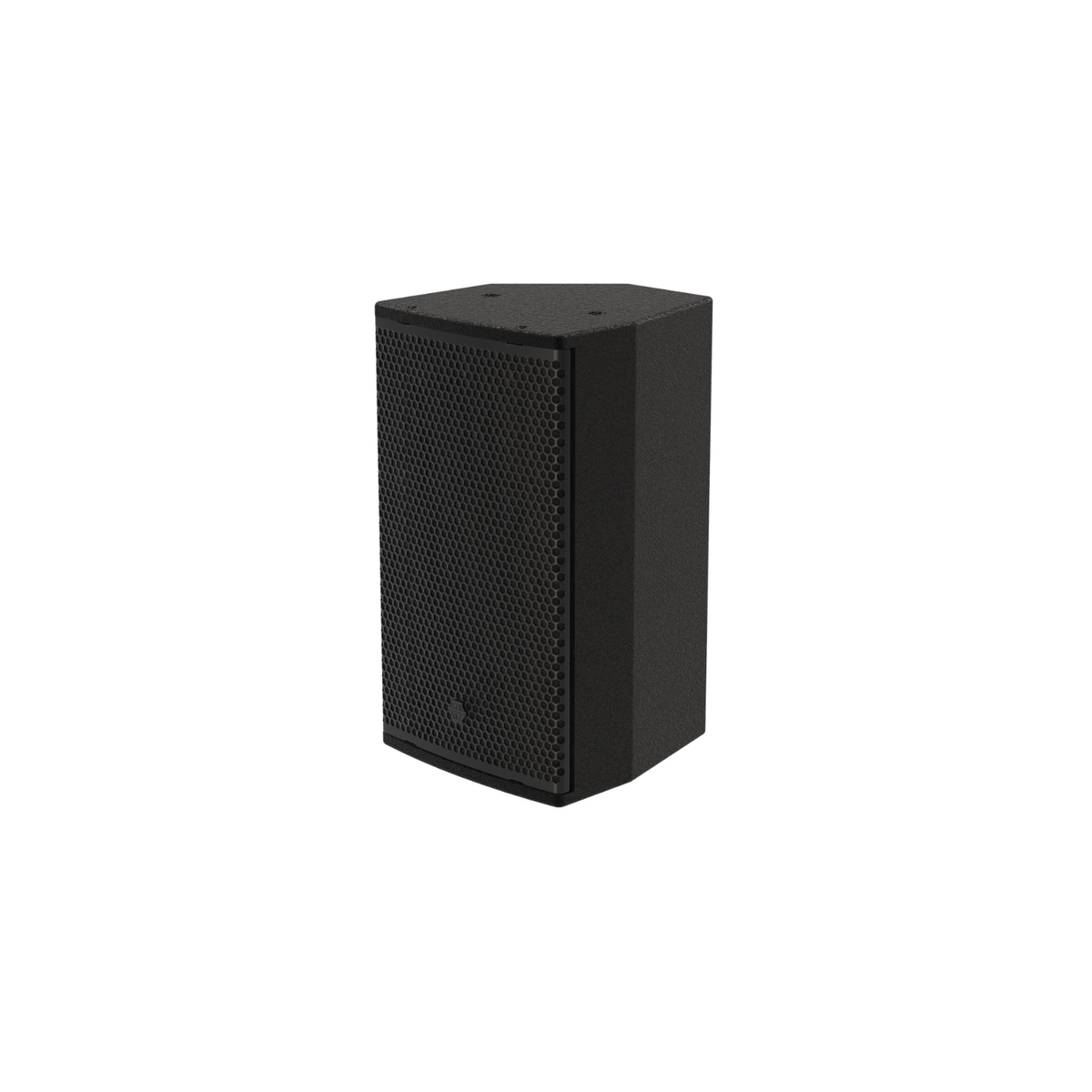

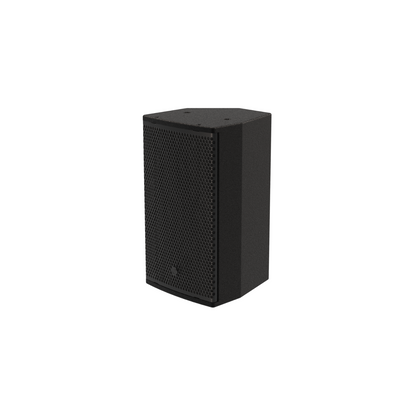

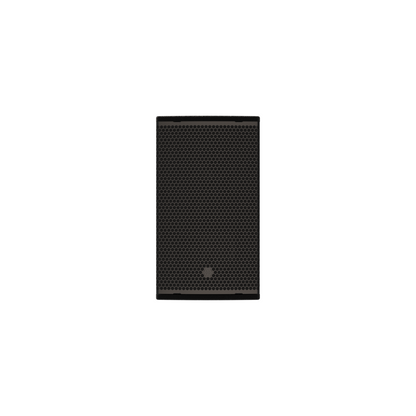

The EMS-101X sits between the 8-inch and 12-inch boxes in the EMS Series and is built around a purpose-designed 10-inch low-frequency driver rather than an off-the-shelf unit, giving it a distinct output and size balance. It works well as a small front-of-house system, a fill loudspeaker for larger rigs, or a compact stage monitor, and it is fully passive throughout.

Pairs well with

Technical Specifications

Drivers and Dispersion

A 3-inch voice-coil, 10-inch low-frequency transducer is coupled to a 1-inch exit neodymium high-frequency driver on a rotatable 90 x 60 degree constant-coverage horn, delivering consistent response across the coverage pattern and strong off-axis attenuation for predictable venue coverage.

Cabinet and Rigging

The vented enclosure is built from 15mm multi-laminate birch plywood, heavily braced against panel resonance, and finished in impact- and weather-resistant textured polyurethane. Rigging points include five M8 threaded fixings, four M6 OmniMount/Powerdrive-compatible points, a 35mm polemount socket, and a flush rear handle.

Amplification and Processing

The EMS-101X requires a single amplifier channel capable of 800-1000W RMS into 8 ohms. As a passive design it needs no active DSP for normal operation, though external high-pass and limiter protection is advised, ideally via EM Acoustics' Advanced System Amplifiers.

Applications

Small front-of-house, fill, and stage-monitor duty for theatre, corporate AV, and themed-attraction installations.

Key Specifications

  • Frequency Response: 75Hz to 20kHz, plus/minus 3dB
  • Dispersion: 90 x 60 degrees, rotatable (-6dB points)
  • Maximum SPL: 124dB continuous, 130dB peak
  • Driver Complement: 1 x 10-inch (254mm) neodymium LF, 1 x 1-inch (25mm) exit neodymium HF
  • Nominal Impedance: 8 ohms
  • Power Handling: 400W RMS, 800W programme
  • Connectors: 2 x Neutrik speakON NL4
  • Rigging Points: 5 x M8 fixings, OmniMount Series 30 / Powerdrive Series 75 compatible, 35mm polemount
  • Enclosure Material and Finish: Multi-laminate birch plywood, textured polyurethane (black/white standard, RAL on request)
  • Dimensions (W x H x D): 289 x 510 x 300mm
  • Weight: 15kg net
