Cardioid Design
A front-firing 18-inch and a rear-firing 15-inch driver, each in their own braced and ported chamber, are tied together with a passive crossover network instead of a dual-channel active setup. That passive network alone produces over 20dB of rear rejection while the whole box runs off a single amplifier channel, the same single-channel-only approach that sets CS Series cardioid control apart from generic actively-processed subs.
Driver Configuration
Both the 18-inch front driver and 15-inch rear driver are neodymium units built for maximum linearity at high excursion, keeping performance consistent across the full operating envelope.
Build and Mounting

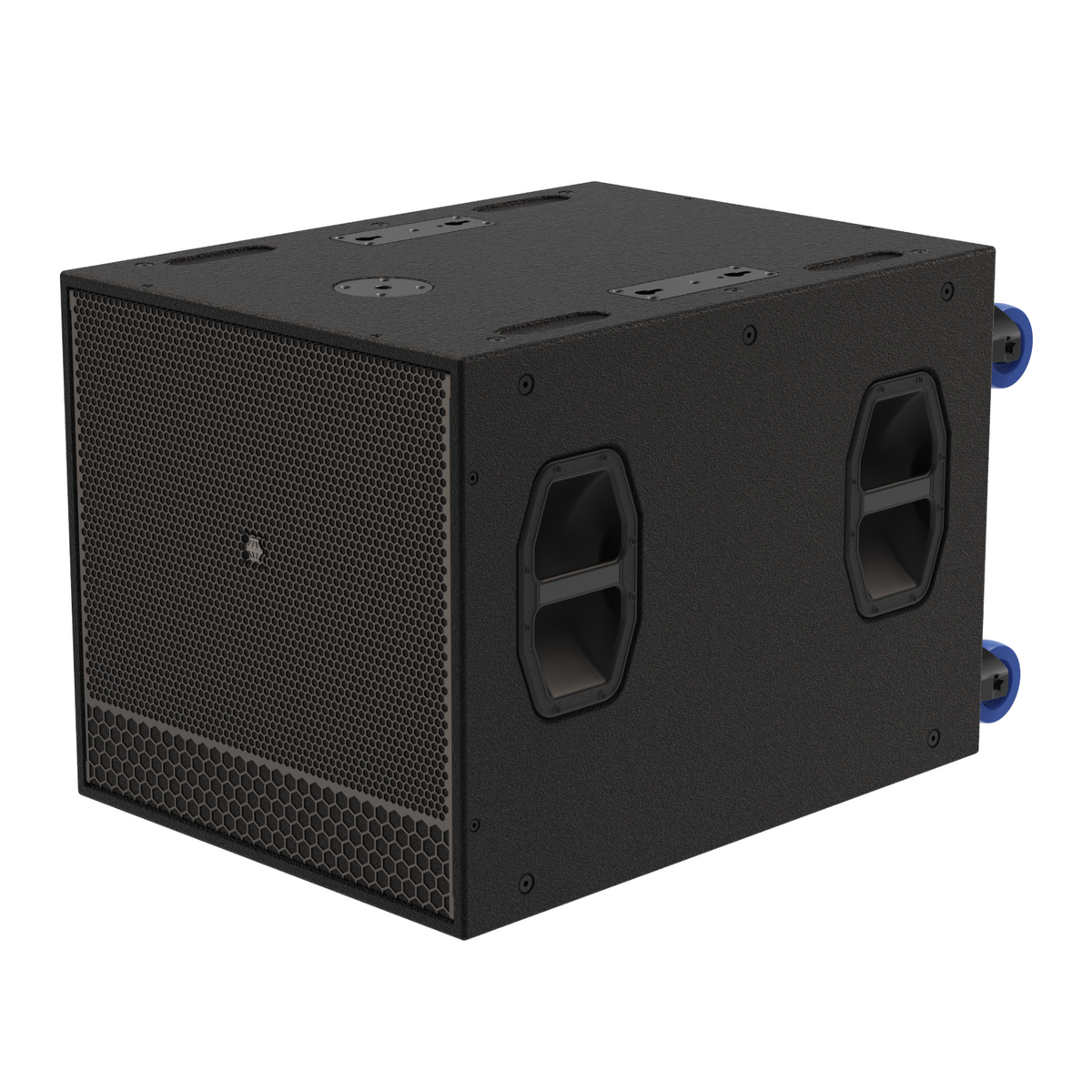

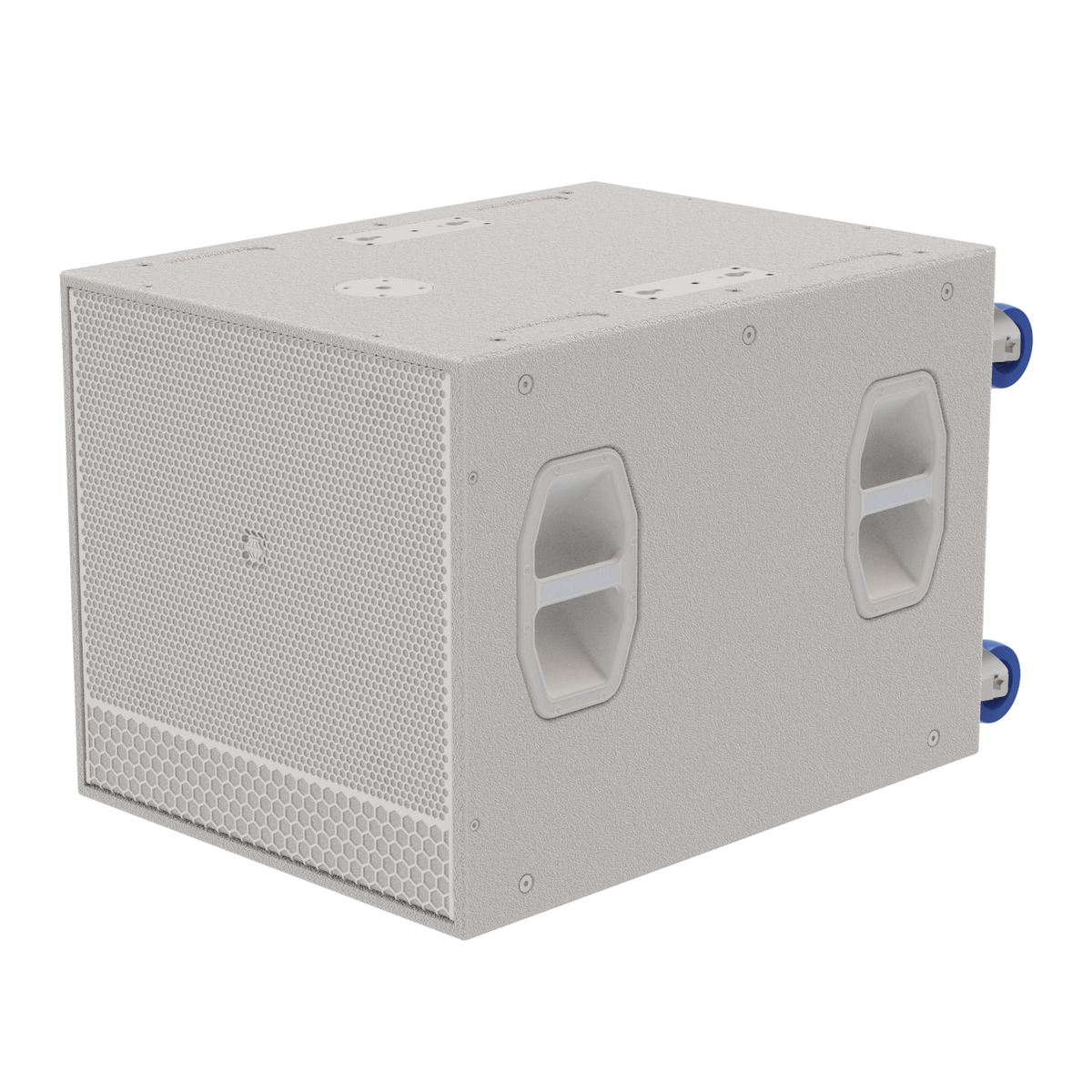

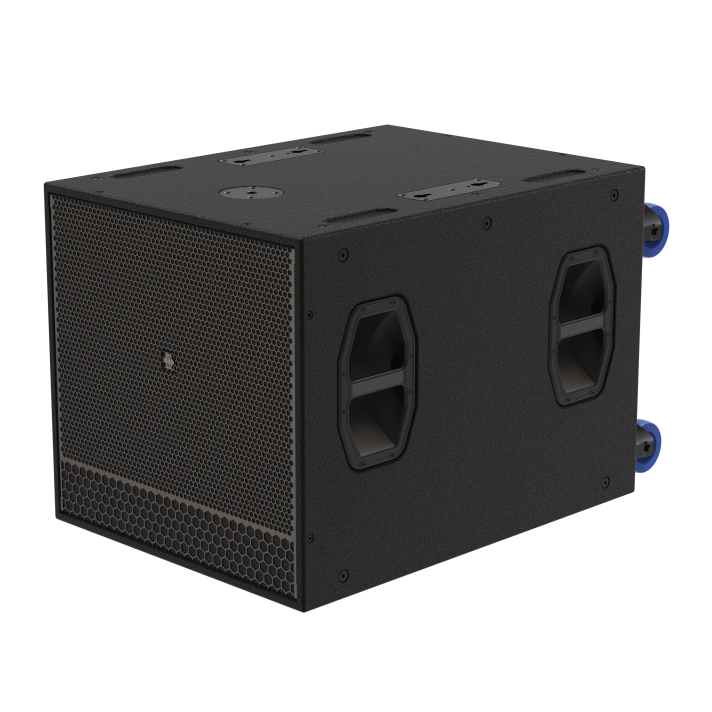

The birch-plywood cabinet carries an impact- and weather-resistant polyurethane finish (black or white standard, RAL and outdoor options available), four flush bar handles, protective skids, and twenty M10 flying points across two quick-release keyhole flyplates. An M20 pole adapter and dual Neutrik speakON NLT4 connectors are standard, with the spare contact pair on each connector letting subs and full-range boxes run off one 4-core cable.
Amplifier Compatibility
Essentially amplifier-agnostic, the CS18 needs just one DSP-capable amplifier channel for its filters and limiters. EM Acoustics' Advanced System Amplifiers are the reference recommendation, though other DSP-enabled or externally processed amplifiers work with the published filter settings; the driving channel should deliver 1000-1600W RMS into 6 ohms.
Applications
Theatre, opera, and concert hall installations, concert touring, live music venues, and nightlife spaces needing directional low-frequency output at scale.
Key Specifications
- Enclosure Type: Reflex-loaded passive cardioid subwoofer
- Driver Configuration: 1 x 18-inch (457mm) neodymium driver (front-firing), 1 x 15-inch (381mm) neodymium driver (rear-firing)
- Cardioid Pattern: Generated by passive crossover network; in excess of 20dB rear rejection from a single amplifier channel
- Frequency Response: 35Hz to 100Hz, plus/minus 3dB
- Maximum SPL: 131dB continuous, 137dB peak
- Power Handling: 800W RMS, 1600W programme
- Nominal Impedance: 6 ohms
- Amplifier Compatibility: Amplifier-agnostic, single channel with DSP; 1000-1600W RMS into 6 ohms recommended; EM Acoustics DQ6/DQ10/DQ20 and Di20 recommended (Di06/Di10 not recommended)
- Cabinet Material and Finish: Multi-laminate birch plywood, impact and weather-resistant polyurethane (black/white standard, RAL on request)
- Rigging Points: 20 x M10 flying points, 2 x quick-release keyhole flyplates, M20 threaded polemount adapter
- Dimensions (H x W x D): 604 x 634 x 840mm (23.8 x 25 x 33.1in)
- Weight: 75.4kg net, 78.4kg shipping (165.9/172.5lbs)
