Cardioid Design

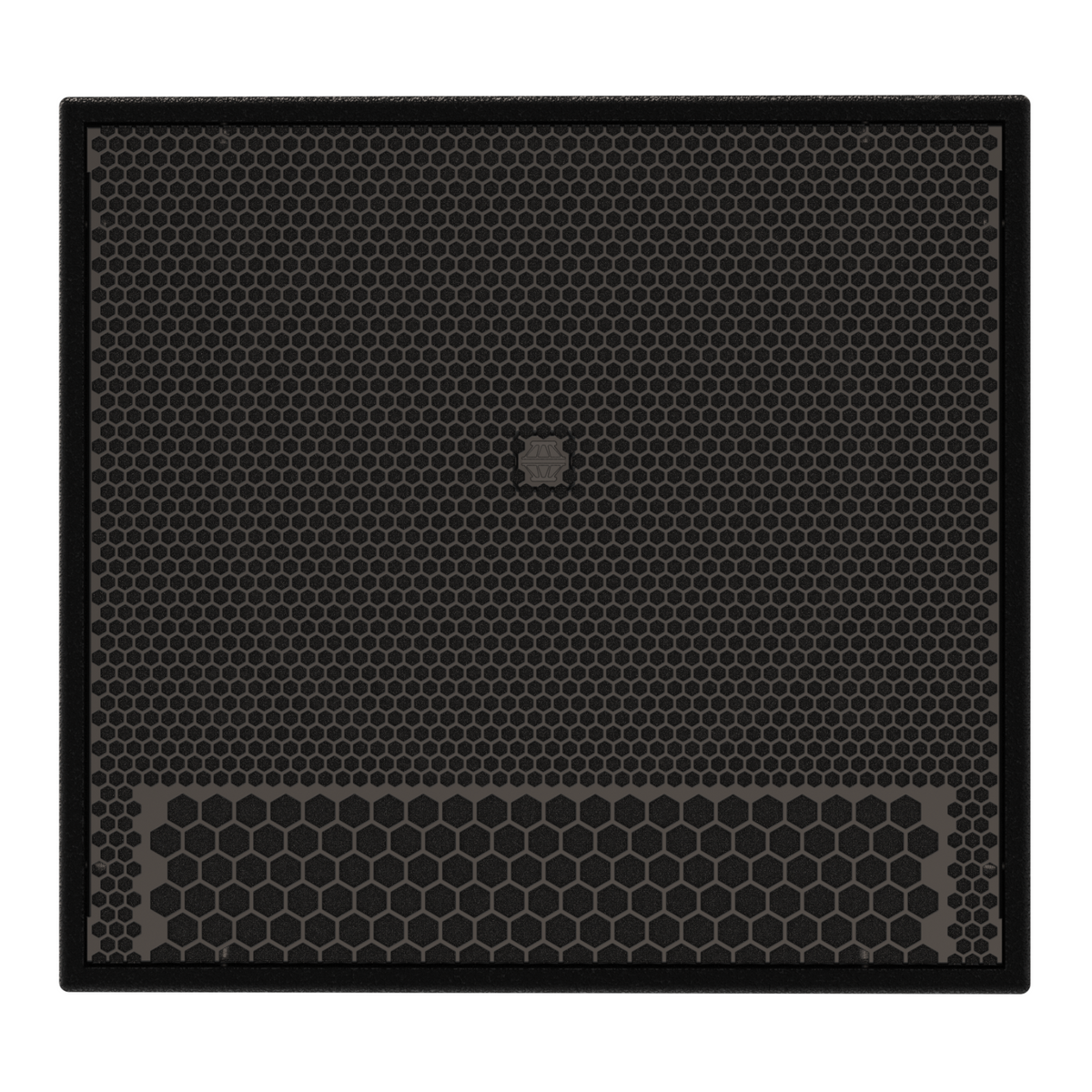

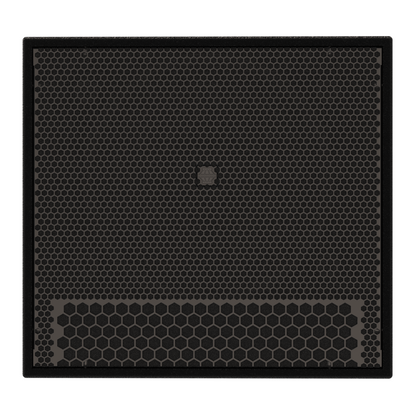

Two drivers face opposite directions inside their own braced, ported chambers, a front-firing 15-inch and a rear-firing 12-inch, linked through a passive crossover network rather than the bandpass-and-delay tricks some cardioid subs rely on. That network alone delivers over 20dB of rear rejection while running from a single amplifier channel, which is the real differentiator here: no second processed channel, no extra DSP overhead, just one feed doing the work of a conventional dual-channel active cardioid array.
Driver Configuration
Both the 15-inch front driver and the 12-inch rear driver are neodymium units engineered for linearity at high excursion, so output stays consistent right through the operating envelope rather than tailing off under load.
Build and Mounting

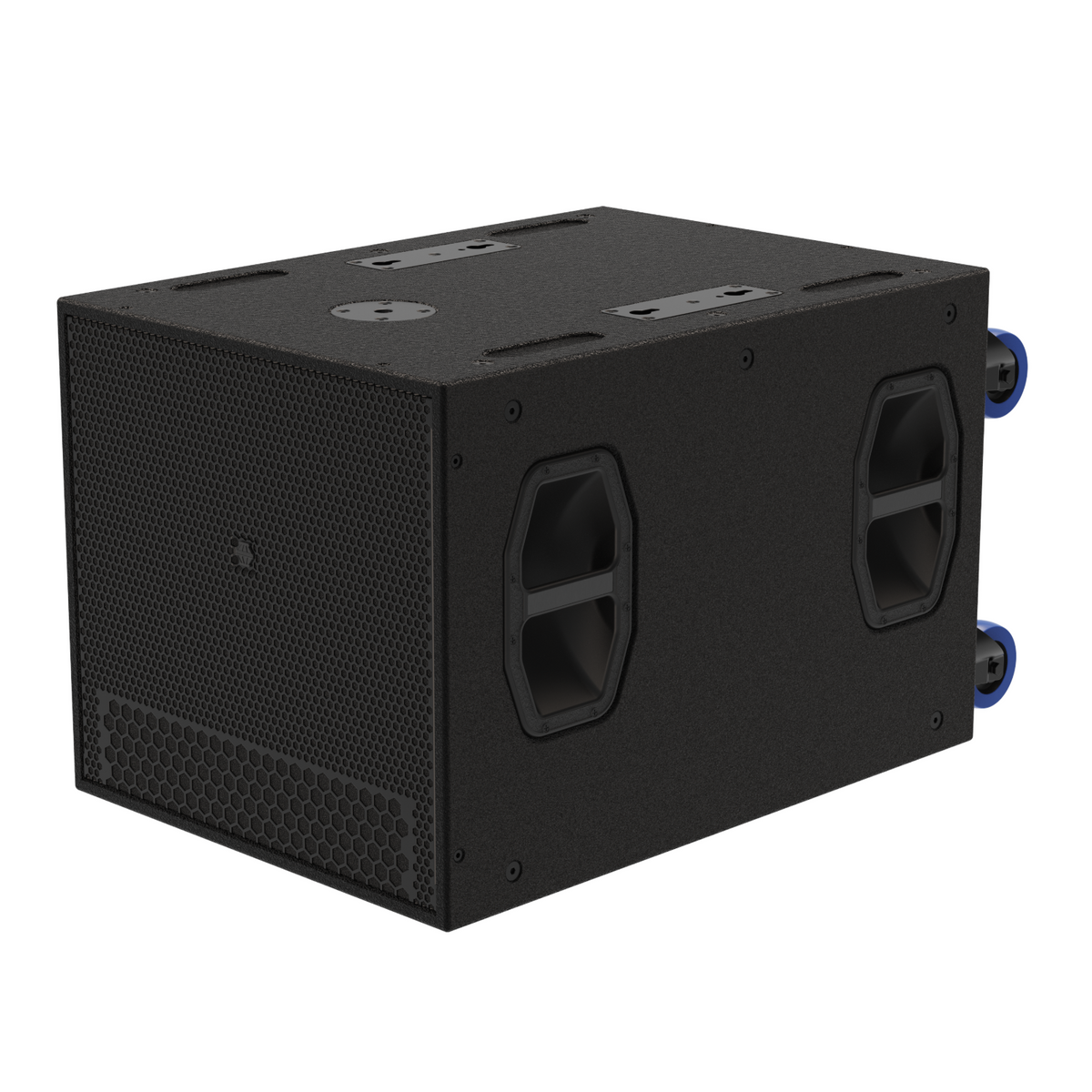

Birch-plywood construction with an impact- and weather-resistant polyurethane finish (black or white standard, RAL and outdoor options available) houses four flush bar handles, protective underside skids, and twenty M10 flying points across two quick-release keyhole flyplates. An M20 pole adapter and dual Neutrik speakON NLT4 connectors are fitted as standard, with the connectors' spare contact pair allowing subs and full-range boxes to share a single 4-core run.
Amplifier Compatibility
The CS15 is essentially amplifier-agnostic, needing only a single DSP-capable channel for its high/low-pass filters and limiters. EM Acoustics' Advanced System Amplifiers are the reference recommendation, but third-party DSP-enabled amps or conventional amps with external DSP also work with EM Acoustics' published filter settings; the driving channel should deliver 1000-1600W RMS into 6 ohms.
Applications
Theatre, opera, and concert hall installations, concert touring, live music venues, and nightlife spaces needing pattern-controlled low end.
Key Specifications
- Enclosure Type: Reflex-loaded passive cardioid subwoofer
- Driver Configuration: 1 x 15-inch (381mm) neodymium driver (front-firing), 1 x 12-inch (305mm) neodymium driver (rear-firing)
- Cardioid Pattern: Generated by passive crossover network; in excess of 20dB rear rejection from a single amplifier channel
- Frequency Response: 40Hz to 100Hz, plus/minus 3dB
- Maximum SPL: 128dB continuous, 134dB peak
- Power Handling: 800W RMS, 1600W programme
- Nominal Impedance: 6 ohms
- Amplifier Compatibility: Amplifier-agnostic, single channel with DSP; 1000-1600W RMS into 6 ohms recommended; EM Acoustics DQ6/DQ10/DQ20 and Di20 recommended (Di06/Di10 not recommended)
- Cabinet Material and Finish: Multi-laminate birch plywood, impact and weather-resistant polyurethane (black/white standard, RAL on request)
- Rigging Points: 20 x M10 flying points, 2 x quick-release keyhole flyplates, M20 threaded polemount adapter
- Dimensions (H x W x D): 530 x 574 x 804mm (20.9 x 22.6 x 31.7in)
- Weight: 65.3kg net, 68.3kg shipping (143.7/150.3lbs)
