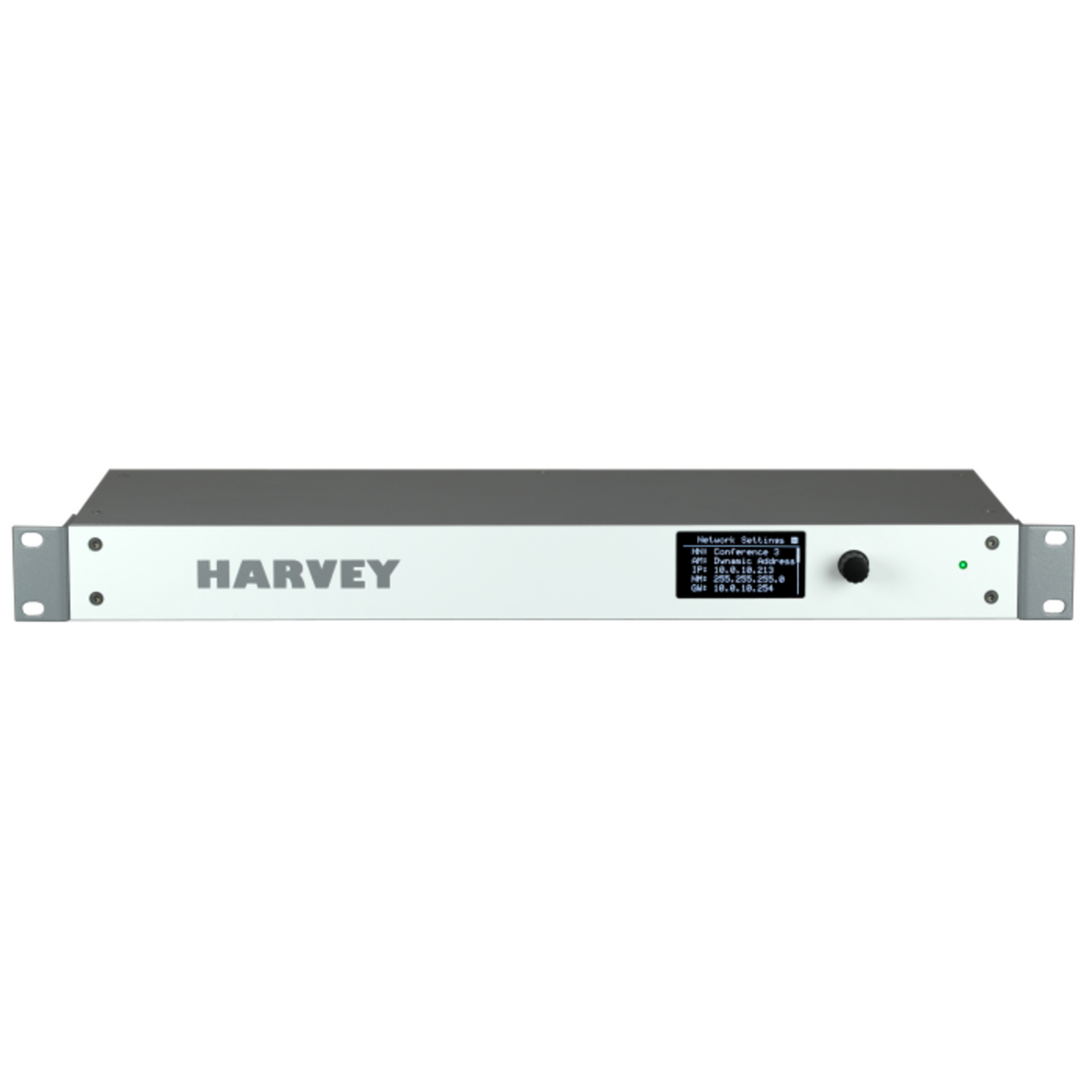

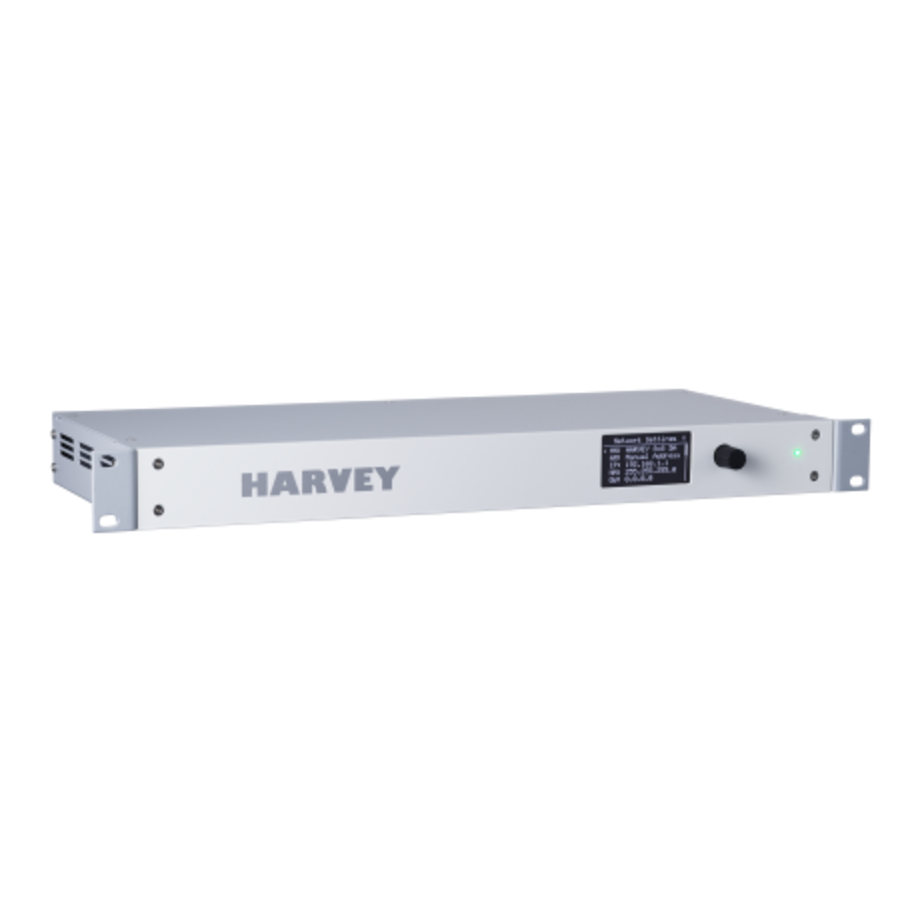

HARVEY Pro 8x8-DA Audio & Media Control Matrix

Brand: HARVEY
Categories: Processors & matrices
SKU: 8x8-DA

The HARVEY Pro 8x8-DA is DSPECIALISTS’ entry point into the HARVEY Pro family: a 1U rack-mount audio and media control matrix pairing 8 analogue inputs and 8 analogue outputs with a 64-channel Dante interface. It’s built for integrators who need a compact DSP hub that can sit between a room’s local analogue gear and a wider Dante network, handling both audio processing and third-party control from one chassis.

Pairs well with

Technical Specifications

Audio Processing

A floating-point DSP core drives the unit's routing, mixing, filtering, delay, and gain functions, so signal chains can be built to order in the HARVEY Composer software rather than following a fixed factory layout. Presets can be saved and recalled instantly, useful for rooms that switch between several configurations in a day.

Connectivity

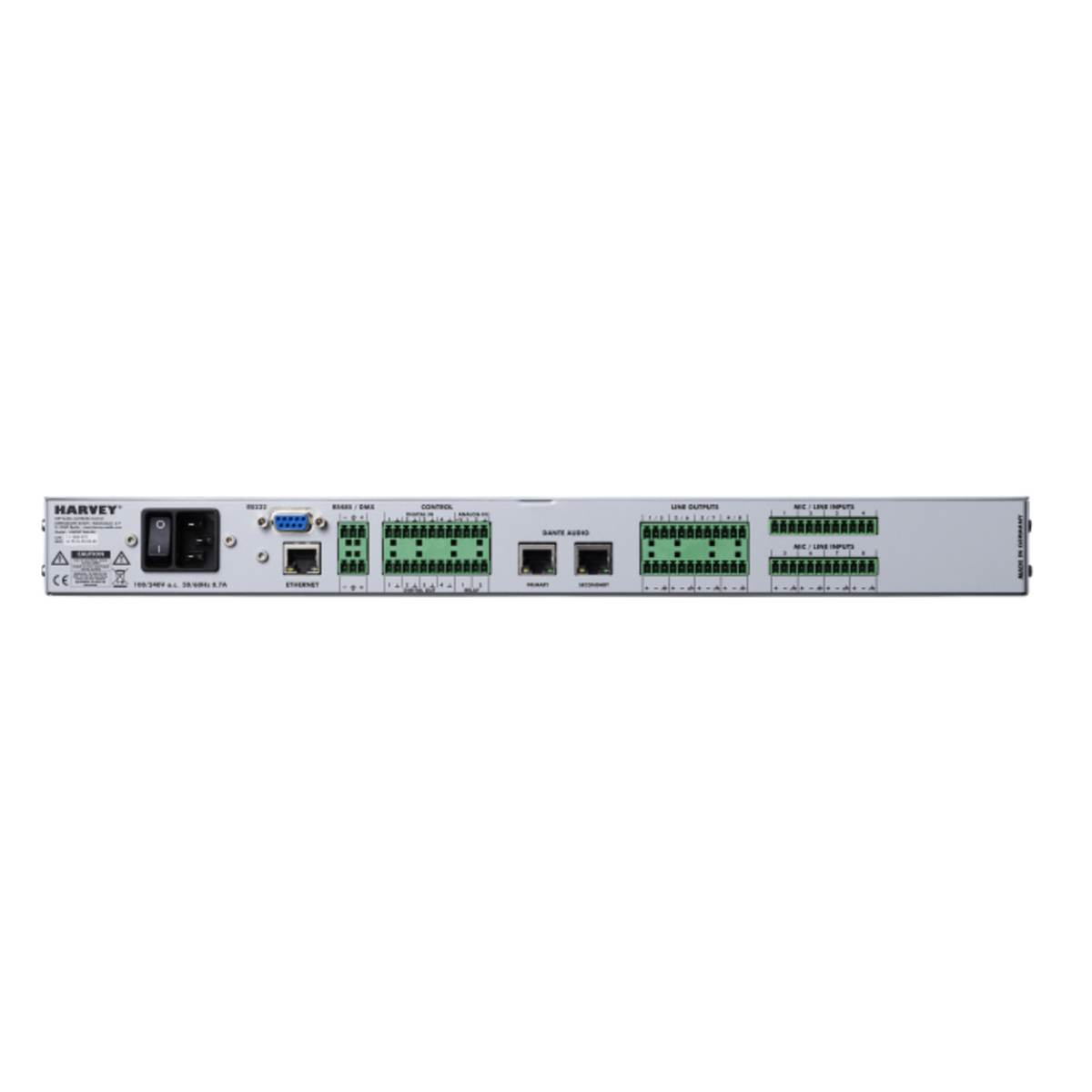

The 8 balanced analogue inputs support both mic and line level with switchable P48 phantom power, and the 8 balanced line outputs cover local loudspeakers or amplifier zones. A 64x64-channel Dante interface with primary/secondary redundancy lets the unit fold into an existing Dante network, including Dante-equipped consoles, converters, and wireless receiver systems already installed on site, without extra conversion hardware.

Control Interfaces

Beyond audio, the 8x8-DA carries Ethernet, RS-232, and RS-485/DMX control ports, four GPIs, two analogue control inputs, four GPOs, and two relay contacts, letting it double as a protocol bridge between media controllers, lighting desks, and building automation systems.

Applications

A natural fit for conference rooms, small theatres, houses of worship, and other installed sound spaces that need an affordable analogue-to-Dante DSP matrix with built-in control routing.

Key Specifications

  • Analogue Inputs: 8 balanced mic/line inputs, switchable P48 phantom power per channel
  • Analogue Outputs: 8 balanced line outputs
  • Dante Channels: 64 in / 64 out, 48 kHz / 24-bit, primary plus secondary redundant interface
  • AD/DA Conversion: 24-bit delta-sigma, 48 kHz system sample rate
  • Latency: Under 0.75 ms, analogue input to analogue output
  • Control Interfaces: Ethernet (10/100 Mbps), RS-232, RS-485/DMX512, 4x GPI, 2x analogue control input, 4x GPO, 2x relay contact
  • DSP Functions: Matrix mixing, parametric EQ, crossover, delay, limiting; AEC/AFC/ANC available on select configurations
  • Dimensions (W x D x H): 482 x 193 x 43.8 mm, 1U, 19-inch rack mount (brackets included)
  • Power Consumption: approx. 24 W (rated conditions)
