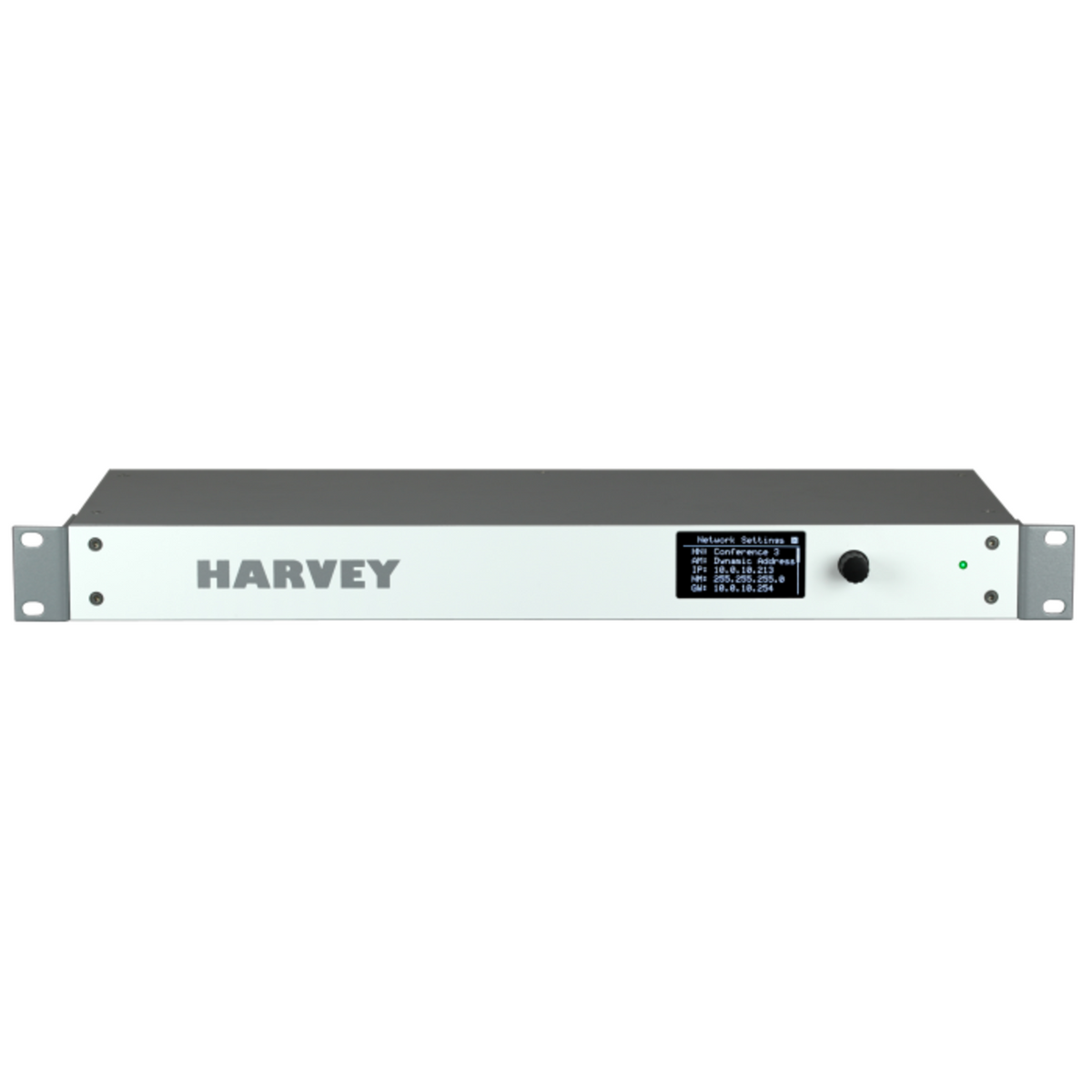

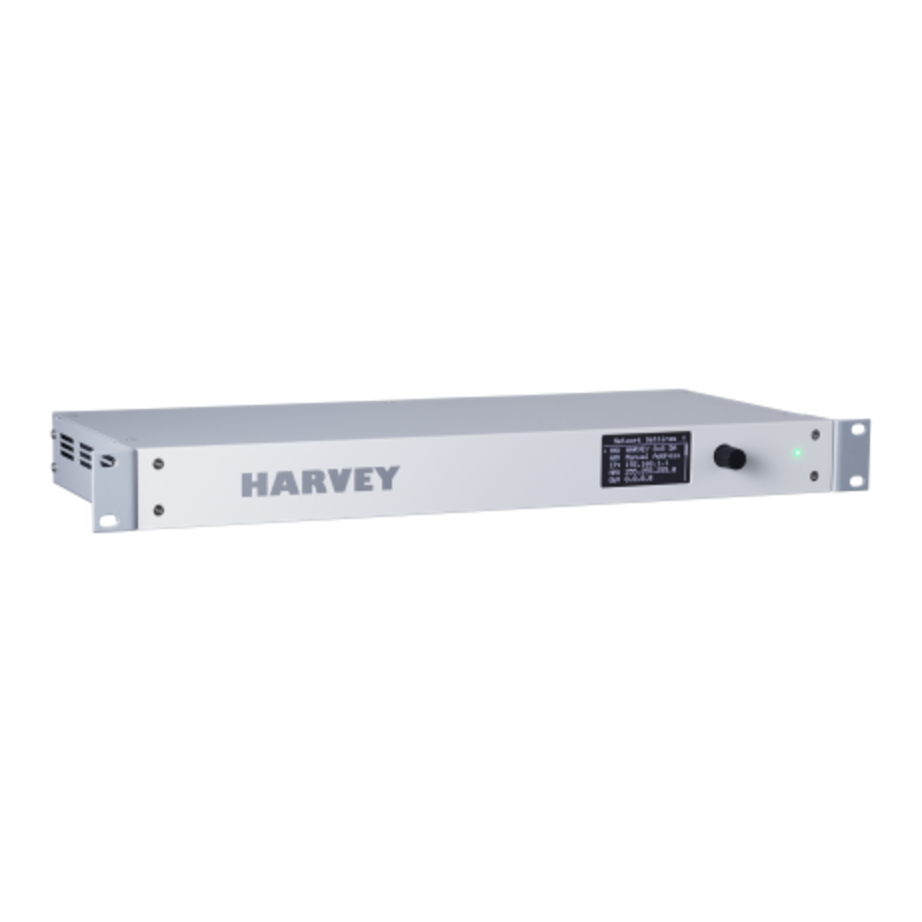

HARVEY Pro 8x16-DA Audio & Media Control Matrix

Audio Processing

The unit's floating-point DSP core handles routing, mixing, filtering, delay, and gain across all 24 analogue channels plus the Dante network, configured freely in HARVEY Composer rather than locked to a fixed signal flow. Multiple room presets can be stored and recalled at the press of a button.

Connectivity

8 balanced mic/line inputs with switchable P48 phantom power feed the matrix, while 16 balanced line outputs cover a larger number of loudspeaker zones or amplifier feeds than the base 8x8 model. The onboard 64x64-channel Dante interface, with primary/secondary redundancy, lets the 8x16-DA sit on the same network as Dante-equipped consoles, converters, and wireless receiver systems already in the venue.

Control Interfaces

Ethernet, RS-232, and RS-485/DMX ports, plus four GPIs, two analogue control inputs, four GPOs, and two relay contacts, allow the unit to bridge media controllers, lighting systems, and building automation alongside its audio duties.

Applications

Well suited to theatres, houses of worship, hospitality venues, and installed sound projects distributing a small number of sources to many zones with Dante-networked processing and control.

Key Specifications

• Analogue Inputs: 8 balanced mic/line inputs, switchable P48 phantom power per channel
• Analogue Outputs: 16 balanced line outputs
• Dante Channels: 64 in / 64 out, 48 kHz / 24-bit, primary plus secondary redundant interface
• AD/DA Conversion: 24-bit delta-sigma, 48 kHz system sample rate
• Latency: Under 0.75 ms, analogue input to analogue output
• Control Interfaces: Ethernet (10/100 Mbps), RS-232, RS-485/DMX512, 4x GPI, 2x analogue control input, 4x GPO, 2x relay contact
• DSP Functions: Matrix mixing, parametric EQ, crossover, delay, limiting; AEC/AFC/ANC available on select configurations
• Dimensions (W x D x H): 482 x 193 x 43.8 mm, 1U, 19-inch rack mount (brackets included)
• Power Consumption: approx. 37 W (rated conditions)
