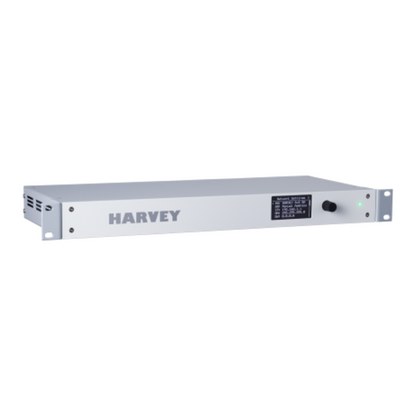

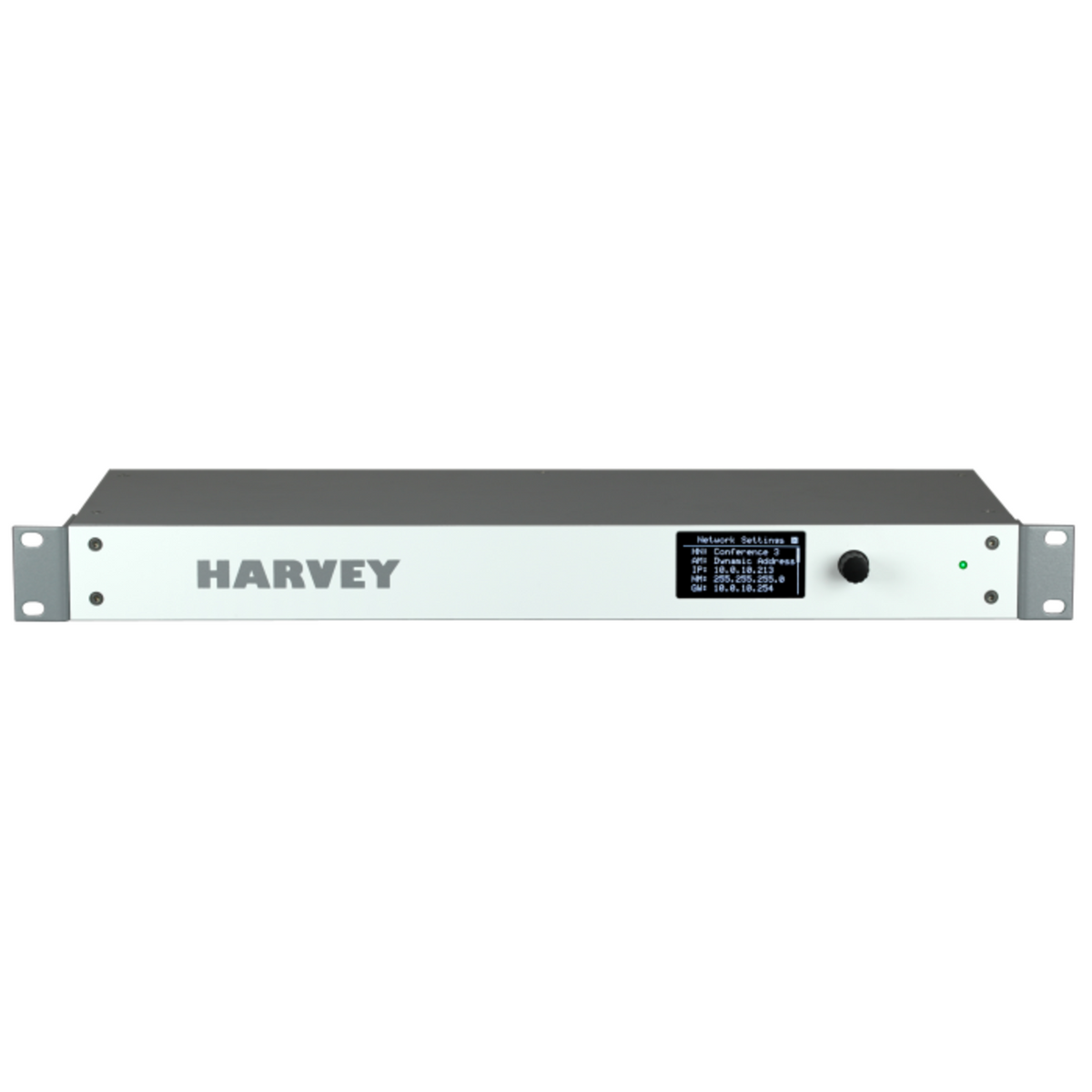

HARVEY Pro 0x24-DA Audio & Media Control Matrix

Audio Processing

Incoming Dante channels are routed, mixed, filtered, delayed, and gain-staged by the unit's floating-point DSP engine before reaching the 24 analogue outputs, with the full signal chain configured in HARVEY Composer. Presets covering different zone groupings or event configurations can be saved and recalled instantly.

Connectivity

With no analogue inputs to configure, all programme material arrives via the onboard 64x64-channel Dante interface (primary/secondary redundant), making the 0x24-DA a straightforward way to add a large bank of analogue outputs to an existing Dante network alongside Dante-equipped consoles, converters, and wireless receiver systems. Its 24 balanced line outputs can feed amplifier racks or zone controllers directly.

Control Interfaces

The standard HARVEY Pro control set is included: Ethernet, RS-232, RS-485/DMX, four GPIs, two analogue control inputs, four GPOs, and two relay contacts, letting the unit trigger output routing or presets from third-party media control systems.

Applications

Suited to multi-zone installs, stadium and venue distributed sound, houses of worship, and other installed sound projects where a large number of local analogue zones need to be fed from a Dante backbone.

Key Specifications

• Analogue Inputs: None (Dante-fed configuration)
• Analogue Outputs: 24 balanced line outputs
• Dante Channels: 64 in / 64 out, 48 kHz / 24-bit, primary plus secondary redundant interface
• DA Conversion: 24-bit delta-sigma, 48 kHz system sample rate
• Control Interfaces: Ethernet (10/100 Mbps), RS-232, RS-485/DMX512, 4x GPI, 2x analogue control input, 4x GPO, 2x relay contact
• DSP Functions: Matrix mixing, parametric EQ, crossover, delay, limiting on output channels
• Dimensions (W x D x H): 482 x 193 x 43.8 mm, 1U, 19-inch rack mount (brackets included)
• Power Consumption: Not separately published for this configuration; comparable HARVEY Pro -DA models draw 15-46 W depending on analogue channel count
