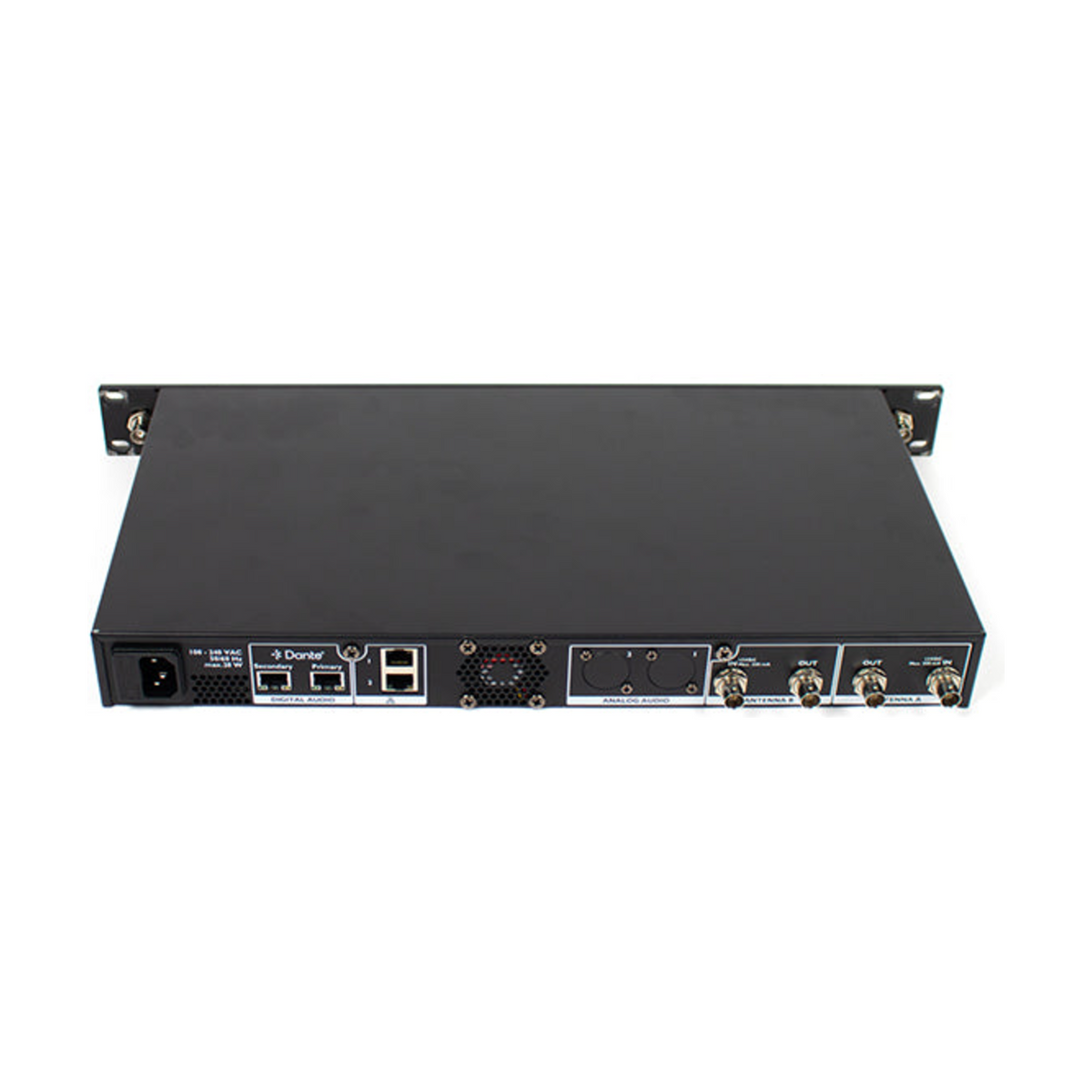

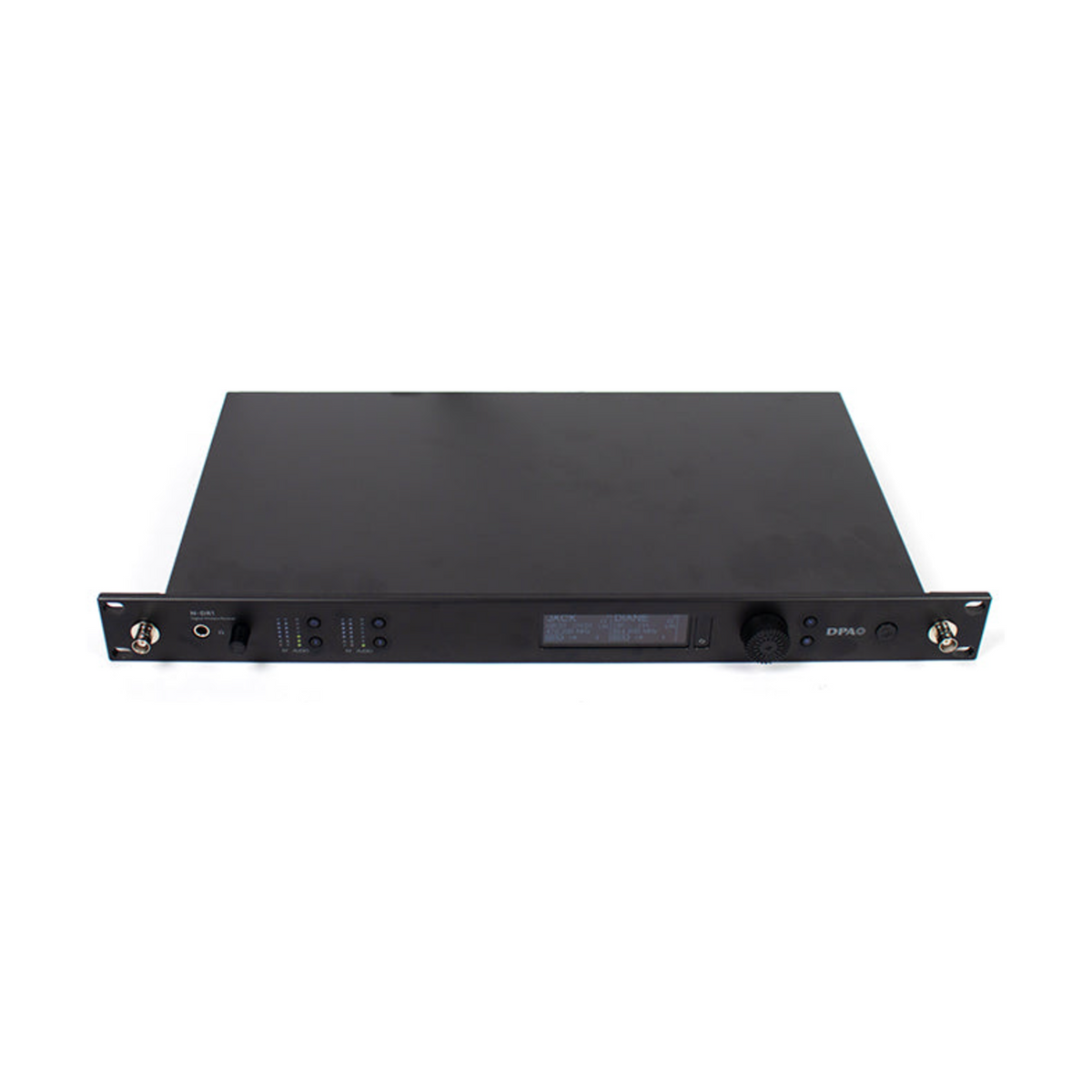

DPA N-DR1 Dual-Channel Wireless Receiver
DPA N-DR1 Dual-Channel Wireless Receiver

DPA N-DR1 Dual-Channel Wireless Receiver

Categories: Wireless systems
SKU: N-DR1

The N-DR1 is the rack-mount receiver at the core of DPA’s N-Series digital wireless system, built for engineers who need a secure, high-fidelity wireless link for vocal and lavalier mics on demanding stages, in houses of worship or in corporate and government settings. It uses true-diversity reception and delivers 24-bit digital audio with AES-256 hardware encryption.

Pairs well with

Technical Specifications

RF and Audio Performance

True-diversity reception spans a wide 470 to 870 MHz tuning range (region-dependent), delivering up to 126 dB of dynamic range. A built-in wideband spectrum analyser helps with frequency coordination on busy RF stages.

Networking and Control

Outputs are available in Dante-only or Dante-plus-analogue configurations, with Dante Switched and Redundancy modes, LAN control with a built-in network switch for loop-through, and open TCP/UDP protocols for third-party integration. The bundled DPA Audio Controller software for PC and Mac handles monitoring, configuration and frequency management.

Applications

Live performance, house of worship, corporate presentations and broadcast requiring secure, high-fidelity wireless audio.

Key Specifications

  • Channels: Dual channel, true diversity
  • RF bandwidth: 470 to 870 MHz (region-dependent)
  • Dynamic range: 126 dB
  • Encryption: AES-256 hardware encryption
  • Sample rates supported: 44.1, 48, 88.2, 96 kHz
  • Latency: Approx. 2.9 ms
  • Outputs: Dante, or Dante plus analogue
  • Control: LAN (TCP/UDP), DPA Audio Controller software
Downloads
