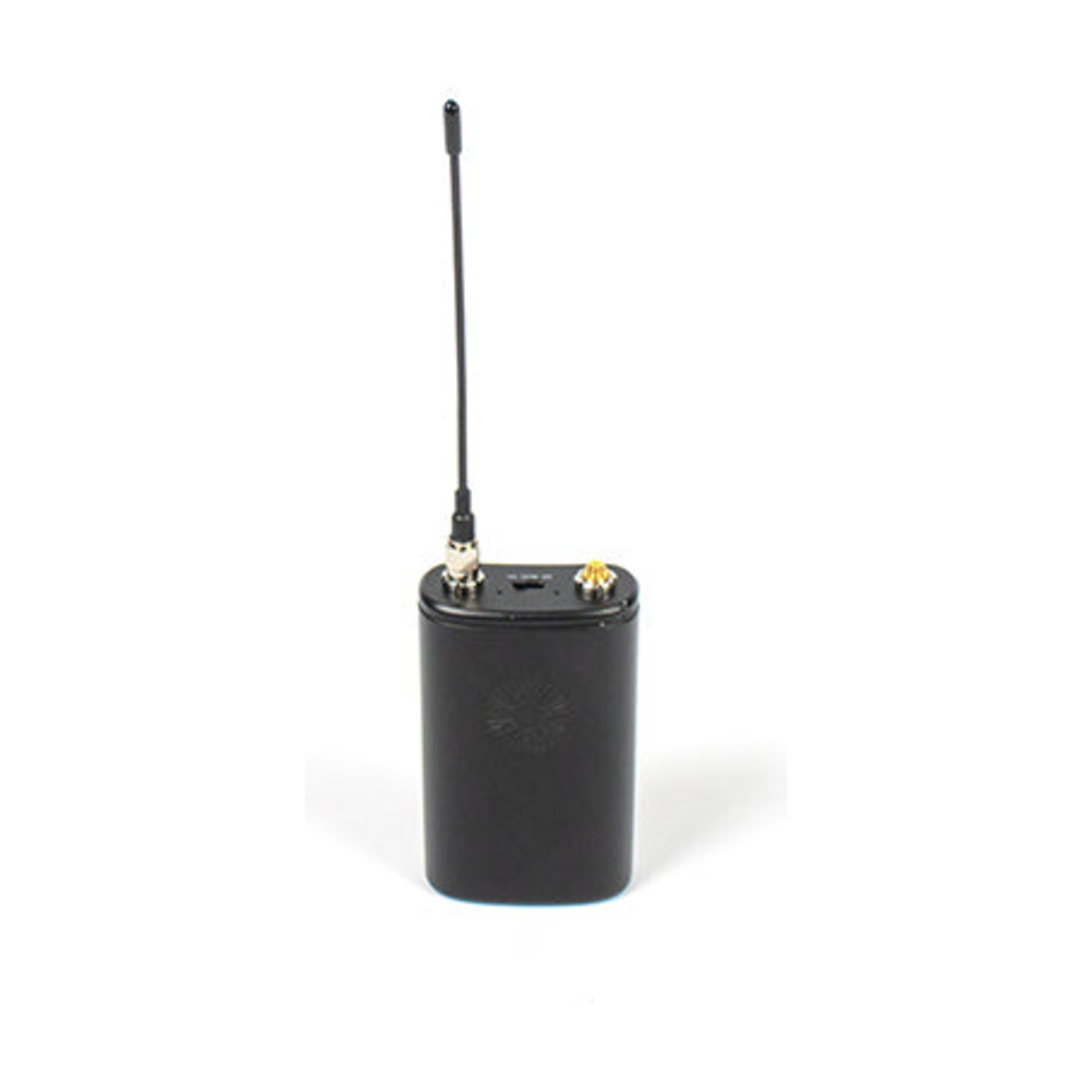

DPA N-BP1 Bodypack Wireless Transmitter

DPA N-BP1 Bodypack Wireless Transmitter

Categories: Wireless systems
SKU: N-BP1-90-A

The N-BP1 is the bodypack transmitter for DPA’s N-Series digital wireless system, designed to pair with DPA lavalier and headset microphones for presenters and performers who need to move freely on stage. The body is shaped to sit comfortably against the wearer for long sessions, with metal construction for durability and 8+ hours of runtime on standard AA batteries.

Pairs well with

Technical Specifications

Signal Path

Paired with an N-DR1 receiver, the N-BP1 delivers 24-bit digital audio with up to 126 dB of dynamic range and AES-256 hardware encryption over a wide 470 to 916 MHz tuning range that varies by region. Two connector versions are available: MicroLock (N-BP1-90) for DPA's locking connector, and 3-pin LEMO (N-BP1-03) for microphones using that termination.

Applications

Presenters, performers and houses of worship needing a mobile, encrypted wireless mic link.

Key Specifications

  • Dynamic range: 126 dB, 24-bit digital audio
  • Frequency bands: Region A (EU) 470 to 694 MHz plus 823 to 832 MHz plus 863 to 865 MHz; Region B (US) 470 to 608 MHz plus 614 to 616 MHz plus 653 to 663 MHz; Region D (China) 470 to 510 MHz plus 630 to 698 MHz
  • Battery life: 8+ hours on standard AA batteries; optional rechargeable pack
  • Connector options: MicroLock or 3-pin LEMO
  • Encryption: AES-256 hardware encryption
