DPA DAD9010 MicroLock Wireless Adapter

DPA DAD9010 MicroLock Wireless Adapter

Categories: Microphone accessories
SKU: DAD9010

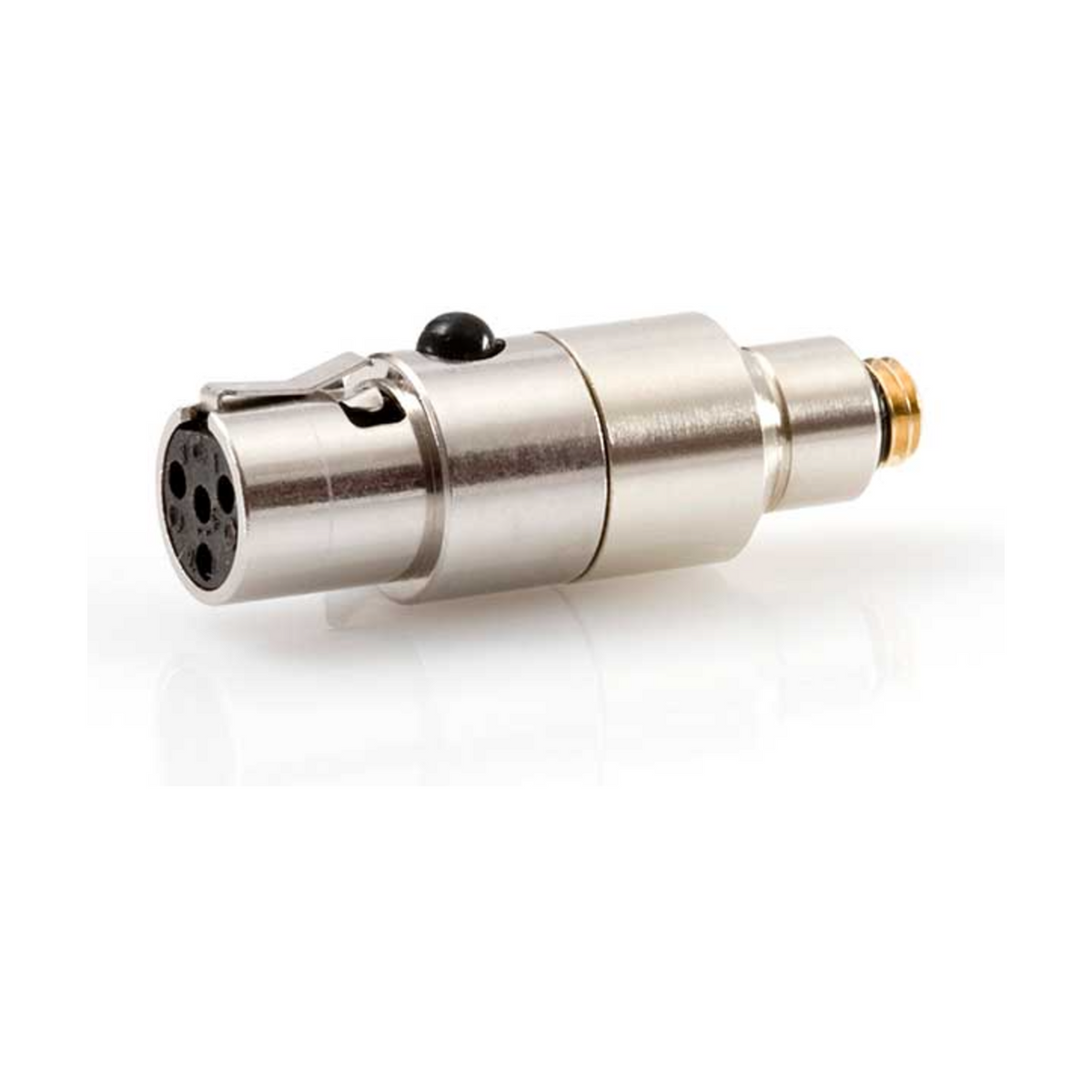

The DAD9010 is a termination adapter that lets any DPA microphone fitted with a MicroLock connector plug directly into Shure (including the PGX1), TOA and Line 6 wireless transmitters. It’s built for rental stock and touring kits where the same DPA headset, lavalier or instrument mic needs to move between different wireless brands. One end carries DPA’s MicroLock connector; the other terminates in a Switchcraft TA4F Mini-XLR.

Pairs well with

Technical Specifications

Connectivity

The Switchcraft TA4F Mini-XLR termination matches the standard 4-pin plug used across the supported transmitter lines.

Use Case

Because the adapter, not the microphone, changes when moving between wireless systems, engineers can standardise on a single DPA mic across a rental fleet or festival stage and swap adapters instead of swapping microphones.

Applications

Cross-brand wireless compatibility for touring, rental and broadcast inventories.

Key Specifications

  • Connector, microphone side: DPA MicroLock
  • Connector, transmitter side: Switchcraft TA4F Mini-XLR
  • Compatible transmitters: Shure (AD1, ADX1, AXT100TA4M, BLX1, GLXD1, MXW1, PGXD1, QLXD1, SLX1, SLXD1, ULX1, ULXD1, PGX1 and similar TA4M-equipped models), TOA, Line 6
  • Fixed-connector version: Available
