Technical Specifications

Microphone Complement

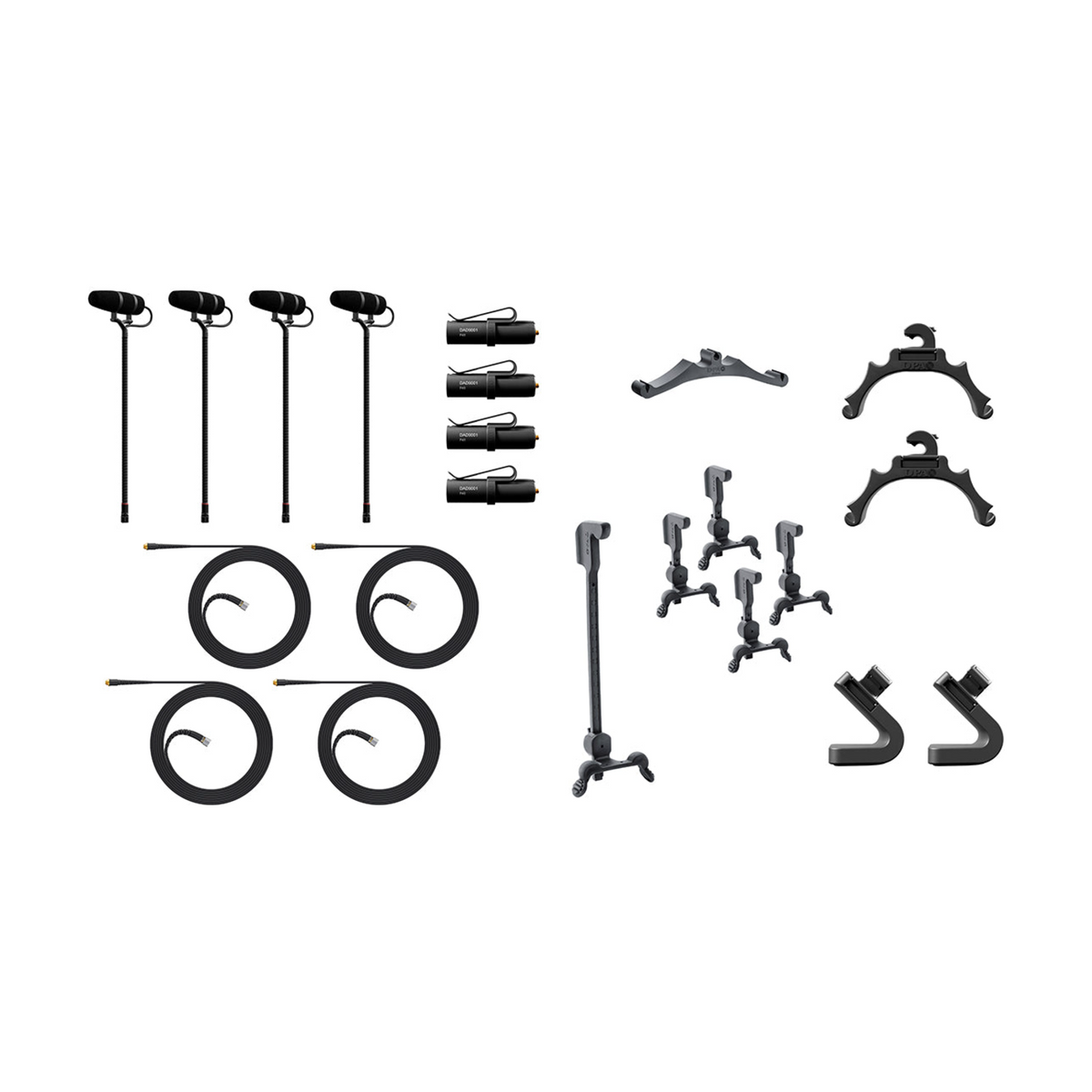

Each kit includes four 4099 CORE+ Loud SPL microphones fitted with DPA's MicroLock connector and updated gooseneck lock. The supercardioid capsules reject off-axis noise and feed back less readily than cardioid alternatives, which keeps the kit usable at close range on a crowded stage.

Mounting and Accessories

The kit ships with a matched set of instrument clips (violin, guitar, bass, piano and cello variants among them), gooseneck extenders, MicroLock-to-XLR adapters and cabling, so the mics can be repositioned across instrument types without buying separate hardware.

Applications

Touring instrument miking for live sound, theatre and rental inventories.

Key Specifications

  • Included microphones: 4 x 4099 CORE+, Loud SPL
  • Effective frequency range: 80 Hz to 17 kHz at 20 cm (plus/minus 2 dB), with 2 dB soft boost at 10 to 12 kHz
  • Nominal sensitivity: 6 mV/Pa; -44 dB re. 1 V/Pa (plus/minus 3 dB at 1 kHz)
  • Connector: MicroLock
  • Polar pattern: Supercardioid
  • Packaging: Cardboard box with mic pouches
