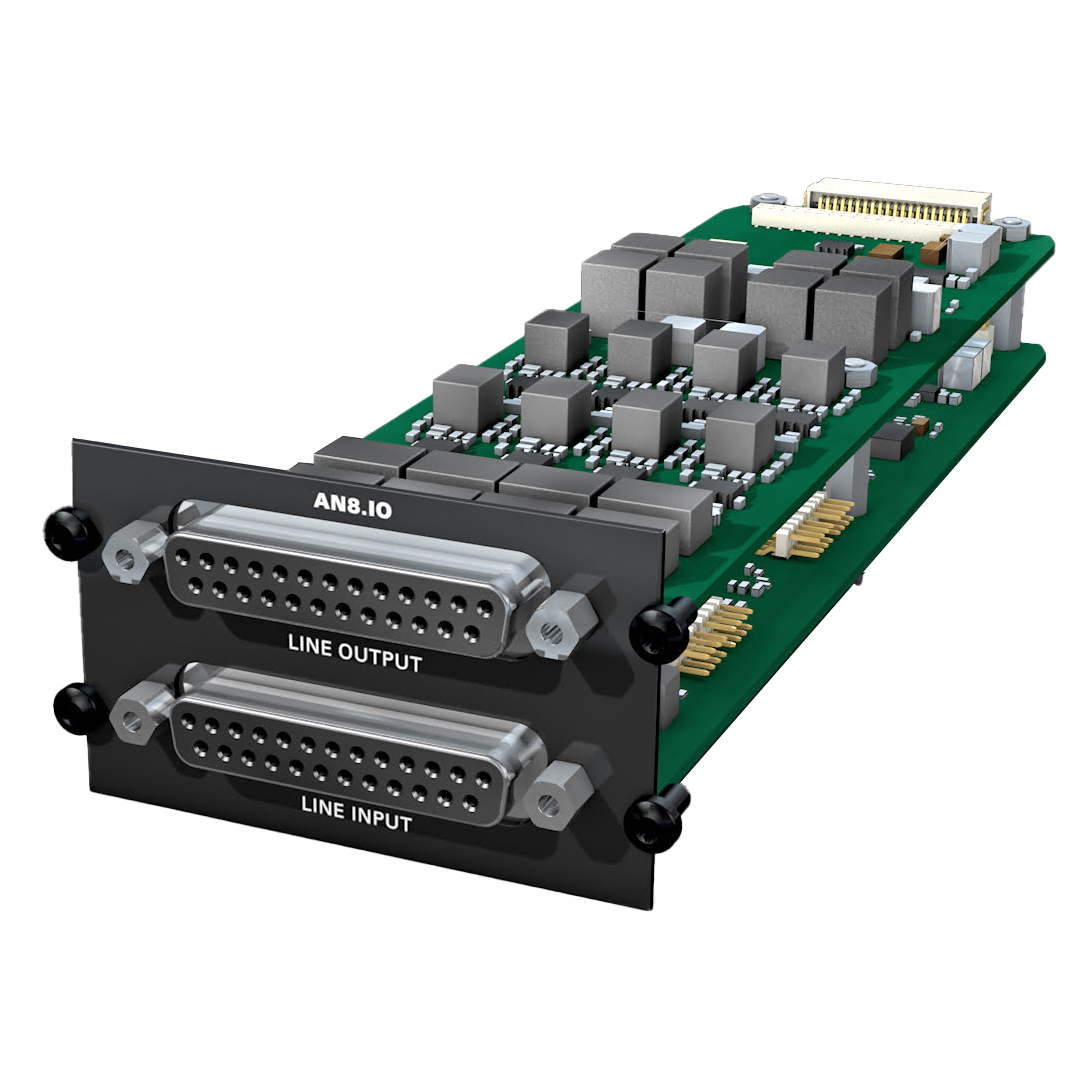

DirectOut AN8.IO Analogue Line I/O Module

DirectOut AN8.IO Analogue Line I/O Module

Categories: Converters & interfaces
SKU: AIO0029

AN8.IO is an analogue line converter module for the DirectOut PRODIGY.MC, PRODIGY.MP and MAVEN.A, adding eight balanced line inputs and eight balanced line outputs via two DSUB-25 connectors. The reference level can be set to +15, +18 or +24 dBu per channel by jumper, so it matches consoles, amplifiers and processors cleanly. This version uses ESS converters.

Pairs well with

Technical Specifications

Overview

Converter module for PRODIGY.MC, PRODIGY.MP and MAVEN.A with eight balanced analogue line inputs and outputs. Reference level is set per channel and per input or output by jumper.

Key Specifications

  • Channels: 8 line inputs / 8 line outputs
  • Reference levels: +15 / +18 / +24 dBu via jumper
  • A/D SNR: < -117.6 dB RMS (20 Hz - 20 kHz) / -119.9 dB(A)
  • A/D THD @ -1 dBFS: < -119 dB
  • D/A SNR: -116.8 dB RMS (20 Hz - 20 kHz) / -119.5 dB(A)
  • D/A THD @ -1 dBFS: -109 dB
  • Connectors: 2 x DSUB-25 (AES59)
  • Version: ESS converters
  • Compatible with: PRODIGY.MC, PRODIGY.MP, MAVEN.A
