Rack Configuration and Connectivity

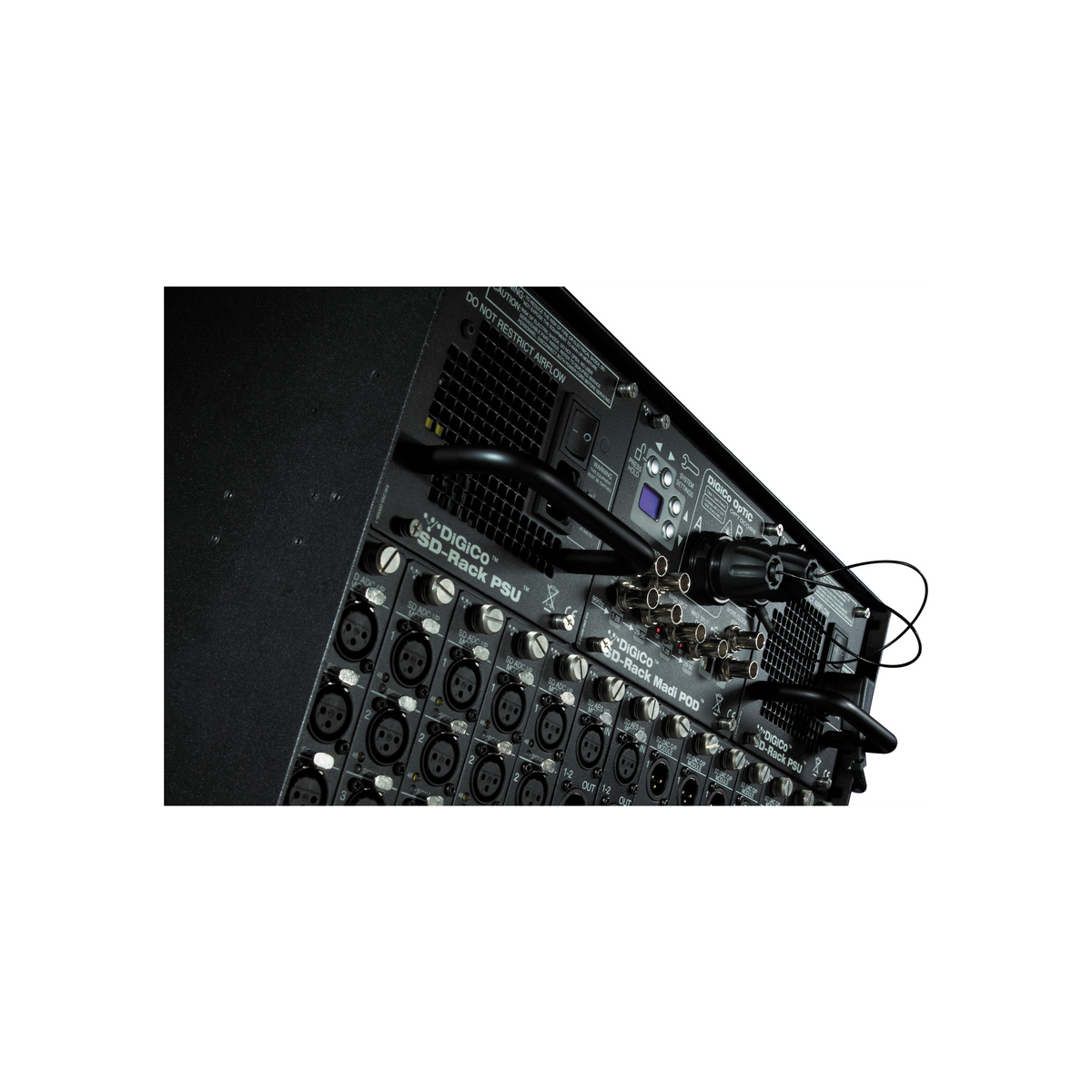

The SD-Rack is a 14-slot input and output rack, with the first seven slots for input cards and the last seven for output cards, allowing up to 56 inputs and 56 outputs. It supports up to 192kHz high-resolution analogue I/O converters and a comprehensive range of digital formats, and is compatible with all SD I/O modules. The front panel carries redundant MADI BNC ports, two MADI split outputs with built-in sample rate conversion, word clock I/O and a USB Type B port for firmware updates and DiGiCo Control software. At 48kHz the two MADI ports provide fully redundant cabling to the console, and at 96kHz they carry all 56 channels.
Build and Mounting

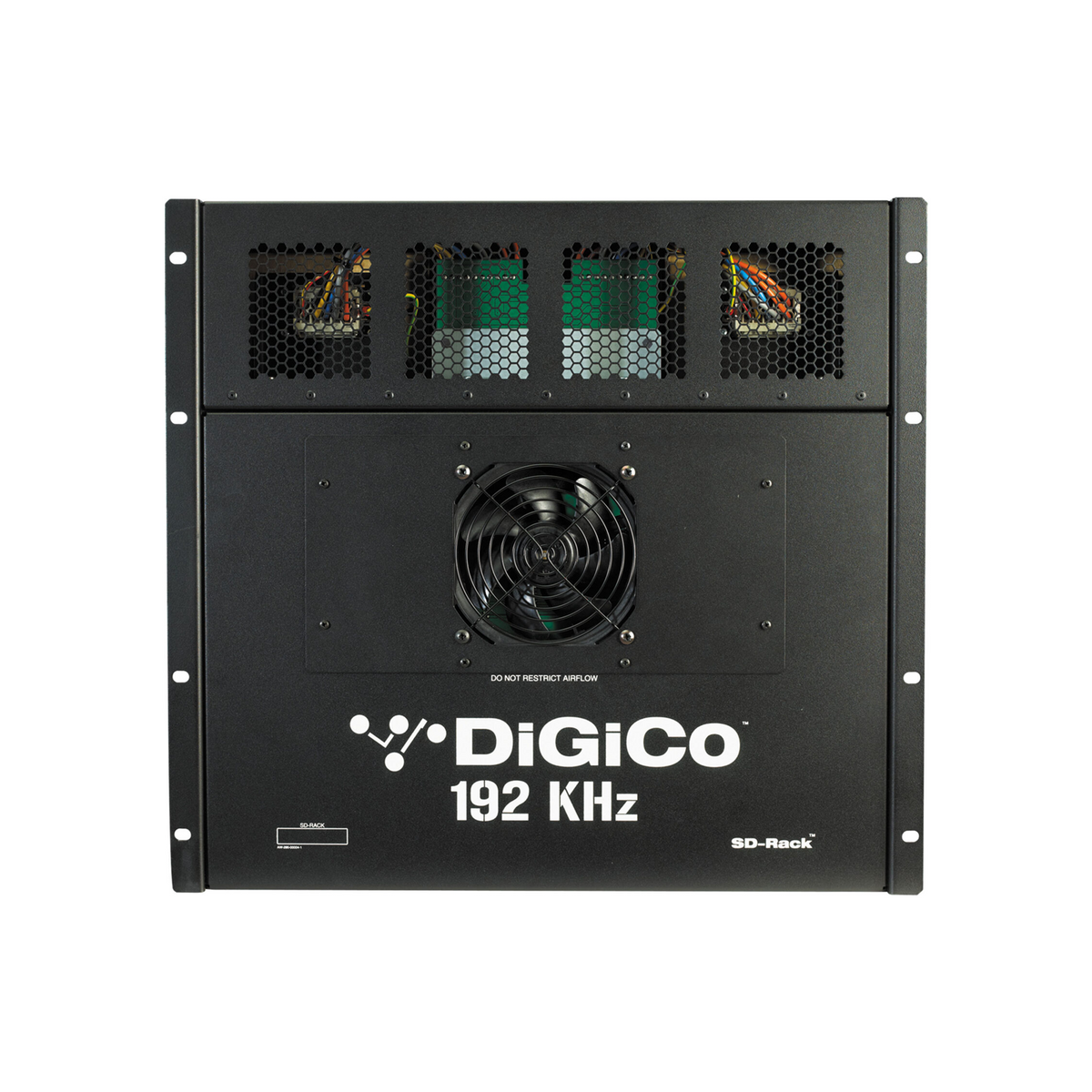

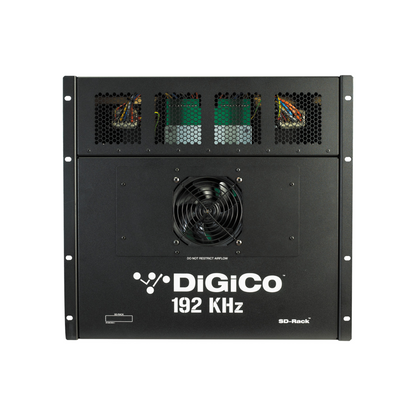

The SD-Rack is a 10U rack-mountable design measuring 482.7 x 371 x 443.7mm and weighing 26kg unloaded, built for touring with a rugged design. Two redundant hot-swappable power supplies and the MADI pod are removable for cleaning and repair, and cards are hot-swappable and automatically identified and configured. A front LCD menu screen flashes between white and green so a healthy sync can be seen from a distance, and locked controls prevent accidental setting changes.
Signal Processing and Compatibility

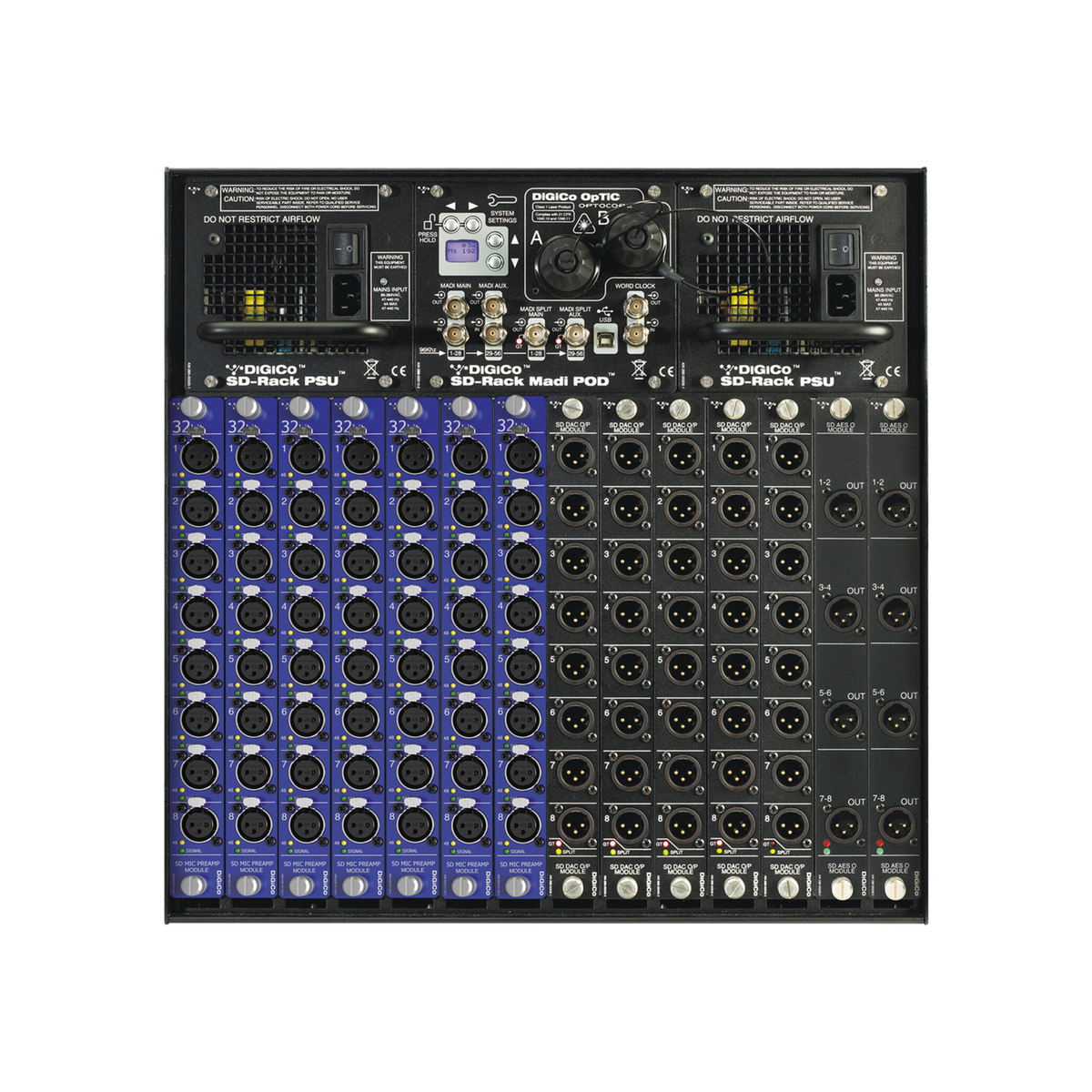

Based on the same Stealth FPGA technology as the SD-Range consoles, the SD-Rack offers high-resolution A/D conversion with DiGiCo’s Gain Tracking, giving every console on the loop +/-40dB of digital gain. An optional Optocore interface (HMA, OpticalCON or ST, upgradable to SingleMode) lets it run on an optical loop at 96kHz alongside a down-sampled 48kHz MADI feed, which suits broadcast truck splits. Compatible cards include 32-bit mic pre-amp, 32-bit DAC, ADC and DAC, AES/EBU I/O, AES-42, Dante, ADAT, SDI and Aviom. Cards are sold separately, and this model is supplied unloaded with MADI only.
Applications
The I/O rack for live sound, broadcast, theatre, installed sound and houses of worship, whether paired with an SD console or used as a standalone rack.
Key Specifications
- Concept: 14-slot remote I/O stage rack (unloaded, MADI only)
- Card Slots: 14 (7 input and 7 output); up to 56 inputs and 56 outputs
- Rack Format: 10U rack mountable
- Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176kHz or 192kHz
- MADI: 1 x Main I/O BNC, 1 x Aux I/O BNC, 1 x Split Main output BNC, 1 x Split Aux output BNC
- Split Output MADI Type: 56 Ch, SD Rack or 64 Ch
- Optical Option: Optocore interface (HMA, OpticalCON or ST), upgradable to SingleMode; fibre speed 1G or 2G
- Other Connections: Word clock I/O BNC, 1 x USB 2.0 Type B
- Signal Processing: Internal oscillator (-96dB to 0dB, 20Hz to 22kHz), inbuilt sample rate conversion for split outputs, Gain Tracking
- Compatible Cards: 32-bit Mic Pre / 32-bit DAC / ADC / DAC / AES I/O XLR / AES I/O BNC / AES Input / AES Output / AES42 / Dante / ADAT / SDI I/O / Aviom
- Power: 2 x redundant hot-swappable PSUs; 85-264 VAC, 47-440Hz, 4A max
- Dimensions (W x D x H): 482.7 x 371 x 443.7mm (19.00 x 14.60 x 17.46 in)
- Weight: 26kg (unloaded)
- Product Code: X-SD-RACK (unloaded, MADI only)
