Rack Configuration and Connectivity
The SD-Nano Rack is a 2-slot input and output rack, with each slot accepting either an input or an output card. In a digital configuration it runs up to 16 inputs and 16 outputs, and with analogue cards it provides 16 inputs or 16 outputs, or 8 inputs and 8 outputs. It is available only as an optically connected rack, with an Optocore interface in HMA, OpticalCON or ST connectivity and an upgrade to SingleMode. A word clock I/O BNC and a USB Type B port for firmware updates and DiGiCo Control software complete the connections, and the software also lets the rack run as a standalone device without a DiGiCo console.
Build and Mounting

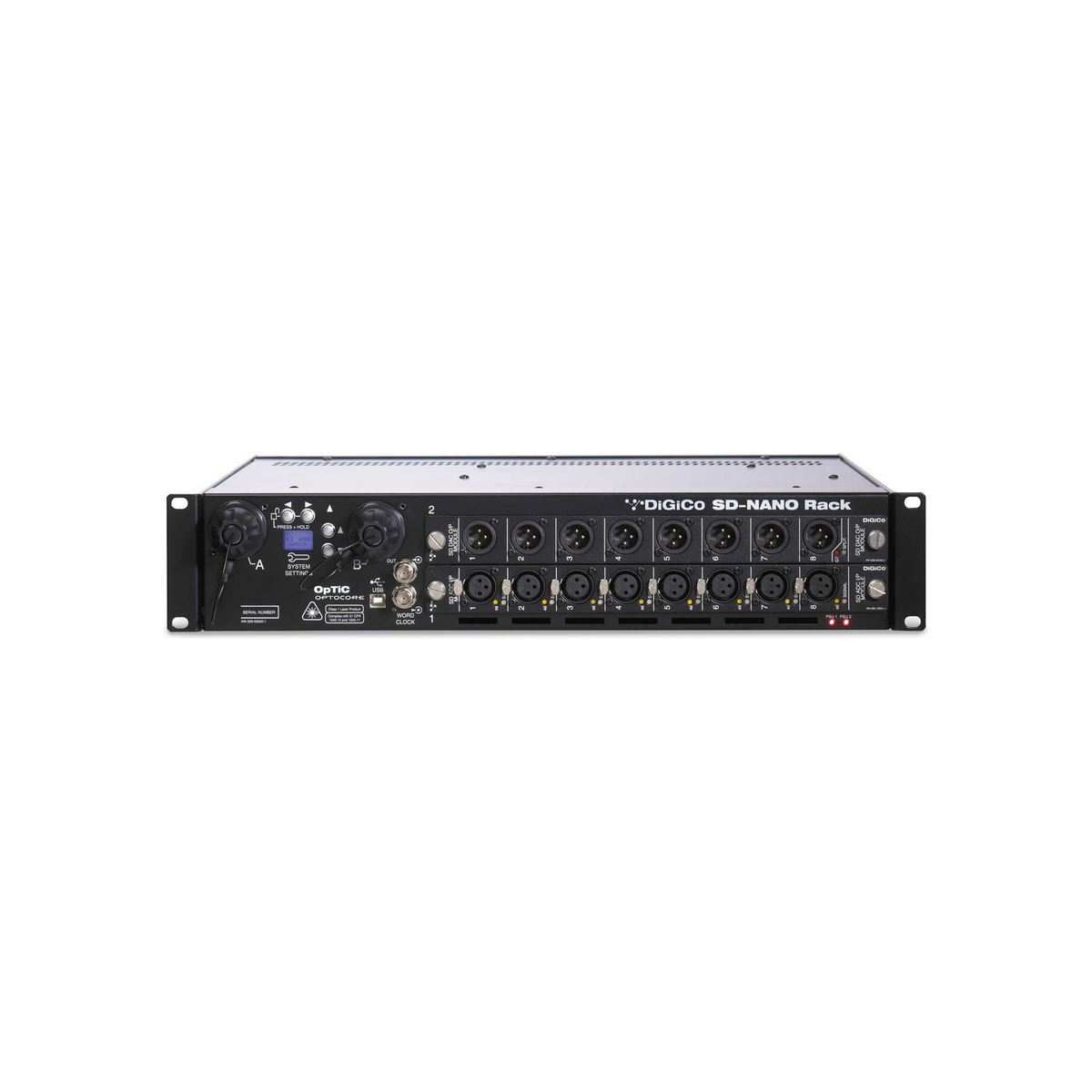

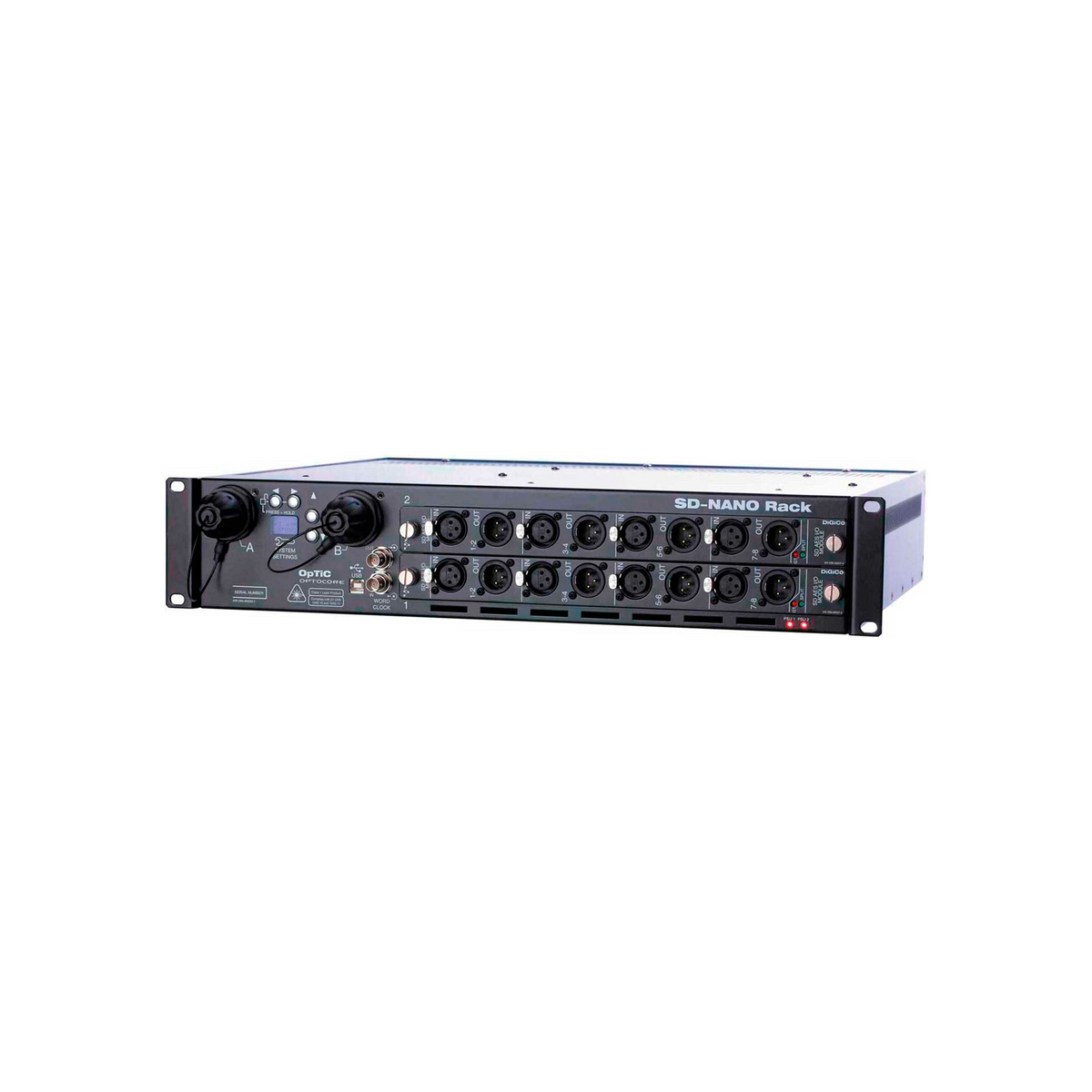

An ultra-compact 2U rack-mountable design measuring 482.6 x 442.5 x 88.1mm and weighing 9kg, with two redundant internal power supplies. Cards are hot-swappable and automatically identified and configured, a front LCD menu screen flashes between white and green so a healthy sync can be seen from a distance, and locked controls prevent accidental setting changes.
Signal Processing and Compatibility
Based on the same Stealth FPGA technology as the SD-Range consoles, the SD-Nano offers high-resolution A/D conversion with DiGiCo’s Gain Tracking and an internal oscillator. Up to 14 DiGiCo I/O racks can run on a single optical loop, or 28 on a dual loop. Compatible cards include 32-bit mic pre-amp, 32-bit DAC, ADC and DAC, AES/EBU I/O, AES-42, Dante, ADAT, SDI and Aviom. Cards are sold separately, and this model is supplied unloaded with HMA optics.
Applications
A compact stage box for installations and live shows alike, where several small racks are distributed around a stage or building, whether paired with an SD console or used as a standalone rack.
Key Specifications
- Concept: 2-slot remote I/O stage rack (unloaded, HMA optics)
- Card Slots: 2; up to 16 inputs and 16 outputs (digital cards)
- Rack Format: 2U rack mountable
- Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176kHz or 192kHz
- Optical Connection: Optocore interface (HMA, OpticalCON or ST), upgradable to SingleMode; fibre speed 1G or 2G
- Other Connections: Word clock I/O BNC, 1 x USB 2.0 Type B
- Signal Processing: Internal oscillator (-96dB to 0dB, 20Hz to 22kHz), Gain Tracking
- Compatible Cards: 32-bit Mic Pre / 32-bit DAC / ADC / DAC / AES I/O XLR / AES I/O BNC / AES Input / AES Output / AES42 / Dante / ADAT / SDI I/O / Aviom
- Power: 2 x internal PSUs; 100-240 VAC, 47-63Hz, 2.8A max
- Dimensions (W x D x H): 482.6 x 442.5 x 88.1mm (19.00 x 17.42 x 3.46 in)
- Weight: 9kg (unloaded)
- Product Code: X-SDRN-OP (unloaded, HMA optics)
