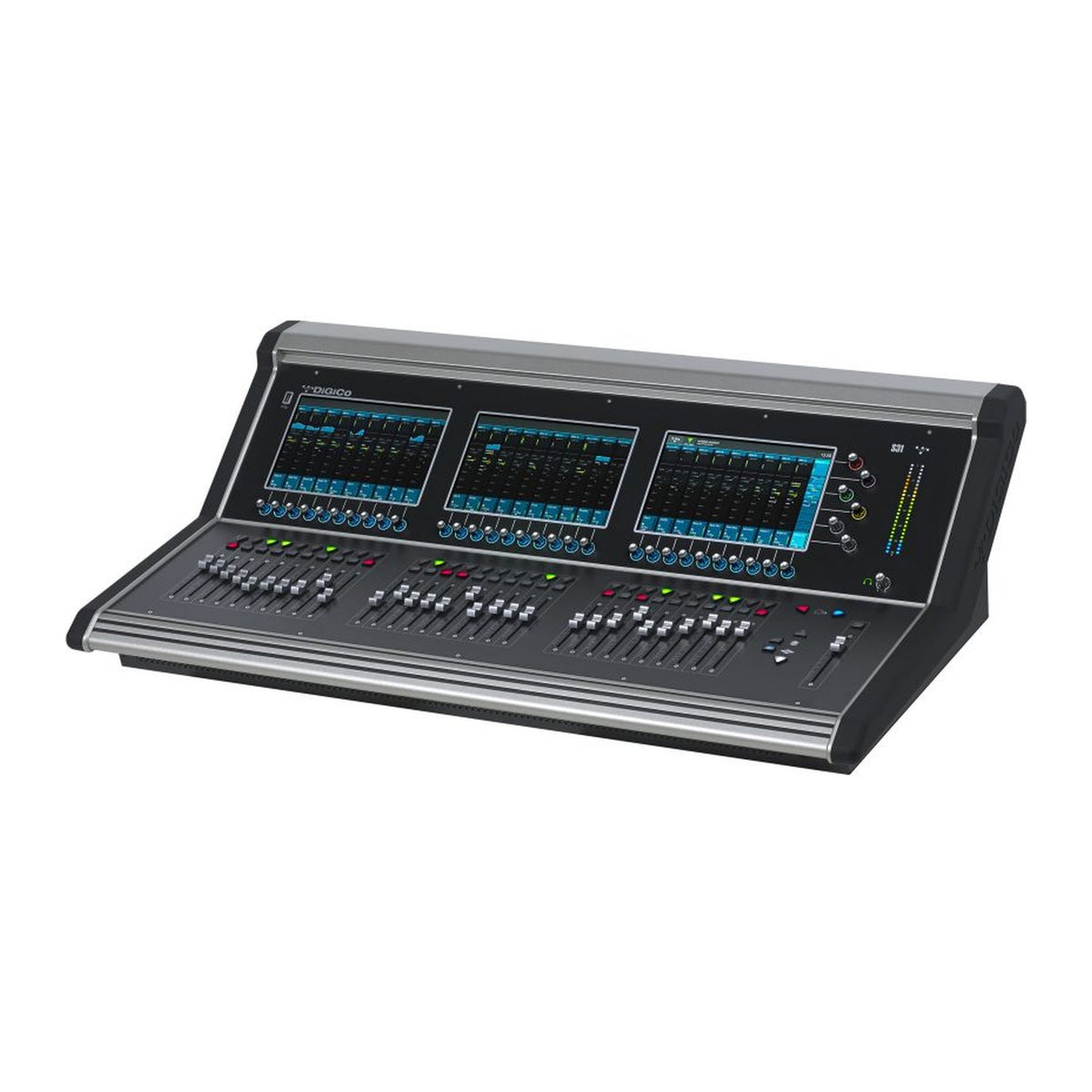

DiGiCo S31 Digital Mixing Console with D-Rack

DiGiCo S31 Digital Mixing Console with D-Rack

Brand: DiGiCo
Categories: Consoles
SKU: S31-DR-C

The S31 system pairs DiGiCo’s S31 console with a D-Rack stage box for a complete digital mixing package for venues, churches and touring. The S31 provides 48 flexi input channels, 16 flexi busses and a 10 x 8 matrix across 30+1 faders, with 24 local mic/line inputs and two DMI slots. The D-Rack adds 32 mic/line inputs and 8 outputs over MADI via the supplied DMI-MADI-C card and 75m CAT6 cable.

Pairs well with

Technical Specifications

System Contents

Supplied as a complete system: an S31 console with dust cover and packing carton, a DMI-MADI-C card, a D-Rack stage box with rack mount brackets and a 75m CAT6 cable.

S31 Console

31 faders across three sections of 10 plus a master fader, three 10-inch multitouch screens, 48 flexi input channels, 16 flexi busses and a 10 x 8 matrix, with 24 local mic/line inputs, 12 line outputs and two DMI slots.

D-Rack

A floor or rack-mounted stage box with 32 mic/line inputs and 8 line outputs, connected to the console over RJ45 MADI.

Applications

Venues, churches, corporate events and touring productions needing a complete DiGiCo system with stage I/O.

Key Specifications

  • Input channels: 48 flexi (mono/stereo)
  • Busses: 16 flexi aux/sub-group
  • Matrix: 10 x 8
  • Faders: 30 + 1
  • Console local I/O: 24 mic/line in, 12 line out, 2 x AES
  • Stage I/O: D-Rack: 32 mic/line in, 8 line out
  • Connection: DMI-MADI-C, RJ45 MADI, 75m CAT6 cable
  • DMI slots: 2
  • Console dimensions: 1023mm (W) x 586mm (D) x 295mm (H)
  • Console weight: 25kg
Downloads
