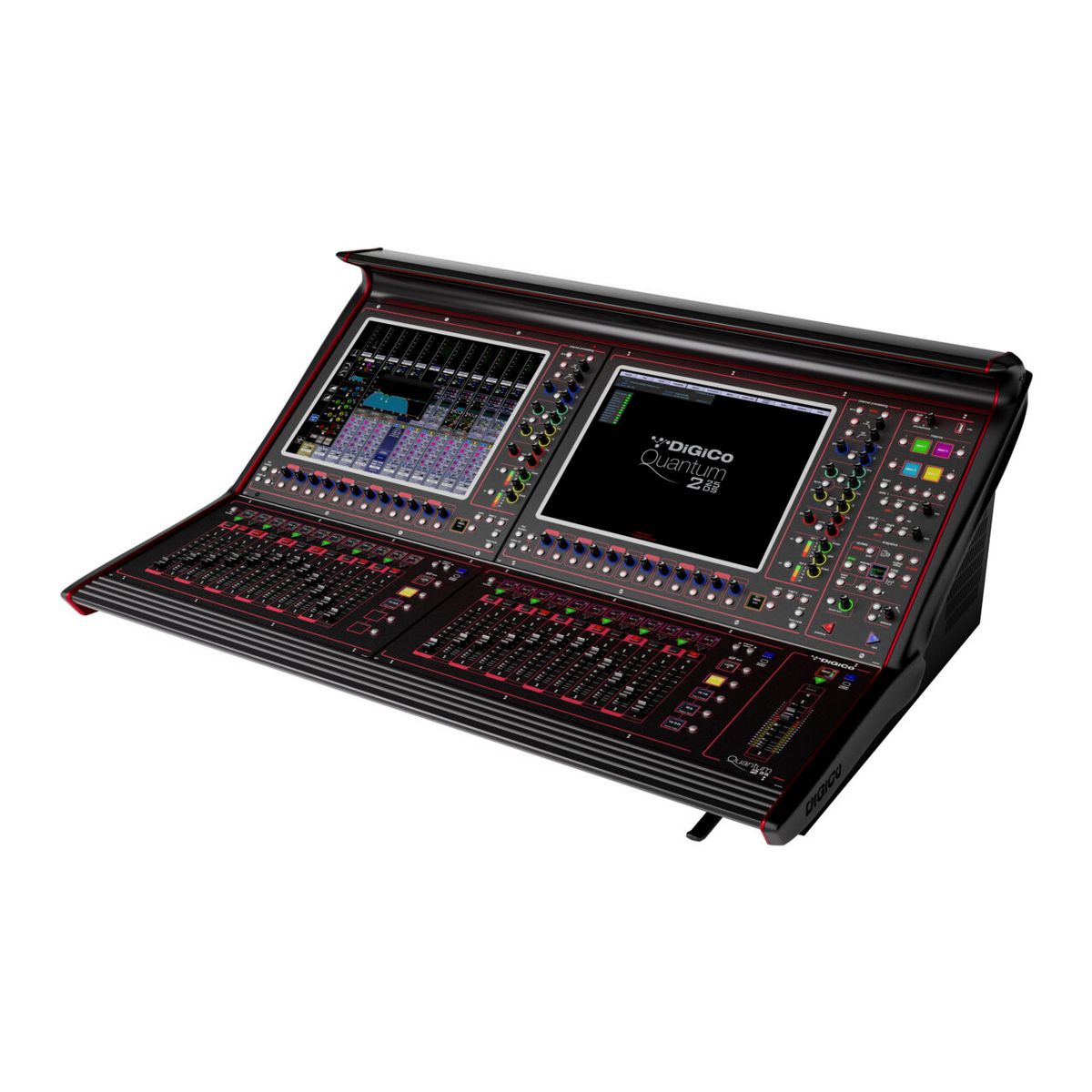

DiGiCo Quantum 225 DS Dual-Screen Digital Mixing Console

DiGiCo Quantum 225 DS Dual-Screen Digital Mixing Console

Brand: DiGiCo
Categories: Consoles
SKU: Q225-WS-DS

The Quantum 225 DS is the dual-screen version of DiGiCo’s compact Quantum 225, adding a second touchscreen for more visibility and faster navigation in a similar footprint. It runs 72 fully processed input channels, 36 busses and a 12 x 12 matrix on seventh-generation FPGAs, with 24+1 faders, eight local mic/line inputs, four BNC MADI ports and two DMI expansion slots.

Pairs well with

Technical Specifications

Control Surface

The Quantum 225 DS adds a second touchscreen to the compact Quantum 225 for more on-screen visibility and faster navigation, with 24+1 motorised faders.

Processing

Built on seventh-generation FPGAs, it delivers 72 fully processed input channels, 36 output busses and a 12 x 12 matrix, with 32 Nodal Processors, 24 Mustard Processors, 6 Spice FX, 12 control groups and 12 FX.

Connectivity

Local I/O provides 8 mic/line inputs, 8 line outputs and 8 AES channels, plus four BNC MADI ports, two DMI slots, USB audio, dual PSUs and 2 GPIO.

Applications

Mid-size venues, house of worship, corporate events and touring where a compact Quantum surface with two screens is preferred.

Key Specifications

  • Input channels: 72 mono, full processing
  • Busses: 36 mono output busses
  • Matrix: 12 x 12
  • Faders: 24 + 1
  • Screens: 2 (dual screen surface)
  • Local I/O: 8 mic/line in, 8 line out, 8 x AES
  • MADI: 4 x BNC
  • DMI slots: 2
  • Power: Dual PSU
  • Dimensions: 1124mm (W) x 801mm (D) x 436mm (H)
  • Weight: 44.64kg
