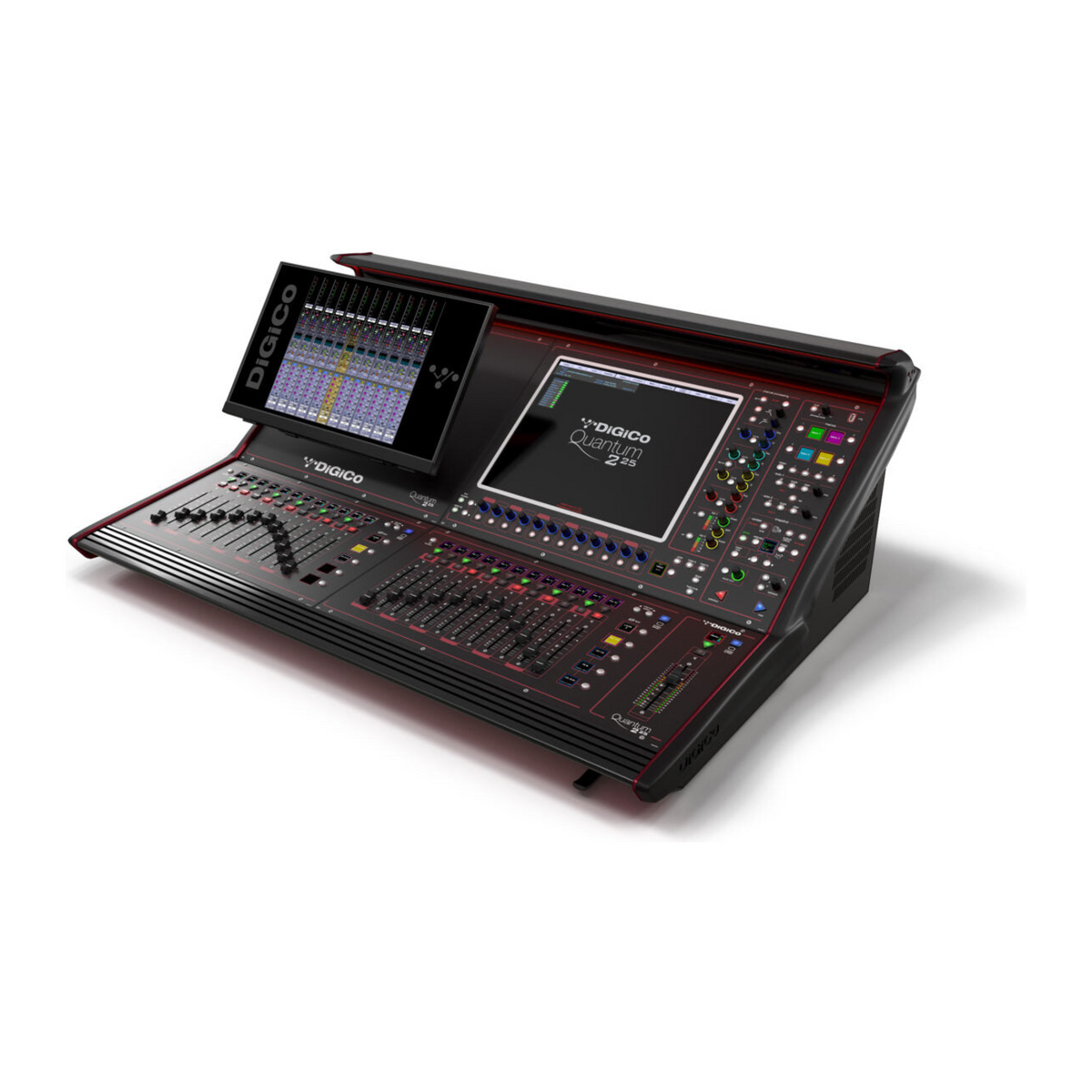

Control Surface
A single 17-inch, 1000-nit high-brightness multitouch screen carries the meter bridge and soft quick-select buttons. 41 individual TFT LCDs display channel information, metering, bank data and macros. The surface holds 25 x 100mm touch-sensitive motorised faders, two banks of 12 plus a dedicated user-assignable master fader with high-resolution metering.

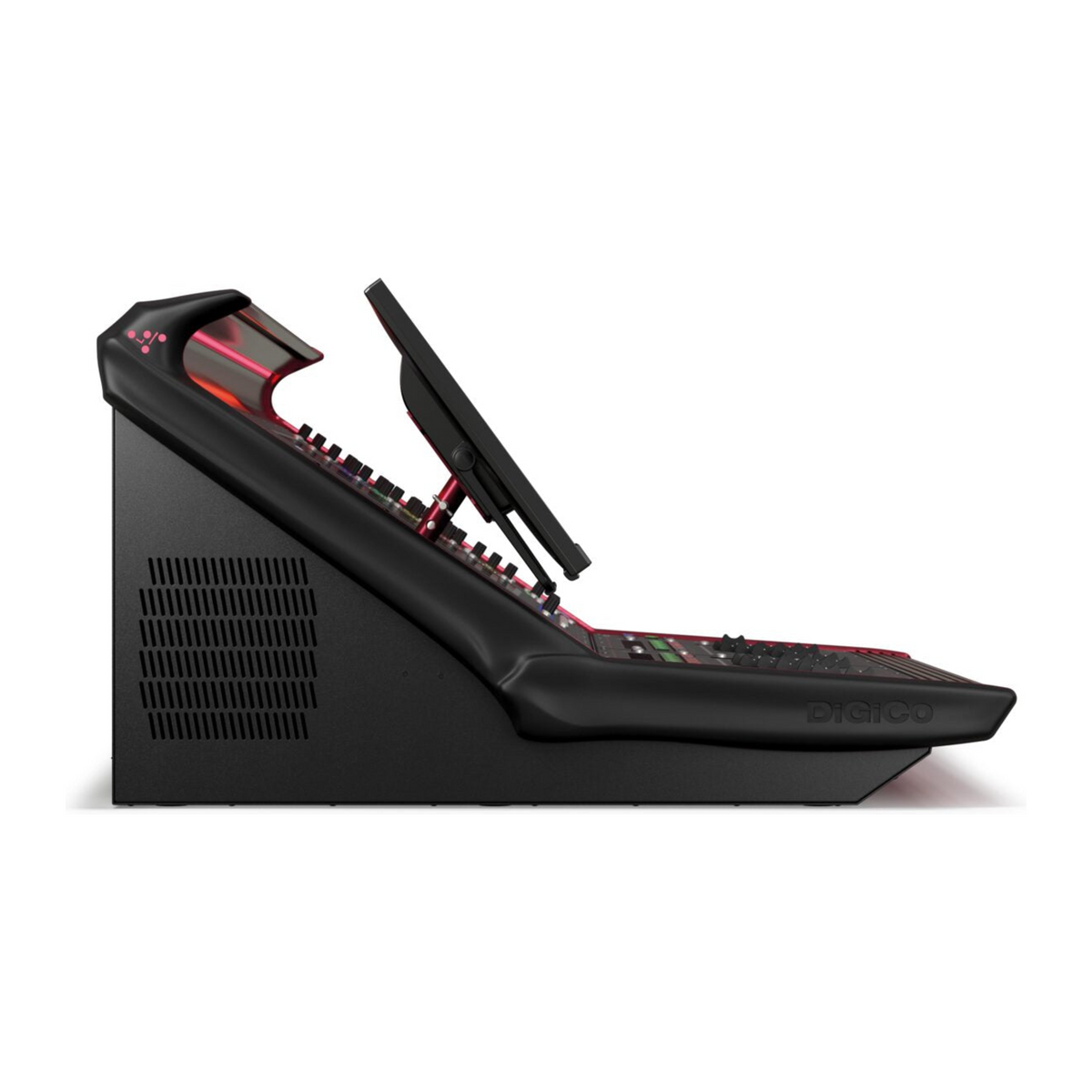

The Mounting Bracket

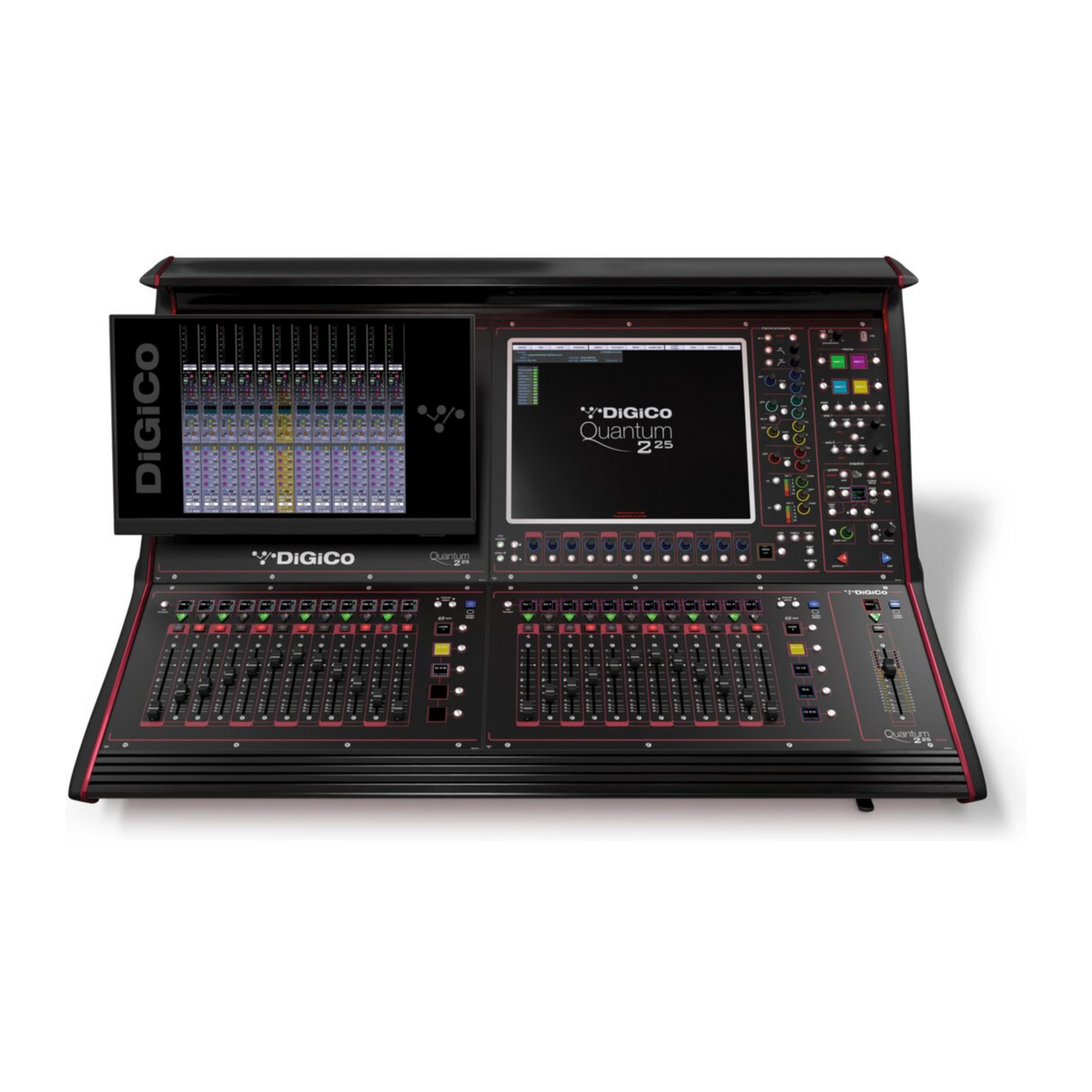

The Quantum 225's distinguishing feature is a customisable left worksurface. The mounting bracket accepts a laptop for creative control, a KLANG:kontroller for immersive mixing, or a second screen, which can display the KLANG app, a plugin computer, the console overview, or the channel screen for the left fader bank, effectively turning the 225 into a dual-screen console.
I/O and Connectivity

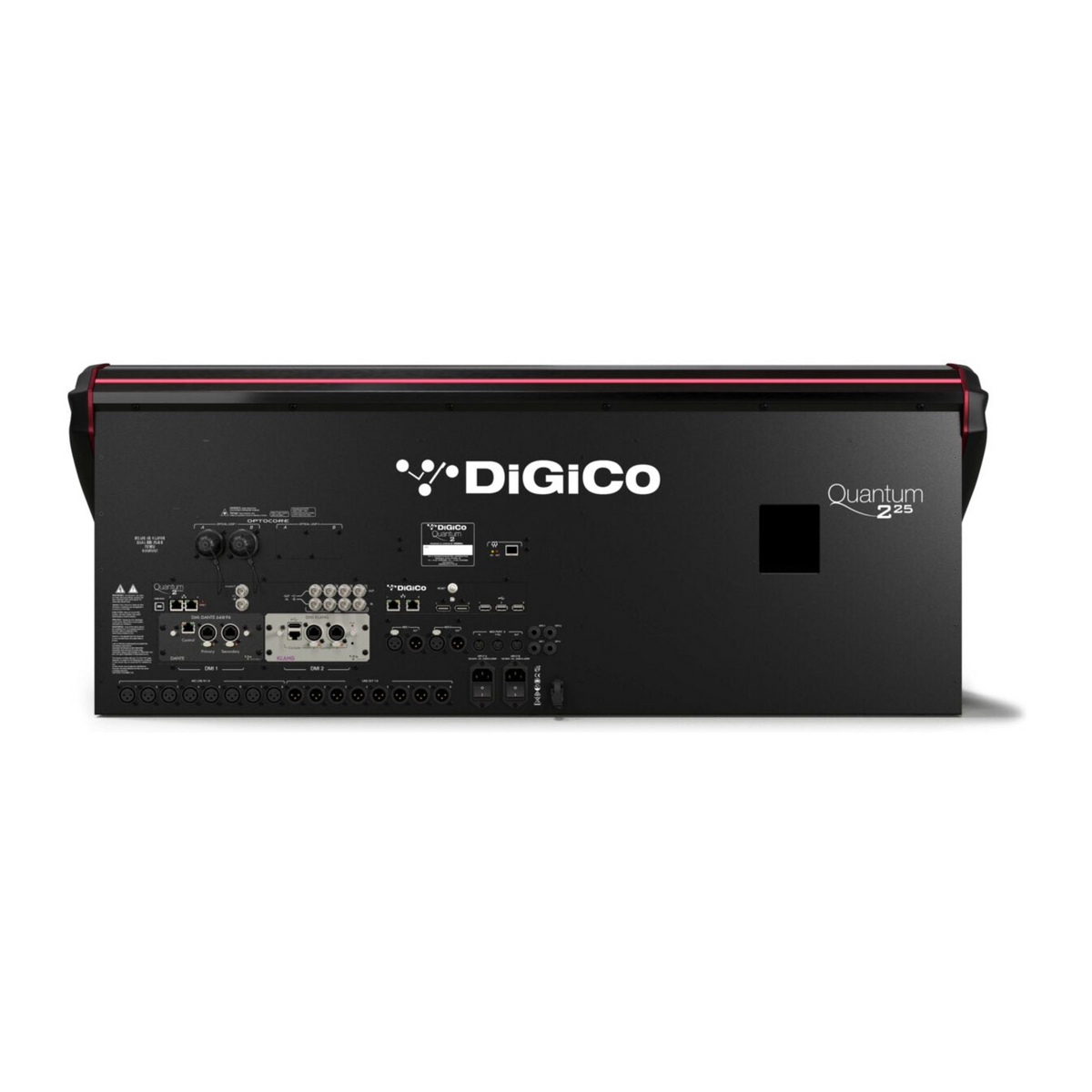

Local I/O covers 8 analogue inputs, 8 analogue outputs and 2 AES I/O (4 channels). Two redundant MADI in/out at 48kHz can be reconfigured as 4 MADI I/O, or 2 MADI I/O at 96kHz with full channel counts. Optocore is optional as single or dual loops (504 channels and up to 14 racks per loop). A 48-channel UBMADI interface is built into the engine for USB recording and playback from any laptop. Two dedicated DMI slots each add 64 x 64 I/O, and Waves SoundGrid connectivity is available as an option for a further 64 x 64.
Processing
Mustard Processing channel strips (24), Spice Rack native FPGA processing (6 mono / 3 stereo), 32 Nodal Processors and True Solo are included as standard.
Audio Performance
Internal processing runs up to 40-bit floating point with 24-bit A/D and D/A conversion. Processing delay is 2ms at 48kHz and 1ms at 96kHz. Frequency response from mic in to line out is plus/minus 0.25dB across 20Hz to 20kHz, THD+N stays under 0.003%, channel separation exceeds 100dB at 10kHz, and EIN is better than -127dBu A-weighted. Maximum input and output level is +22dBu.
Physical
Dimensions are 1124mm wide by 801mm deep by 436mm high, weighing 43kg (138kg in flightcase). Power draw is 100V to 240V, 50 to 60Hz, 255VA.
Applications
Live sound, installed sound, theatre, house of worship, corporate and sport.
Key Specifications
- Input channels: 72 with full processing
- Busses: Up to 36 aux/group, Mono / Stereo / LCR plus master
- Matrix: Up to 12 in x 12 out, full processing
- Faders: 25 x 100mm motorised, touch-sensitive
- Screen: 1 x 17-inch high-brightness multitouch
- TFT displays: 41
- Dynamic EQ: 155 instances
- DiGiTuBes: 123
- Graphic EQ: 16 x 32-band, plus/minus 12dB
- Internal FX: Up to 12 stereo
- Control groups: Up to 12
- Local I/O: 8 x mic/line, 2 x AES (4 channels)
- MADI: 4 interfaces at 48kHz / 2 at 96kHz (BNC)
- UBMADI: 48-channel USB, built in
- DMI slots: 2
- Optocore: Optional, dual loop available
- Waves: Optional
- GPI/GPO: 2
- Sample rate: 48kHz / 96kHz
- External sync: Wordclock, MADI, Optocore
- Dimensions: 1124mm (W) x 801mm (D) x 436mm (H)
- Weight: 43kg / 95lbs (138kg / 304lbs in flightcase)
