Control Surface

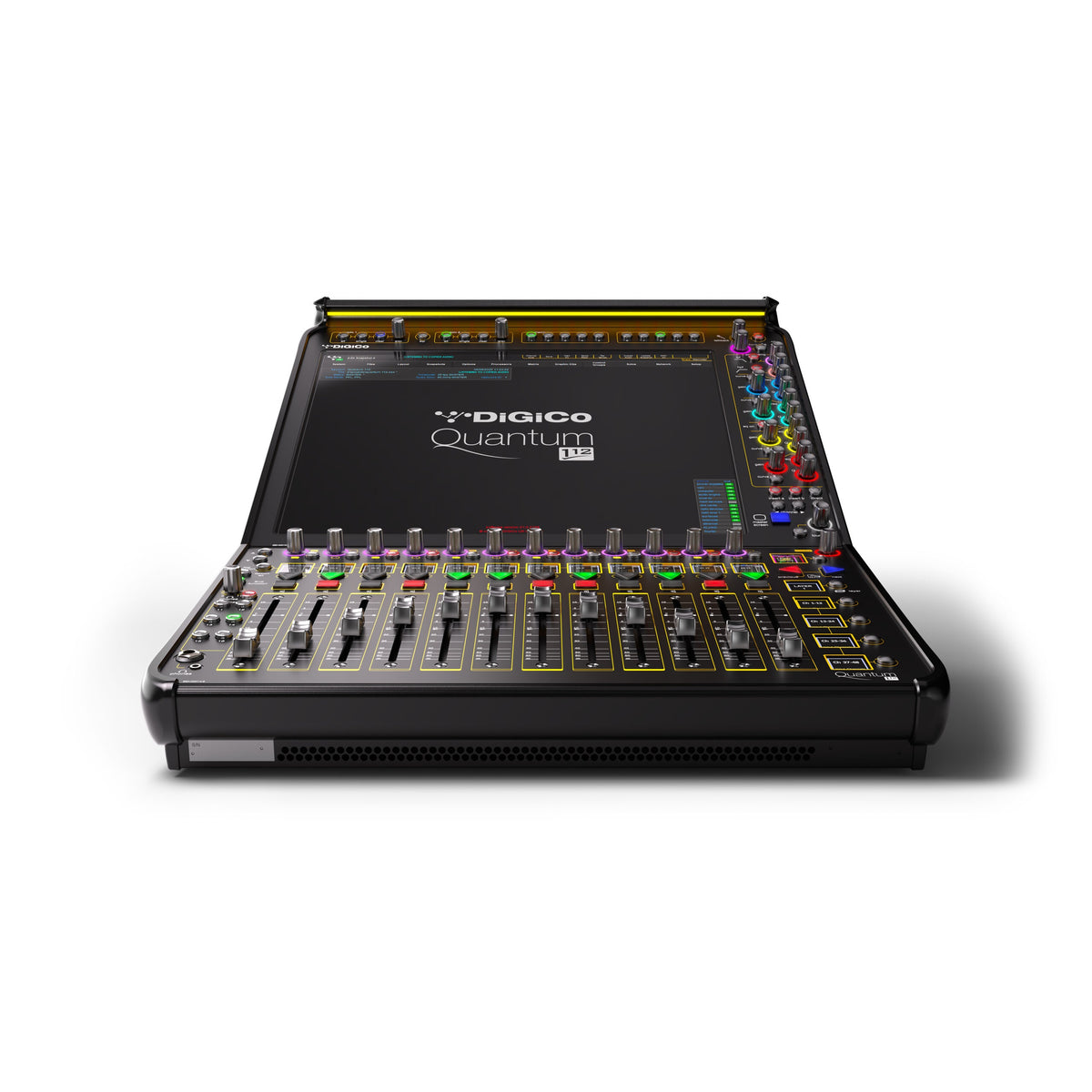

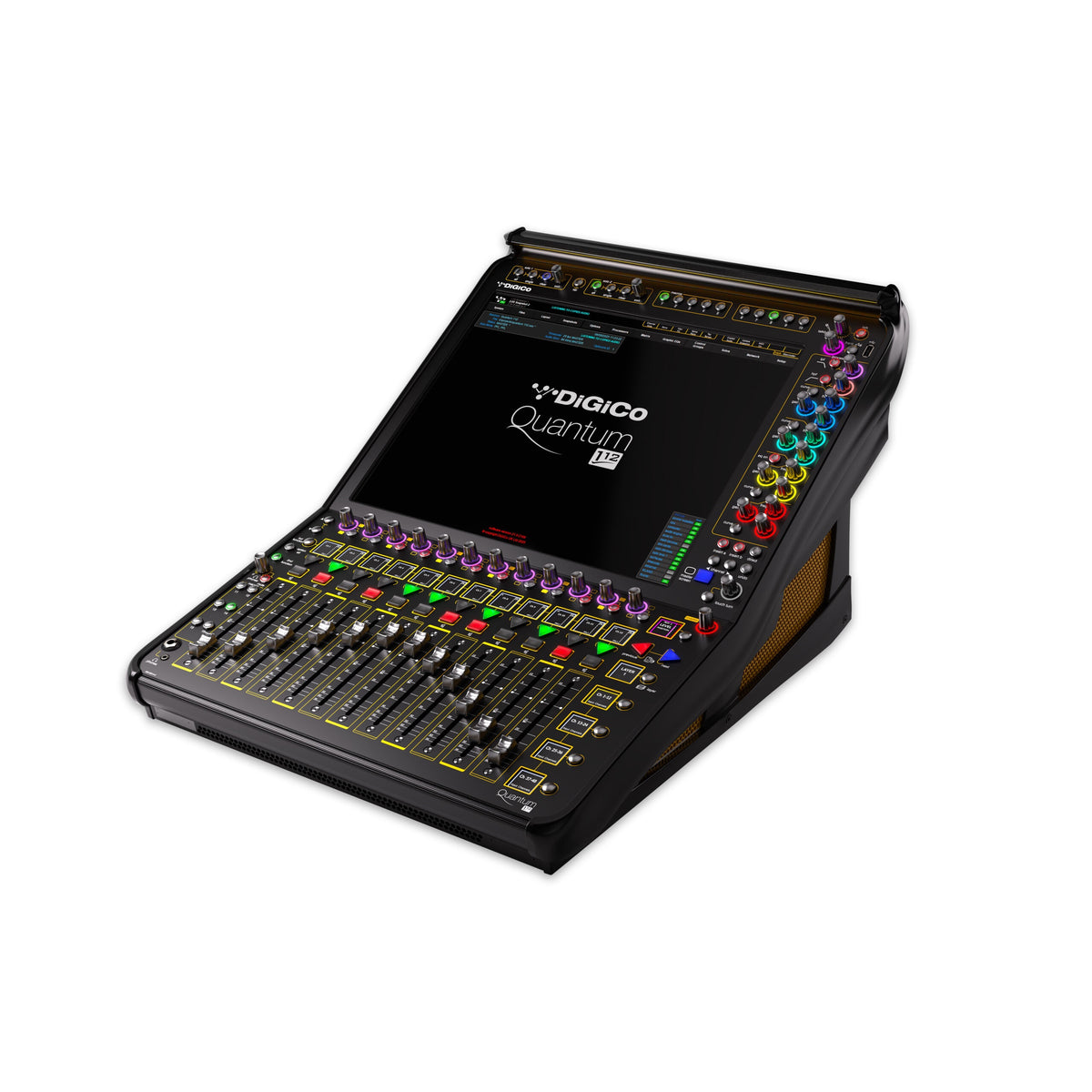

A 17-inch, 1000-nit high-brightness multitouch screen carries both the meterbridge and soft quick-select buttons. 18 individual TFT channel displays sit above twelve 100mm touch-sensitive faders, newly sourced for smooth movement and precise control.
Processing
80 input channels with full processing, 24 aux/sub-group busses, LR/LCR master busses and a 12 x 8 matrix, all fully processed. Twelve control groups and two solo busses are available. Quantum features carry over intact: 20 Mustard Processing channel strips, 6 Spice Rack native FPGA processing slots, 24 Nodal Processing instances, 12 graphic EQs and 8 FX rack slots.
I/O and Connectivity

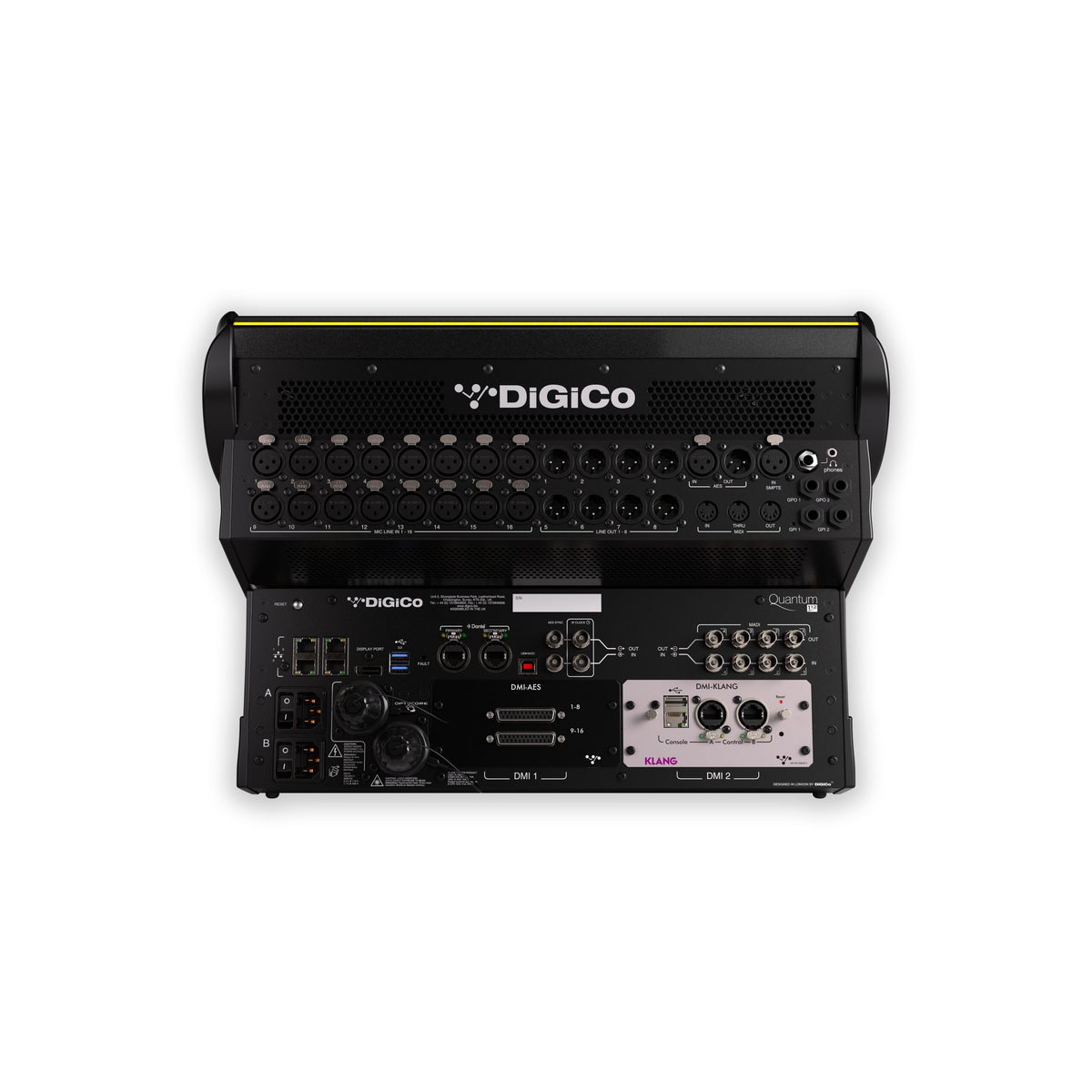

Dante is onboard as standard, 64 x 64 Primary and Secondary ports on Ethercon connectors. The rear panel carries 16 mic/line inputs and 8 line outputs, all using Stadius 32-bit preamps and DACs, plus 1 AES/EBU input and 1 AES/EBU output (2 channels each). Four sets of MADI I/O give up to 4 MADI interfaces, or up to 2 redundant interfaces at 48kHz, or 2 interfaces at 96kHz. Two DMI slots and a built-in UB MADI USB interface complete the picture, with optical connectivity available as an option.
Physical
The console weighs 14kg on its own and 23kg (50lbs) packed in its Pelican Air 1637 case.
Applications
Fly dates, promo shows, touring, corporate, house of worship, theatre and any production where transport weight and footprint are the constraint.
Key Specifications
- Input channels: 80 with full processing
- Busses: 24 aux/sub-group, LR/LCR master
- Matrix: 12 in x 8 out, full processing
- Faders: 12 x 100mm touch-sensitive
- Screen: 1 x 17-inch 1000-nit multitouch
- TFT displays: 18
- Control groups: 12
- Solo busses: 2
- Mustard Processing: 20 strips
- Spice Rack: 6 slots
- Nodal Processing: 24 instances
- Graphic EQ: 12
- FX rack slots: 8
- Dante: 64 x 64, Primary and Secondary Ethercon (onboard, standard)
- Local I/O: 16 mic/line in, 8 line out (Stadius 32-bit)
- AES/EBU: 1 in, 1 out (2 channels each)
- MADI: 4 sets I/O, up to 4 interfaces, 2 redundant at 48kHz, or 2 at 96kHz
- DMI slots: 2
- UB MADI: Built in (USB Type B)
- Optics: Optional
- Sample rate: 48kHz / 96kHz
- Weight: 14kg console, 23kg (50lbs) in Pelican Air 1637 case
