DiGiCo DQ-Rack Dante Stage I/O Rack
DiGiCo DQ-Rack Dante Stage I/O Rack
DiGiCo DQ-Rack Dante Stage I/O Rack

DiGiCo DQ-Rack Dante Stage I/O Rack

Brand: DiGiCo
Categories: Stage racks & I/O
SKU: DQ-RACK

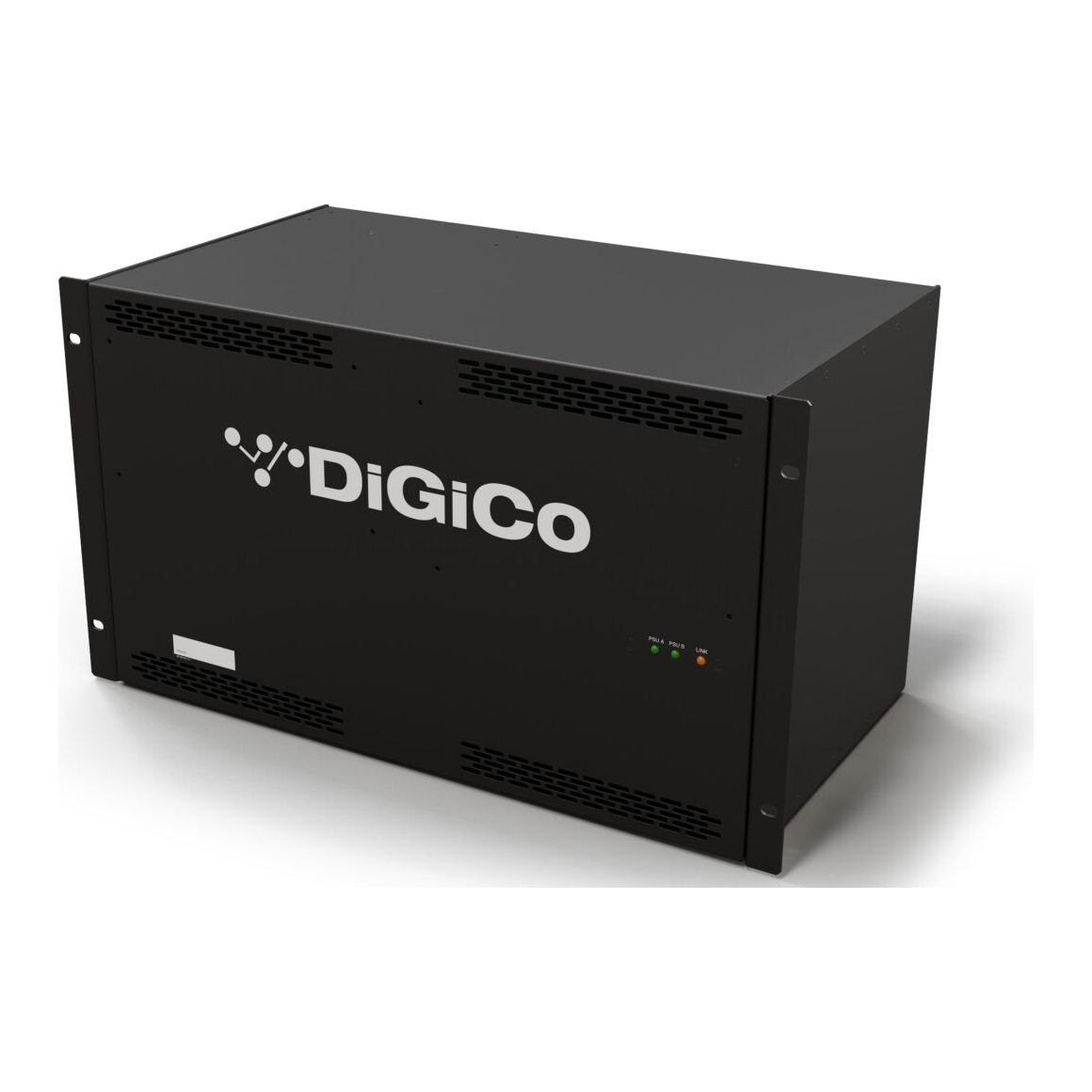

The DQ-Rack is a 6U Dante stage rack designed for DiGiCo’s Quantum consoles, with 48 mic/line inputs and 20 line outputs, expandable by up to four more line or eight AES outputs. Dual power supplies and two etherCON Dante ports provide redundant connection, and the rack ships with a 75m CAT5e cable for connection to the console or Dante network.

Pairs well with

Technical Specifications

Overview

The DQ-Rack is a 48-input stage rack with Dante connectivity, designed for DiGiCo's Quantum consoles.

I/O

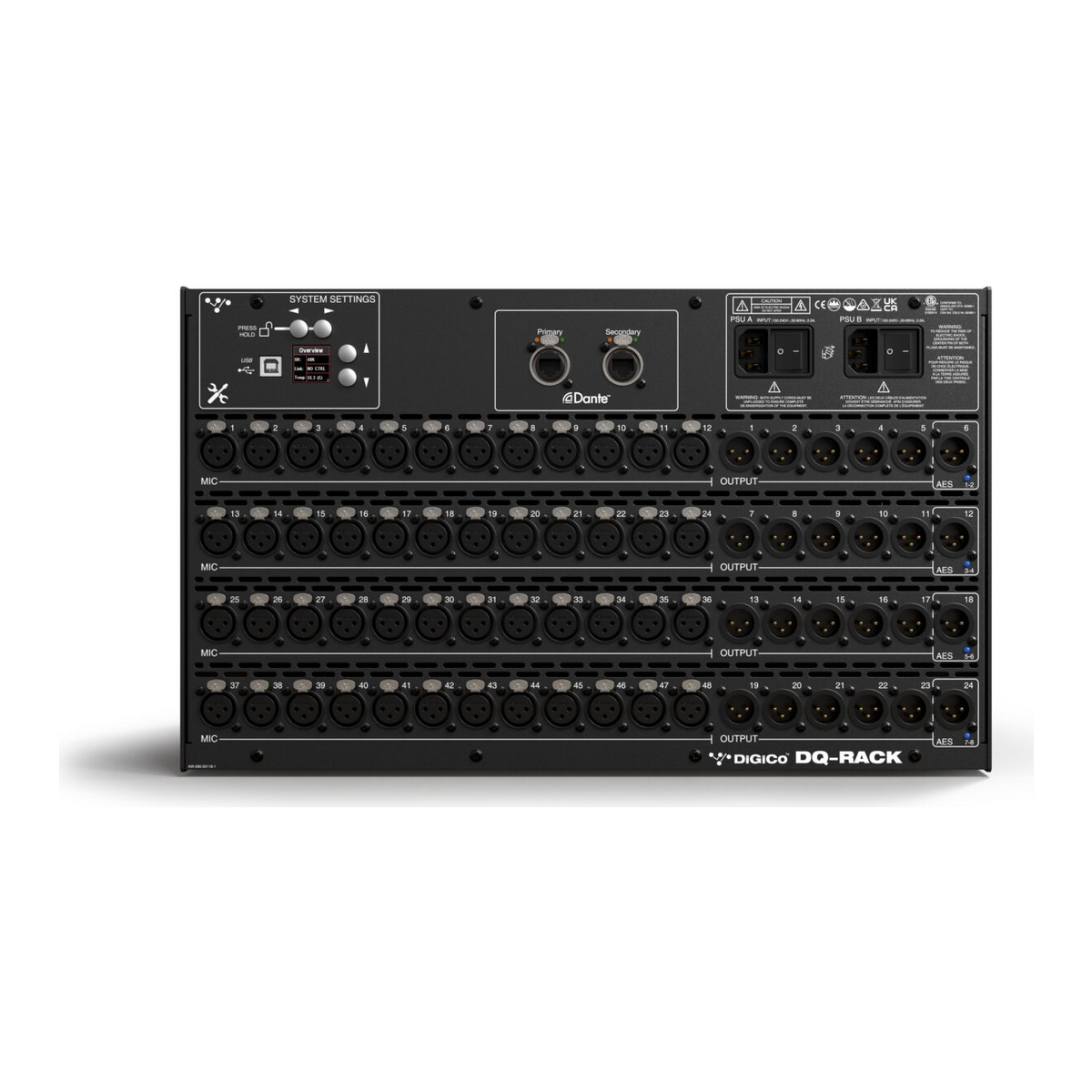

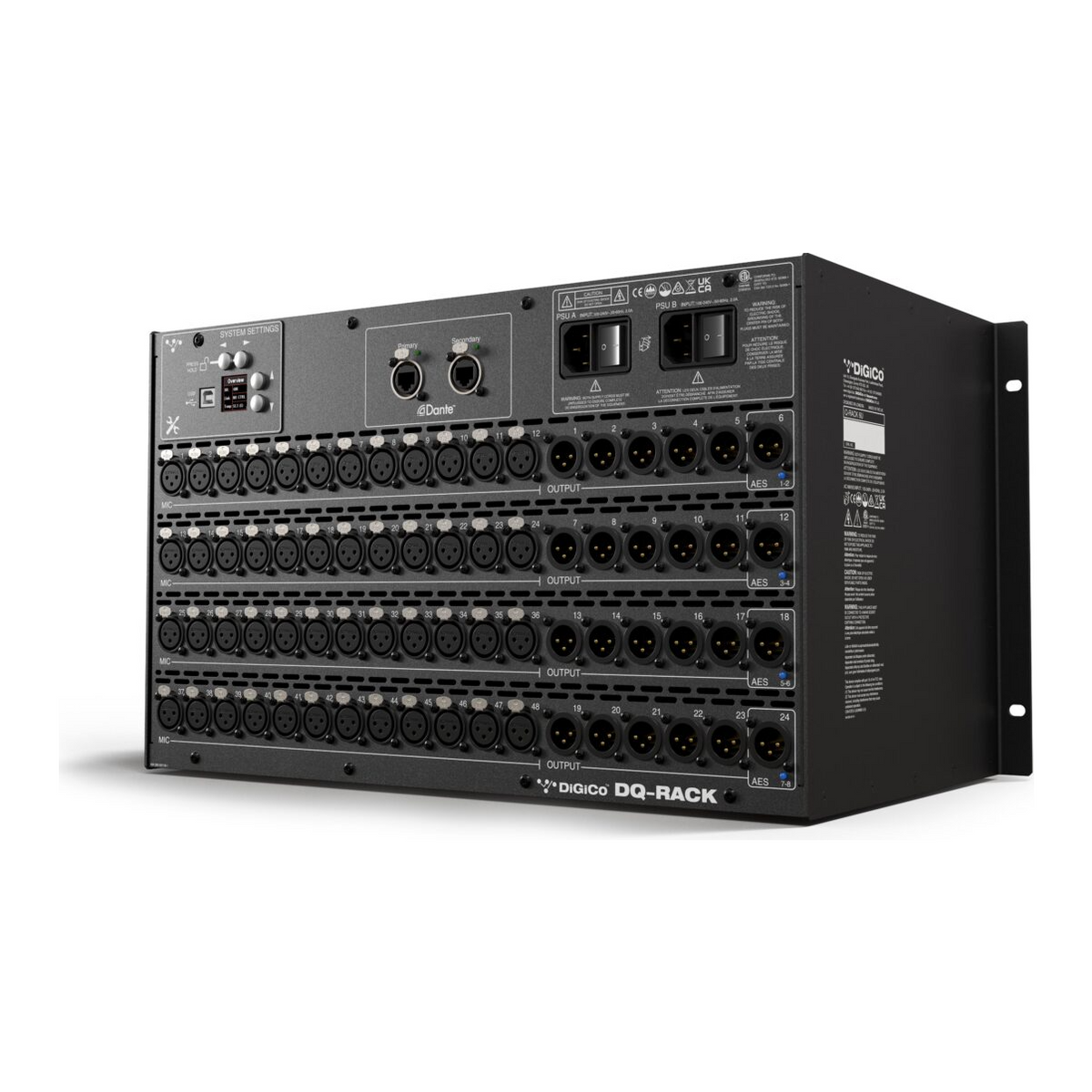

It provides 48 mic/line inputs and 20 line outputs, plus 4 switchable XLR outputs that can be used as analogue or AES outputs, for up to 8 AES mono outputs.

Connectivity and Power

Two etherCON Dante ports and dual power supplies provide redundancy. The rack ships with a 75m CAT5e cable.

Key Specifications

  • Inputs: 48 mic/line
  • Outputs: 20 line, plus up to 4 line or 8 AES (switchable)
  • Connectivity: 2 x etherCON Dante
  • Power: Dual PSU
  • Rack size: 6U
  • Supplied cable: 1 x 75m CAT5e
  • Dimensions: 483mm (W) x 266mm (H) x 253mm (D)
  • Weight: 11kg
Downloads
