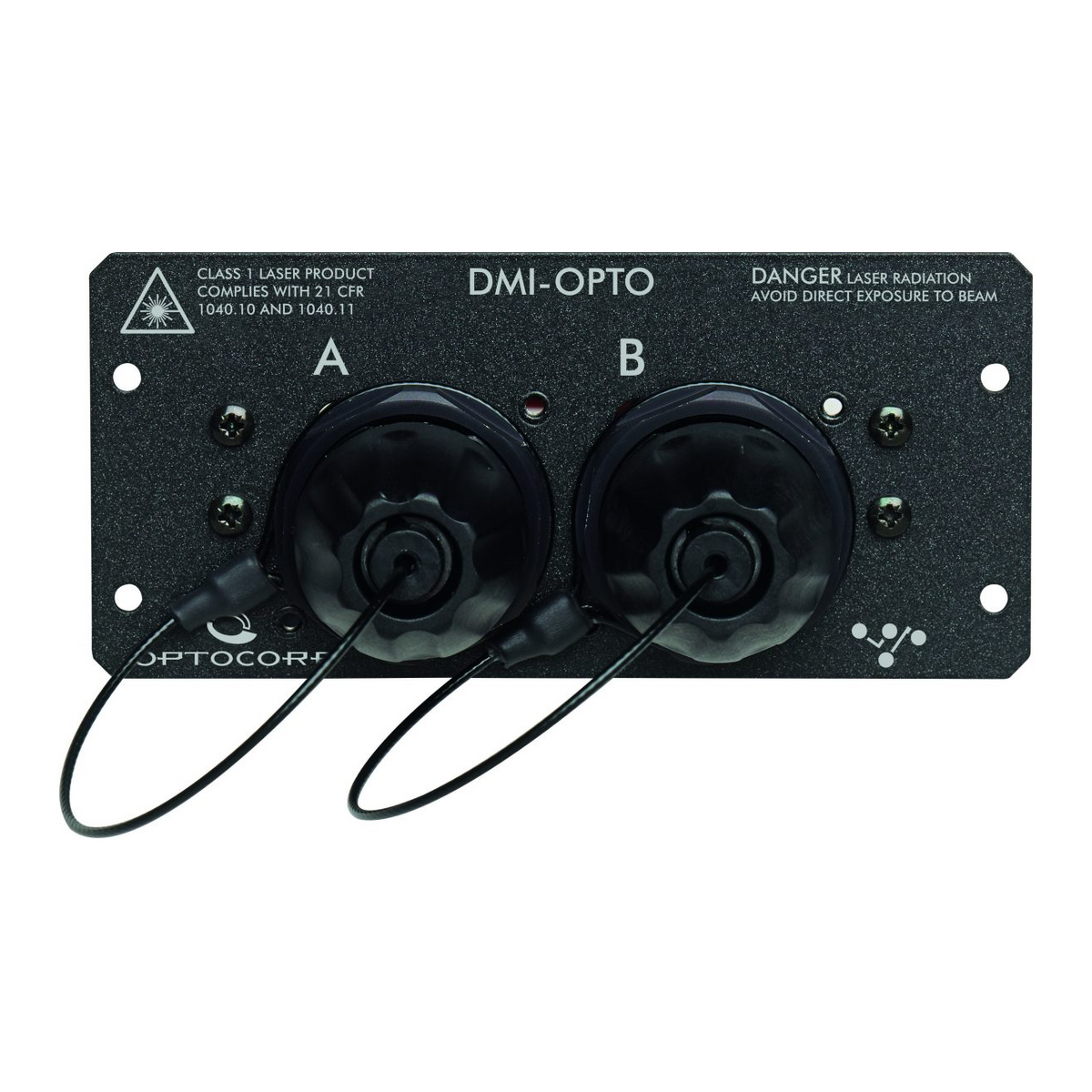

DiGiCo DMI-OPTO Optocore Interface Card

DiGiCo DMI-OPTO Optocore Interface Card

Brand: DiGiCo
Categories: Console software & cards
SKU: DMI-OPTO

The DMI-OPTO card adds an Optocore fibre connection to the DiGiCo Orange Box or 4REA4, carrying up to 128 channels at 48kHz or 64 at 96kHz. It lets an Orange Box join an Optocore loop and convert to any other DMI format, and with the SD/4REA4 integration it allows an SD console to control I/O connected to the 4REA4. This version uses rugged HMA expanded-beam multimode connectors, easy to clean and well suited to touring.

Available

Pairs well with

Technical Specifications

Overview

The DMI-OPTO card adds Optocore fibre to the DiGiCo Orange Box or 4REA4, letting them join an Optocore loop and interface with another DMI card.

Compatibility

Compatible with the Orange Box and 4REA4 only. With the SD/4REA4 integration, it allows an SD console to control I/O connected to the 4REA4.

This Version

This listing is the HMA (multimode) version, SKU DMI-OPTO.

Key Specifications

  • Channels: Up to 128 I/O at 48kHz / 64 I/O at 96kHz
  • Connector: HMA expanded beam (multimode)
  • Fibre speed: 1G or 2G
  • Format: DMI card
  • Compatible with: Orange Box, 4REA4
