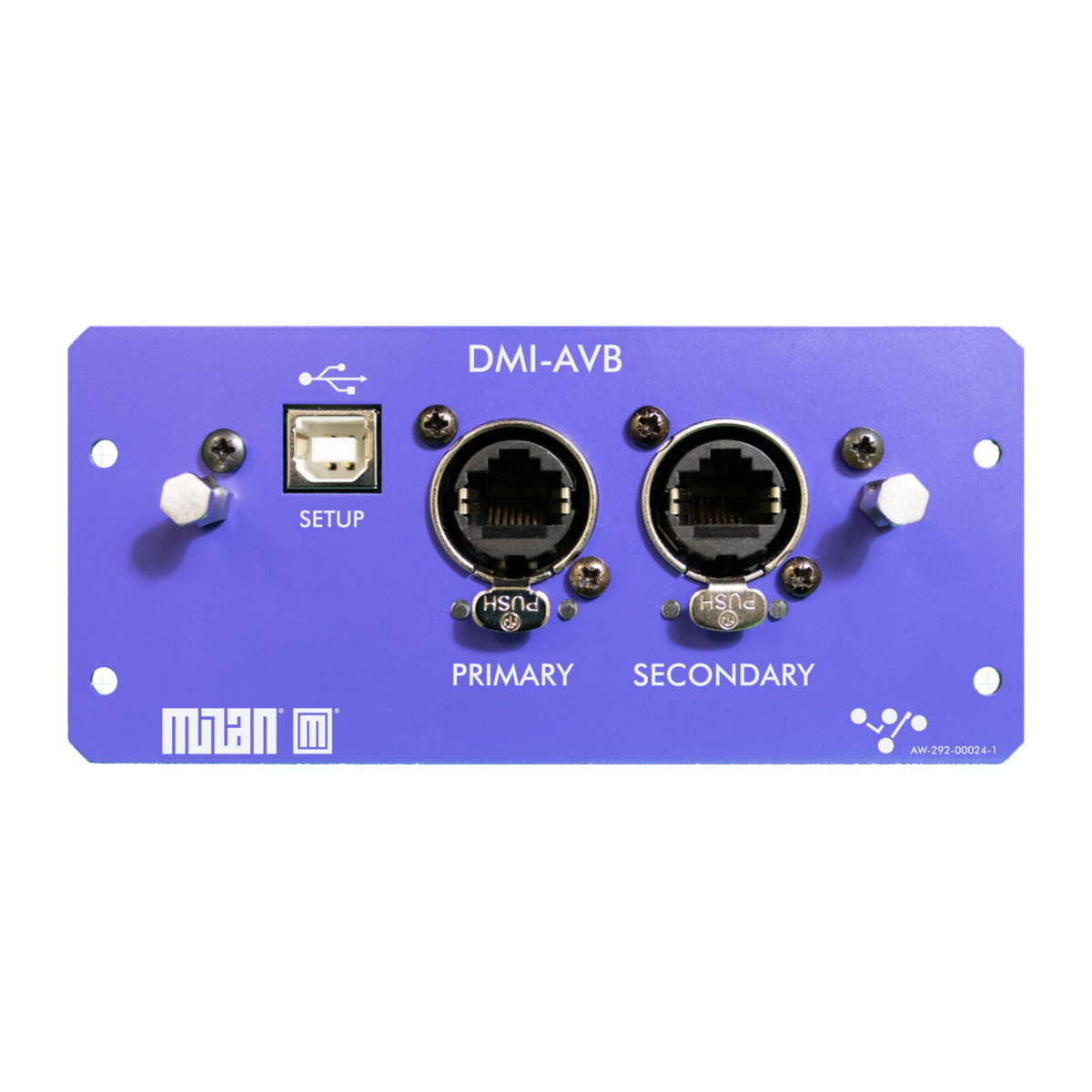

DiGiCo DMI-AVB Interface Card
DiGiCo DMI-AVB Interface Card

DiGiCo DMI-AVB Interface Card

Brand: DiGiCo
Categories: Console software & cards
SKU: DMI-AVB

The DMI-AVB card brings Milan-certified AVB networking to any DiGiCo console with a DMI (DiGiCo Multichannel Interface) slot. Milan is a deterministic, standards-based control layer built on AVB, giving the console guaranteed plug-and-play interoperability with amplifiers, loudspeakers, and other Milan-certified gear sharing the same network. The card carries 64 input and 64 output channels at both 48kHz and 96kHz.

Pairs well with

Technical Specifications

Network Audio

The 64 input and 64 output channels are delivered as eight streams of eight channels each. Unlike Dante-based DMI cards, DMI-AVB holds this full 64x64 channel count at both 48kHz and 96kHz rather than reducing channel count at the higher sample rate. A USB-B port is provided for firmware updates.

Redundancy

Two EtherCON ports can be configured in redundant mode for mission-critical installs, or in bridged (switched) mode for simpler point-to-point setups.

Compatibility

Fits any DiGiCo console with a free DMI slot across the Quantum range, plus the SD12. Other SD-Range and S-Series consoles can join a Milan/AVB network via DiGiCo's outboard Orange Box interface.

Applications

Live and installed sound projects standardised on Milan/AVB networking, particularly systems built around Milan-certified loudspeakers and amplifiers.

Key Specifications

  • Channels @ 48kHz: 64 in / 64 out
  • Channels @ 96kHz: 64 in / 64 out
  • Connectors: 2 x EtherCON (redundant or bridged mode), 1 x USB-B (firmware updates)
  • Redundancy: Supported via redundant EtherCON mode
  • Certification: Milan Certified (AVB)
  • Compatibility: Quantum range, SD12; other consoles via Orange Box
  • Format: DMI card, fits any DiGiCo console with a free DMI slot
