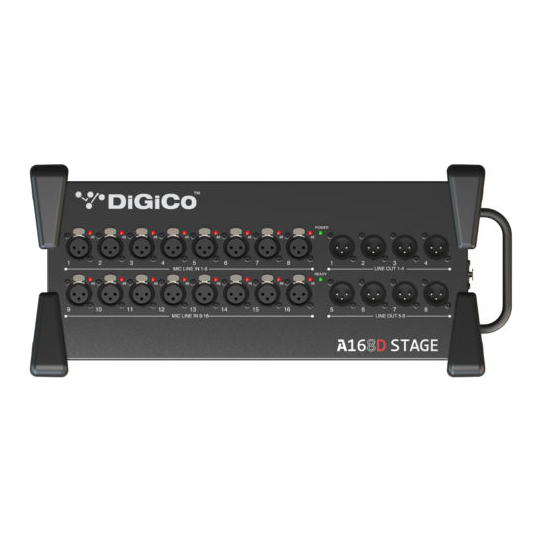

DiGiCo A168D Dante Stage Box

DiGiCo A168D Dante Stage Box

Brand: DiGiCo
Categories: Stage racks & I/O
SKU: A-168D

The A168D is a compact Dante stage box with 16 mic/line inputs and 8 line outputs in a deployable chassis. Two Dante RJ45 ports connect it to any Dante network, making it a practical way to add extra inputs on stage, at a drum riser or in a breakout room alongside a DiGiCo console or other Dante system. An optional 4U rack kit is available.

Pairs well with

Technical Specifications

Overview

The A168D is a deployable Dante stage box with 16 mic/line inputs and 8 line outputs.

Connectivity

Two Dante RJ45 ports connect it to a Dante network. A 4U rackmount kit (A-168-19RK) is available separately.

Key Specifications

  • Inputs: 16 mic/line
  • Outputs: 8 line
  • Connectivity: 2 x Dante RJ45
  • Power: 1 PSU
  • Dimensions: 391mm (W) x 194mm (D) x 183mm (H)
