Amplification and Power
GlidePath DC-couples the DSP and amplifier stages to cut distortion and time offset compared to conventional AC-coupled designs. True Cone Excursion management shapes high-transient output to protect connected loudspeakers from mechanical wear over time. The amplifier drives low-impedance loads or 70V/100V constant-voltage lines directly, and four analogue inputs are available as fallback sources if the network connection drops.
Networking and Control
A 96kHz-capable 16x16 Dante card is fitted as standard, with primary/secondary ports for switched or redundant network topologies and AES67 support for interoperability with other standards-based audio networks. Since the CP716D shares that Dante backbone, it can sit on the same network as other Dante/AES67 equipment we supply, including DiGiCo consoles, KLANG processors, DirectOut converters, and Sound Devices Astral wireless receivers, without extra conversion hardware. Setup and monitoring run through APEX's browser-based IntelliCloud WebUI, reachable over the amplifier's built-in WiFi hotspot or a wired LAN connection, with cloud access for remote site management.
DSP and Processing
A 64-bit fixed-point DSP engine handles a flexible I/O routing matrix, per-channel and per-group gain/delay/polarity, 12-band parametric EQ (16 filter types) at the user, group, and speaker-preset stages, HP/LP crossover filters (Bessel, Butterworth, Linkwitz-Riley, 6-48 dB/oct), 768-tap FIR filtering per channel, and peak/RMS limiting.
Applications
Suited to stadiums and sports venues, immersive theatre and museum installs, large houses of worship, and any multi-zone project that benefits from consolidating many amplifier channels and Dante I/O into a single rack space.
Key Specifications
- Channels: 16 x 700W, all channels driven
- Amplifier Topology: Class-D, GlidePath direct-drive, DC-coupled DSP/amp integration
- Impedance Modes: 2/4/8/16 ohm low-impedance direct drive, Hi-Z 70V/100V constant voltage
- Dante: 16x16 integral module, 48/96 kHz, switched or redundant primary/secondary ports, AES67 support

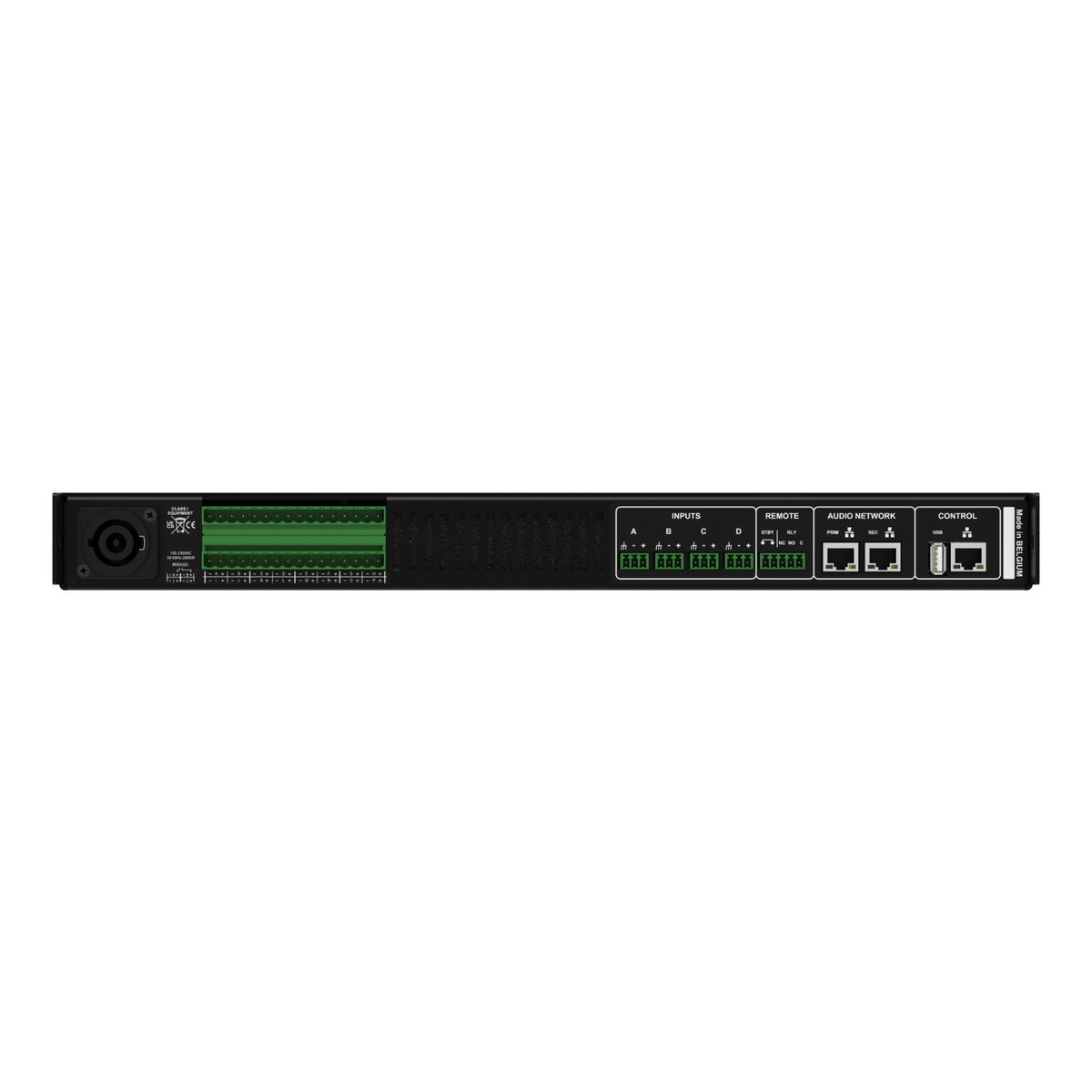

- Analogue Inputs: 4 balanced line inputs (3-pin Phoenix), 32-bit A/D, configurable as fallback sources
- Internal Streaming: 2-channel source supporting Spotify and AirPlay
- DSP: 64-bit fixed point; flexible I/O routing matrix; 12x PEQ per channel (16 filter types); HP/LP Bessel, Butterworth, Linkwitz-Riley 6-48 dB/oct; 768-tap FIR per channel; peak/RMS limiting
- Control: IntelliCloud WebUI (browser-based), built-in WiFi hotspot, wired LAN Ethernet, cloud remote management
- Latency: 1 ms
- Power Supply: Universal 100-240V AC, active PFC, Powercon 32A inlet
- Dimensions: 483 x 44.5 x 415 mm (1U, 19-inch rack)
- Weight: 10 kg (22 lbs)
